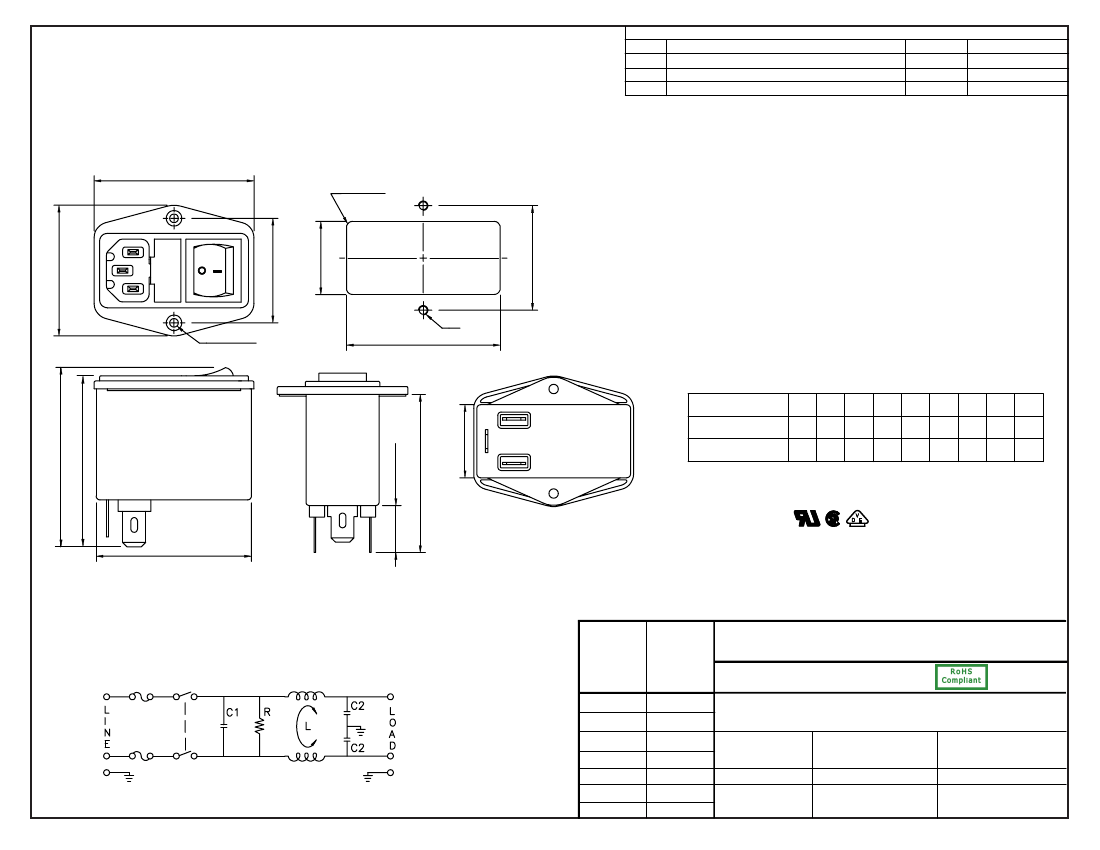

1. PHYSICAL DIMENSIONS
65.7REF.
REVISION
REV.
B
DESCRIPTION
RoHS Compliancy
DATE
06-01-06
APPROVED
DP
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................115/250VAC
1-2.
CURRENT RATING
A. @ 115 VAC..........................................6 A RMS MAX
B. @ 250 VAC.........................................6 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
/
/
.05
2
2
.10
5
5
.15
8
8
.50
15
15
1.0
20
15
5.0
33
30
10
40
35
30
25
35
R2.5MAX.
1-3.
50.7MAX.
40.0 ± 0.5
29.5 ± 0.5
40.0 ± 0.1
1-4.
1-5.
Ø3.3 ± 0.2
M3
60.0 ± 1.0
1-6.
FREQ. MHz
28.7MAX.
66.0MAX.
62.5MAX.
COM. MODE dB
DIF. MODE dB
14.5 ± 1.0
56.0MAX.
1-7.
1-8.
OPERATING TEMPERATURE.................-25° TO +85° C
SAFETY:
USE 5X20mm FUSE
RoHS COMPLIANT
59.5MAX.
1-9.
1-10.
2. ELECTRICAL SCHEMATIC
Dim
range
(mm)
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
PPC DIVISION
880-06/003
EMI FILTER
UNIT: mm
L:
C1:
C2:
R:
0.45mH
0.22uF
2200pF
1.0MΩ
0-1
1-6
6-18
18-50
50-120
120-250
250-500
REV. B
Approved / Date
JJH / 03-18-04
Drawn / Date
B.ZHANG
03-18-04
Checked / Date
03-18-04
