821997-4 datasheet, PDF - EEWORLD Datasheet

821997-4: DescriptionSIMM/DIMM SOCKET,80 CONTACTS,1; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

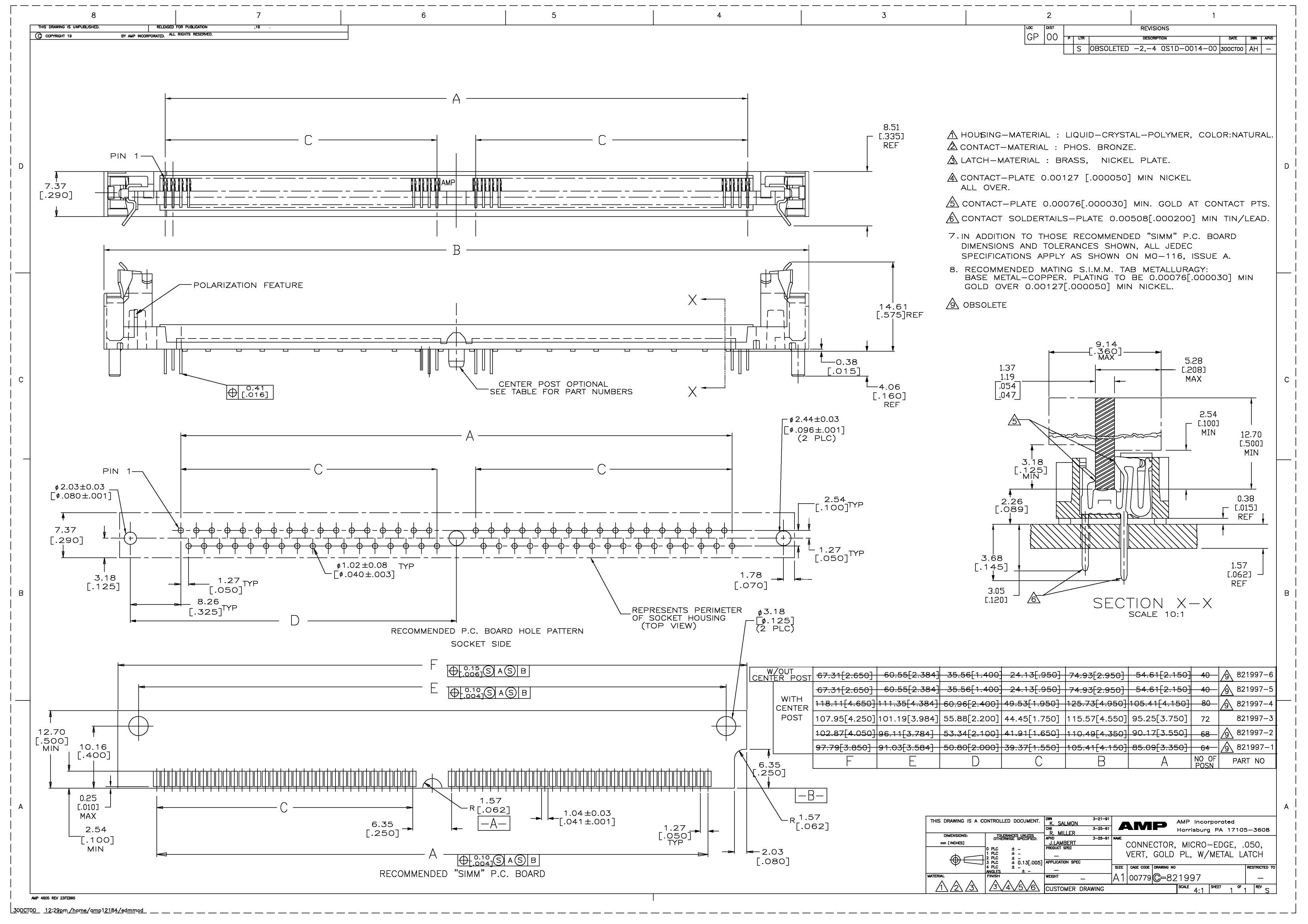

821997-4 Overview

SIMM/DIMM SOCKET,80 CONTACTS,1

Parameter Name	Attribute value
Objectid	302499495
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	REVERSE POLARIZATION
Board mount options	POLARIZATION POST
body width	0.29 inch
subject depth	0.5 inch
body length	4.94 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
maximum insertion force	LIF N
Insulation resistance	10000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	821997
Plug contact pitch	0.05 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	0.1 mm
Plating thickness	30u inch
polarization key	CENTER
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80

	821997-4	821997-2	821997-1	821997-5	821997-6
Description	SIMM/DIMM SOCKET,80 CONTACTS,1	CONNECTOR, 68 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 64 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	40 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, SOCKET	CONNECTOR, 40 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, SOCKET
Objectid	302499495	1482882888	1482882879	1482882882	1482882885
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	REVERSE POLARIZATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION
Body/casing type	RECEPTACLE	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	80	68	64	40	40
Manufacturer's serial number	821997	821997	821997	-	-
Contact point gender	-	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	-	NO	NO	NO	NO
Filter function	-	NO	NO	NO	NO
IEC compliance	-	NO	NO	NO	NO
MIL compliance	-	NO	NO	NO	NO
Mixed contacts	-	NO	NO	NO	NO
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
