M60028KFCK05.0000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> M60028KFCK05.0000MHZ

M60028KFCK05.0000MHZ: DescriptionCMOS Output Clock Oscillator, 5MHz Nom,; CategoryPassive components oscillator; File Size461KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M60028KFCK05.0000MHZ Overview

CMOS Output Clock Oscillator, 5MHz Nom,

M60028KFCK05.0000MHZ Parametric

Parameter Name	Attribute value
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
Ageing	1 PPM/FIRST YEAR
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	2%
Installation features	SURFACE MOUNT
Nominal operating frequency	5 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	15 pF
physical size	14.48mm x 9.27mm x 6.6mm
longest rise time	3 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %

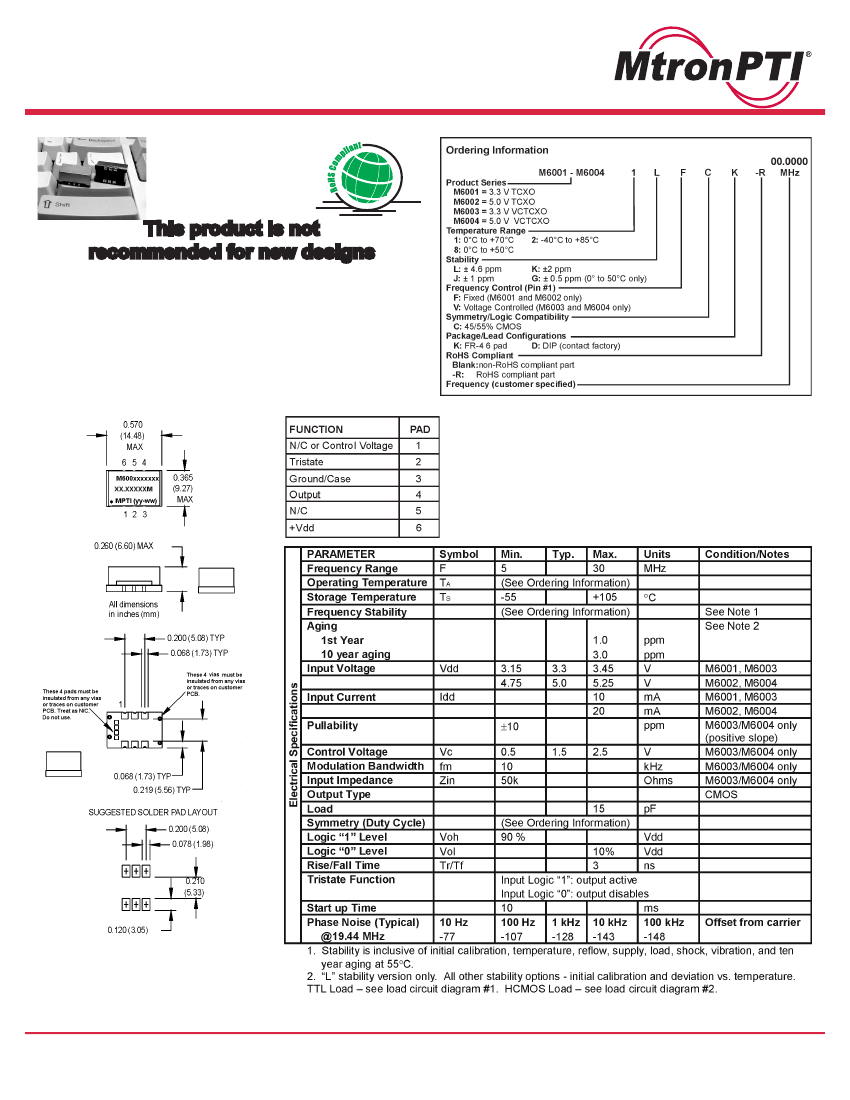

Preview

Download Datasheet

View All

M6001, M6002, M6003 & M6004 Series

9x14 mm FR-4, 5.0 or 3.3 Volt, HCMOS/TTL, TCXO and TCVCXO

9x14 mm FR-4, 5.0 or 3.3 Volt, HCMOS/TTL, TCXO and VCTCXO

Features:

recommended

ppm

•

Operating stabilities to ± 0.5

for new designs

Features:

III stability of ± 4.6 ppm (non-holdover)

•

Stratum

• Operating stabilities to ± 0.5 ppm

Applications:

• Stratum III stability of ± 4.6 ppm (non-holdover)

•

Ideal for Signal Processing, Military/Avionic Communications,

Applications:

Flight Controls, WLAN, Basestations, DWDNM, SERDES,

• Ideal for Signal

10G and 40G Ethernet applications

SONET/SDH,

Processing, Military/Avionic Communications,

Flight Controls, WLAN, Basestations, DWDNM, SERDES,

SONET/SDH, 10G and 40G Ethernet applications

This product is not

Pin Connections

M6001Sxxx, M6002Sxxx, M6003Sxxx &

M6004Sxx - Contact factory for datasheets.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Revision: 11-15-10

Revision: 4-26-06
