Features
■
■
■
■
■
24Q
CTF M
6
V02
022
Applications
■
■
■
Lead free versions available
RoHS compliant (lead free version)*
18 RC terminators tied to a common
node
Stable thin-film-on-silicon technology
Ultra-miniature packages to JEDEC
standards
High-speed bus termination
Low power consumption
Ideal for space-constrained applications
*R

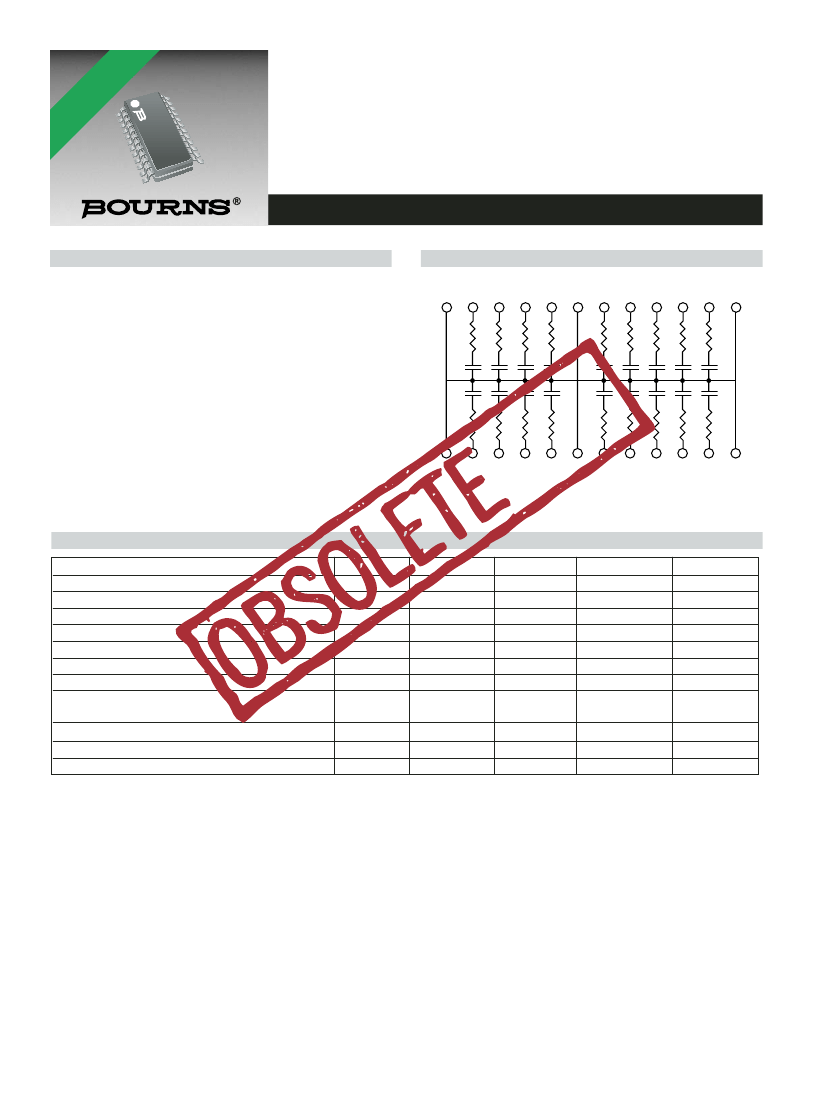

Thin Film on Silicon 2CTF AC Terminator x18
General Information
Package Schematic
The AC Terminator is used to provide termination for clock
and data lines where transmission line effects would
otherwise cause wave reflections or signal ringing. These
Silicon-based, Tantalum-Nitride resistors and capacitors
feature excellent stability, temperature coefficients and
tracking performance. This product series conforms to
JEDEC standards.
24
23
22
21
20
19
18
17
16
15
14
13
1
2
3
4
5
6
7
8
9
10
11
12
Electrical & Environmental Characteristics
Electrical Characteristics
Resistance Range
Resistor Tolerance
Power Rating per Resistor @ 70 °C
Capacitor Range
Capacitor Tolerance
Capacitor Breakdown Voltage
Operating Voltage
Symbol
R
Minimum
33
Nominal
±10 %
Maximum
190
0.1
180
Unit
Ω
Ω
Watt
pF
pF
V
V
V
C
33
±20 %
200
50
2K
TJ
Tstg
-55
-65
+125
+150
1.0
Environmental Characteristics
ESD
Operating Temperature
Storage Temperature
Power Rating per Package @ 70 °C
°C
°C
Watt
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Thin Film on Silicon 2CTF AC Terminator x18

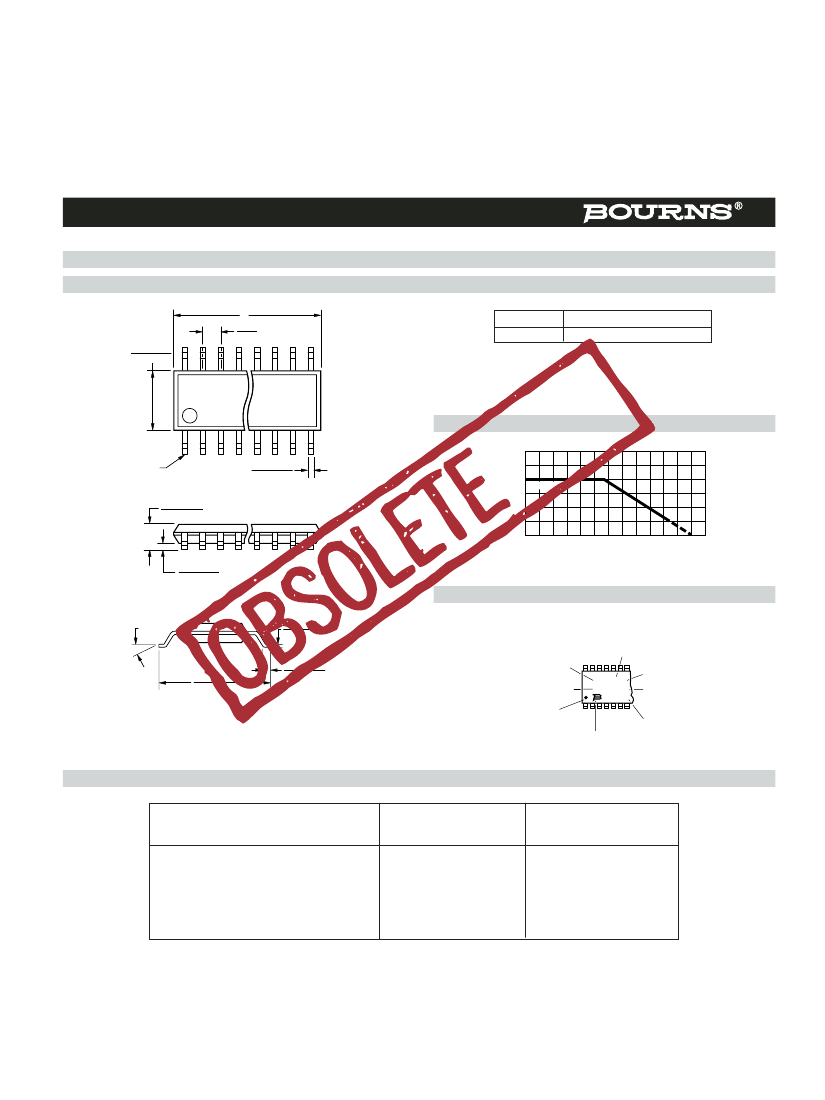

Mechanical Characteristics
QSOP Package Dimensions
A
.635
TYP.
(.025)
3.81 - 3.99
(.150 - .157)
Model
2QSP24
A
8.56 - 8.74 (.337 - .344)
Governing dimensions are in mm. Dimensions in
parentheses are in inches and are approximate.
JEDEC Reference Number MO-137.
QSOP Package Power Temperature Derating Curve
PIN 1
.21 - .31
(.008 - .012)
1.35 - 1.75
(.053 - .069)
1.25
WATTS
1.0
.75
.50
.25
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (
°
C )
2QSP24
.10 - .25
(.004 - .010)
Typical Part Marking
0-8
°
.19 - .25
(.007 - .010)
Represents total content. Layout may vary.
PRODUCT
FUNCTION
RESISTANCE CODE/
CAPACITANCE CODE
PIN 1 INDICATOR
(MOLDED INDENT)
MANUFACTURER'S
TRADEMARK
PIN COUNT
CTF24Q
V02M
YYWW
PACKAGE
STYLE
GRADE
5.80 - 6.20
(.228 - .244)
.41 - 1.27
(.016 - .050)
DATE CODE
Standard RC Values
R
Value
(ohms)
33
47
47
50
75
100
C
Value
(pF)
47
47
33
180
50
100
Cap.
BV
(typ.)
130
130
190
35
120
63
Value
Code
V01
V02
V03
V04
V05
V06
Part Number
(Tape & Reel)
2CTF-V01M-Q24R
2CTF-V02M-Q24R
2CTF-V03M-Q24R
2CTF-V04M-Q24R
2CTF-V05M-Q24R
2CTF-V06M-Q24R
Part Number
(Tubes)
2CTF-V01M-Q24T
2CTF-V02M-Q24T
2CTF-V03M-Q24T
2CTF-V04M-Q24T
2CTF-V05M-Q24T
2CTF-V06M-Q24T
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Thin Film on Silicon 2CTF AC Terminator x18

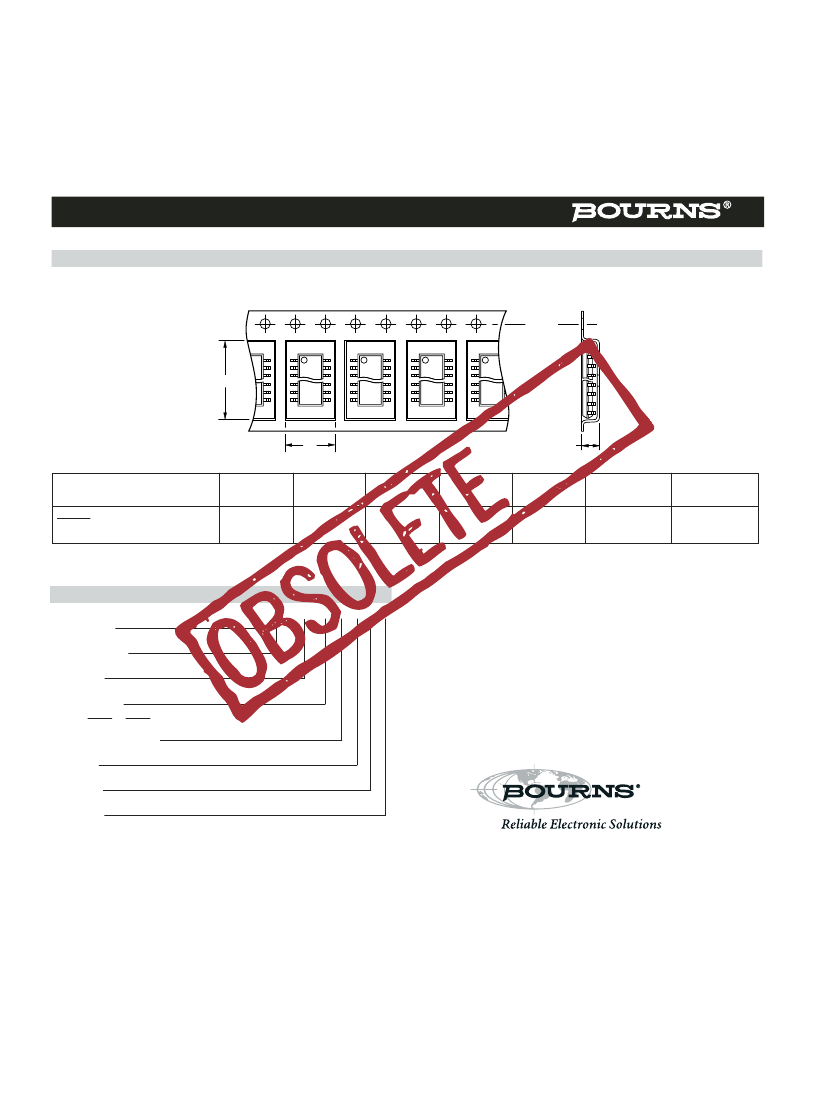

Dispensing
For large quantities, the product will be dispensed in Tape and Reel (see diagram below).
A0
DIMENSIONS = MM (INCHES)
B0
K0
Package
QSOP
24 Pin
A0
6.5 (0.256)
B0
9.0 (0.354)
K0
2.1 (0.083)
Width
16 (0.630)
Pitch
8 (0.315)
No. of Pieces No. of Pieces
per 13 reel
per tube
3,500
56
How To Order
2 CTF-V02 M-Q 24 R __
Product Class
Thin-Film-on-Silicon
Product Function
CTF = AC Terminator
Value Code
(Refer to Standard RC Value Table)
Standard Grade
R Tol. C Tol.
M = ±10 % ±20 %
Standard Package Style
Q = QSOP
Pin Count
Q = 24
Dispensing
R = Reel
T = Tube
Terminations
LF = 100 % Sn (lead free)
Blank = Sn/Pb
Asia-Pacific:
Tel: +886-2 2562-4117 • Fax: +886-2 2562-4116
Europe:
Tel: +41-41 768 5555 • Fax: +41-41 768 5510
The Americas:
Tel: +1-951 781-5500 • Fax: +1-951 781-5700
www.bourns.com
REV. 02/06
COPYRIGHT© 2003, BOURNS, INC. LITHO IN U.S.A. REV. 5/03 e/IPA0301
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
