FHUWDLQ IUHTXHQFLHV E\ FKRRVLQJ D 9 EHWZHHQ 9 WR 9
7\SLFDO ,3 DW 9 9 9F 9

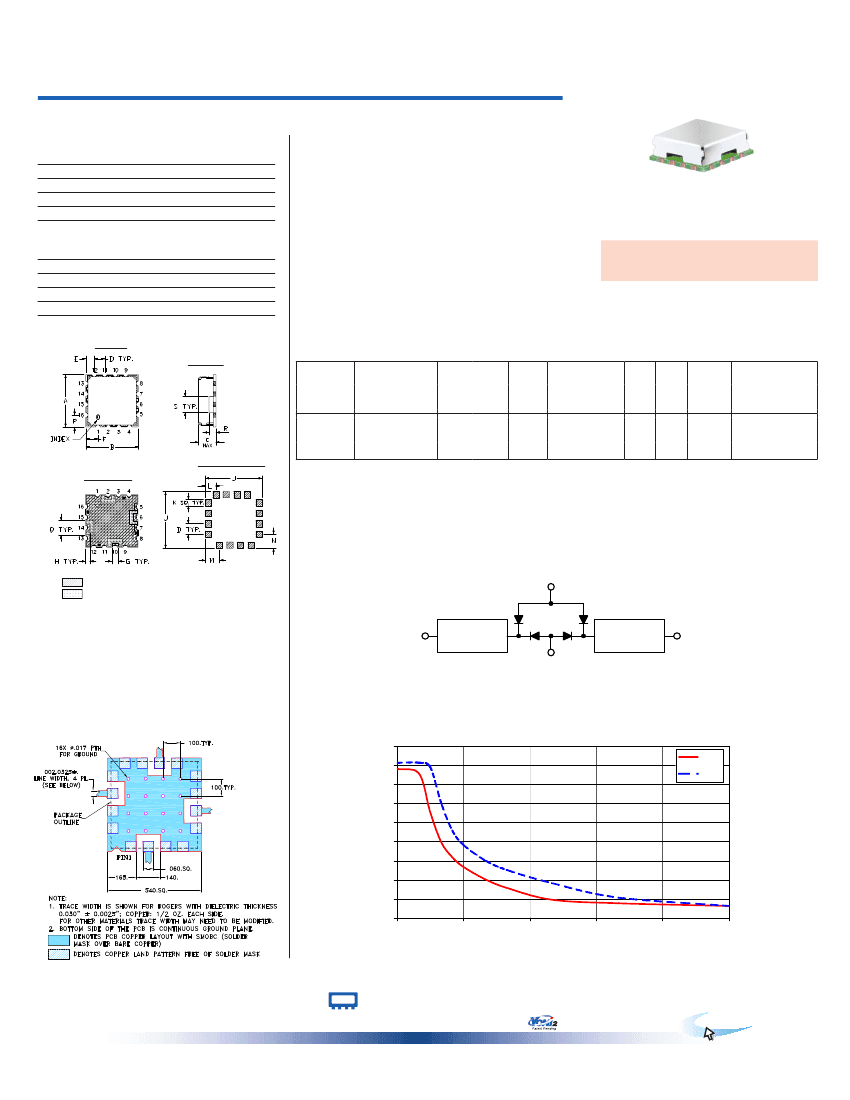

Equivalent Schematic
0(7$//,=$7,21
62/'(5 5(6,67
Suggested Layout,
Tolerance to be within ±.002
V+
1WVNKPG &KOGPUKQPU
inch
PP
$
%
&
'
(
)
*
+
-
.500 .500 .195 .100 .080 .115 .060 .040 .540
.
/
0
1
3
4
5
6
ZW
.060 .100 .135 .135 .115 .140 .070 .150 grams
RF
MATCHING
IN
V CONTROL
MATCHING
RF
OUT
Demo Board MCL P/N: TB-522+
Suggested PCB Layout (PL-303)
45
RVA-2500-75+
TYPICAL ATTENUATION AT 1000 MHz
V+=3V
40
V+=5V
ATTENUATION (dB)
35
30
25
20
15
10
5
0
0
3
6
9
12
15
CONTROL VOLTAGE (V)
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
TM
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
5(9 25
0
('5
8
59$
85- 5$9
3DJH
RI

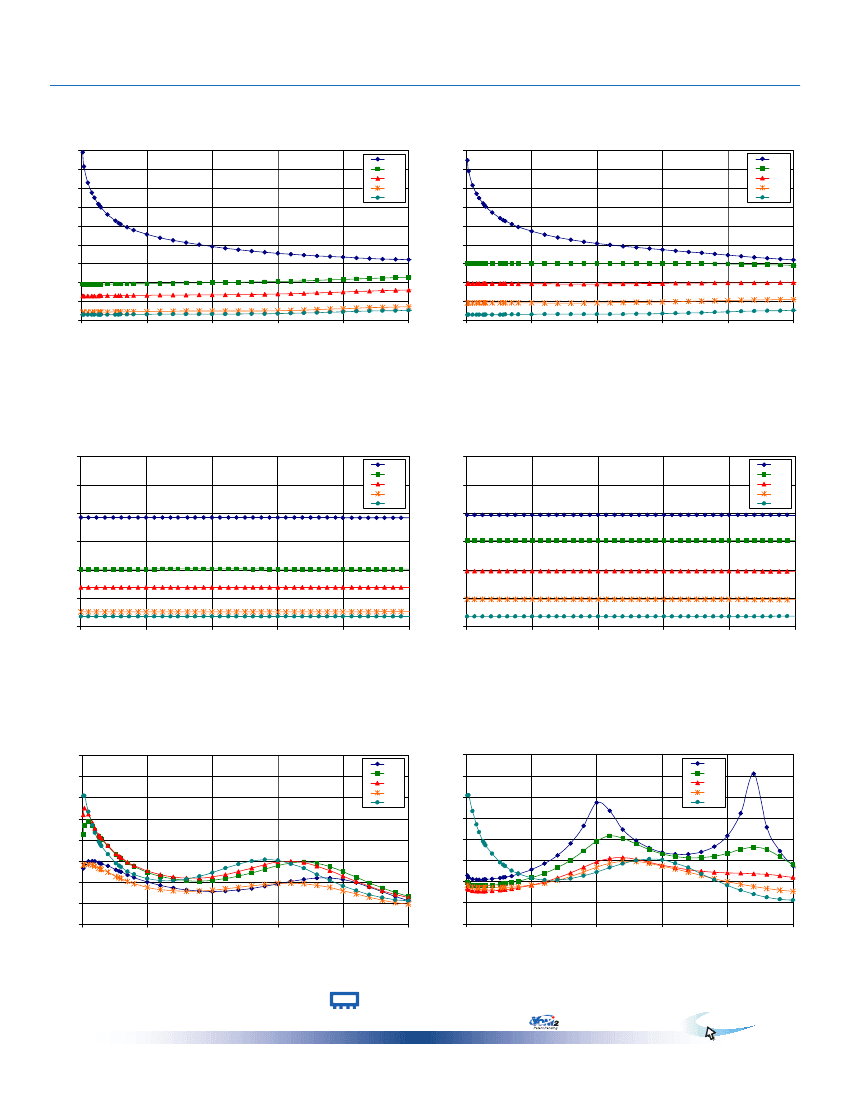

Performance Charts
RVA-2500-75+
ATTENUATION Vs. FREQUENCY
OVER CONTROL VOLTAGES @ V+=3V
0V
2V
3V
7V
15V
RVA-2500-75+
RVA-2500-75+
ATTENUATION Vs. FREQUENCY
OVER CONTROL VOLTAGES @ V+=5V
0V
2V
3V
7V
15V
ATTENUATION (dB)
ATTENUATION (dB)
FREQUENCY (MHz)
FREQUENCY (MHz)
RVA-2500-75+
ATTENUATION Vs. INPUT POWER
OVER CONTROL VOLTAGES AT 1000 MHz @ V+=3V
0V
2V
3V
7V
15V
RVA-2500-75+
ATTENUATION Vs. INPUT POWER
OVER CONTROL VOLTAGES AT 1000 MHz @ V+=5V
0V
2V
3V
7V
15V
ATTENUATION (dB)
INPUT POWER (dBm)
ATTENUATION (dB)
INPUT POWER (dBm)
RVA-2500-75+
INPUT RETURN LOSS Vs. FREQUENCY
OVER CONTROL VOLTAGES @ V+=3V
0V
2V
3V
7V
15V
RVA-2500-75+
INPUT RETURN LOSS Vs. FREQUENCY
OVER CONTROL VOLTAGES @ V+=5V
0V
2V
3V
7V
15V
RETURN LOSS (dB)
RETURN LOSS (dB)
FREQUENCY (MHz)
FREQUENCY (MHz)
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
TM
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
3DJH
RI
Performance Charts
RVA-2500-75+
OUTPUT RETURN LOSS Vs. FREQUENCY
OVER CONTROL VOLTAGES @ V+=3V
0V
2V
3V
7V
15V
RVA-2500-75+
RVA-2500-75+
OUTPUT RETURN LOSS Vs. FREQUENCY
OVER CONTROL VOLTAGES @ V+=5V
0V
2V
3V
7V
15V
RETURN LOSS (dB)
RETURN LOSS (dB)
FREQUENCY (MHz)
FREQUENCY (MHz)

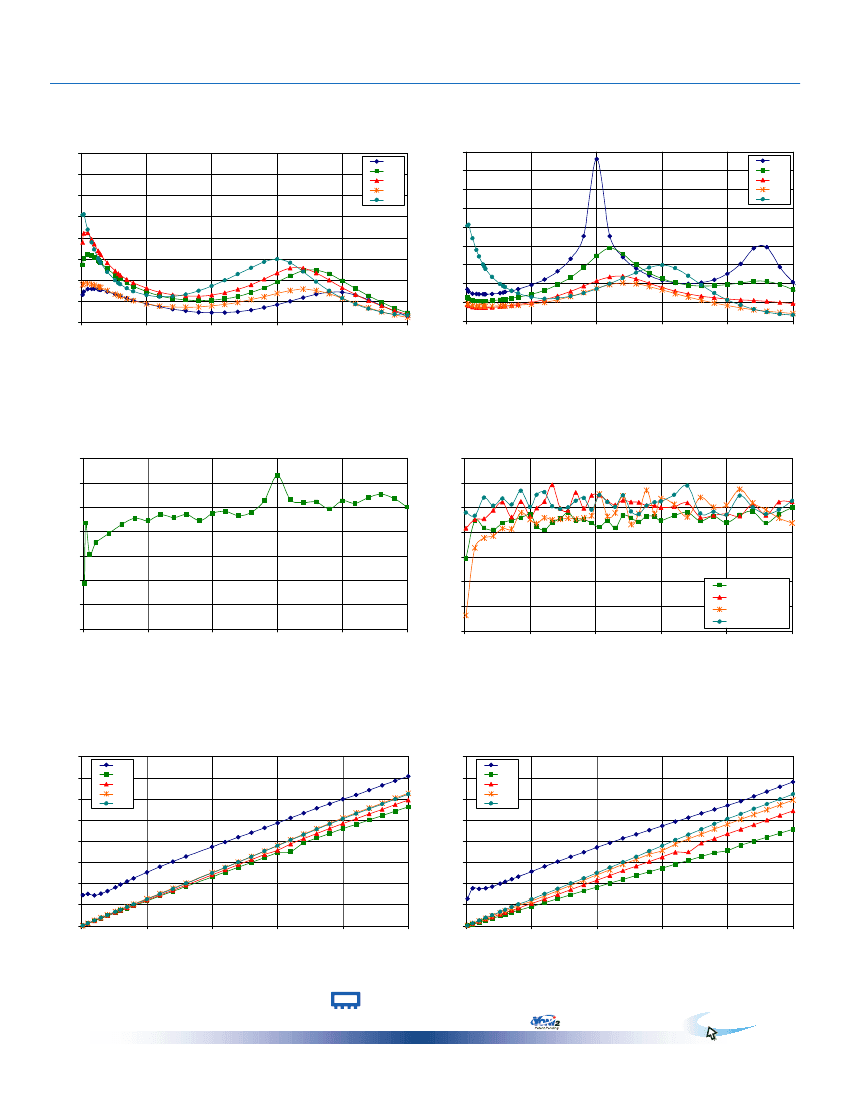

RVA-2500-75+
IP2 Vs. FREQUENCY @ V+=3V, Vc=7V
100
95
90
RVA-2500-75+
IP3 Vs. FREQUENCY
IP2 (dBm)
85
80
75
70
65
0
500
1000
1500
2000
2500
IP3 (dBm)
V+=+3V, Vc=7V
V+=+3V, Vc=15V
V+=+5V, Vc=7V
V+=+5V, Vc=15V
FREQUENCY (MHz)
FREQUENCY (MHz)
RVA-2500-75+
PHASE SHIFT Vs. FREQUENCY
OVER CONTROL VOLTAGES @ V+=3V
0V
2V
3V
7V
15V
RVA-2500-75+
PHASE SHIFT Vs. FREQUENCY
OVER CONTROL VOLTAGES @ V+=5V
0V
2V
3V
7V
15V
PHASE SHIFT (deg.)
FREQUENCY (MHz)
PHASE SHIFT (deg.)
FREQUENCY (MHz)
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
TM
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
