SCM-2M3216-221JB

Description
Data Line Filter, 2 Function(s), 16V, 0.33A, ROHS COMPLIANT PACKAGE-4
CategoryAnalog mixed-signal IC    filter
File Size458KB，4 Pages
ManufacturerSUMIDA
Websitehttp://www.sumida.com/
Environmental Compliance
Download Datasheet Parametric View All

SCM-2M3216-221JB Overview

Data Line Filter, 2 Function(s), 16V, 0.33A, ROHS COMPLIANT PACKAGE-4

SCM-2M3216-221JB Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSUMIDA
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum DC resistance0.7 Ω
filter typeDATA LINE FILTER
high1.3 mm
Minimum insulation resistance100 MΩ
length3.2 mm
Manufacturer's serial numberSCM-3216
Installation typeSURFACE MOUNT
Number of functions2
Output impedance220 OHM Ω
method of packingBULK
physical sizeL3.2XB1.6XH1.3 (mm)/L0.126XB0.063XH0.051 (inch)
Rated current0.33 A
Rated voltage16 V
width1.6 mm

SCM-2M3216-221JB Preview

Multilayer
Chip Common Mode Filter
——SCM-3216
Features
1. Effective for suppressing common mode noise at high frequencies.
2. Compact design.
3. Excellent solderability characteristics.
4. Lead Free (RoHS Compliance)
PAGE
1/4
Applications
1. Noise suppression in digital bus line equipment
2. IEEE1394a HUB & IEEE1394a control lines.
3. USB host controller & USB, HUB control lines
4. LVDS, panel link line for liquid crystal display panels.
Ordering Information
SCM
(1)
-
2
(2)
M
(3)
3216
(4)
-
471
(5)
J
(6)
T
(7)
(1) Series
SCM : Electrode directed in vertical line
SCM ; Vertical Design
SCM - series
(2) Pole type
2 : 2 Line (Single)
4 : 4 Line (Double)
(3) Material & Design
M : General Signal line
Y,S: High speed differential signal line
(4) Dimension
First two digits : length(mm)
Last two digits : width(mm)
(5) Common mode impedance (at 100MHz)
First two digits are significant.
Last digits is the number of zeros following
(6) Termination
J : Nickel barrier
(7) Packaging
B : Bulk Packing
T : Tape & Reel (Φ 178mm [ 7inches])
L : Tape & Reel (Φ 254mm [10inches])
Shape and Dimensions
SCM-2□ series
Type
SCM-2 3216-
SCM-4 3216-
L
3.2±0.2
[.126±.008]
3.2±0.2
[.126±.008]
W
1.6±0.2
[.063±.008]
1.6±0.2
[.063±.008]
T
1.3±0.1
[.051±.004]
1.3±0.1
[.051±.004]
SCM-4□ series
unit : mm〔inches〕
C
1
0.7±0.2
[.028±.008]
0.4±0.2
[.016±.008]
C
2
0.3±0.2
[.012±.008]
0.3±0.2
[.012±.008]
D
2.1±0.2
[.083±.008]
0.80±0.1
[.031±.004]
M
0.20±0.1
[.008±.004]
0.20±0.1
[.008±.004]
*All specifications are subject to change without notice.
Multilayer
Chip Common Mode Filter
——SCM-3216

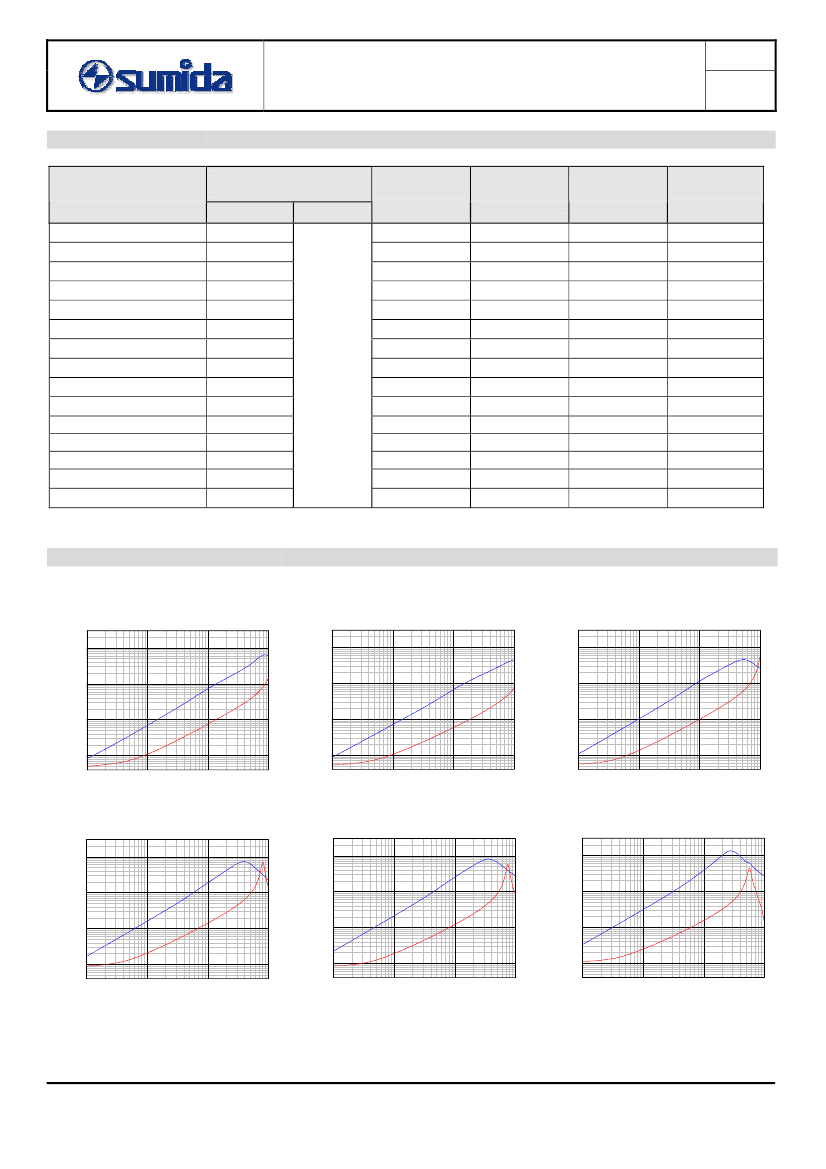

Electrical Parameters
Impedance[Ω]
at 100MK.
Typ
SCM-2M3216-700□□
SCM-2M3216-900□□
SCM-2M3216-121□□
SCM-2M3216-181□□
SCM-2M3216-221□□
SCM-2M3216-471□□
SCM-4M3216-700□□
SCM-4M3216-900□□
SCM-4M3216-121□□
SCM-4M3216-181□□
SCM-4M3216-221□□
SCM-4S3216-900□□
SCM-4S3216-121□□
SCM-4S3216-181□□
SCM-4S3216-301□□
70
90
120
180
220
470
70
90
120
180
220
90
120
180
300
±25%
Tolerance
DC
Resistance
Max.(Ω)
0.50
0.55
0.60
0.65
0.70
0.80
0.60
0.70
0.80
0.90
0.90
0.70
0.80
1.00
1.20
Rated
current
Max.(mA)
400
400
400
330
330
250
400
400
400
330
330
400
400
330
250
Rated
Voltage
Max.(V)
16
16
16
16
16
16
10
10
10
10
10
10
10
10
10
PAGE
2/4
Part No.
Insulation
Resistance
Min.(MΩ )
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Electrical Characteristic Curves
3216 – 2Line (Single)
SCM-2M3216-700J
CM-2(M/L)3216-700J
1000
1000
SCM-2M3216-900J
CM-2(M/L)3216-900J
1000
SCM-2M3216-121J
CM-2(M/L)3216-121J
Impedance [ohm]
Impedance [ohm]
Impedance [ohm]
100
10
e
od
nM
mo
m
Co
e
nc
da
pe
Im
e
nc
da
pe
Im
100
de
Mo
al
rm
No
10
I
de
Mo
on
mm
Co
ce
an
ed
mp
e
nc
da
pe
Im
100
on
mm
Co
10
e
nc
da
pe
Im
de
Mo
de
Mo
al
rm
No
al
rm
No
1
e
nc
da
pe
Im
de
Mo
1
1M
10M
100M
1G
1
1M
10M
100M
1G
1M
10M
100M
1G
Frequency [ Hz ]
Frequency [ Hz ]
Frequency [ Hz ]
SCM-2M3216-181J
CM-2(M/L)3216-181J
1000
1000
SCM-2M3216-221J
CM-2(M/L)3216-221J
1000
SCM-2M3216-471J
CM-2(M/L)3216-471J
Impedance [ohm]
Impedance [ohm]
Impedance [ohm]
100
e
od
nM
mo
m
Co
e
nc
da
pe
Im
e
nc
da
pe
Im
100
e
od
nM
mo
m
Co
e
nc
da
pe
Im
e
nc
da
pe
Im
100
e
od
nM
mo
m
Co
e
nc
da
pe
Im
e
nc
da
pe
Im
de
Mo
10
de
Mo
al
rm
No
10
de
Mo
al
rm
No
10
al
rm
No
1
1M
10M
100M
1G
1
1M
10M
100M
1G
1
1M
10M
100M
1G
Frequency [ Hz ]
Frequency [ Hz ]
Frequency [ Hz ]
*All specifications are subject to change without notice.
Multilayer
Chip Common Mode Filter
——SCM-3216

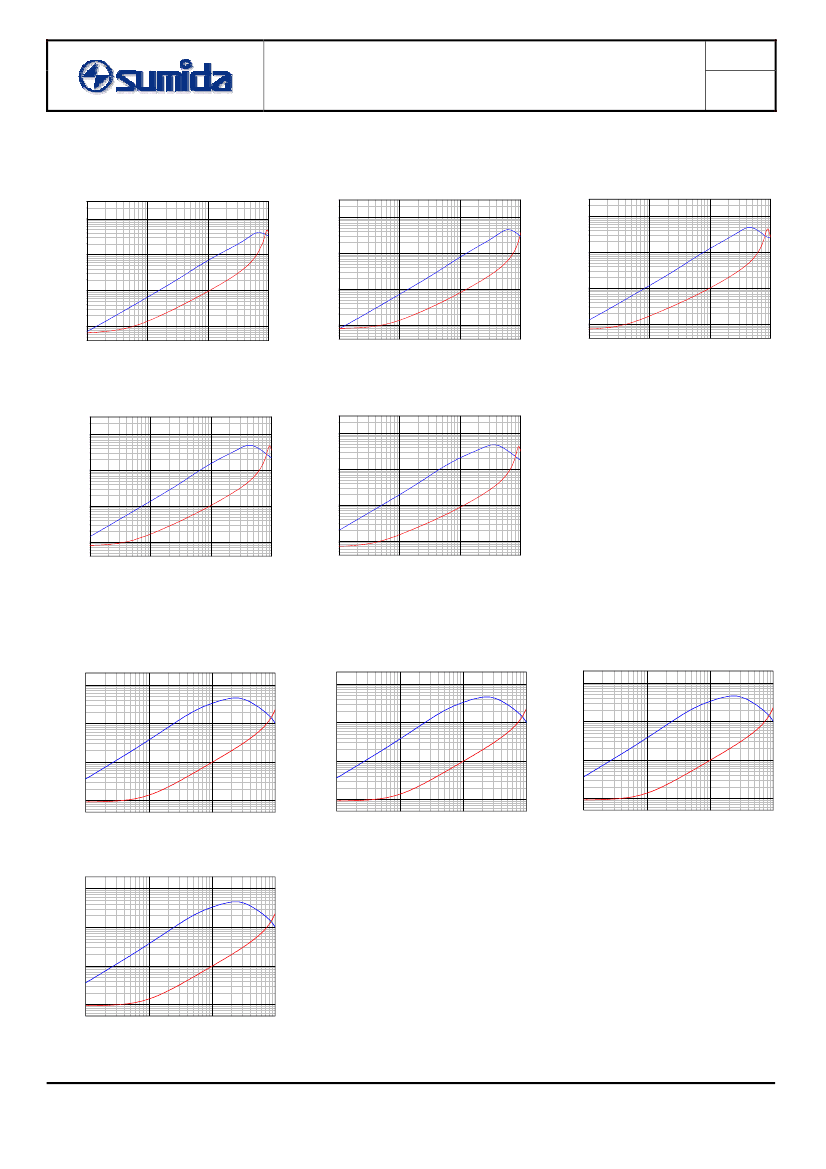

3216 – 4Line (Double)
SCM-4M3216-700J
CM-4(M/L)3216-700J
1000
1000
PAGE
3/4
CM-4(M/L)3216-900J
SCM-4M3216-900J
1000
CM-4(M/L)3216-121J
SCM-4M3216-121J
Impedance [ohm]
Impedance [ohm]
100
10
e
od
e
nc
nM
da
mo
pe
om
m
C
eI
od
lM
ma
r
No
e
nc
da
pe
Im
100
10
e
nc
da
pe
Im
e
od
nM
e
nc
mo
da
m
pe
Co
Im
de
Mo
al
rm
No
Impedance [ohm]
100
10
e
nc
da
pe
Im
e
od
e
nM
nc
mo
da
m
pe
Co
Im
de
Mo
al
rm
No
1
1M
10M
100M
1G
1
1M
10M
100M
1G
1
1M
10M
100M
1G
Frequency [ Hz ]
Frequency [ Hz ]
Frequency [ Hz ]
SCM-4M3216-181J
CM-4(M/L)3216-181J
1000
1000
CM-4(M/L)3216-221J
SCM-4M3216-221J
Impedance [ohm]
Impedance [ohm]
100
e
od
nM
mo
m
Co
e
nc
da
pe
Im
e
nc
da
pe
Im
de
Mo
100
e
nc
da
pe
Im
e
od
nM
mo
m
Co
10
al
rm
No
10
al
rm
No
1
1M
10M
e
nc
da
pe
Im
de
Mo
1
1M
10M
100M
1G
100M
1G
Frequency [ Hz ]
Frequency [ Hz ]
3216 – 4Line (Double) – S type
SCM-4S3216-900J
CM-4S3216-301JT
1000
1000
SCM-4S3216-121J
CM-4S3216-301JT
1000
SCM-4S3216-181J
CM-4S3216-301JT
Impedance [ohm]
Impedance [ohm]
Impedance [ohm]
100
10
de
mo
on
mm
Co
e
nc
da
pe
Im
e
nc
da
pe
Im
100
e
od
lm
ma
r
No
10
ce
an
ed
p
Im
de
mo
n
mo
om
C
100
de
mo
al
rm
No
e
nc
da
pe
Im
10
de
mo
on
mm
Co
e
nc
da
pe
Im
e
nc
da
pe
Im
de
mo
al
rm
No
1
1M
10M
100M
1G
1
1M
10M
100M
1G
1
1M
10M
100M
1G
Frequency [Hz]
Frequency [Hz]
Frequency [Hz]
SCM-4S3216-301J
CM-4S3216-301JT
1000
Impedance [ohm]
100
10
de
mo
on
mm
Co
e
nc
da
pe
Im
e
nc
da
pe
Im
e
od
lm
ma
r
No
1
1M
10M
100M
1G
Frequency [Hz]
*All specifications are subject to change without notice.
Multilayer
Chip Common Mode Filter
——SCM-3216
Characteristic Impedance vs. Frequency characteristics
PAGE
4/4
SCM-4S3216-900J
CM-4S3216-900J
200
SCM-4S3216-121J
CM-4S3216-121J
200
200
SCM-4S3216-181J
CM-4S3216-181J
Characteristic Impedance [ohm]
Characteristic Impedance [ohm]
Characteristic Impedance [ohm]
150
150
150
100
100
100
50
50
50
0
10M
100M
1G
0
10M
100M
1G
0
10M
100M
1G
Frequency[Hz]
Frequency[Hz]
Frequency[Hz]
SCM-4S3216-301J
CM-4S3216-181J
200
Characteristic Impedance [ohm]
150
100
50
0
10M
100M
1G
Frequency[Hz]
Insertion loss vs. Frequency Characteristics
SCM-4S3216-900J
CM-4S3216-900J
0
-3
-5
0
-3
-5
SCM-4S3216-121J
CM-4S3216-121J
0
-3
-5
SCM-4S3216-301J
CM-4S3216-301J
e
od
M
al
rm
No
e
od
M
al
rm
No
rm
No
M
al
Insertion loss [dB]
Insertion loss [dB]
-8
-10
-13
-15
-18
-20
-23
-25
-28
-30
1M
10M
-8
-10
-13
-15
-18
-20
-23
-25
-28
Insertion loss [dB]
Co
mm
on
Mo
de
Co
mm
o
on
m
m
Co
e
od
nM
od
e
-8
-10
-13
-15
-18
-20
-23
-25
-28
e
od
M
100M
1G
-30
1M
10M
100M
1G
-30
1M
10M
100M
1G
Freqeuncy[Hz]
Freqeuncy[Hz]
Freqeuncy[Hz]
*All specifications are subject to change without notice.
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Transistor controlled rectifier circuit a

Button and contactor double interlock control forward and reverse start circuit

One control three constant pressure water supply frequency conversion speed control circuit b

Parallel current expansion stabilized power supply circuit diagram

Variable step size 12-bit analog-to-analog converter circuit diagram

Parallel voltage stabilizing circuit

CE6.0 shared interrupt problem
I would like to ask all the experts, how can I make two devices share a physical interrupt in CE6.0? How to write an installable ISR? Please give me some advice, thank you....
zsxx Embedded System
Why are the actual results different from the simulated results? Assembly code (commented)
ORG 00H START: MOV R4,#00H ;Save the key code to determine whether the key is released CLR P3.7 ;Turn on the first right digital tube L1: MOV R3,#0F7H ;Scan the initial value (P1.3 = 0) MOV R1,#00H ;R...
skyhit Embedded System
What do you think of Github’s new AI programming assistant?
What do you think of Github’s new AI programming assistant GitHub Copilot (AI pair programmer)?https://copilot.github.com/...
dcexpert DIY/Open Source Hardware
Chapter 1 of X86 Learning: Development Board Configuration
[i=s]This post was last edited by paulhyde on 2014-9-15 08:56[/i][code] 1.3 Advanced configuration Structure of the configuration files The config files are divided into sections and options/values. E...
fish001 Electronics Design Contest
About the message triggered by clicking SIPBUTTON
As the title says, do you know how to get the message of clicking the word "拼" under the soft input panel? I let EDIT pop up the input panel when it gets the input focus, and close it when it loses th...
qqqwwweeerrr Embedded System
FL032-C0 240*320 TFT LCD AVR Driver
Hello everyone: After two nights of hard work, I finally used AVR to drive this 240*320 TFT LCD with the model FL032-C0 and the control chip ILI9320. The AVR chip used is M32. Of course, this screen i...
bigcat1980 Microchip MCU
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. 0423770965
  2. ZZS1L3S562Z
  3. MS17344C24N20PY
  4. GP30B-E3/91
  5. DE-123-104-559-AH02
  6. DA-112-037-395-SH40
  7. CRHV1206AF215MFKST
  8. PTN0505E3282BST0
  9. P4SMAJ40AT/R13
  10. A1008H-9P-BL
  11. A2541WR-2x17P-C808-G15
  12. SWRH1004B-470MT

Popular Articles

  1. 2021 Smart Cockpit Design Trend Research: Moving Towards the Third Living Space
  2. Rohde & Schwarz launches R&S VSESIM-VSS, combining EDA simulation and hardware testing
  3. The missing link in ECU safety power supply
  4. Qorvo Expands BAW Filter Portfolio to Support Global 5G Base Station Deployment
  5. ON Semiconductor to host a series of power webcasts to address power efficiency design challenges
  6. ATmega168 clock system and its distribution
  7. Samsung Electronics to showcase 13 innovative technologies from C-Lab at CES 2022
  8. High power density built-in power supply
  9. How to use a multimeter and what to pay attention to
  10. Toyota T-Pilot will be standard equipment on all series, and the emergency braking distance is ridiculously accurate.

Technical ResourceMore

  1. Design and application of power factor correction circuit for switching power supply
  2. [High-frequency circuit related information]. Newnes.Radio.&.Rf.Engineers.Pocket.Book
  3. Import AltiumDesigner layout into ADSlayout
  4. A sensorless current detection technology
  5. Design of white LED driver chip based on current control mode
  6. STM32 Motor Control Application Series Lecture 6: ST MC SDK5.x Motor Parameter Measurement
  7. Brief Analysis of LIN Bus System
  8. Altium-Common 3D Package Library (Step) [Common Patch] DO-214AC.rar
  9. Altium-Common 3D Package Library (Step) [Common Patch] PB-22E60 self-lock.rar
  10. IGBT reliability is the key to success in electric vehicles

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2749  1661  1619  983  2024  56  34  33  20  41
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
