34704 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> 34704

34704: Description8-CHANNEL POWER SUPPLY MANAGEMENT CKT, QCC56; Categorysemiconductor Analog mixed-signal IC; File Size621KB，54 Pages; ManufacturerFREESCALE (NXP)

Download Datasheet Parametric Compare View All

34704 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34704	-	-	View	Buy Now

34704 Overview

8-CHANNEL POWER SUPPLY MANAGEMENT CKT, QCC56

34704 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	56
Minimum operating temperature	-20 Cel
Maximum operating temperature	85 Cel
Rated supply voltage	3.6 V
Minimum supply/operating voltage	2.7 V
Maximum supply/operating voltage	5.5 V
Processing package description	7 X 7 MM, 1 MM HEIGHT, 0.40 MM PITCH, ROHS COMPLIANT, QFN-56
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Analog IC other types	POWER SUPPLY MANAGEMENT CIRCUIT
Adjustable threshold	YES
jesd_30_code	S-XQCC-N56
moisture_sensitivity_level	3
Number of channels	8
Packaging Materials	UNSPECIFIED
ckage_code	HVQCCN
ckage_equivalence_code	LCC56,.27SQ,16
packaging shape	SQUARE
Package Size	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
eak_reflow_temperature__cel_	260
wer_supplies__v_	3/5
qualification_status	COMMERCIAL
seated_height_max	1 mm
sub_category	Power Management Circuits
surface mount	YES
Temperature level	OTHER
terminal coating	NOT SPECIFIED
Terminal form	NO LEAD
Terminal spacing	0.4000 mm
Terminal location	QUAD
ime_peak_reflow_temperature_max__s_	40
length	7 mm
width	7 mm

Preview

Download Datasheet

View All

Freescale Semiconductor

Technical Data

Document Number: MC34704

Rev. 5.0, 2/2011

Multiple Channel DC-DC Power

Management IC

The 34704 is a multi-channel Power Management IC (PMIC) used

to address power management needs for various multimedia

application microprocessors. Its ability to provide either 5 or 8

independent output voltages with a single input power supply (2.7

and 5.5 V) together with its high efficiency, make it ideal for portable

devices powered up by Li-Ion/polymer batteries or for USB powered

devices as well.

The 34704 is housed in a 7x7 mm, Pb-free, QFN56 and is capable

of operating at a switching frequency of up to 2.0 MHz. This makes it

possible to reduce external component size and to implement full

space efficient power management solutions.

34704

MULTI-CHANNEL IC

Features

• 8 DC/DC (34704A) or 5 DC/DC (34704B) switching regulators with

up to

±2%

output voltage accuracy

• Dynamic voltage scaling on all regulators.

ORDERING INFORMATION

• Selectable output voltage or current regulation on REG8

Temperature

• I

C programmability

Device

Package

Range (T

)

• Output under-voltage and over-voltage detection for each

MC34704AEP/R2

regulator

-20°C to 85°C

56 QFN EP

MC34704BEP/R2

• Over-current limit detection and short-circuit protection for each

regulator

• Thermal limit detection for each regulator, except REG7

• Integrated compensation for REG1, REG3, REG6, and REG8

• 5.0 µA maximum shutdown current (All regulators are off, 5.5 V VIN)

• True cutoff on all of the boost and buck-boost regulators

• Pb-free packaging designated by suffix code EP

EP SUFFIX (PB-FREE)

98ASA10751D

56-PIN QFN

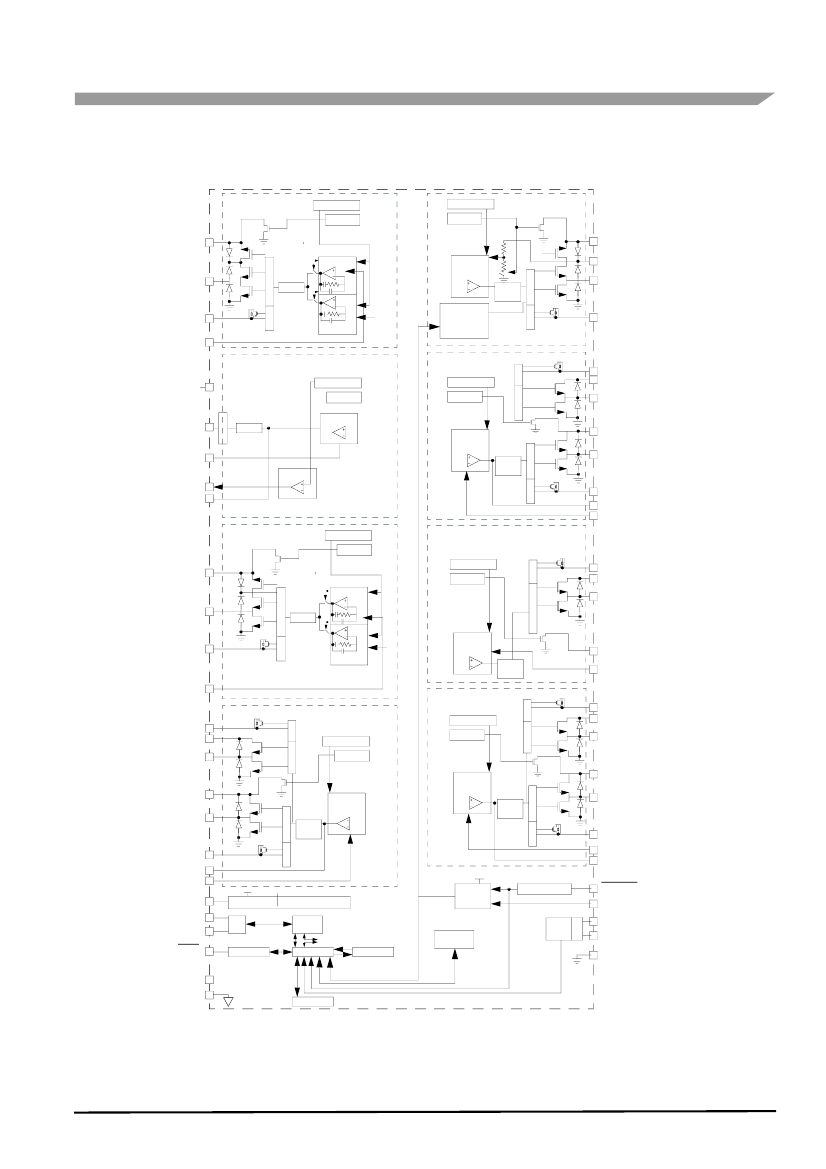

34704A/B

REG 8

REG 4

BKL

DDR

I C COMM

REG 3

REG 2

REG 5

PGND

*REG 1

*REG 6

*REG 7

CORE

IO1

IO2

DDR

MEMORY

GND

MPU

GND

LCD

+5V

VREF+ (5 to 16V)

VREF- (-5 to -9V)

* Available only in 34704A device

Figure 1. 34704 Simplified Application Diagram

Freescale Semiconductor, Inc. reserves the right to change the detail specifications,

as may be required, to permit improvements in the design of its products.
