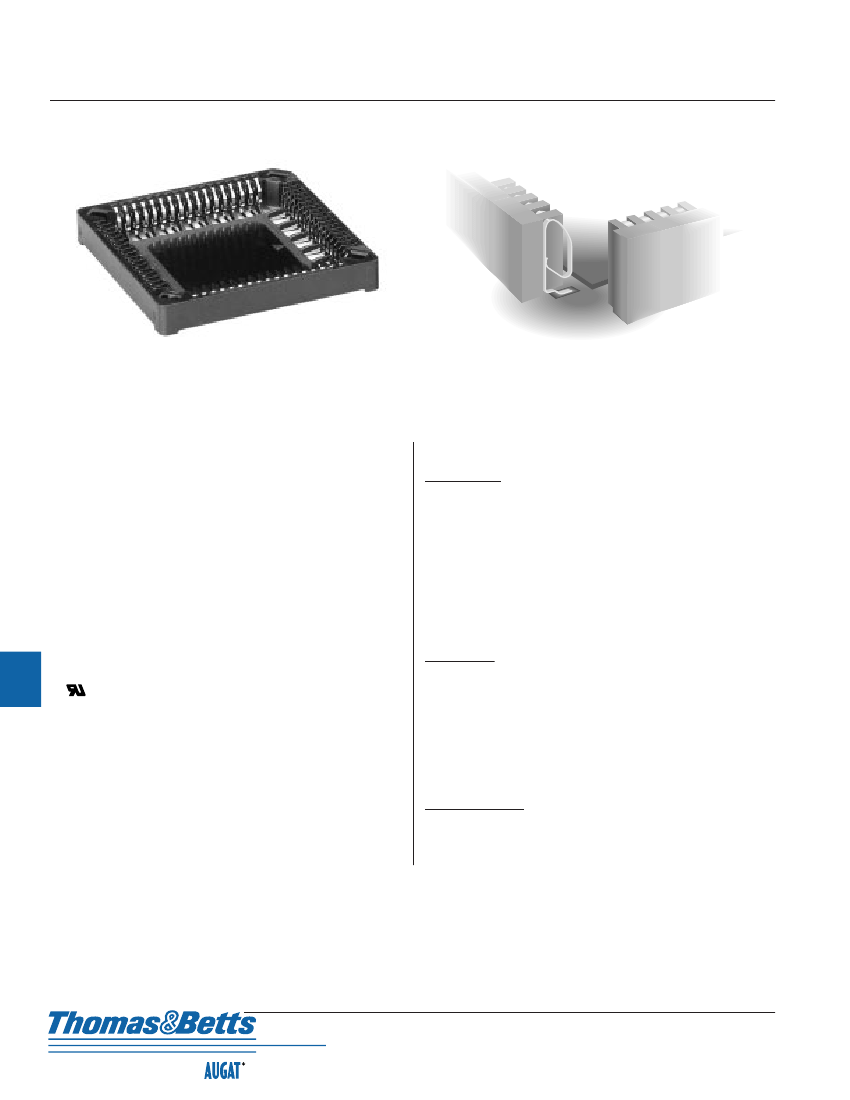

PCS SMU Series
Ultra Low Profile Surface Mount PLCC Sockets
PCS-068SMU-11
FEATURES:
The Augat SMU Series Surface Mount Chip carrier sockets are an "Ultra"
low profile, .175" (4.45) for JEDEC dimensioned PLCC devices. The lower
profile is to accomodate height packaging restrictions in high density disk
drive and laptop applications. With a PCB footprint which matches PLCC
device and an open insulator design to facilitate placement and inspection,
the Augat SMU Series meets your high density packaging needs.
• Accepts JEDEC PLCC's MO-047 AA-AH (20-84),
and MO-052 AE (32 RECT)
• High temperature insulator material compatible with vapor phase and
infrared reflow processing
• Visual markings internal and external to socket assure easy registration
as well as the option of locating posts
PERFORMANCE SPECIFICATIONS:
MECHANICAL
Vibration ........................ Passed MIL-STD-1344, Method 2005.1,
Condition II, 10 G's
Shock .............................. Passed MIL-STD-1344, Method 2004.1,
Condition A, 50 G's
Durability ...................... 25 Cycles minimum
Normal Force ................ 150 Grams (5.29 oz.) per line minimum
Mating Force .................. 200 Grams (7.05 oz.) per line maximum
Unmating Force ............ 33 Grams (1.17 oz.) per line minimum
Solderability .................. Passed MIL-STD-202, Method 208
Contact Retention
in Plastic .................... 454 Grams (16 oz.) per line minimum
ELECTRICAL
Low Level
Contact Resistance .... 20 Milliohms max. per MIL-STD-1344,
Method 3002
Contact Rating .............. 1 Amp
Capacitance ....................2 pF max. @ 1 kHz, MIL-STD-202, Method 305
Insulation Resistance .... 10,000 Megohms minimum @ 100 VDC per
MIL-STD-1344, Method 3003.1
Dielectric Withstanding
Voltage ...................... 600 VAC per MIL-STD-1344, Method 3001.1
ENVIRONMENTAL
Humidity ........................ Passed MIL-STD-1344, Method 1002.2, Type II
Operation Temperature .. -55°C to +105°C
Resistance to
Solder Heat ................ Infared reflow 230°C, duration 15 seconds
I
• Open insulator design aids in placement, inspection and cleaning of
solder joints
•
UL recognition under Component Program of Underwriters
®
Laboratories, Inc. file no. E111362 pending
• PLCC Extraction Tool TX8136-20/84PCS
MATERIAL SPECIFICATIONS:
Insulator ........................ PPS, UL rated 94V-0
Contact .......................... Phosphor bronze
Plating ............................ Tin/lead
Quality & Innovation From The
Product Group
I8
Thomas & Betts
1555 Lynnfield Road
Memphis, TN 38119
(901) 682-8221 FAX (901) 537-8805
