SFE10.7MTE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> SFE10.7MTE

SFE10.7MTE: DescriptionCeramic BPF, 10.7MHz; CategoryAnalog mixed-signal IC filter; File Size56KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

SFE10.7MTE Overview

Ceramic BPF, 10.7MHz

SFE10.7MTE Parametric

Parameter Name	Attribute value
Maker	Murata
Reach Compliance Code	unknown
Maximum attenuation frequency (+/- delta f)	100 kHz
Attenuation at maximum frequency	20 dB
Center frequency or cutoff frequency (fo/fc)	10.7 MHz
filter type	CERAMIC BPF
high	7 mm
Input/output impedance	330 OHM
Maximum insertion loss	5.5 dB
length	7 mm
Manufacturer's serial number	SFEMTE
Installation type	THROUGH HOLE MOUNT
physical size	L7XB3XH7 (mm)
width	3 mm

Preview

Download Datasheet

View All

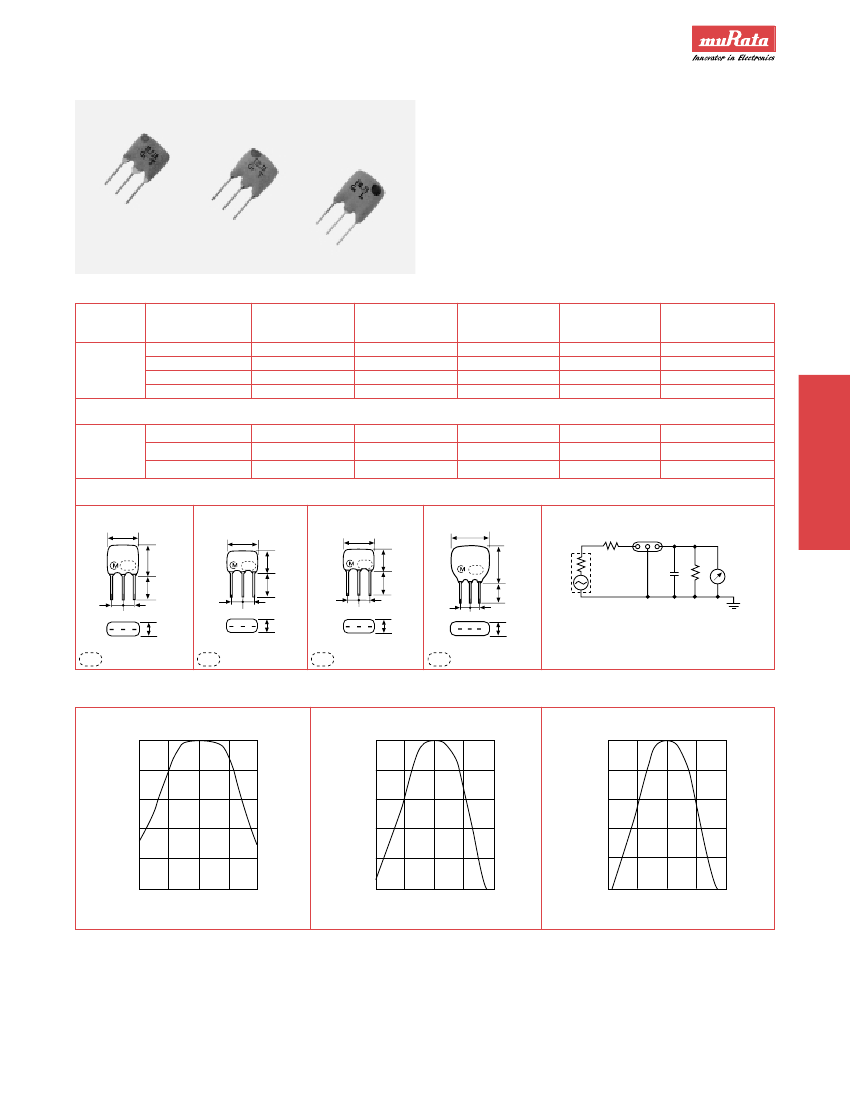

PIEZO FILTERS

CERAMIC FILTERS LOW LOSS, WIDE OR

NARROW BAND, MINIATURE

SFE MA/MTE/MVE/MFP 10.7MHz

The following filters were developed to offer both narrower

and wider bandwidth characteristics for use in products such

as DBS receivers. These filters also retain the same reliability

that is available with our standard filters. The various

bandwidths allow these filters to be utilized in a multitude

of new communication applications.

SPECIFICATIONS

Part Number

Wide

Bandwidth

Series

SFE10.7MA19

SFE10.7MA20-A

SFE10.7MA21

SFE10.7MHY-A

3dB Bandwidth

(kHz)

350 min. (450)

330 ± 50

400 (500)

110 ± 30

20dB Bandwidth

(kHz) max.

950 (750)

680 (615)

950 (750)

350 (260)

Ripple

Within 3dB

Bandwidth (dB)

3 max.

1 max.

3 max.

1 max.

SFE MX/MA8/ML 10.7MHz

Insertion Loss

(dB) max.

3±2

4±2

3±2

7±2

Spurious (9 ~ 12MHz)

(dB) min.

20 (30)

30 (40)

20 (30)

30 (42)

(

) Typ. value

• Input/output impedance: 330 (MA20-A, MHY-A), 470 (MA19)

• Center frequency 10.52MHz types of SFE10.7MHY-A is also available.

PIEZO FILTERS

Narrow

Bandwidth

Series

SFE10.7MTE

SFE10.7MVE

SFE10.7MFP

±25 (82)

±13 (56)

±20 (36)

200 (160)

135 (110)

95 (77)

1 max.

5.5 ± 2.5

5.5 ± 2.0

6.0 (2.5)

30 (48)

30 (41)

24 (28)

(

) Typ. value

• Input/output impedance: 330 (MT,MV), 600 (MFP)

• Spurious range of SFE10.7MFP: 10.7 ± 1MHz.

MA19 Series

7.0

MTE Series

7.0

MVE Series

7.0

MFP Series

10.0

CIRCUIT

(1) (2) (3)

E10.7A

7.0

E10.7T

E10.7V

7.0

5.0

7.0

5.0

E10.7F

10.0

Rg=50

S.S.G.

Voltmeter

5.0

2.5

(3) (2) (1)

2.5

(3) (2) (1)

2.5

(3) (2) (1)

2.5

5.0

2.5

(3) (2) (1)

2.5

3.0 ± 1.0

: EIA-J Date Code

Rg+R

=Input/Output Impedance

C=10pF

(including stray capacitance and input

capacitance of RF Voltmeter)

1=INPUT

2=GROUND

3=OUTPUT

FREQUENCY CHARACTERISTICS

SFE10.7MA19

SFE10.7MS2

SFE10.7MS3

Attenuation (dB)

10.3

10.5

10.7

10.9

11.1

10.3

10.5

10.7

10.9

11.1

10.3

10.5

10.7

10.9

11.1

Frequency (MHz)

Available as standard through authorized Murata Electronics Distributors.

CG01-J

447

SFE10.7MTE Related Products

	SFE10.7MTE	SFE10.7MVE	SFE10.7MFP
Description	Ceramic BPF, 10.7MHz	Ceramic BPF, 10.7MHz	Ceramic BPF, 10.7MHz
Reach Compliance Code	unknown	unknown	unknow
Maximum attenuation frequency (+/- delta f)	100 kHz	67.5 kHz	47.5 kHz
Attenuation at maximum frequency	20 dB	20 dB	20 dB
Center frequency or cutoff frequency (fo/fc)	10.7 MHz	10.7 MHz	10.7 MHz
filter type	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF
high	7 mm	7 mm	10 mm
Input/output impedance	330 OHM	330 OHM	600 OHM
Maximum insertion loss	5.5 dB	5.5 dB	6 dB
length	7 mm	7 mm	10 mm
Manufacturer's serial number	SFEMTE	SFEMVE	SFEMFP
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
physical size	L7XB3XH7 (mm)	L7XB3XH7 (mm)	L10XB3XH10 (mm)
width	3 mm	3 mm	3 mm
Maker	Murata	-	Murata
