2SA1463IL-AZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SA1463IL-AZ

2SA1463IL-AZ: Description1000mA, 45V, PNP, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size260KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2SA1463IL-AZ Overview

1000mA, 45V, PNP, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN

2SA1463IL-AZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SC-62
package instruction	SMALL OUTLINE, R-PSSO-F3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	60
JESD-30 code	R-PSSO-F3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power dissipation(Abs)	2 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	400 MHz
Maximum off time (toff)	100 ns
Maximum opening time (tons)	40 ns
Base Number Matches	1

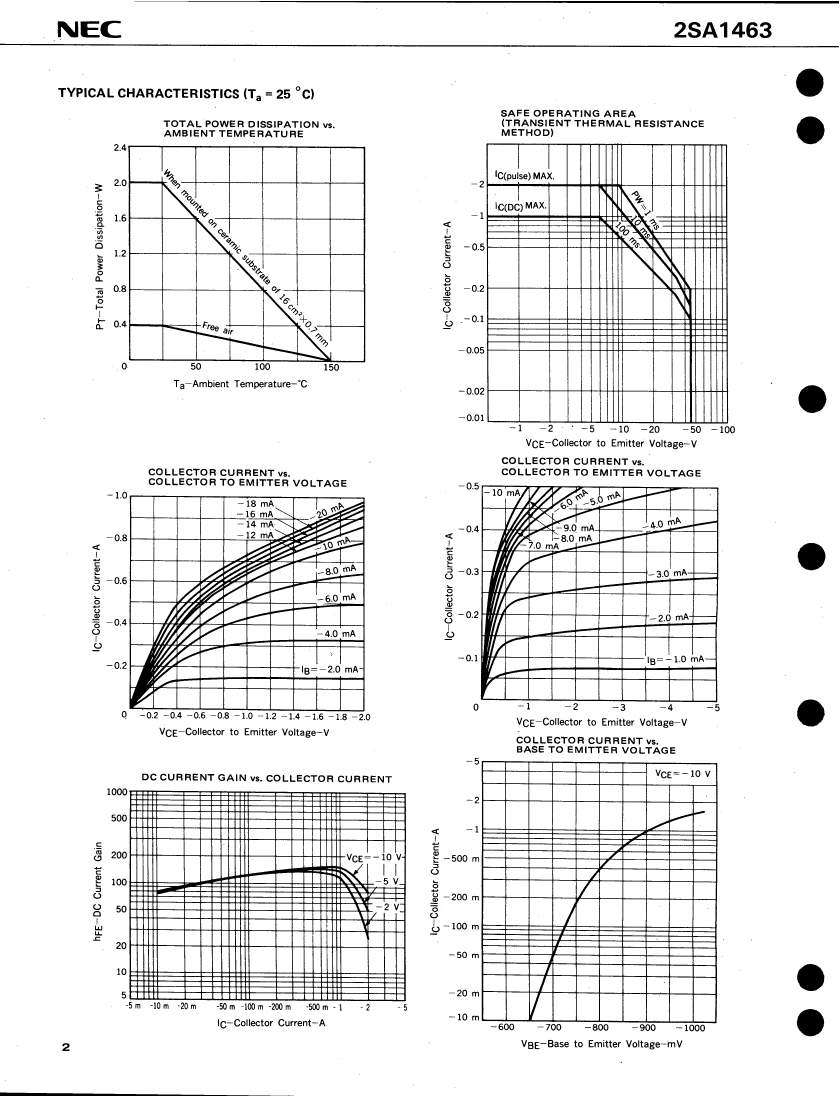

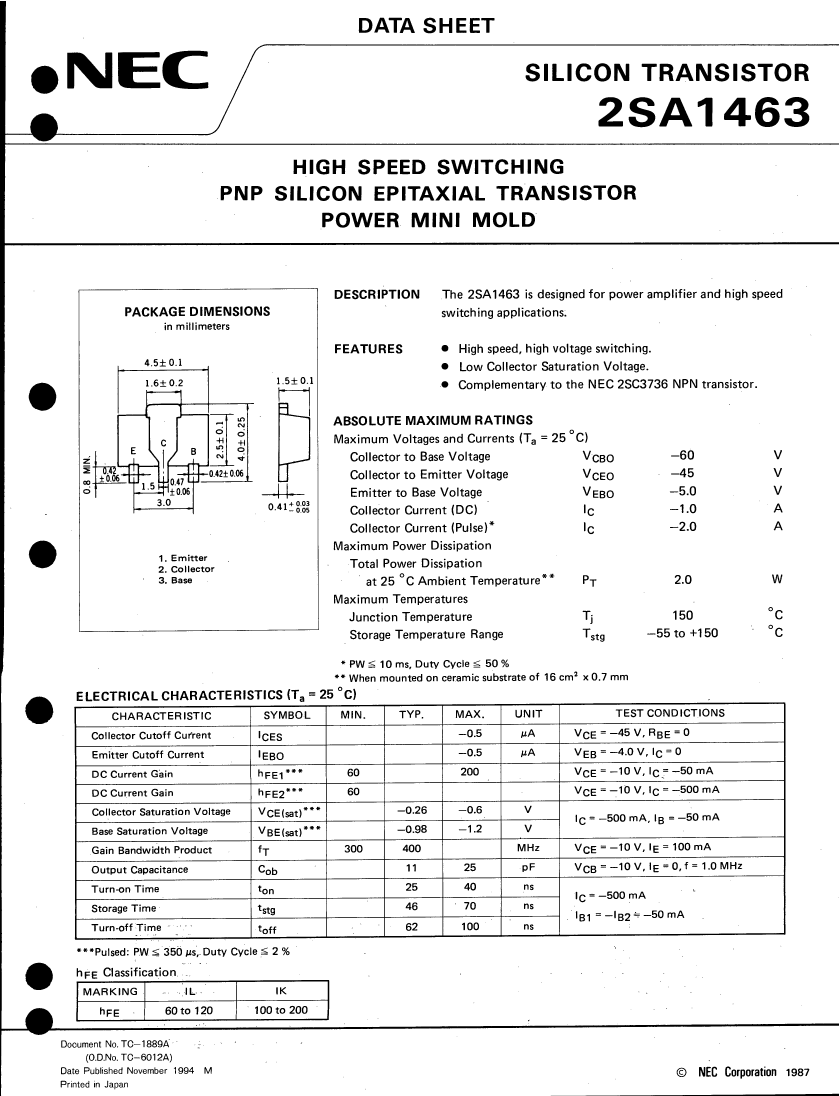

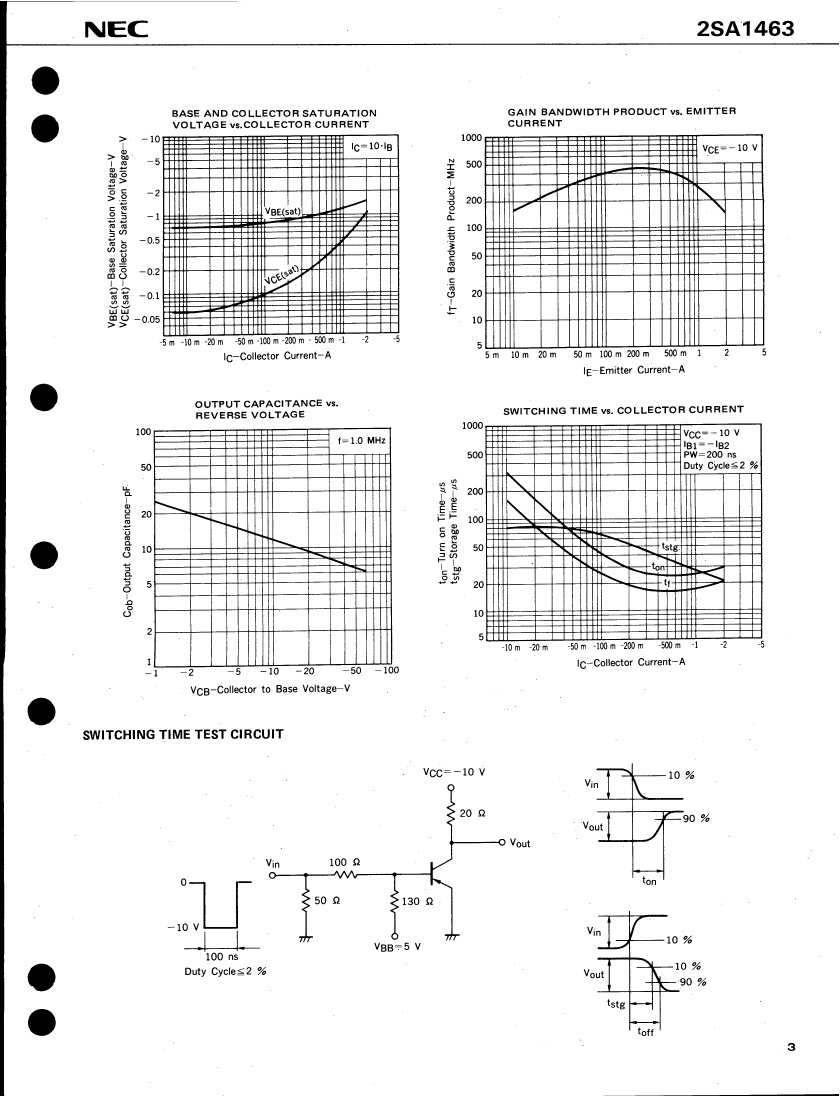

Preview

Download Datasheet

View All

2SA1463IL-AZ Related Products

	2SA1463IL-AZ	2SA1463IK-AZ	2SA1463-AZ
Description	1000mA, 45V, PNP, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN	1000mA, 45V, PNP, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN	1000mA, 45V, PNP, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN
Is it Rohs certified?	conform to	conform to	conform to
Parts packaging code	SC-62	SC-62	SC-62
package instruction	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3
Contacts	3	3	3
Reach Compliance Code	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	1 A	1 A	1 A
Collector-emitter maximum voltage	45 V	45 V	45 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	60	100	60
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
Number of components	1	1	1
Number of terminals	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	260
Polarity/channel type	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	400 MHz	400 MHz	400 MHz
Maximum off time (toff)	100 ns	100 ns	100 ns
Maximum opening time (tons)	40 ns	40 ns	40 ns
Base Number Matches	1	1	1
Is it lead-free?	Lead free	Lead free	-
Maximum operating temperature	150 °C	150 °C	-
Maximum power dissipation(Abs)	2 W	2 W	-
