TECHNICAL NOTE
High-performance Regulator IC Series for PCs
100mA Linear Regulators
for Note PC
BD35602F/HFN/HFV, BD35603F/HFN/HFV, BD35605F/HFN/HFV
●Description
BD3560□ series is a LDO regulator with output current 100mA. The output accuracy is±1% of output voltage. BD3560
□
series have some kinds of output voltage line-up and package line-up. Thus, it is used for the wide applications of
digital appliances. Over current protection (for protecting the IC destruction by output short circuit), shutdown ON/OFF
switch (for setting the circuit current 0μA at shutdown mode), and thermal shutdown circuit (for protecting ICs from heat
destruction by over load condition) are all built in.
●Features
1) Output current 100mA
2) Output voltage accuracy :
±1%
3) Built-in Over Current Protection circuit (OCP)
4) Built-in Thermal Shut Down circuit (TSD)
5) With shut down switch
6) Rich package line-up : HVSOF6, HSON8, SOP8
●Line-up
Product name
BD3560□HFV
BD3560□HFN
BD3560□F
1.8V
○
○
○
5.0V
○
○
○
3.3V
○
○
○
Package
HVSOF6
HSON8
SOP8
Product name : BD3560□
□□□
a
b
Symbol
a
0□
02
05
03
Output Voltage (V)
1.8V typ.
5.0V typ.
3.3V typ.
□□□
HFV
F
HFN
b
Package
HVSOF6
SOP8
HSON8
Oct. 2008
●Absolute
maximum ratings (Ta=25℃)
Parameter
Power Supply Voltage
EN Voltage
HVSOF6
Power Dissipation
HSON8
SOP8
Operating Temperature Range
Storage Temperature Range
Junction Temperature
Pd
Topr
Tstg
Tjmax
Symbol
Vcc
VEN
Limits
30.0 *
1
30.0
850.0
*2
1350
*3
690
*4
-10½+100
-55½+150
+150
Unit
V
V
mW
℃
℃
℃
*1 Not to exceed Pd
*2 Reduced by 6.8mW for each increase in Ta of 1℃ over 25℃.
(when mounted on a board 70.0mm×70mm×1.6mm Glass-epoxy PCB.(copper foil area:100mm
2
))
*3 Reduced by 10.8mW for each increase in Ta of 1℃ over 25℃.
(when mounted on a board 70.0mm×70mm×1.6mm Glass-epoxy PCB, 1 layer(copper foil density : 7%))
*4 Reduced by 5.52mW for each increase in Ta of 1℃ over 25℃.(when mounted on a board 70.0mm×70mm×1.6mm Glass-epoxy PCB.)
●Operating
Conditions (Ta=25℃)
Parameter
Input Power Supply Voltage
EN Voltage
Output Current
Symbol
VCC
VEN
Io
Min.
Vo+1.2
-
-
Max.
25
25
100
Unit
V
V
mA
★This
product should not be used in a radioactive environment.
●ELECTRICAL
CHARACTERISTICS
BD3560□HFV/HFN/F (Unless otherwise noted, Ta=25℃, EN=3V, Vcc=16V)
Parameter
Symbol
Min.
Typ.
Vo(T)×
Output Voltage 1
Vo1
Vo(T)
0.99
Vo(T)×
Output Voltage 2
Vo2
Vo(T)
0.985
Circuit Current at shutdown mode
Isd
-
0
Bias Current
Icc
-
120
Output Current Ability
Io
100
-
Line Regulation
EN Low Voltage
EN High Voltage
EN Bias Current
Reg.I
V
EN
(Low)
V
EN
(High)
IEN
-
0
2.4
0.5
25
-
-
1.0
Max.
Vo(T)×
1.01
Vo(T)×
1.015
1
200
-
50
0.8
25
2.0
Unit
V
V
μA
μA
mA
MV
V
V
μA
Conditions
Io=0mA→100mA
Tj=0 to 100℃
Io=0mA→100mA
EN=0V, @OFF mode
Vcc=( Vo+1.2V )→25V,
Io=100mA
2/12
●Reference
Data
BD35605HFN (Unless otherwise specified, Ta=25℃, EN=3V, Vcc=16V)
Vo
100mV/div
Vo
100mV/div
EN
5V/div
Io
50mA/div
Io
50mA/div
Vo
5V/div
(20m sec/div)
(10
μ
sec/div)
(0.2msec/div)

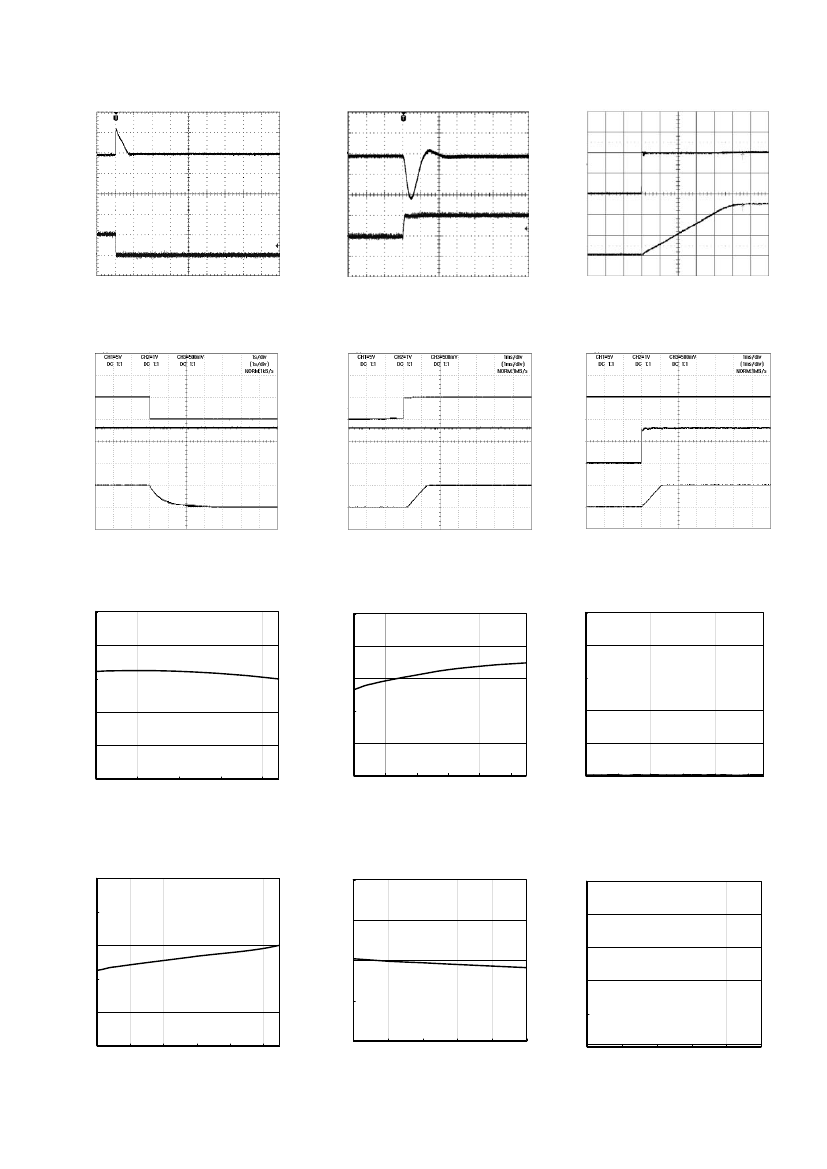

Fig.1 Transient Response
(50→0mA)
Co=1μF
Fig.2 Transient Response
(0→50mA)
Co=1μF
Fig.3 Waveform at output start
Co=1μF
EN
5V/div
EN
5V/div
VCC
10V/div
EN
5V/div
VCC
10V/div
VCC
10V/div
Vo
5V/div
Vo
5V/div
Vo
5V/div
(1sec/div)
(1msec/div)
(1msec/div)
Fig.4 Waveform at output OFF
Co=1μF
5.2
Fig.5 Input sequence 1
Co=1μF
150
1.0
Fig.6 Input sequence 2
Co=1μF
5.1
130
0.8
VOUT [V]
Icc [μA]
5.0
110
Icc [uA]
0.6
4.9
90
0.4
4.8
70
0.2
4.7
-10
15
40
65
90
50
100
0.0
-10
10
30
50
Ta [℃]
70
90
100
-10
10
30
50
Ta [℃]
70
90
100
Ta
[℃]
Fig.7 Ta-Vo (Io=0mA)
Fig.8 Ta-Icc
(V
EN
=12V)
Fig.9 Ta-Icc
(Vcc=16V, V
EN
=0V)
2.0
5.10
10
1.6
5.05
8
5.00
0.8
ISTB [μA]
0
20
40
60
80
100
Ien [μA]
1.2
Vo [V]
6
4
4.95
0.4
2
4.90
-10
10
30
50
Ta [℃]
70
90
0.0
100
0
0
5
10
Vcc [V]
15
20
25
Io [mA]
Fig.10 Ta-IEN
(Vcc=16V, V
EN
=3V)
Fig.11 Io-Vo
(V
EN
=3V)
3/12
Fig.12 Vcc-ISTB
●Reference
Data
BD35605HFN (Unless otherwise specified, Ta=25℃, EN=3V, Vcc=16V)
5
4
Vo [V]
3
2
1
0
0
5
10
Vcc [V]
15
20
25
Fig.13 Vcc-Vo
4/12
●Block
Diagram (HSON8½SOP8)
GND
5
1
Vcc
(Vo+1.2)½25V
6
OCP
GND_S
SOFT
Vo
3
Vo
Ceramic
≧
1uF
Capacitor
V
FB
EN
8
TSD
●Pin
Function Table (HSON8½SOP8)
Pin No.
1
2
3
4
5
6
7
8
Pin Name
VCC
N.C.
Vo
N.C.
GND
GND_S
N.C.
EN
Pin Function
Input Voltage Pin
Open
Output Voltage Pin
Open
GND Pin
GND Sense Pin
Open
Enable Pin
●Pin
Layout (HSON8½SOP8)
VCC 1
8 EN
N.C 2
7 N.C
Vo 3
6 GND_S
N.C 4
5 GND
5/12
