2 MEG x 16
ASYNC/PAGE/BURST FLASH MEMORY
FLASH MEMORY
MT28F322D20
MT28F322D18
Low Voltage, Extended Temperature
0.22µm Process Technology
FEATURES
• Flexible dual-bank architecture
– Support for true concurrent operation with zero
latency
– Read bank
a
during program bank
b
and vice versa
– Read bank
a
during erase bank
b
and vice versa
• Basic configuration:
Seventy-one erasable blocks
– Bank
a
(8Mb for data storage)
– Bank
b
(24Mb for program storage)
• V
CC
, V
CC
Q, V
PP
voltages*
– 1.65V (MIN), 1.95V (MAX) V
CC
, V
CC
Q
(MT28F322D18 only)
– 1.80V (MIN), 2.20V (MAX) V
CC
, V
CC
Q
(MT28F322D20 only)
– 0.9V (TYP) V
PP
(in-system PROGRAM/ERASE)
– 12V ±5% (HV) V
PP
tolerant (factory programming
compatibility)
• Random access time: 95ns @ 1.80V V
CC
*
• Burst Mode read access
– MAX clock rate: 40 MHz (
t
CLK = 25ns)
– Burst latency: 100ns @ 1.80V V
CC
and 40 MHz
–
t
ACLK: 24ns @ 1.80V V
CC
and 40 MHz
• Page Mode read access*
– Eight-word page
– Interpage read access: 95ns @ 1.80V
– Intrapage read access: 35ns @ 1.80V
• Low power consumption (V
CC
= 1.95V)
– READ < 15mA (MAX)
– Standby < 50µA
– Automatic power saving feature (APS)
• Enhanced write and erase suspend options
– ERASE-SUSPEND-to-READ within same bank
– PROGRAM-SUSPEND-to-READ within same bank
– ERASE-SUSPEND-to-PROGRAM within same bank
• Dual 64-bit chip protection registers for security
purposes
• Cross-compatible command support
– Extended command set
– Common flash interface
• PROGRAM/ERASE cycle
– 100,000 WRITE/ERASE cycles per block
*Data based on MT28F322D20 device.

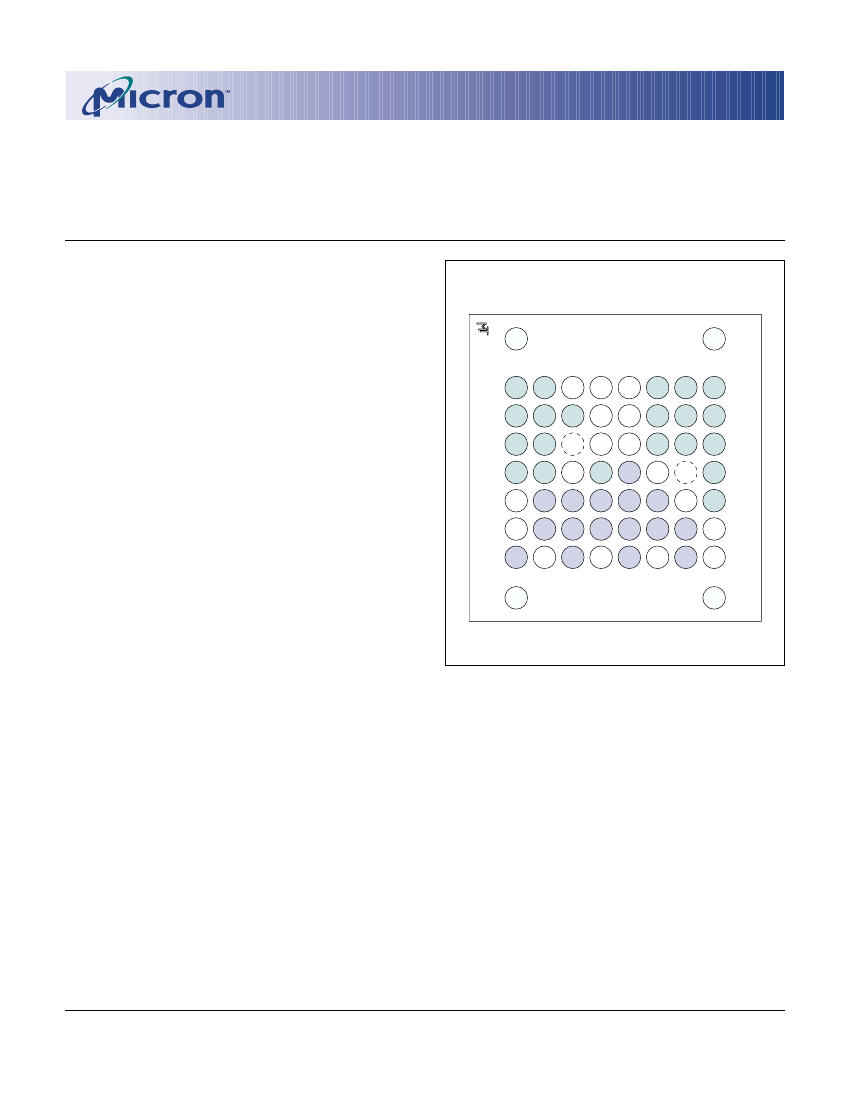

BALL ASSIGNMENT
58-Ball FBGA
1
A
B
C
D
E
F
G
A11
2
A8
3
V
SS
4
V
CC
5
V
PP
6
A18
7
A6
8
A4
A12
A9
A20
CLK
RST#
A17
A5
A3
A13
A10
ADV#
WE#
A19
A7
A2
A15
A14
WAIT#
A16
DQ12
WP#
A1
V
CC
Q
DQ15
DQ6
DQ4
DQ2
DQ1
CE#
A0
V
SS
DQ14
DQ13
DQ11
DQ10
DQ9
DQ0
OE#
DQ7
V
SS
Q
DQ5
V
CC
DQ3
V
CC
Q
DQ8
V
SS
Q
Top View
(Ball Down)
NOTE:
See page 7 for Ball Description Table.
See page 47 for mechanical drawing.
OPTIONS
• Timing
95ns access
100ns access
110ns access
• Frequency
40 MHz
30 MHz
No burst operation
• Boot Block Starting Address
Top (FFFFFh)
Bottom (00000h)
• Package
58-ball FBGA (8 x 7 ball grid)
• Operating Temperature Range
Extended (-40ºC to +85ºC)
Part Number Example:
MARKING
-95
-10
-11
4
3
None
T
B
FH
ET
MT28F322D20FH-954
2 Meg x 16 Async/Page/Burst Flash Memory
MT28F322D18FH_6.p65 – Rev. 6, Pub. 6/01
1
©2001, Micron Technology, Inc.
PRODUCTS AND SPECIFICATIONS DISCUSSED HEREIN ARE SUBJECT TO CHANGE BY MICRON WITHOUT NOTICE.
2 MEG x 16
ASYNC/PAGE/BURST FLASH MEMORY
GENERAL DESCRIPTION
The MT28F322D18 and MT28F322D20 are high-
performance, high-density, nonvolatile memory solu-
tions that can significantly improve system performance.
This new architecture features a two-memory-bank
configuration that supports dual-bank operation with
no latency.
A high-performance bus interface allows a fast burst
or page mode data transfer; a conventional asynchro-
nous bus interface is provided as well.
The devices allow soft protection for blocks, as read-
only, by configuring soft protection registers with dedi-
cated command sequences. For security purposes, two
64-bit chip protection registers are provided.
The embedded WORD WRITE and BLOCK ERASE
functions are fully automated by an on-chip write state
machine (WSM). Two on-chip status registers, one for
each of the two memory partitions, can be used to moni-
tor the WSM status and to determine the progress of the
program/erase task.
The erase/program suspend functionality allows
compatibility with existing EEPROM emulation software
packages.
The devices are manufactured using 0.22µm pro-
cess technology.
Please refer to the Micron Web site
(www.micron.com/flash) for the latest data sheet.
ARCHITECTURE AND MEMORY
ORGANIZATION
The Flash devices contain two separate banks of
memory (bank
a
and bank
b)
for simultaneous READ and
WRITE operations and are available in the following bank
segmentation configuration:
• Bank
a
is one-fourth of the memory containing
8 x 4K-word parameter blocks, while the remainder
of bank
a
is split into 15 x 32K-word blocks.
• Bank
b
represents three-fourths of the memory, is
equally sectored, and contains 48 x 32K-word
blocks.
Figures 2 and 3 show the bottom and top memory
organizations.
DEVICE MARKING
Due to the size of the package, Micron’s standard part
number is not printed on the top of each device. Instead,
an abbreviated device mark comprised of a five-digit
alphanumeric code is used. The abbreviated device marks
are cross referenced to the Micron part numbers in
Table 1.
Table 1
Cross Reference for Abbreviated Device Marks
PART NUMBER
MT28F322D18FH-103 TET
MT28F322D18FH-103 BET
MT28F322D18FH-10 TET
MT28F322D18FH-10 BET
MT28F322D18FH-11 TET
MT28F322D18FH-11 BET
MT28F322D20FH-954 TET
MT28F322D20FH-954 BET
MT28F322D20FH-10 TET
MT28F322D20FH-10 BET
PRODUCT
MARKING
FW535
FW536
FW557
FW556
FW537
FW538
FW553
FW552
FW551
FW550
SAMPLE
MARKING
FX535
FX536
FX557
FX556
FX537
FX538
FX553
FX552
FX551
FX550
MECHANICAL
SAMPLE MARKING
FY535
FY536
FY557
FY556
FY537
FY538
FY553
FY552
FY551
FY550
2 Meg x 16 Async/Page/Burst Flash Memory
MT28F322D18FH_6.p65 – Rev. 6, Pub. 6/01
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2001, Micron Technology, Inc.
2 MEG x 16
ASYNC/PAGE/BURST FLASH MEMORY
PART NUMBERING INFORMATION
Micron’s low-power devices are available with sev-
eral different combinations of features (see Figure 1).
Valid combinations of features and their corresponding
part numbers are listed in Table 2.
Figure 1
Part Number Chart
MT 28F 322 D20FH-95 4 B ET
Micron Technology
Flash Family
28F = Dual-Supply Flash
Operating Temperature Range
ET = Extended (-40ºC to +85ºC)
Boot Block Starting Address
B = Bottom boot
T = Top boot
Density/Organization/Banks
322 = 32Mb (2,048K x 16)
bank
a
= 1/4; bank
b
= 3/4
Burst Mode Frequency
3 = 30 MHz
4 = 40 MHz
Blank = None
Read Mode Operation
D = Asynchronous/Page/Burst Read
Access Time
Operating Voltage Range
18 = 1.65V–1.95V
20 = 1.80V–2.20V
-95 = 95ns
-10 = 100ns
-11 = 110ns
Package Code
FH = 58-ball FBGA (8 x 7 grid)
Table 2
Valid Part Number Combinations*
PART NUMBER
MT28F322D18FH-103 BET
MT28F322D18FH-103 TET
MT28F322D18FH-10 BET
MT28F322D18FH-10 TET
MT28F322D18FH-11 BET
MT28F322D18FH-11 TET
MT28F322D20FH-954 BET
MT28F322D20FH-954 TET
MT28F322D20FH-10 BET
MT28F322D20FH-10 TET
BOOT BLOCK
BURST FREQUENCY
ACCESS TIME (ns) STARTING ADDRESS
(MHz)
100
100
100
100
110
110
95
95
100
100
Bottom
Top
Bottom
Top
Bottom
Top
Bottom
Top
Bottom
Top
30
30
none
none
none
none
40
40
none
none
*For part number combinations not listed in this table, please contact your Micron representative.
2 Meg x 16 Async/Page/Burst Flash Memory
MT28F322D18FH_6.p65 – Rev. 6, Pub. 6/01
3
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2001, Micron Technology, Inc.
2 MEG x 16
ASYNC/PAGE/BURST FLASH MEMORY
FUNCTIONAL BLOCK DIAGRAM
PR Lock
PR Lock
Query
Query/OTP
OTP
DQ0–DQ15
X DEC
Data Input
Buffer
Data
Register
RST#
CE#
WE#
OE#
Y/Z DEC
Bank 1 Blocks
Y/Z Gating/Sensing
Manufacturer’s ID
Device ID
Block Lock
RCR
ID Reg.
CSM
Status
Reg.
WSM
Program/
Erase
Pump Voltage
Generators
Output
Multiplexer
DQ0–DQ15
I/O Logic
Output
Buffer
A0–A20
Address
Input
Buffer
Address
CNT WSM
WAIT#
Address
Multiplexer
Y/Z DEC
X DEC
Y/Z Gating/Sensing
Bank 2 Blocks
ADV#
Address Latch
CLK
BSM
2 Meg x 16 Async/Page/Burst Flash Memory
MT28F322D18FH_6.p65 – Rev. 6, Pub. 6/01
4
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2001, Micron Technology, Inc.
2 MEG x 16
ASYNC/PAGE/BURST FLASH MEMORY
Figure 2
Bottom Boot Block Device
Block
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
Bank
b
= 24Mb
Block Size
(K-bytes/K-words)
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
Address Range
(x16)
1F8000h-1FFFFFh
1F0000h-1F7FFFh
1E8000h-1EFFFFh
1E0000h-1E7FFFh
1D8000h-1DFFFFh
1D0000h-1D7FFFh
1C8000h-1CFFFFh
1C0000h-1C7FFFh
1B8000h-1BFFFFh
1B0000h-1B7FFFh
1A8000h-1AFFFFh
1A0000h-1A7FFFh
198000h-19FFFFh
190000h-197FFFh
188000h-18FFFFh
180000h-187FFFh
178000h-17FFFFh
170000h-177FFFh
168000h-16FFFFh
160000h-167FFFh
158000h-15FFFFh
150000h-157FFFh
148000h-14FFFFh
140000h-147FFFh
138000h-13FFFFh
130000h-137FFFh
128000h-12FFFFh
120000h-127FFFh
118000h-11FFFFh
110000h-117FFFh
108000h-10FFFFh
100000h-107FFFh
0F8000h-0FFFFFh
0F0000h-0F7FFFh
0E8000h-0EFFFFh
0E0000h-0E7FFFh
0D8000h-0DFFFFh
0D0000h-0D7FFFh
0C8000h-0CFFFFh
0C0000h-0C7FFFh
0B8000h-0BFFFFh
0B0000h-0B7FFFh
0A8000h-0AFFFFh
0A0000h-0A7FFFh
098000h-097FFFh
090000h-097FFFh
088000h-087FFFh
080000h-087FFFh
Block
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Bank
a
= 8Mb
Block Size
(K-bytes/K-words)
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
64/32
8/4
8/4
8/4
8/4
8/4
8/4
8/4
8/4
Address Range
(x16)
078000h-07FFFFh
070000h-077FFFh
068000h-067FFFh
060000h-067FFFh
058000h-05FFFFh
050000h-057FFFh
048000h-04FFFFh
040000h-047FFFh
038000h-03FFFFh
030000h-037FFFh
028000h-02FFFFh
020000h-027FFFh
018000h-01FFFFh
010000h-017FFFh
008000h-00FFFFh
007000h-007FFFh
006000h-006FFFh
005000h-005FFFh
004000h-004FFFh
003000h-003FFFh
002000h-002FFFh
001000h-001FFFh
000000h-000FFFh
2 Meg x 16 Async/Page/Burst Flash Memory
MT28F322D18FH_6.p65 – Rev. 6, Pub. 6/01
5
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2001, Micron Technology, Inc.
