HD74LS190RP-EL datasheet, PDF - EEWORLD Datasheet

HD74LS190RP-EL: DescriptionLS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, PDSO16, FP-16DN; Categorylogic logic; File Size104KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

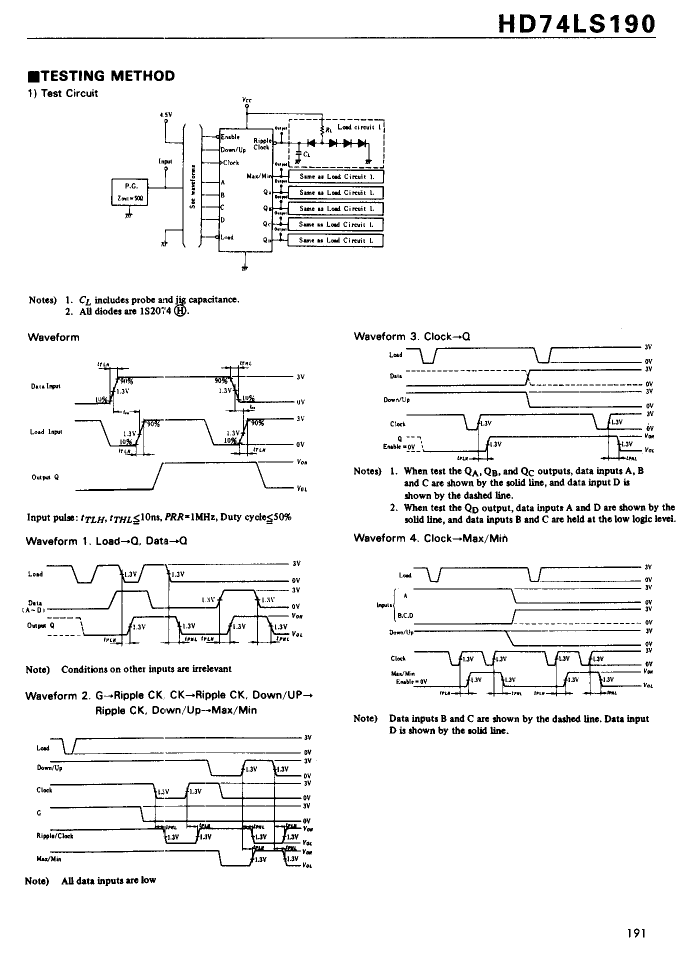

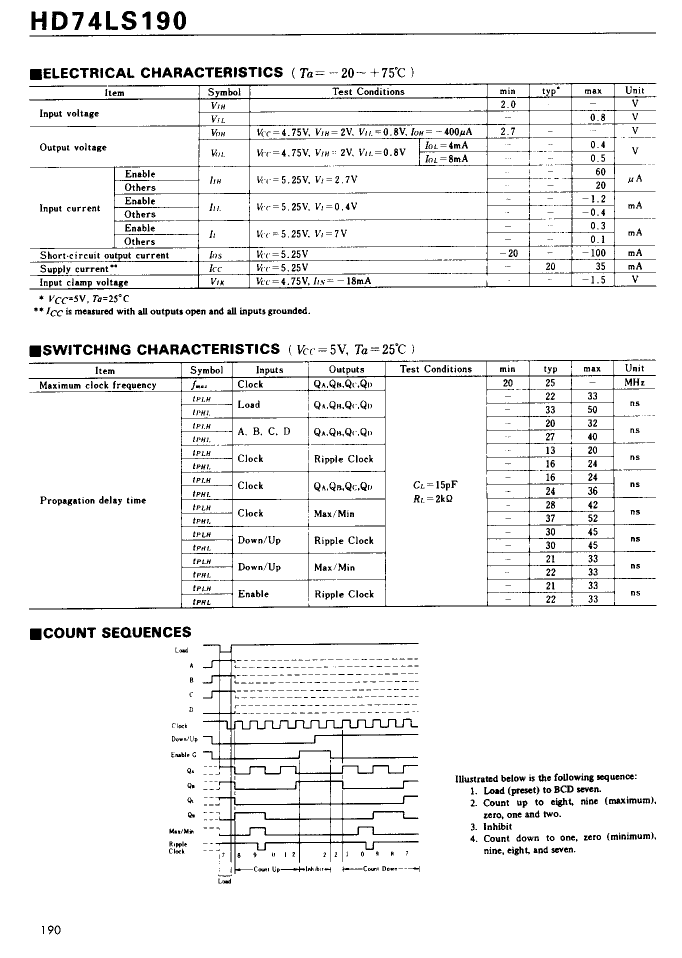

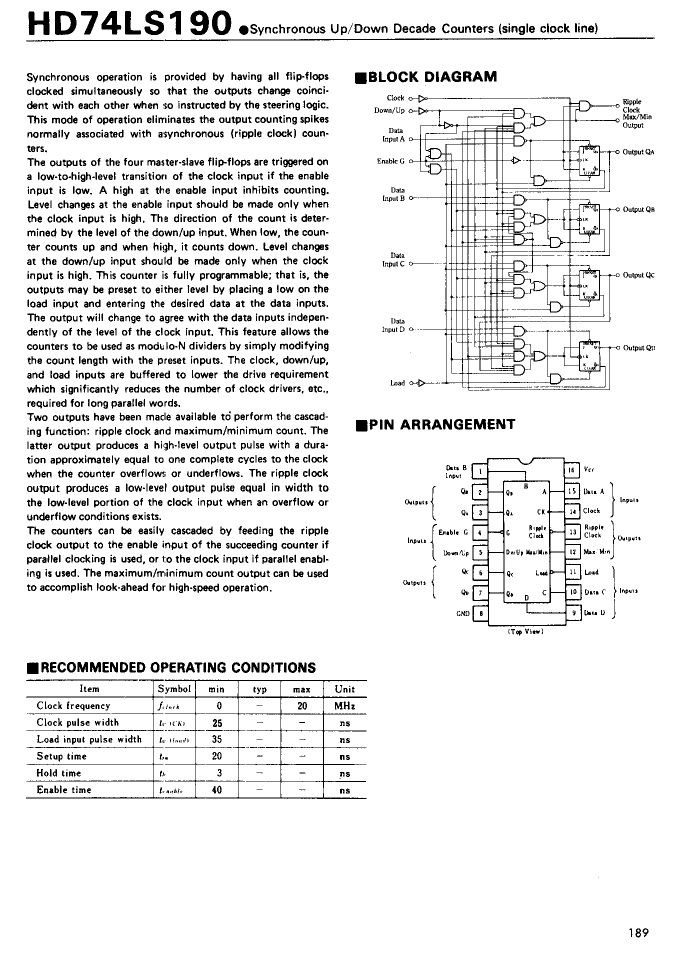

HD74LS190RP-EL Overview

LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, PDSO16, FP-16DN

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	compliant
Counting direction	BIDIRECTIONAL
series	LS
JESD-30 code	R-PDSO-G16
length	9.9 mm
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	36 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	3.95 mm
minfmax	20 MHz

	HD74LS190RP-EL	HD74LS190FP-EL
Description	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, PDSO16, FP-16DN	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, PDSO16, FP-16DA
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	16	16
Reach Compliance Code	compliant	unknown
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
series	LS	LS
JESD-30 code	R-PDSO-G16	R-PDSO-G16
length	9.9 mm	10.06 mm
Load/preset input	YES	YES
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	36 ns	36 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	2.2 mm
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	3.95 mm	5.5 mm
minfmax	20 MHz	20 MHz
