Part Number

Search

BT137M-500E-T

Description
TRIAC, 500 V, 8 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252
CategoryAnalog mixed-signal IC    Trigger device
File Size149KB,6 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

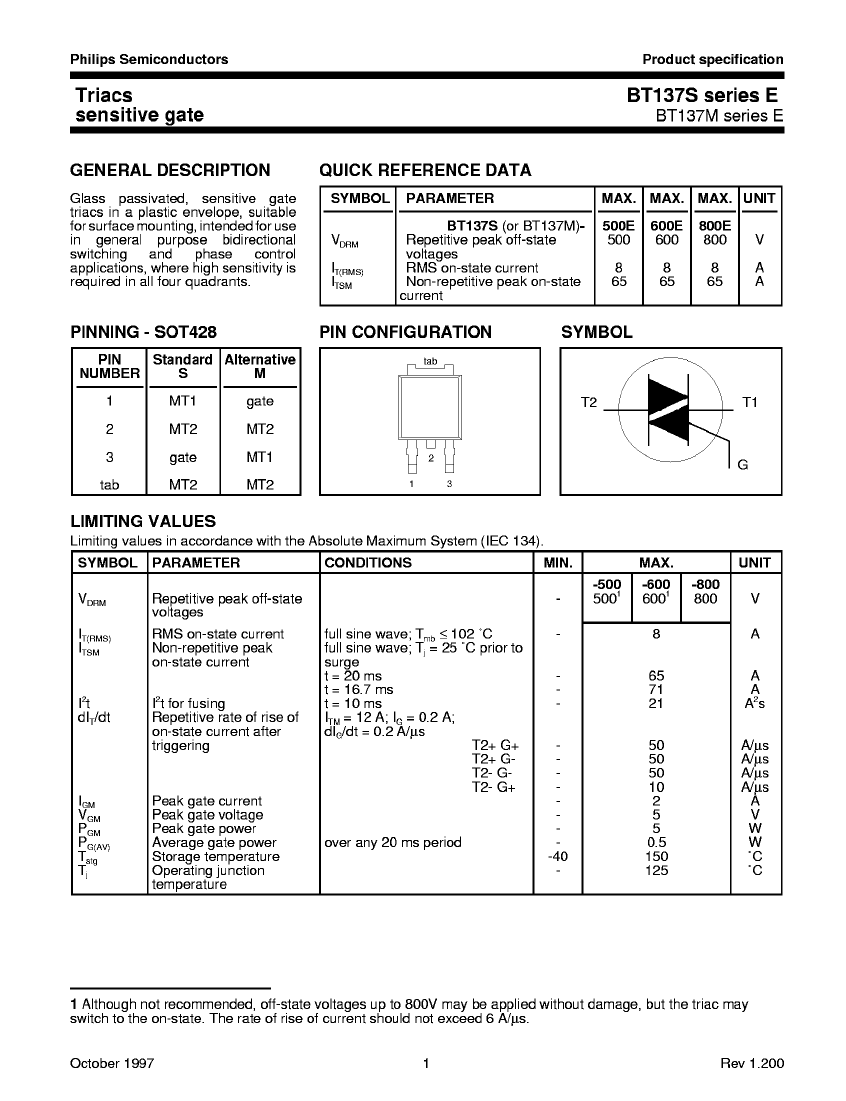

BT137M-500E-T Overview

TRIAC, 500 V, 8 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252

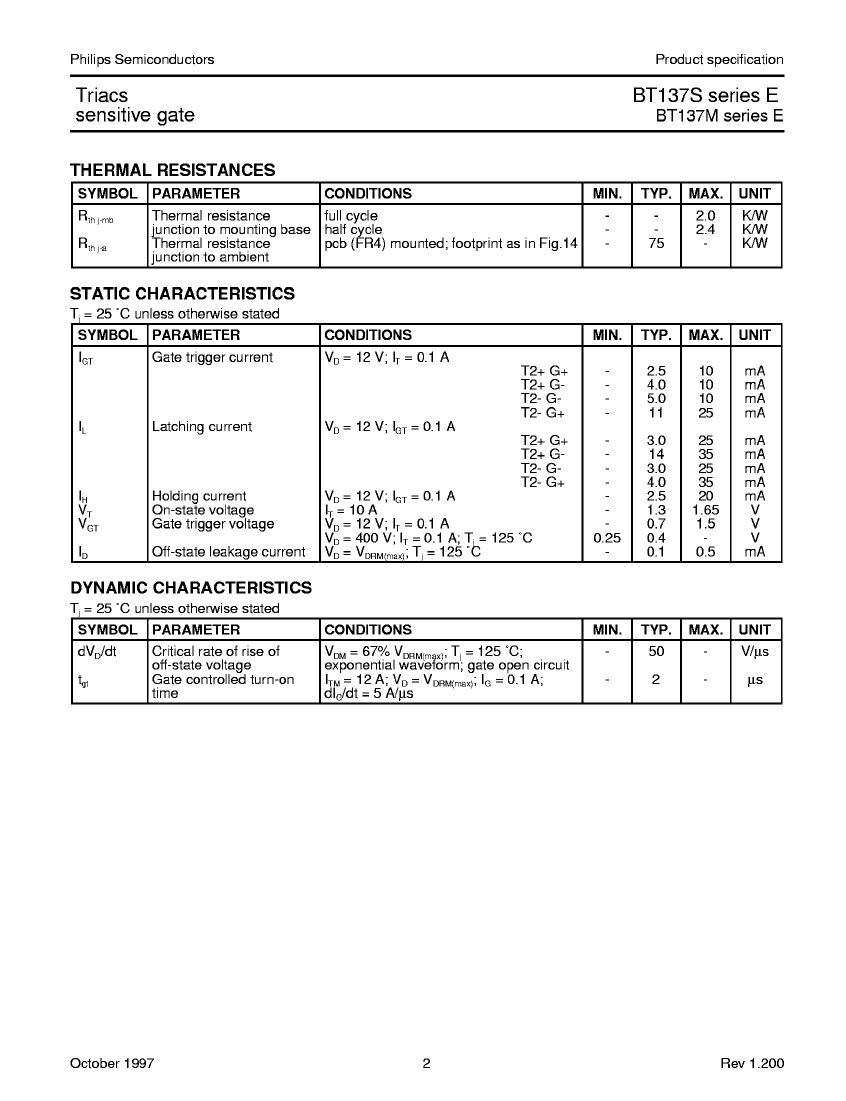

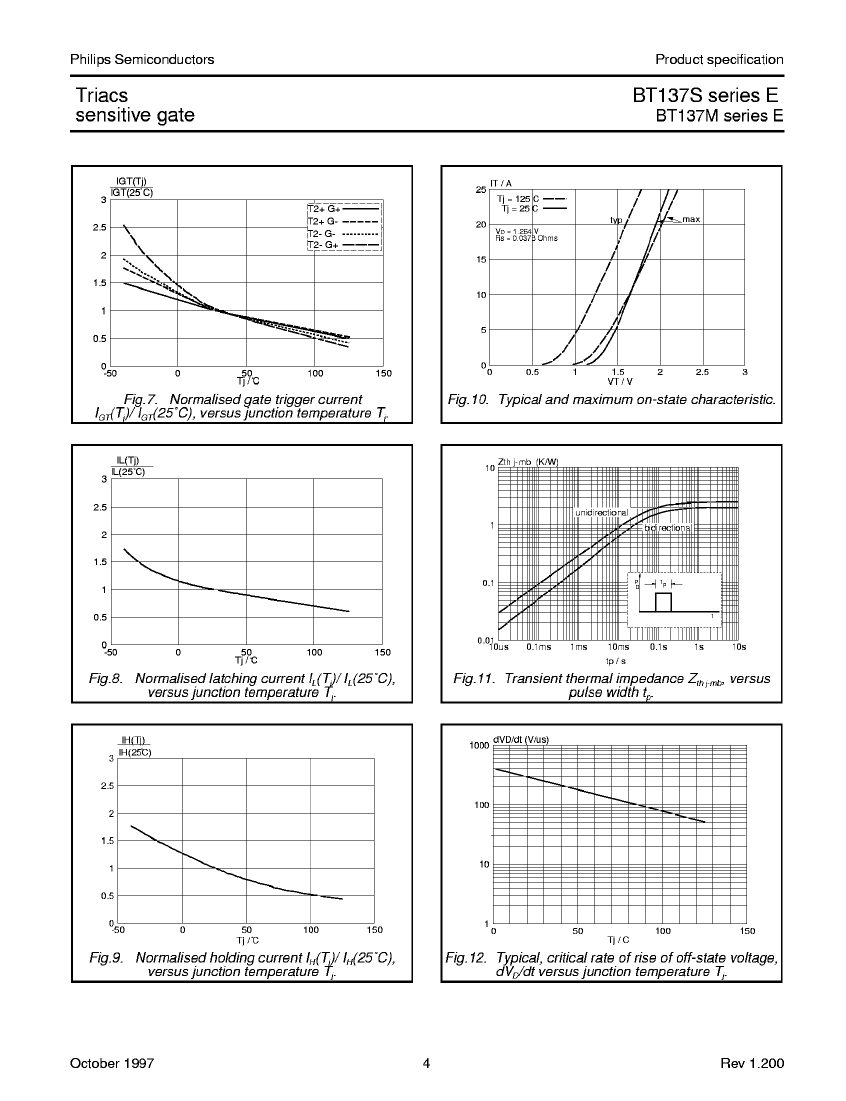

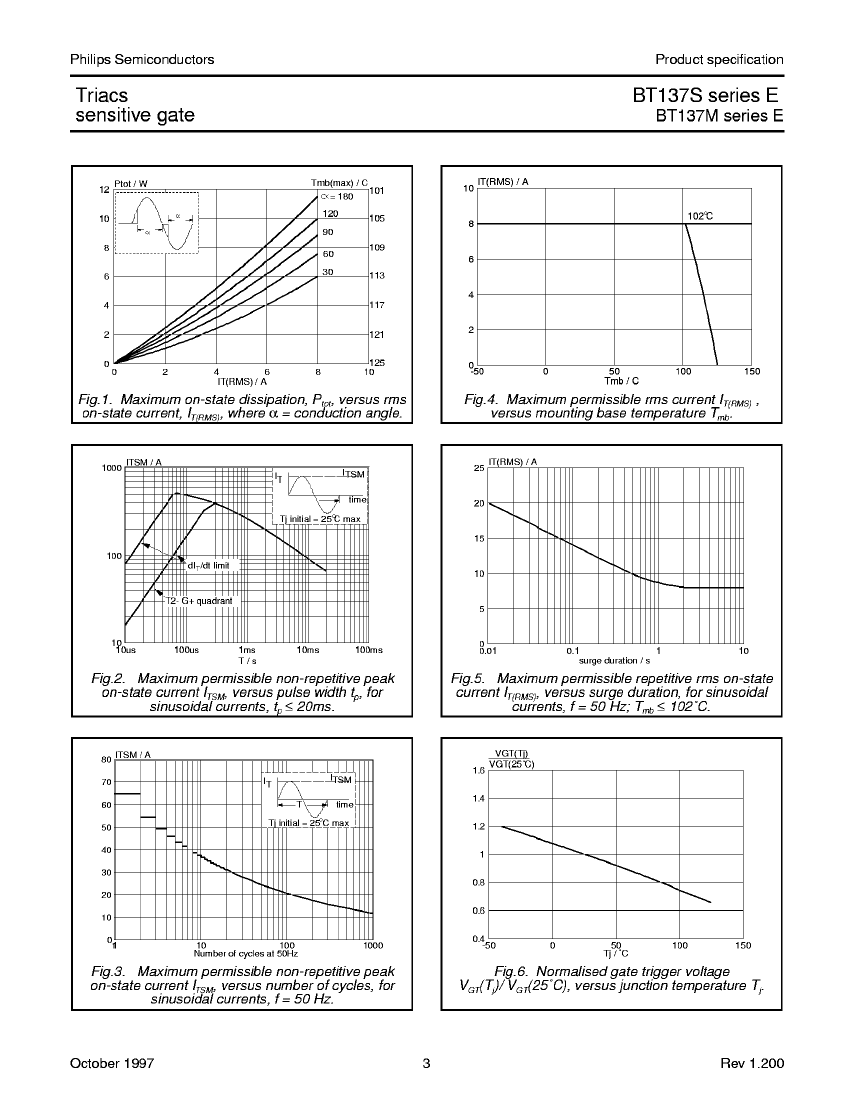

BT137M-500E-T Parametric

Parameter NameAttribute value
MakerNXP
package instructionSMALL OUTLINE, R-PSSO-G2
Reach Compliance Codeunknown
Shell connectionMAIN TERMINAL 2
ConfigurationSINGLE
Maximum DC gate trigger current10 mA
Maximum DC gate trigger voltage1.5 V
Maximum holding current20 mA

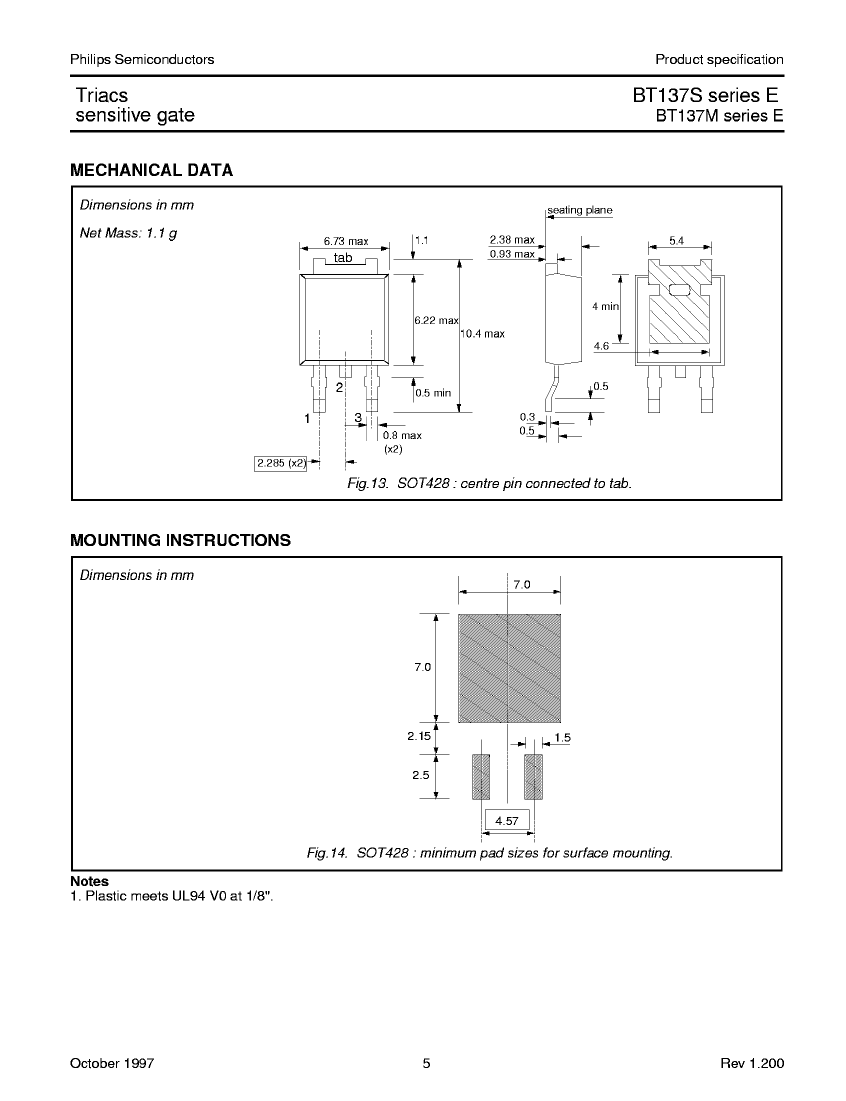

JEDEC-95 codeTO-252
JESD-30 codeR-PSSO-G2
Number of components1
Number of terminals2
Maximum operating temperature125 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Maximum rms on-state current8 A
Maximum repetitive peak off-state leakage current500 µA
Off-state repetitive peak voltage500 V
surface mountYES
Terminal formGULL WING
Terminal locationSINGLE
Trigger device type4 QUADRANT LOGIC LEVEL TRIAC

BT137M-500E-T Related Products

BT137M-500E-T BT137M-600E-T BT137S-500E-T BT137M-800E-T
Description TRIAC, 500 V, 8 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252 600V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252 TRIAC, 500 V, 8 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252 800V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252
Maker NXP NXP NXP NXP
Reach Compliance Code unknown unknown unknown unknown
Shell connection MAIN TERMINAL 2 MAIN TERMINAL 2 MAIN TERMINAL 2 MAIN TERMINAL 2
Configuration SINGLE SINGLE SINGLE SINGLE
Maximum DC gate trigger current 10 mA 10 mA 10 mA 10 mA
Maximum DC gate trigger voltage 1.5 V 1.5 V 1.5 V 1.5 V
Maximum holding current 20 mA 20 mA 20 mA 20 mA
JEDEC-95 code TO-252 TO-252 TO-252 TO-252
JESD-30 code R-PSSO-G2 R-PSSO-G2 R-PSSO-G2 R-PSSO-G2
Number of components 1 1 1 1
Number of terminals 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 8 A 8 A 8 A 8 A
Maximum repetitive peak off-state leakage current 500 µA 500 µA 500 µA 500 µA
Off-state repetitive peak voltage 500 V 600 V 500 V 800 V
surface mount YES YES YES YES
Terminal form GULL WING GULL WING GULL WING GULL WING
Terminal location SINGLE SINGLE SINGLE SINGLE
Trigger device type 4 QUADRANT LOGIC LEVEL TRIAC 4 QUADRANT LOGIC LEVEL TRIAC 4 QUADRANT LOGIC LEVEL TRIAC 4 QUADRANT LOGIC LEVEL TRIAC
package instruction SMALL OUTLINE, R-PSSO-G2 - SMALL OUTLINE, R-PSSO-G2 SMALL OUTLINE, R-PSSO-G2
