BR211-200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BR211-200

BR211-200: DescriptionSymmetrical BOD, 224V V(BO) Max; CategoryAnalog mixed-signal IC Trigger device; File Size253KB，10 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BR211-200 Overview

Symmetrical BOD, 224V V(BO) Max

BR211-200 Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	LONG FORM, O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum breakover voltage	224 V
Minimum breakover voltage	176 V
Shell connection	ISOLATED
Configuration	SINGLE
Nominal holding current	150 mA
JESD-30 code	O-LALF-W2
Maximum non-repetitive peak forward current	15 A
Number of components	1
Number of terminals	2
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Trigger device type	SYMMETRICAL BOD

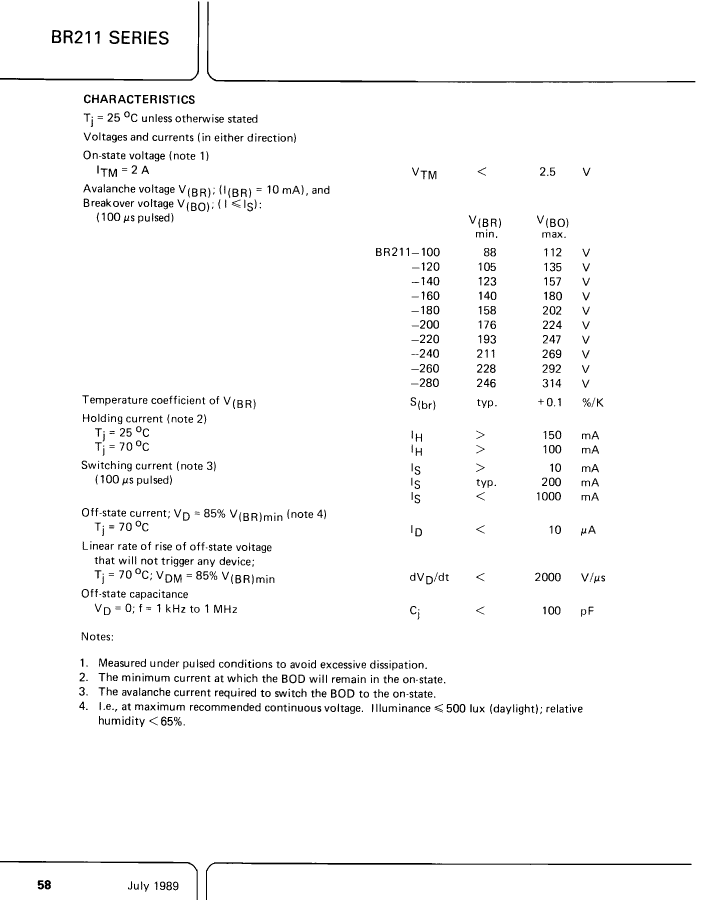

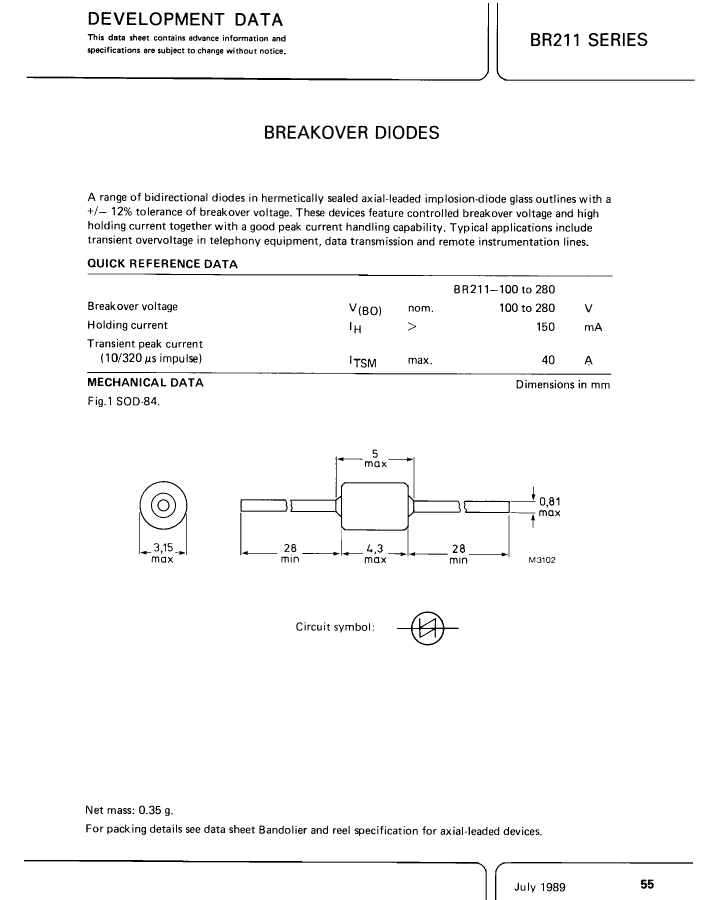

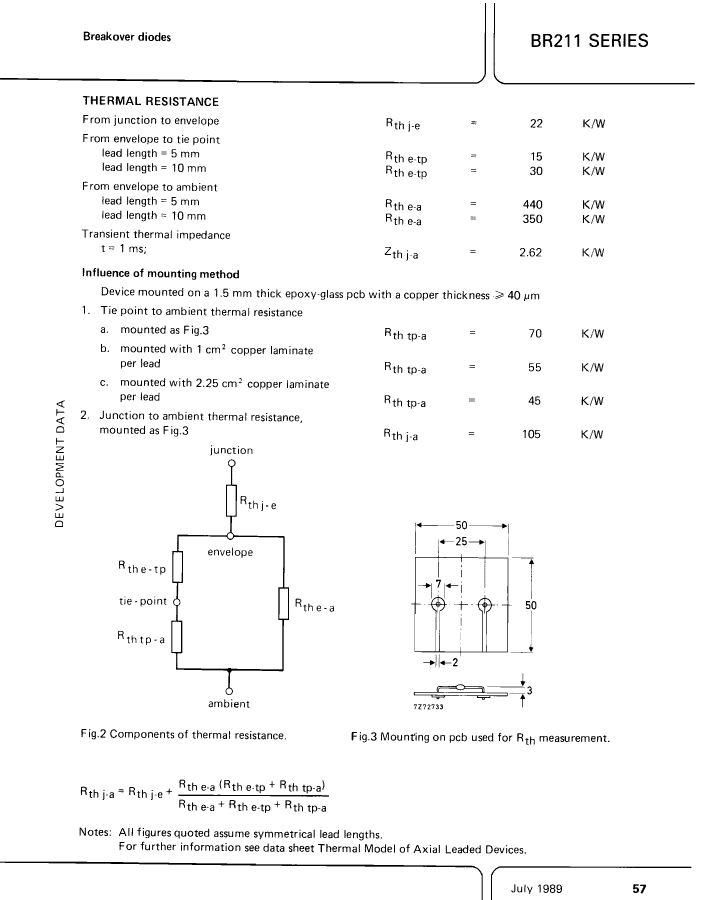

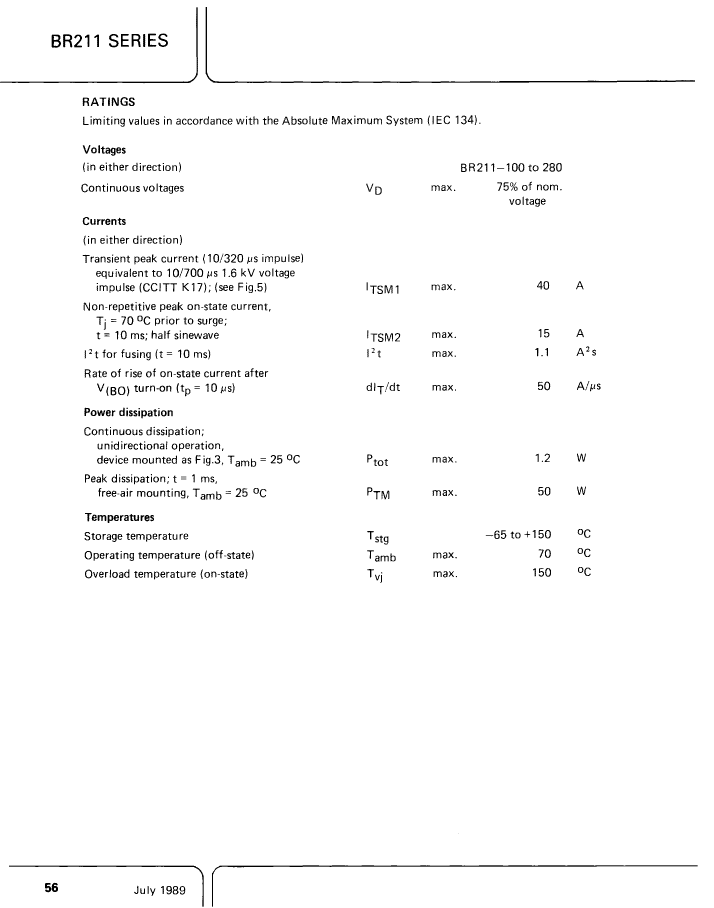

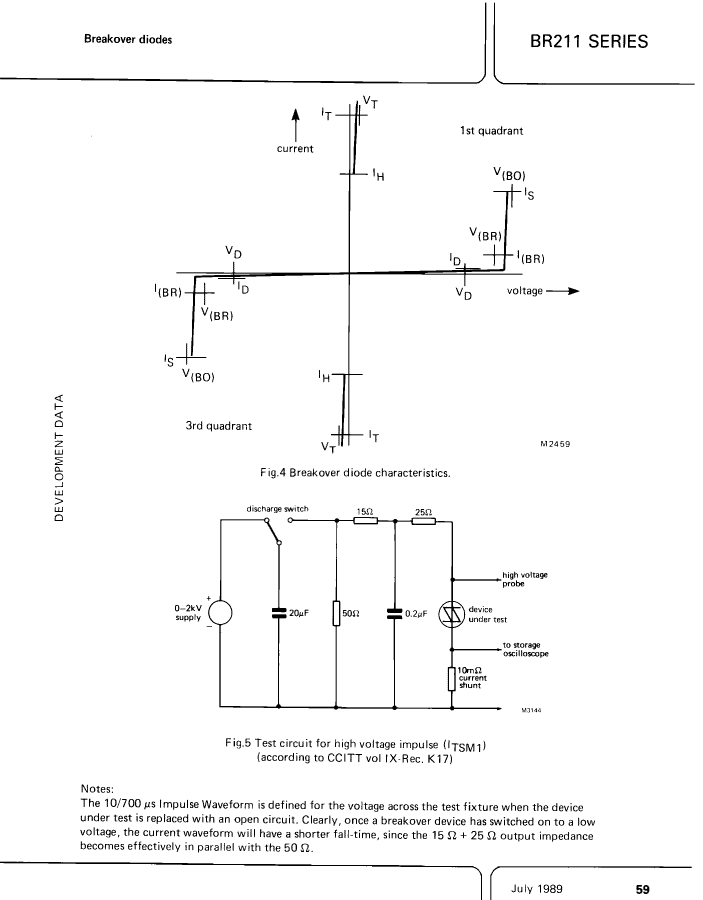

Preview

Download Datasheet

View All

BR211-200 Related Products

	BR211-200	BR211-140	BR211-160	BR211-100	BR211-120	BR211-180	BR211-220	BR211-240	BR211-260	BR211-280
Description	Symmetrical BOD, 224V V(BO) Max	Symmetrical BOD, 157V V(BO) Max	Symmetrical BOD, 180V V(BO) Max	Symmetrical BOD, 112V V(BO) Max	Symmetrical BOD, 135V V(BO) Max	Symmetrical BOD, 202V V(BO) Max	Symmetrical BOD, 247V V(BO) Max	Symmetrical BOD, 269V V(BO) Max	Symmetrical BOD, 292V V(BO) Max	Symmetrical BOD, 314V V(BO) Max
package instruction	LONG FORM, O-LALF-W2	LONG FORM, O-LALF-W2	LONG FORM, O-LALF-W2	LONG FORM, O-LALF-W2	LONG FORM, O-LALF-W2	LONG FORM, O-LALF-W2	LONG FORM, O-LALF-W2	LONG FORM, O-LALF-W2	LONG FORM, O-LALF-W2	LONG FORM, O-LALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum breakover voltage	224 V	157 V	180 V	112 V	135 V	202 V	247 V	269 V	292 V	314 V
Minimum breakover voltage	176 V	123 V	140 V	88 V	105 V	158 V	193 V	211 V	228 V	246 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal holding current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Maximum non-repetitive peak forward current	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Trigger device type	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD
Maker	YAGEO	-	-	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
