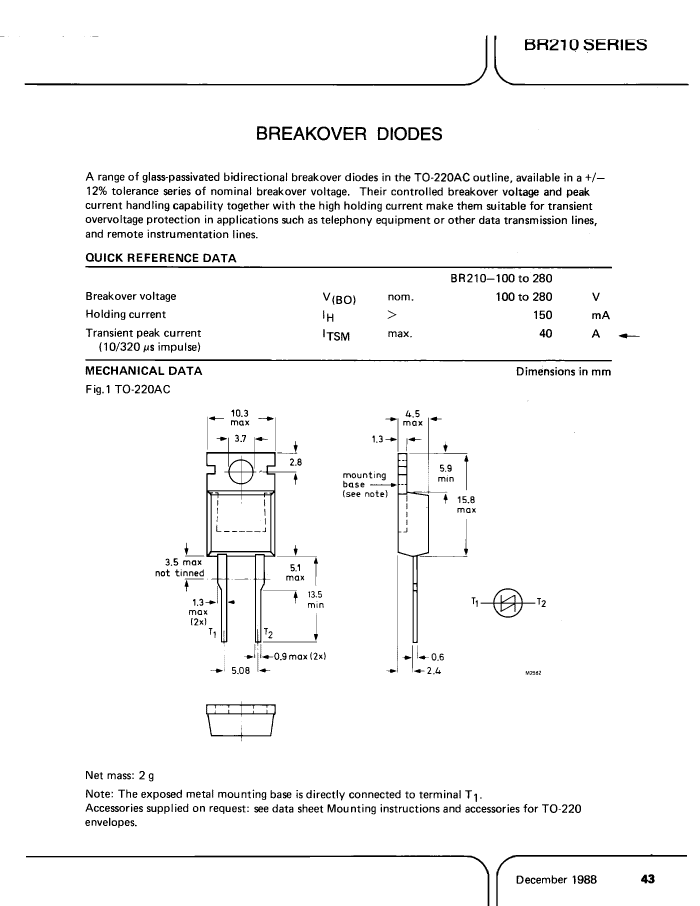

Symmetrical BOD, 292V V(BO) Max, TO-220AC

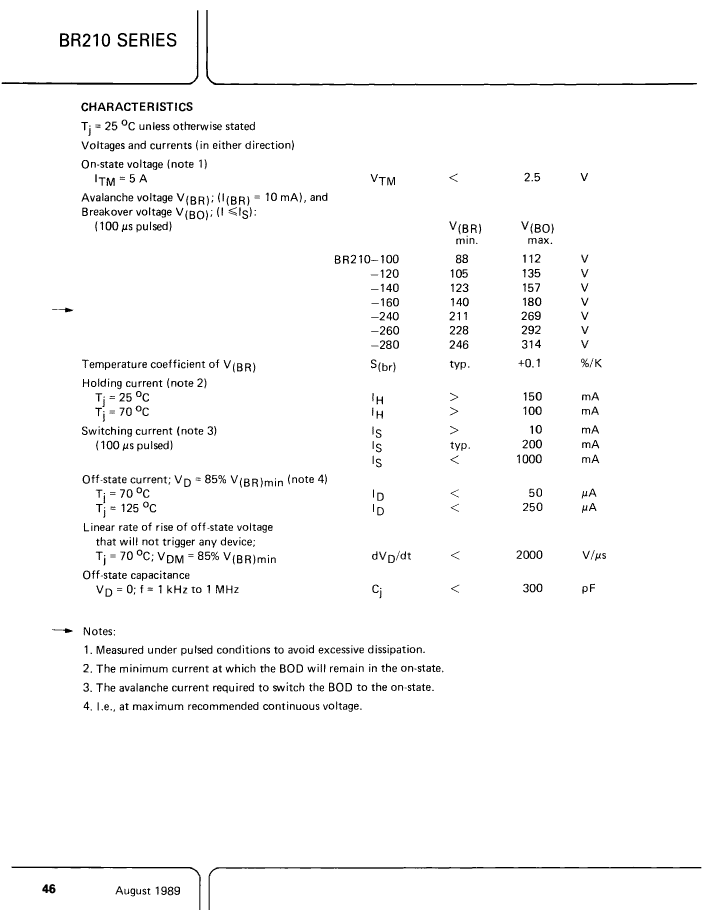

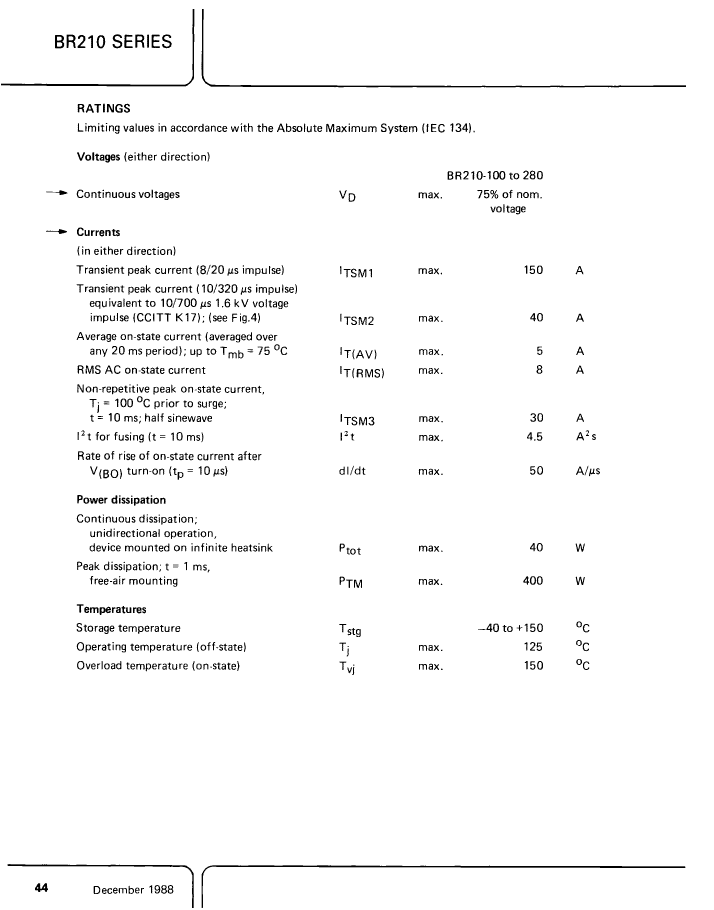

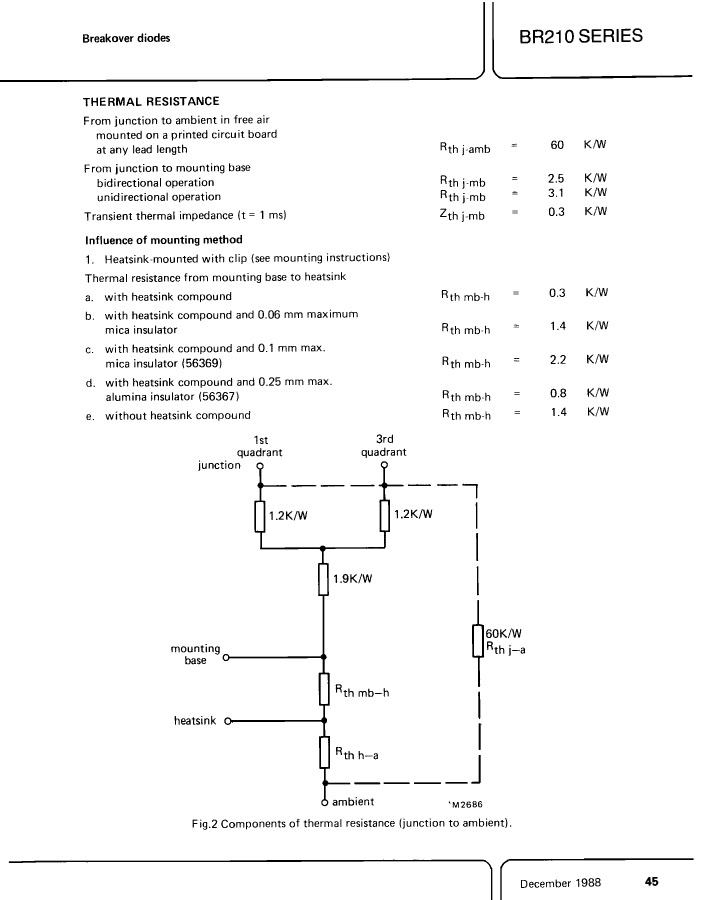

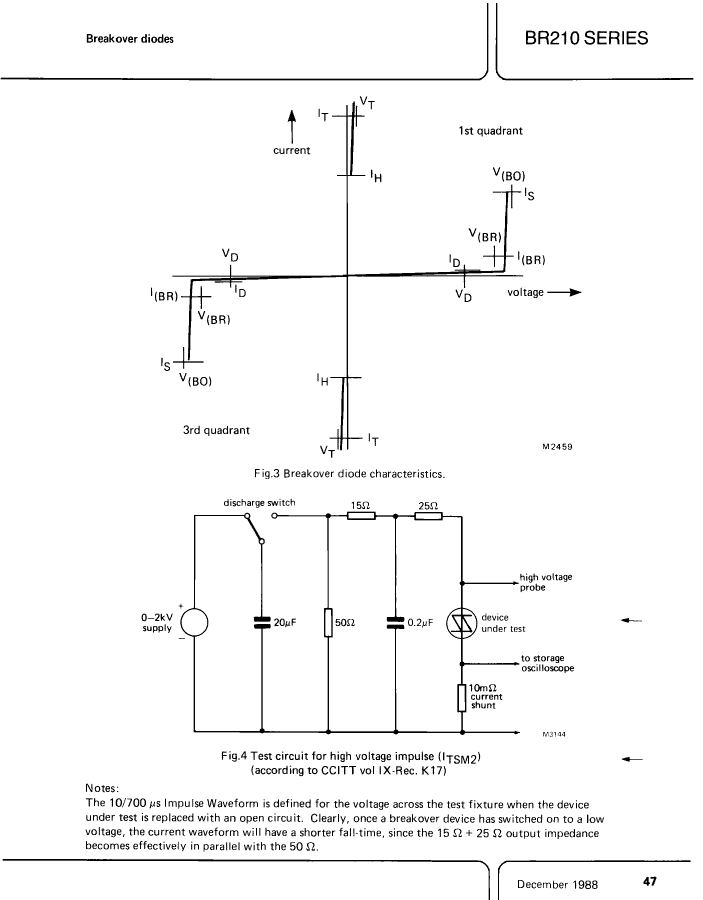

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | FLANGE MOUNT, R-PSFM-T2 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum breakover voltage | 292 V |
| Minimum breakover voltage | 228 V |
| Shell connection | TERMINAL 1 |
| Configuration | SINGLE |
| Nominal holding current | 150 mA |
| JEDEC-95 code | TO-220AC |
| JESD-30 code | R-PSFM-T2 |
| Maximum non-repetitive peak forward current | 30 A |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 125 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Maximum rms on-state current | 8 A |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Trigger device type | SYMMETRICAL BOD |
| BR210-260 | BR210-140 | BR210-160 | BR210-100 | BR210-120 | BR210-240 | BR210-280 | |
|---|---|---|---|---|---|---|---|
| Description | Symmetrical BOD, 292V V(BO) Max, TO-220AC | Symmetrical BOD, 157V V(BO) Max, TO-220AC | Symmetrical BOD, 180V V(BO) Max, TO-220AC | Symmetrical BOD, 112V V(BO) Max, TO-220AC | Symmetrical BOD, 135V V(BO) Max, TO-220AC | Symmetrical BOD, 269V V(BO) Max, TO-220AC | Symmetrical BOD, 314V V(BO) Max, TO-220AC |
| package instruction | FLANGE MOUNT, R-PSFM-T2 | FLANGE MOUNT, R-PSFM-T2 | FLANGE MOUNT, R-PSFM-T2 | FLANGE MOUNT, R-PSFM-T2 | FLANGE MOUNT, R-PSFM-T2 | FLANGE MOUNT, R-PSFM-T2 | FLANGE MOUNT, R-PSFM-T2 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Maximum breakover voltage | 292 V | 157 V | 180 V | 112 V | 135 V | 269 V | 314 V |
| Minimum breakover voltage | 228 V | 123 V | 140 V | 88 V | 105 V | 211 V | 246 V |
| Shell connection | TERMINAL 1 | TERMINAL 1 | TERMINAL 1 | TERMINAL 1 | TERMINAL 1 | TERMINAL 1 | TERMINAL 1 |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Nominal holding current | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| JEDEC-95 code | TO-220AC | TO-220AC | TO-220AC | TO-220AC | TO-220AC | TO-220AC | TO-220AC |
| JESD-30 code | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 |
| Maximum non-repetitive peak forward current | 30 A | 30 A | 30 A | 30 A | 30 A | 30 A | 30 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum rms on-state current | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A | 8 A |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Trigger device type | SYMMETRICAL BOD | SYMMETRICAL BOD | SYMMETRICAL BOD | SYMMETRICAL BOD | SYMMETRICAL BOD | SYMMETRICAL BOD | SYMMETRICAL BOD |
| Maker | YAGEO | - | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - |
