BR220-280 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BR220-280

BR220-280: DescriptionSymmetrical BOD, 314V V(BO) Max, TO-220AB; CategoryAnalog mixed-signal IC Trigger device; File Size290KB，11 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BR220-280 Overview

Symmetrical BOD, 314V V(BO) Max, TO-220AB

BR220-280 Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Maximum breakover voltage	314 V
Minimum breakover voltage	246 V
Shell connection	TERMINAL 2
Configuration	COMMON TERMINAL 2, 2 ELEMENTS
Nominal holding current	150 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	30 A
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	8 A
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	SYMMETRICAL BOD

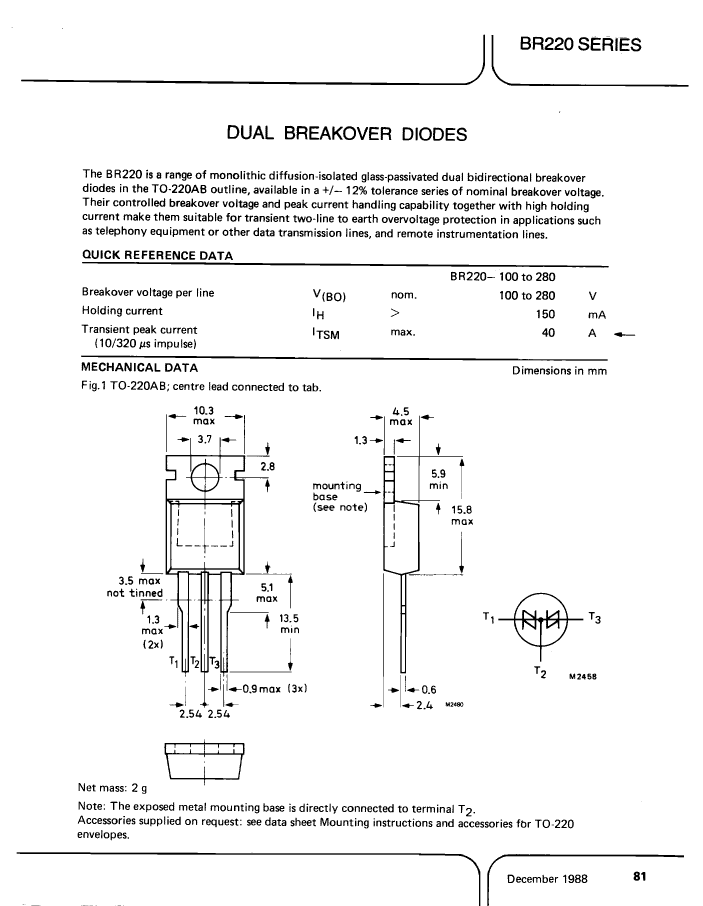

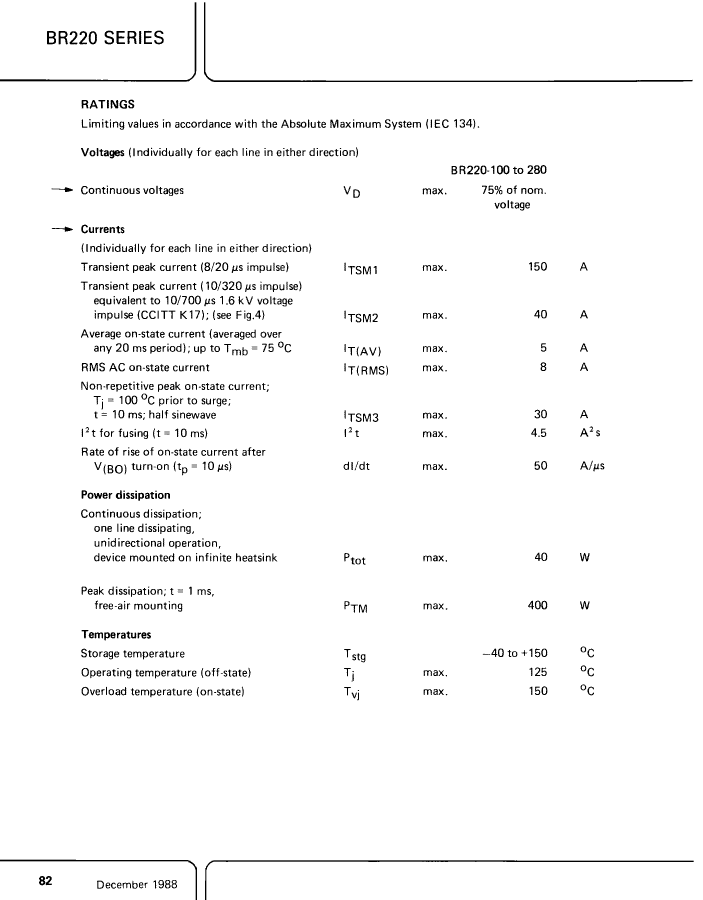

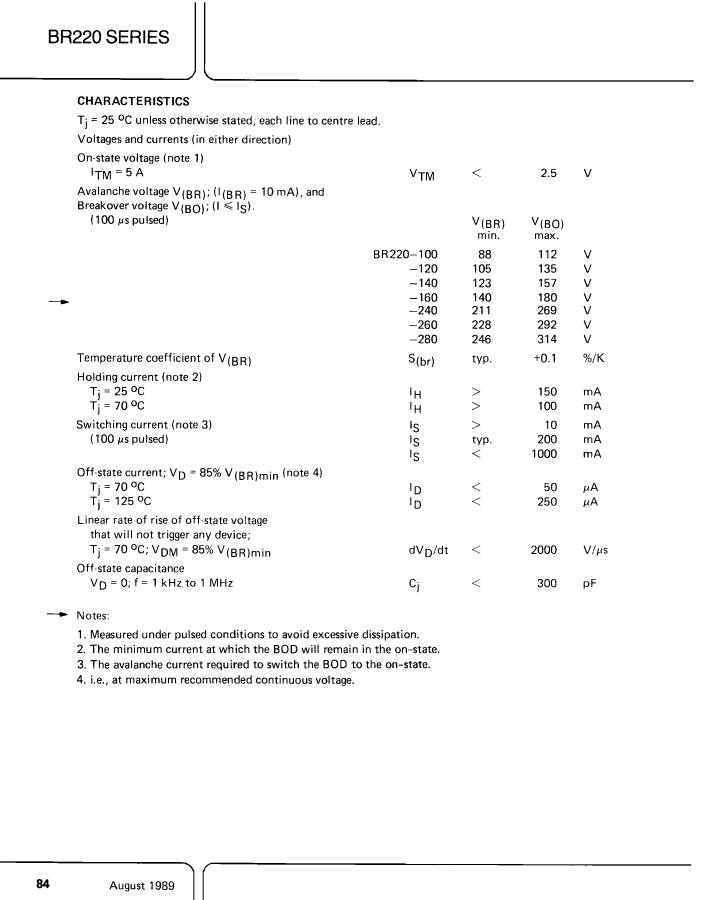

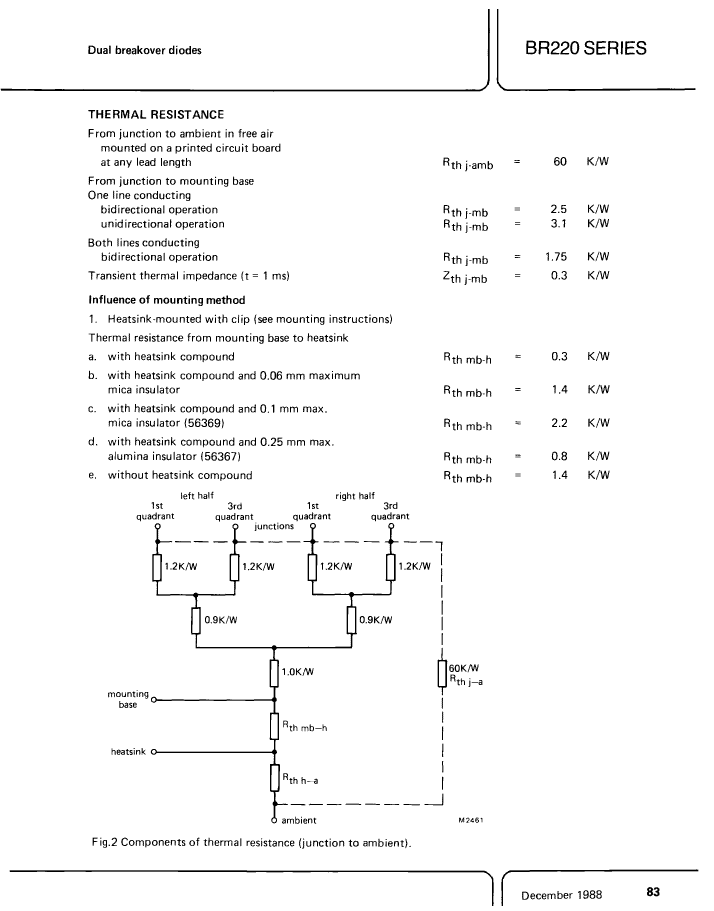

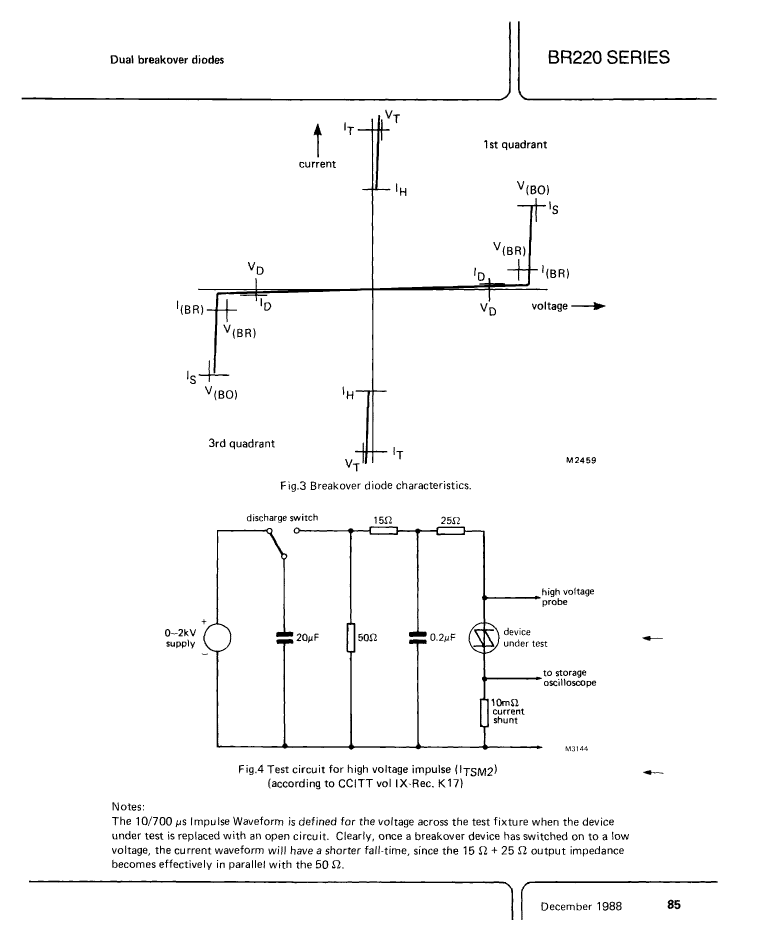

Preview

Download Datasheet

View All

BR220-280 Related Products

	BR220-280	BR220-140	BR220-160	BR220-100	BR220-120	BR220-240	BR220-260
Description	Symmetrical BOD, 314V V(BO) Max, TO-220AB	Symmetrical BOD, 157V V(BO) Max, TO-220AB	Symmetrical BOD, 180V V(BO) Max, TO-220AB	Symmetrical BOD, 112V V(BO) Max, TO-220AB	Symmetrical BOD, 135V V(BO) Max, TO-220AB	Symmetrical BOD, 269V V(BO) Max, TO-220AB	Symmetrical BOD, 292V V(BO) Max, TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum breakover voltage	314 V	157 V	180 V	112 V	135 V	269 V	292 V
Minimum breakover voltage	246 V	123 V	140 V	88 V	105 V	211 V	228 V
Shell connection	TERMINAL 2	TERMINAL 2	TERMINAL 2	TERMINAL 2	TERMINAL 2	TERMINAL 2	TERMINAL 2
Configuration	COMMON TERMINAL 2, 2 ELEMENTS	COMMON TERMINAL 2, 2 ELEMENTS	COMMON TERMINAL 2, 2 ELEMENTS	COMMON TERMINAL 2, 2 ELEMENTS	COMMON TERMINAL 2, 2 ELEMENTS	COMMON TERMINAL 2, 2 ELEMENTS	COMMON TERMINAL 2, 2 ELEMENTS
Nominal holding current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Number of components	2	2	2	2	2	2	2
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	8 A	8 A	8 A	8 A	8 A	8 A	8 A
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD	SYMMETRICAL BOD
Maker	YAGEO	-	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
