HPMC-104-02-T-D-032 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HPMC-104-02-T-D-032

Preview

HPMC-104-02-T-D-032: DescriptionRectangular Power Connector, 11 Contact(s), Male, Surface Mount Terminal; CategoryThe connector The connector; File Size343KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HPMC-104-02-T-D-032 Overview

Rectangular Power Connector, 11 Contact(s), Male, Surface Mount Terminal

HPMC-104-02-T-D-032 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HPMC
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT
Total number of contacts	11

Preview

Download Datasheet

View All

G

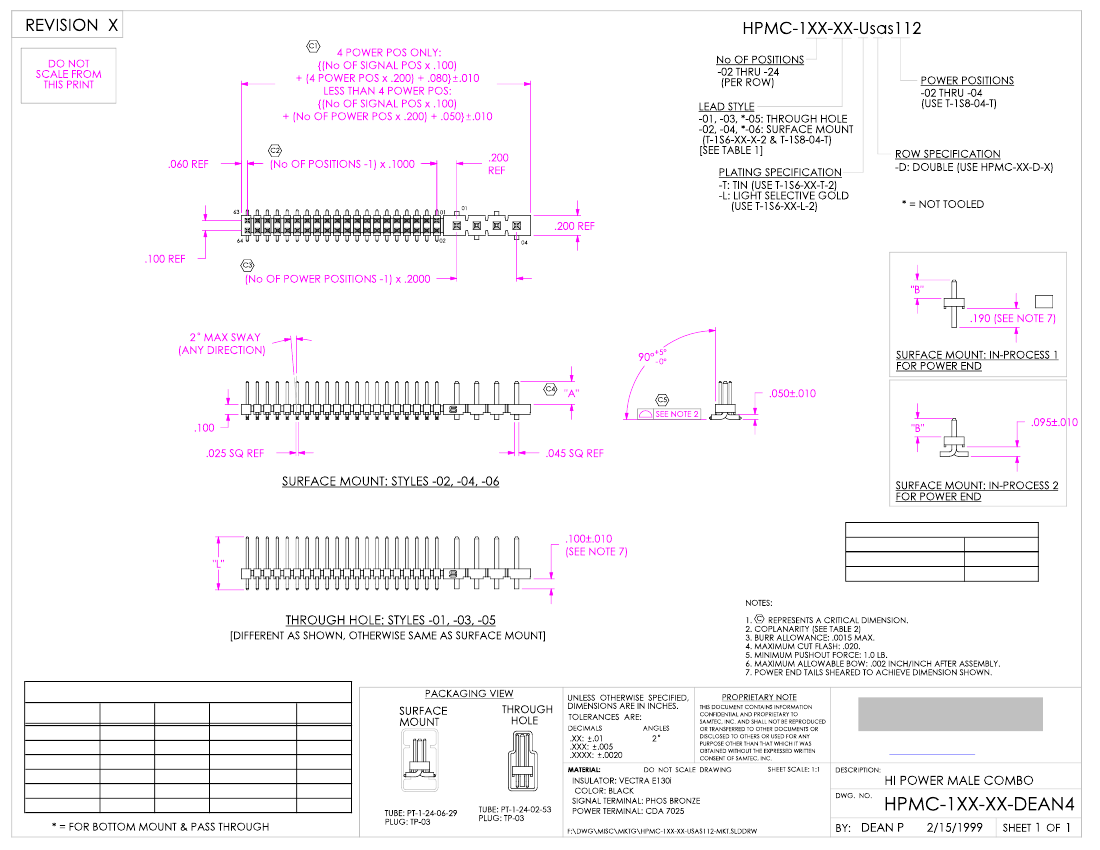

TABLE 2

No OF POS

COPLANARITY

-02 THRU -20 (SIGNAL)

.0060

-21 THRU -24 (SIGNAL)

.0080

TABLE 1

LEAD STYLE

-01

-02

-03

-04

*-05

*-06

"A"

.230

.320

.485

.420

"B"

---

.185

---

.275

---

.375

TERMINAL

T-1S6-16-X-2

T-1S6-08-X-2

T-1S6-23-X-2

T-1S6-15-X-2

"L"

.445

---

.530

---

.695

---

SAMTEC

e-M ail:

IN F O @ S A M T E C .C O M

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

C O D E: 55322
