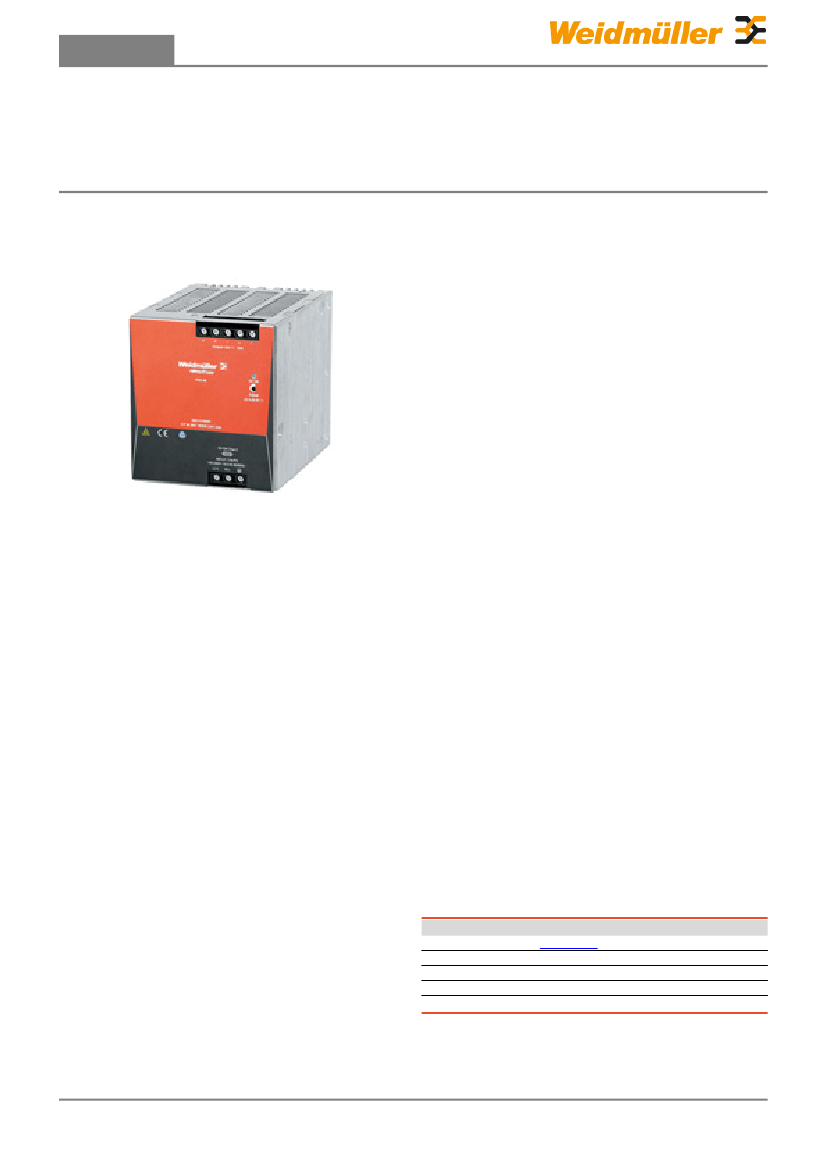

Datasheet
CP M SNT 500W 24V 20A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com
PRO-M = Power-Reliable-Optimized
The optimal and reliable power supply in automation
technology. The solid, very narrow metal housing of the 10
different versions of the 24 V DC supply enable installation
without lateral spacing, thereby saving space on the DIN rail.
AC and DC wide-range inputs and a broad temperature range
allow universal use. Thanks to its high efficiency, overload
resistance and high performance reserves, the PRO-M is the
reliable power supply in all applications. The 3-phase PRO-
M power supply modules continue to work reliable even if one
phase fail, i.e. in two-phase operation.
General ordering data
Order No.
Part designation
Version
GTIN (EAN)
Qty.
8951370000
CP M SNT 500W 24V 20A
Power supply, switch-mode power supply unit
4032248742585
1 pc(s).
Creation date September 3, 2010 10:34:31 PM CEST
Last update 28.06.2010 / We reserve the right to make technical changes.
1
Datasheet
CP M SNT 500W 24V 20A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com
Technical data
Dimensions (1)
Weight
Width
2.2 kg
121 mm
Length
Height
150 mm
130 mm
temperature
Ambient temperature (operational)
-25 °C...+70 °C
Storage temperature
-40 °C...+85 °C
Input
AC current consumption
DC current consumption
Frequency range AC
Input fuse (internal)
Input voltage AC, min.
Input voltage DC, min.
Recommended back-up fuse
2.4 A @ 230 V AC / 4.8 A @
115 V AC
1.5 A @ 370 V DC / 4.6 A @
120 V DC
47...63 Hz
Yes
85 V
80 V
6 A / DI, safety fuse
16 A, Char. B, circuit breaker
6…8 A, Char. C, circuit
breaker
100...240 V AC (wide-range
input)
Conductor connection system
DC input voltage range
Input fuse
Input voltage AC, max.
Input voltage DC, max.
Input voltage range AC
making current
max. 5 A
Screw connection
80…370 V DC (Derating @
120 V DC)
Yes
264 V
370 V
85…264 V AC (Derating @
100 V AC)
rated input voltage
output
Conductor connection system
Output voltage
Output voltage, max.
Parallel connection option
Rated (nominal) output current @ U
Nom
rated output voltage
Screw connection
(adjustable via potentiometer
on front)
29.5 V
yes, max. 3
20 A @ 60 °C
24 V DC ± 1 %
Output current
Output voltage type
Output voltage, min.
Powerboost @ 24 V DC, 60 °C
continous output current @ 24 V DC
residual ripple, breaking spikes
20 A
DC
22.5 V
24 A for 1 min, ED = 5 %
24 A @ 45 °C 22.7 A @ 55
°C 15 A @ 70 °C
< 50 mV
PP
@ 24 V DC, I
N
General data
AC failure bridging time @ I
Nom
Current limiting
Degree of efficiency
Indication
Mounting position, installation notice
> 20 ms @ 230 V AC / > 20
ms @ 115 V AC
> 120 % I
N
90 % at 230 V AC / > 85 % at
115 V AC
Operation, green LED
Horizontal on TS35 mounting
rail, with 50 mm of clearance
at top and bottom for air
circulation. Can be mounted
side by side with no space in
between.
Ambient temperature (operational)
DIN Rail compatibility
Housing version
MTBF
Power factor (approx.)
-25 °C...+70 °C
TS 35
Metal, corrosion resistant
> 500,000 h acc. to IEC 1709
(SN29500
> 0.98 @ 230 V AC / > 0.99
@ 115 V AC
Protection against reverse voltages from the
load
30…35 V DC
Creation date September 3, 2010 10:34:31 PM CEST
Last update 28.06.2010 / We reserve the right to make technical changes.
2
Datasheet
CP M SNT 500W 24V 20A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com
Technical data
Insulation coordination
Class of protection
Pollution severity
electrical isolation, input-earth
electrical isolation, output-earth
I, with PE connection
2
2 kV
0.5 kV
Insulation voltage
Protection class
electrical isolation, input-output
3 kV input/ouput; 2 kV input/
earth; 0.5 kV output/earth
IP 20
3 kV
Approvals
Approvals institutes
CE; CURUS; CULUS; C-Tick
Classifications
eClass 5.1
27-04-90-02
eClass 6.0
27-04-90-04
Notes
Note, technical data
*) Recommendation applies only for AC operation; the max. permissible
operating voltage must be observed in all cases! The internal varistor found in a switch-mode power supply
does not replace the need for surge protection within a system.
Creation date September 3, 2010 10:34:31 PM CEST
Last update 28.06.2010 / We reserve the right to make technical changes.
3
Datasheet
CP M SNT 500W 24V 20A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com
Drawings
Electric symbol
Creation date September 3, 2010 10:34:31 PM CEST
Last update 28.06.2010 / We reserve the right to make technical changes.
4
