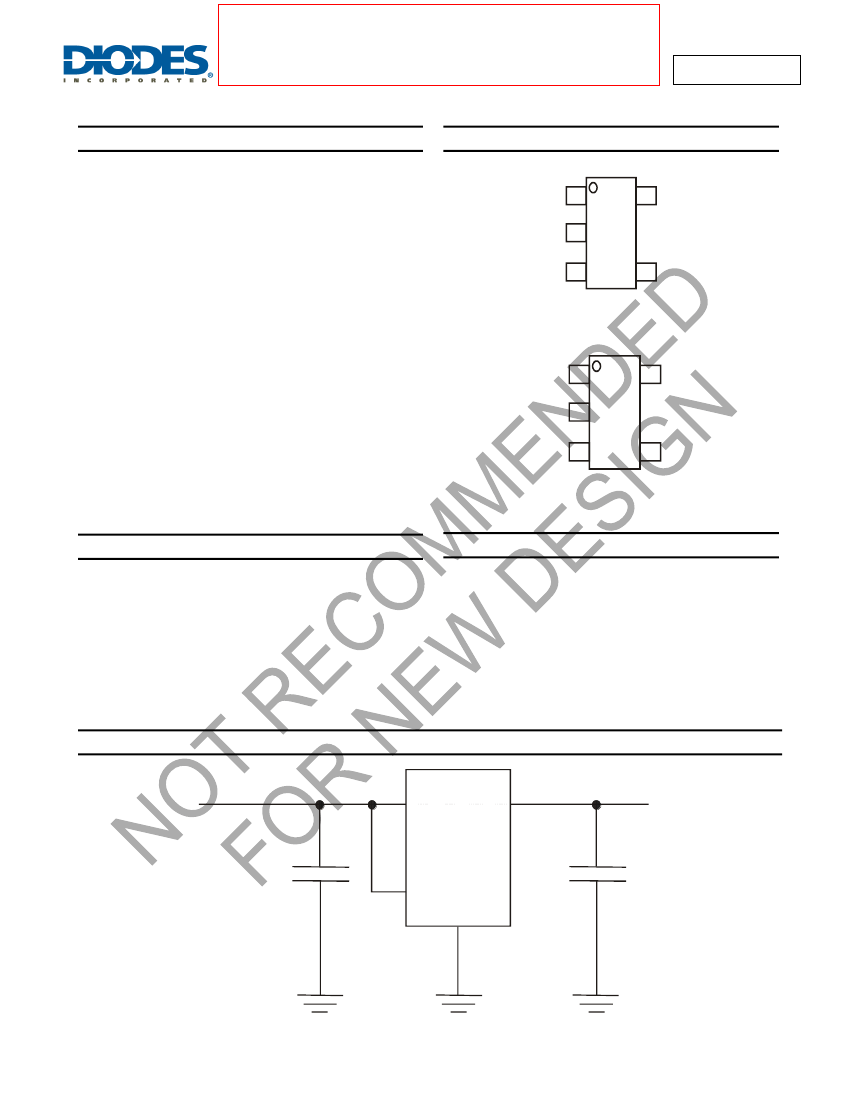

ZXCL SERIES

MICROPOWER SC70-5/SOT353 & SOT25 LOW DROPOUT REGULATORS

Description

The ZXCL series have been designed with space sensitive

systems in mind. They are available in the ultra-small SC70-

5/SOT353 package, which is half the size of SOT23 based

regulators.

The devices can be used with all types of output capacitors

including low ESR ceramics and typical dropout voltage is

only 85mV at 50Ma load. Supply current is minimized with a

ground pin current of only 50µA at full 150mA load.

Logic control allows the devices to be shut down, consuming

typically less than 10nA.

These features make the device ideal for battery powered

applications where power economy is critical.

For applications requiring improved performance over

alternative devices, the ZXCL is also offered in the 5 pin

SOT23 package with an industry standard pinout.

The devices feature thermal overload and overcurrent

protection and are available with output voltages of 2.5V,

2.6V, 2.8V, 3V, 3.3V.

N/C*

GND

Pin Assignments

(Top View)

GND

N/C

SOT25/SC70-5/SOT353 (H5)

ZXCLxxx

(Top View)

SC70-5/SOT353 (H5)

ZXCL5213Vxx

*Should be left open circuit

or connected to pin 3

Features

• Low 85mV dropout at 50mA load

• 50µA ground pin current with full 150mA load

• 2.5, 2.6, 2.8, 3, & 3.3 volts output

• Very low noise, without bypass capacitor

• 5-pin SC70/SOT353 and SOT25 package

• No-load stable

Applications

• Cellular and Cordless Phones

• PDA

• Handheld Instruments

• Camera, Camcorder, Personal Stereo

• PC Cards

• Portable and Battery-Powered Equipment

No-Load Stability

- the ZXCL device will maintain regulation and is stable with no external load. e.g. CMOS RAM applications

Typical Application Circuit

Battery Supply

Output Voltage

ZXCL

1µF

GND

OUT

2.2µF

ZXCL SERIES

Document number: DS33439 Rev. 10 - 3

1 of 13

www.diodes.com

November 2015

ZXCL5213V33H5TA Related Products

	ZXCL5213V33H5TA	ZXCL	ZXCL300E5TA	ZXCL300H5TA	ZXCL5213V30H5TA
Description	3 V FIXED POSITIVE LDO REGULATOR, 0.28 V DROPOUT, PDSO5	3 V FIXED POSITIVE LDO REGULATOR, 0.28 V DROPOUT, PDSO5	3 V FIXED POSITIVE LDO REGULATOR, 0.28 V DROPOUT, PDSO5	3 V FIXED POSITIVE LDO REGULATOR, 0.28 V DROPOUT, PDSO5	3 V FIXED POSITIVE LDO REGULATOR, 0.28 V DROPOUT, PDSO5
Number of functions	1	1	1	1	1
Number of terminals	5	5	5	5	5
Maximum output voltage	3.09 V	3.09 V	3.09 V	3.09 V	3.09 V
Minimum output voltage	2.91 V	2.91 V	2.91 V	2.91 V	2.91 V
Maximum input voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum input voltage	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
Processing package description	SOT-23, 5 PIN	SOT-23, 5 PIN	SOT-23, 5 PIN	SOT-23, 5 PIN	SOT-23, 5 PIN
Lead-free	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes
China RoHS regulations	Yes	Yes	Yes	Yes	Yes
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
packaging shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package Size	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
surface mount	Yes	Yes	Yes	Yes	Yes
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal spacing	0.9500 mm	0.9500 mm	0.9500 mm	0.9500 mm	0.9500 mm
terminal coating	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Packaging Materials	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Maximum voltage difference	0.2800 V	0.2800 V	0.2800 V	0.2800 V	0.2800 V
Adjustment type	FIXED POSITIVE LDO REGULATOR	FIXED POSITIVE LDO REGULATOR	FIXED POSITIVE LDO REGULATOR	FIXED POSITIVE LDO REGULATOR	FIXED POSITIVE LDO REGULATOR
Rated output voltage	3 V	3 V	3 V	3 V	3 V
