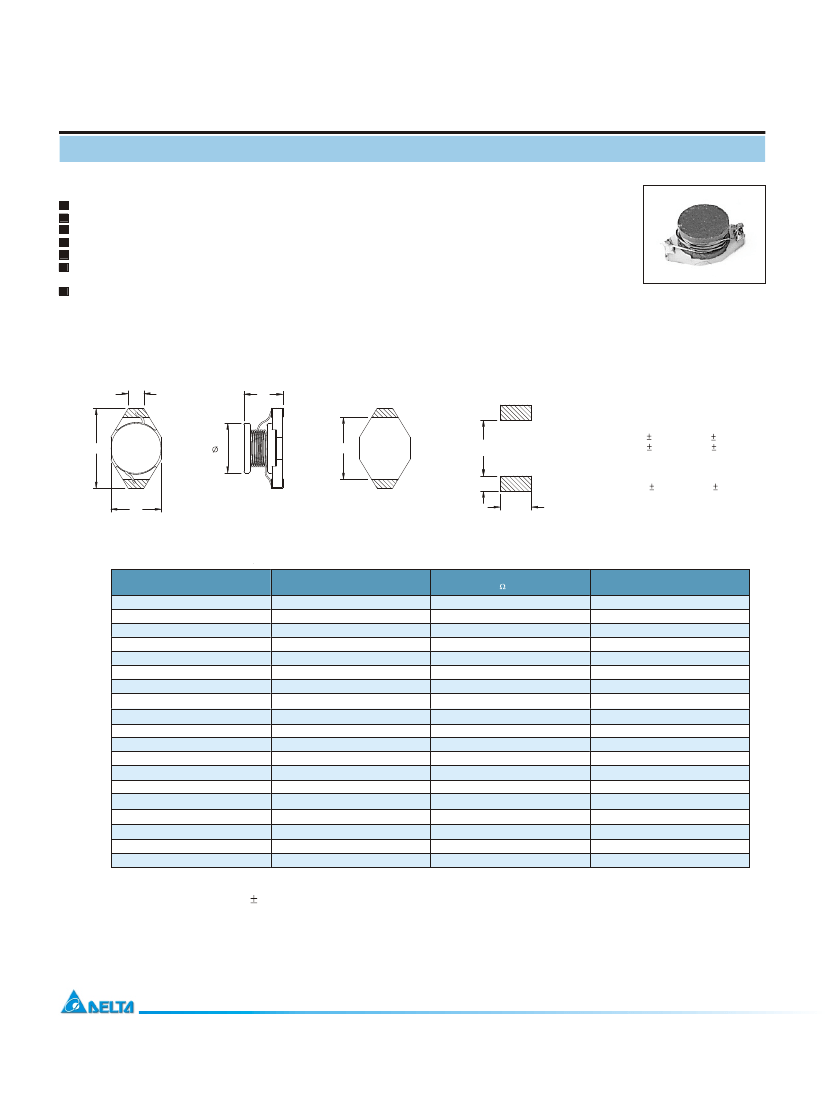

SMT Power Inductor

SISN43 Type

Features

RoHS compliant.

Low profile (3.0mm max. height), SMD type.

Unshielded, suitable for high density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Idel for power source circuits, DC-DC converter,

DC-AC inverters inductor application.

In addition to the standard versions shown here,

customized inductors are available to meet your exact requirements.

Mechanical Dimension:

RECOMMENDED PAD PA

TTERNS

3.9

UNIT:mm/inch

A = 6.45 0.254 / 0.254 0.010

B = 4.00 0.254 / 0.157 0.010

C = 3.00 / 0118 Max.

D = 4.32 / 0.170 (TYP)

E = 1.23 / 0.048 (TYP)

F = 4.00 0.254 / 0.157 0.010

2.4

1.6

Electrical Characteristics:

PART NO.

SISN43-1R0A

SISN43-1R5A

SISN43-2R2A

SISN43-3R3A

SISN43-4R7A

SISN43-6R8A

SISN43-100A

SISN43-150A

SISN43-220A

SISN43-330A

SISN43-470A

SISN43-680A

SISN43-101A

SISN43-151A

SISN43-221A

SISN43-331A

SISN43-471A

SISN43-681A

SISN43-102A

C: 100KHz, 0.1V

(uH)

DCR

( )MAX

Isat

(Amperes)

2.90

2.60

2.30

2.00

1.50

1.20

1.10

0.90

0.70

0.58

0.50

0.40

0.31

0.27

0.22

0.18

0.16

0.14

0.10

1.0

1.5

2.2

3.3

4.7

6.8

10.0

15.0

22.0

33.0

47.0

68.0

100.0

150.0

220.0

330.0

470.0

680.0

1000.0

0.05

0.07

0.08

0.09

0.13

0.16

0.23

0.37

0.51

0.64

0.86

1.27

2.00

3.11

3.80

5.06

9.20

13.80

1. Tolerance of inductance : 20%.

2. Isat is the DC current which cause the inductance drop less than 10% of its nominal inductance without current .

3. Operating temperature: -20

C to 105

C (including self-temperature rise).

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com
