LPO6013-333KXC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LPO6013-333KXC

LPO6013-333KXC: DescriptionGeneral Purpose Inductor, 33uH, 10%, 1 Element, Ceramic-Core, SMD, 2421, CHIP; CategoryPassive components inductor; File Size106KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

LPO6013-333KXC Overview

General Purpose Inductor, 33uH, 10%, 1 Element, Ceramic-Core, SMD, 2421, CHIP

LPO6013-333KXC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	COILCRAFT
package instruction	2421
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2421
structure	Chip
core material	CERAMIC
DC Resistance	0.73 Ω
Nominal inductance(L)	33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LPO6013
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	1.3 mm
Package length	6 mm
Package form	SMT
Package width	5.4 mm
method of packing	TR, 7 Inch
Maximum rated current	0.74 A
self resonant frequency	30 MHz
series	LPO6013
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	10%

Preview

Download Datasheet

View All

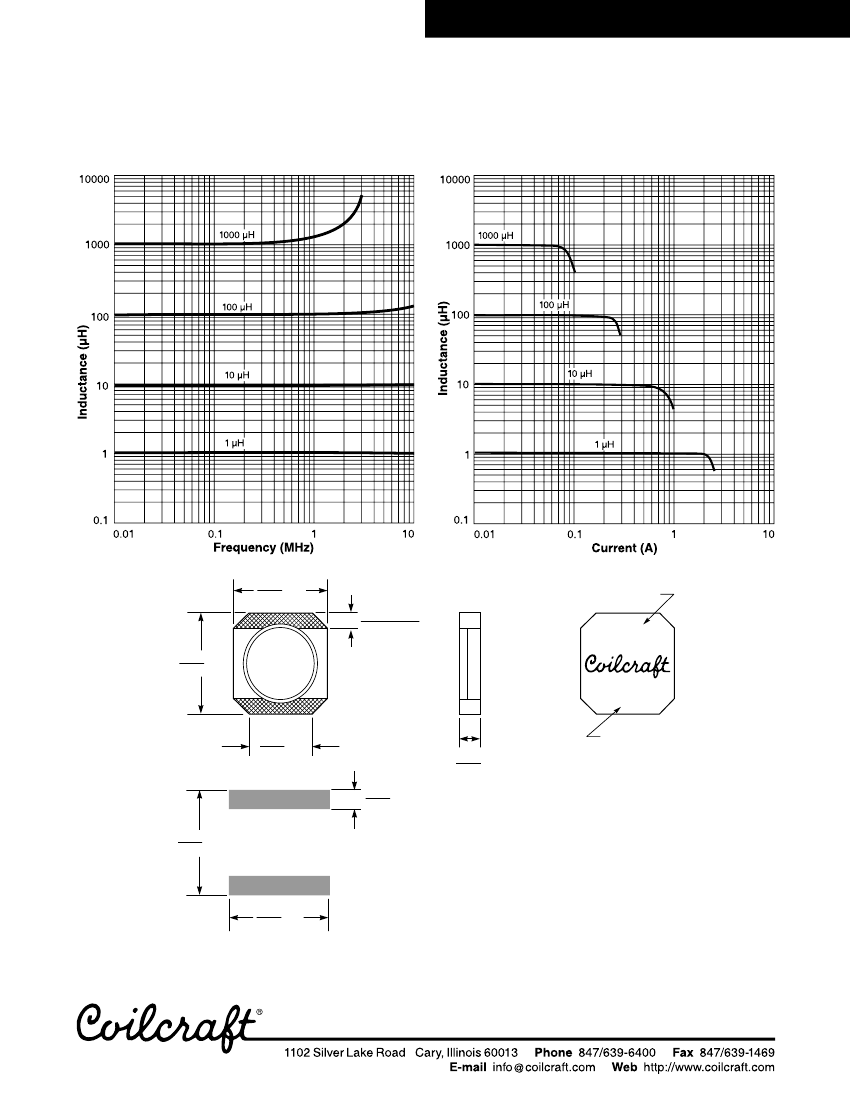

Document 286-1

SMT Power Inductors - LPO6013 Series

The LPO6013 series is designed for

applications requiring the smallest

possible size in a low profile part.

Recommended applications include

notebook computers, PC cards, cel-

lular phone handsets, and handheld

products.

The specially designed ceramic case

protects the winding and its flat top provides the best

possible surface for pick and place handling. Its com-

pact design minimizes the PC board space required.

Coilcraft

Designer’s Kit C152

contains samples of all

values shown. Visit

http://order.coilcraft.com

to order

on-line, or contact Coilcraft.

Part number

(µH)

1.0

1.5

2.2

3.3

3.9

±20%

DCR

SRF

max

typ

Isat

Irms

(Ohms) (MHz) (A)

(A)

0.06

0.07

0.08

0.11

0.13

0.15

0.20

0.22

0.30

0.38

0.52

0.73

0.96

1.0

1.7

3.2

4.3

5.8

200

150

110

100

1.9

1.6

1.3

1.1

1.0

0.90

0.70

0.60

0.55

0.45

0.40

0.35

0.30

0.28

0.22

0.19

0.15

0.13

0.10

1.5

1.4

1.3

1.2

1.0

0.85

0.80

0.74

0.67

0.60

0.49

0.35

0.30

0.26

0.23

0.20

0.18

0.13

1. When ordering, please specify

packaging

code:

LPO6013-473KXC

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (1000 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (3500 parts per full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.

3. DC current at which the inductance drops 10% (typ) from its value

without current.

4. Average current for a 40°C rise above 25°C ambient.

5. Operating temperature range -40°C to +85°C.

6. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

LPO6013-102MX_

LPO6013-152MX_

LPO6013-222MX_

LPO6013-332MX_

LPO6013-392MX_

LPO6013-472MX_

LPO6013-682MX_

LPO6013-822MX_

LPO6013-103KX_

LPO6013-153KX_

LPO6013-223KX_

LPO6013-333KX_

LPO6013-393KX_

LPO6013-473KX_

LPO6013-683KX_

LPO6013-104KX_

LPO6013-154KX_

LPO6013-224KX_

LPO6013-334KX_

LPO6013-474KX_

4.7 ±20%

6.8 ±20%

8.2 ±20%

10. ±10%

15. ±10%

22. ±10%

33. ±10%

39. ±10%

47. ±10%

68. ±10%

100. ±10%

150. ±10%

220. ±10%

330. ±10%

470. ±10%

LPO6013-684KX_ 680. ±10%

LPO6013-105KX_ 1000. ±10%

5.6 0.09

4.7 0.07

Specifications subject to change without notice.

Please check our website for latest information. Document 286-1

Revised 01/14/05
