863025PLZ datasheet, PDF - EEWORLD Datasheet

863025PLZ: DescriptionD Subminiature Connector, 25 Contact(s), Male, Crimp Terminal; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

863025PLZ Overview

D Subminiature Connector, 25 Contact(s), Male, Crimp Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	8630
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	ZINC
Shell material	STEEL
Housing size	3/B
Termination type	CRIMP
Total number of contacts	25

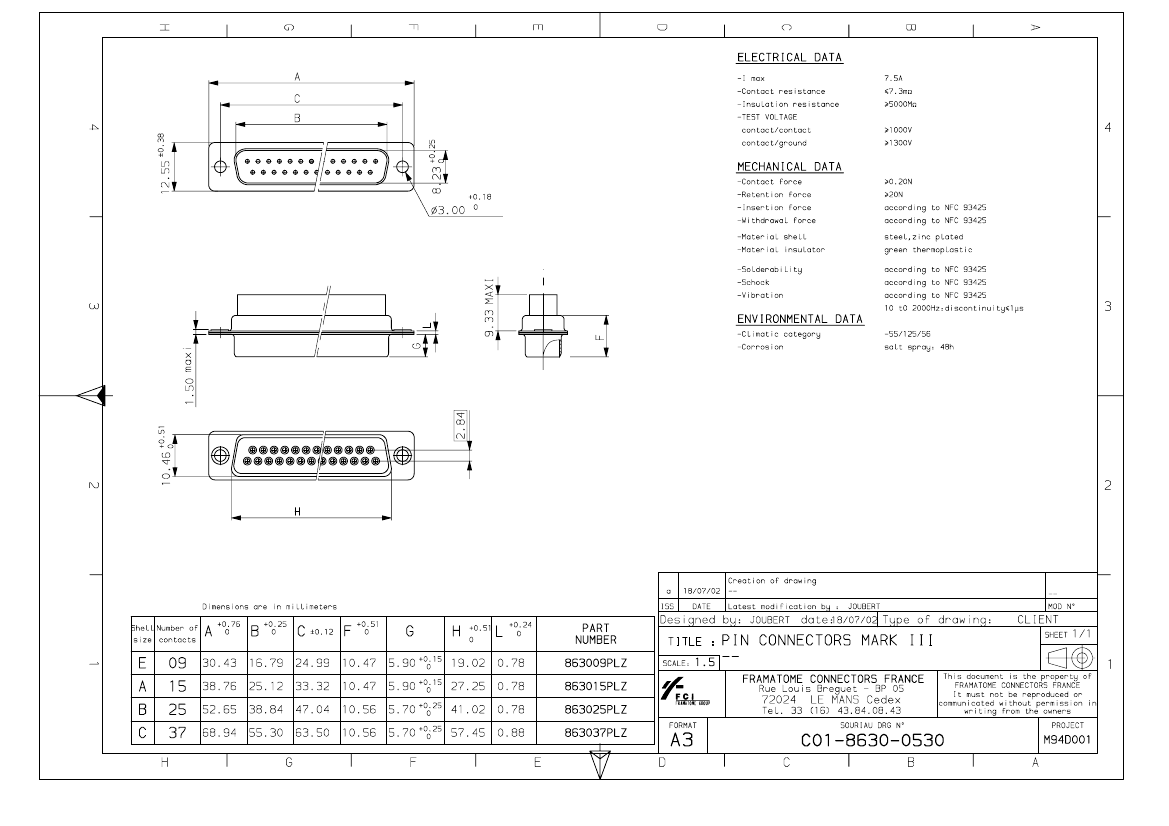

PDM: Rev:A

STATUS:

Released

Printed: Oct 01, 2002

	863025PLZ	863009PLZ	863015PLZ	863037PLZ
Description	D Subminiature Connector, 25 Contact(s), Male, Crimp Terminal	D Subminiature Connector, 9 Contact(s), Male, Crimp Terminal	D Subminiature Connector, 15 Contact(s), Male, Crimp Terminal	D Subminiature Connector, 37 Contact(s), Male, Crimp Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
empty shell	YES	YES	YES	YES
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	8630	8630	8630	8630
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	ZINC	ZINC	ZINC	ZINC
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	1/E	2/A	4/C
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	25	9	15	37
