LP2950ACP5 datasheet, PDF - EEWORLD Datasheet

LP2950ACP5: DescriptionIC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,SIP,3PIN,PLASTIC; CategoryPower/power management The power supply circuit; File Size904KB，12 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

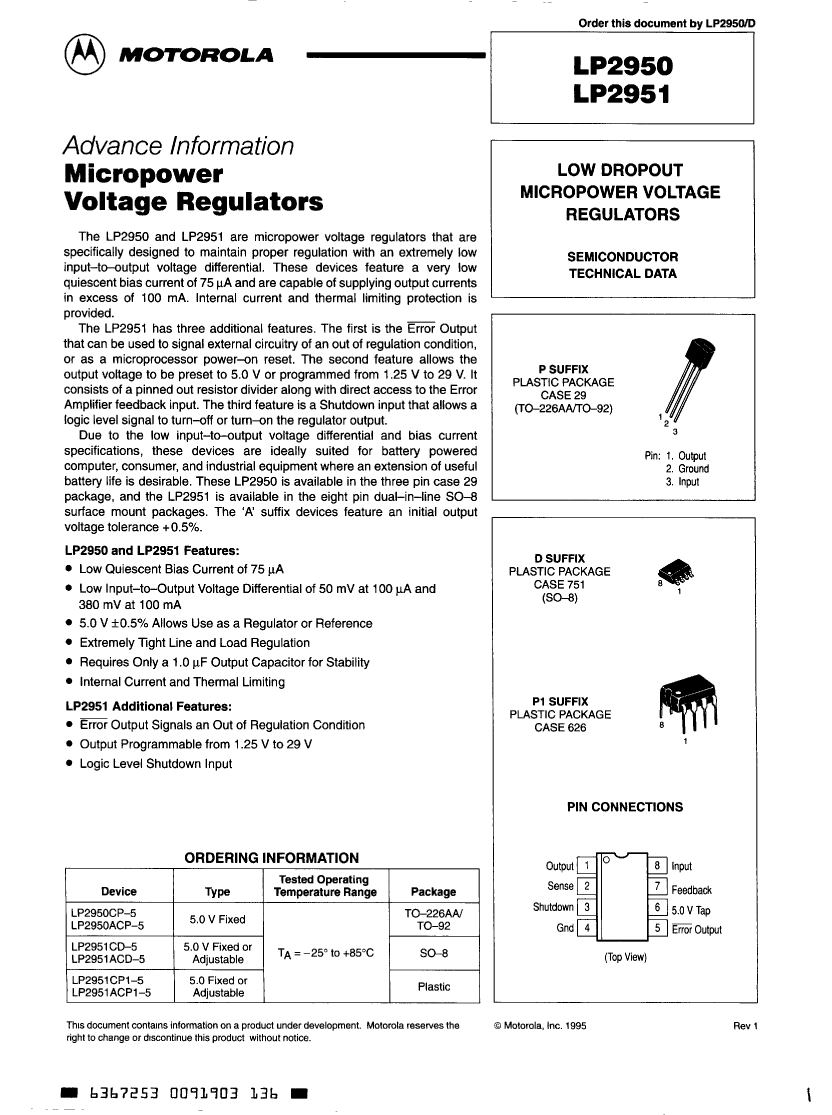

LP2950ACP5 Overview

IC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,SIP,3PIN,PLASTIC

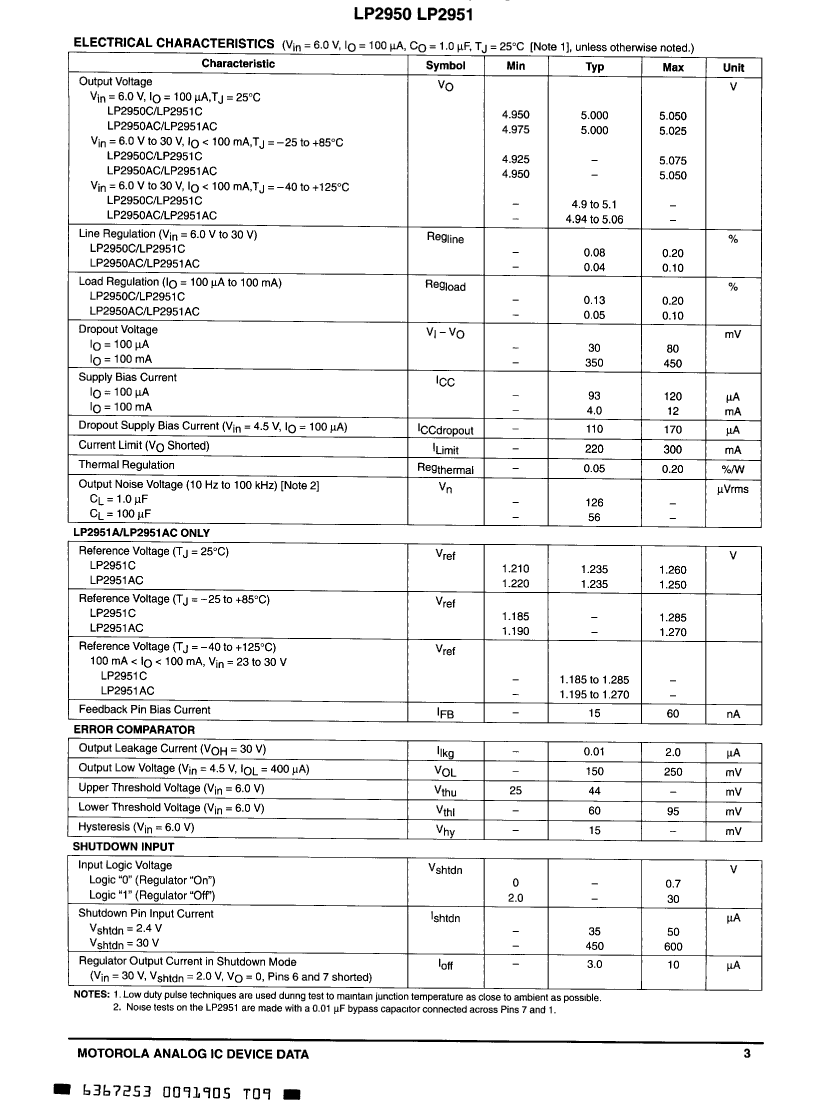

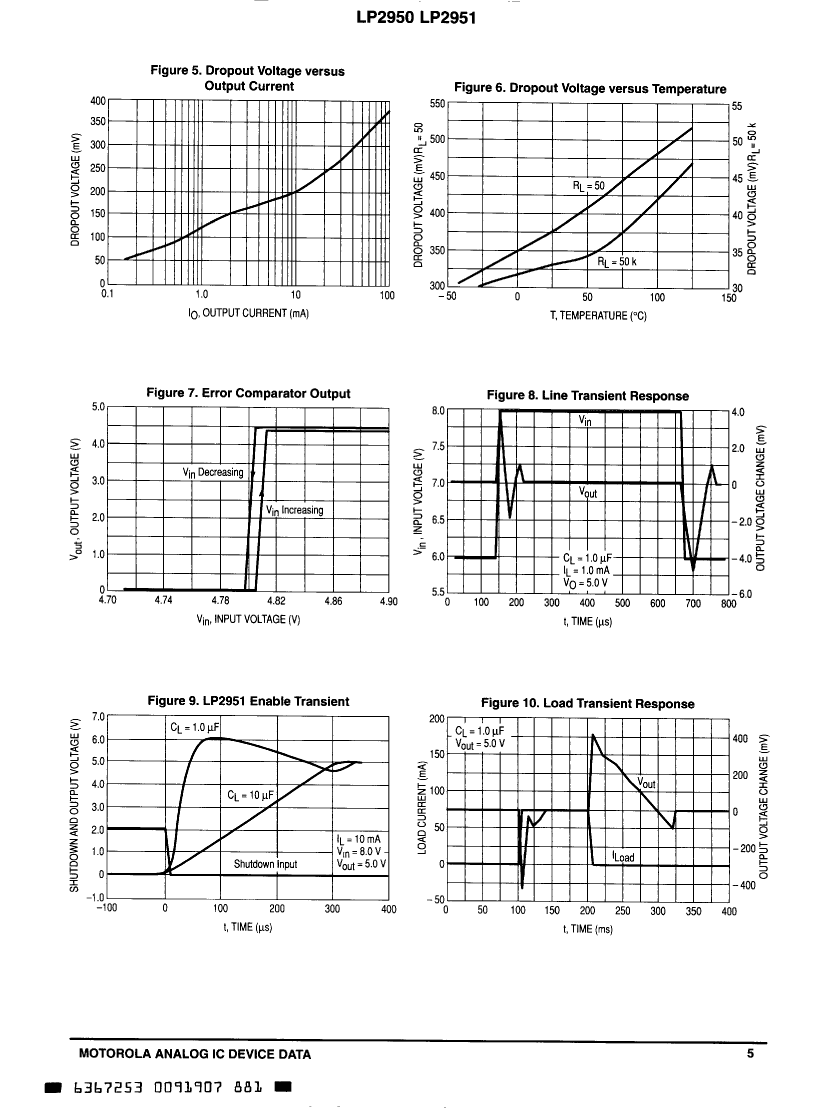

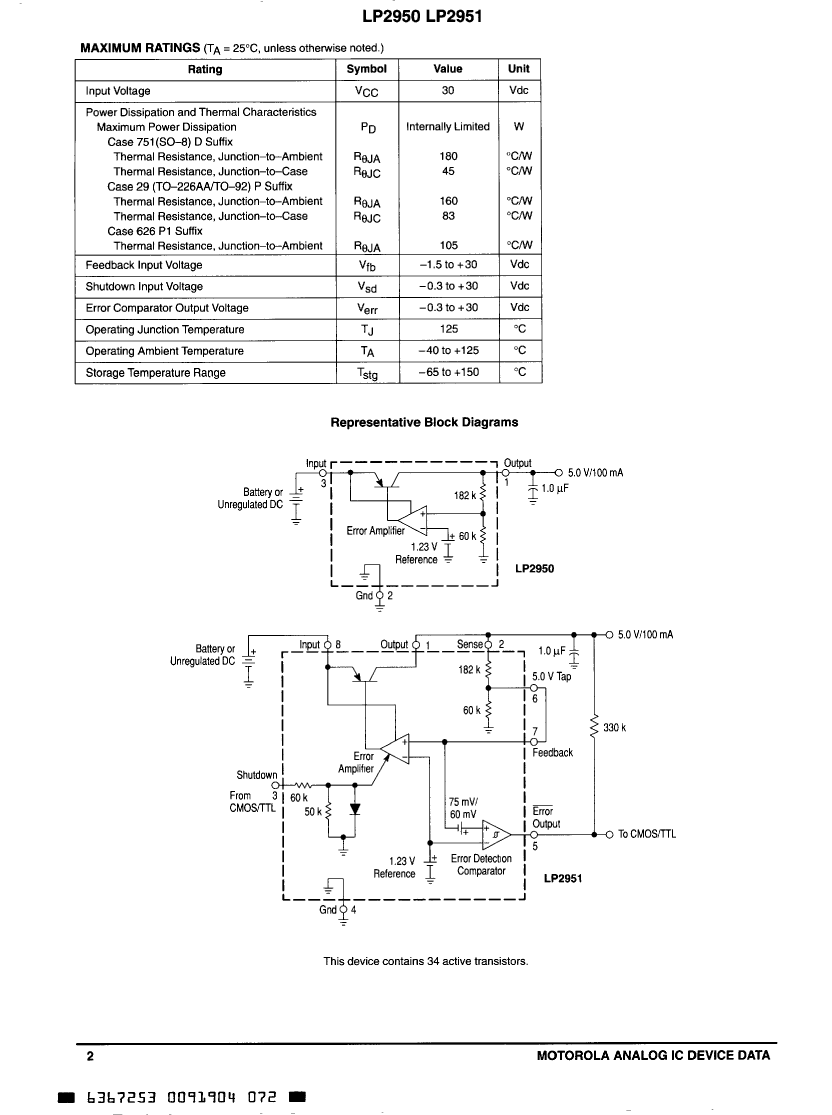

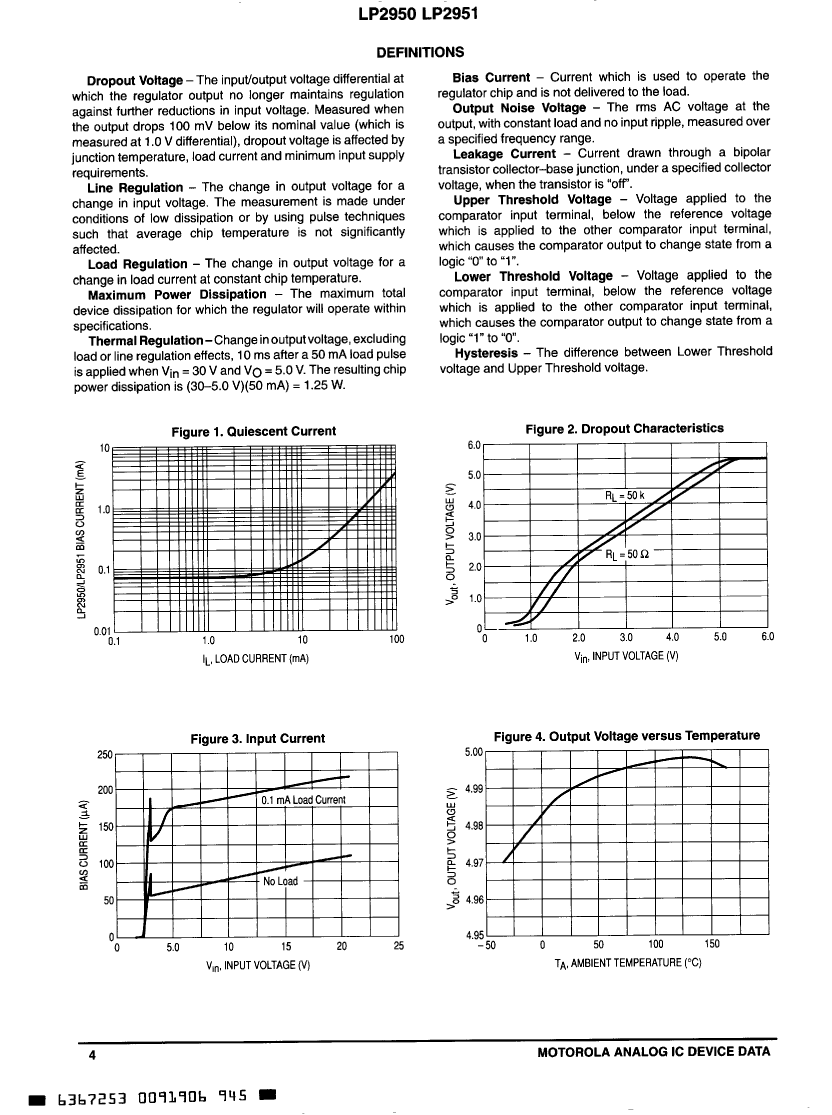

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	, SIP3,.1,50
Reach Compliance Code	unknown
Adjustability	FIXED
Nominal dropback voltage 1	0.45 V
Maximum absolute input voltage	30 V
JESD-609 code	e0
Maximum grid adjustment rate	0.005%
Maximum load regulation	0.005%
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.1 A
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1,50
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	1.27 mm
Terminal location	SINGLE
Maximum voltage tolerance	1.2%

	LP2950ACP5	LP2950CP5
Description	IC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,SIP,3PIN,PLASTIC	IC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,SIP,3PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible
Maker	NXP	NXP
package instruction	, SIP3,.1,50	, SIP3,.1,50
Reach Compliance Code	unknown	unknown
Adjustability	FIXED	FIXED
Nominal dropback voltage 1	0.45 V	0.45 V
Maximum absolute input voltage	30 V	30 V
JESD-609 code	e0	e0
Maximum grid adjustment rate	0.005%	0.01%
Maximum load regulation	0.005%	0.01%
Output times	1	1
Number of terminals	3	3
Working temperatureTJ-Max	125 °C	125 °C
Working temperature TJ-Min	-40 °C	-40 °C
Maximum output current 1	0.1 A	0.1 A
Nominal output voltage 1	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1,50	SIP3,.1,50
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE
Maximum voltage tolerance	1.2%	2%
