GTCR38-141M-R10 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> GTCR38-141M-R10

GTCR38-141M-R10: DescriptionSurge Protection Circuit, CXSS3, ROHS COMPLIANT, CERAMIC, PACKAGE-3; CategoryWireless rf/communication Telecom circuit; File Size568KB，7 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

GTCR38-141M-R10 Overview

Surge Protection Circuit, CXSS3, ROHS COMPLIANT, CERAMIC, PACKAGE-3

GTCR38-141M-R10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	,
Reach Compliance Code	unknown
JESD-30 code	O-GXSS-W3
JESD-609 code	e3
Number of functions	1
Number of terminals	3
Maximum operating temperature	90 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	ROUND
Package form	SPECIAL SHAPE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
surface mount	NO
Telecom integrated circuit types	SURGE PROTECTION CIRCUIT
Temperature level	INDUSTRIAL
Terminal surface	TIN
Terminal form	WIRE
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

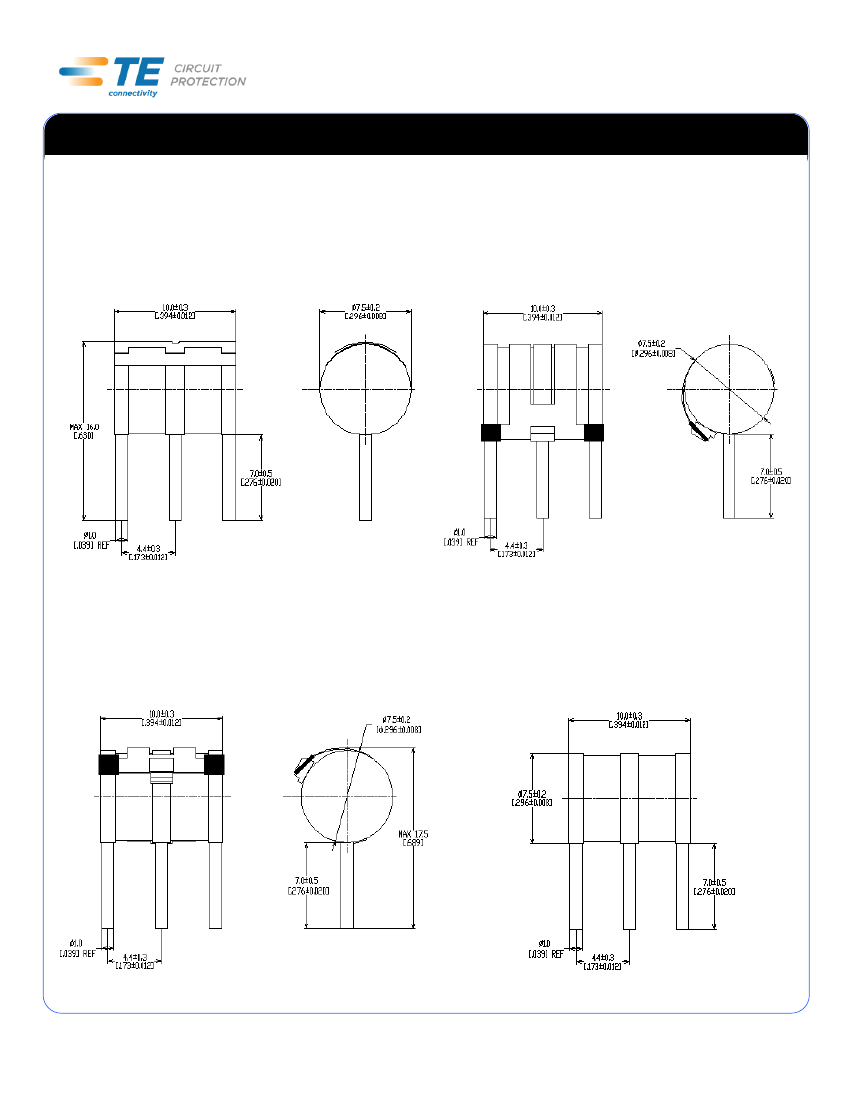

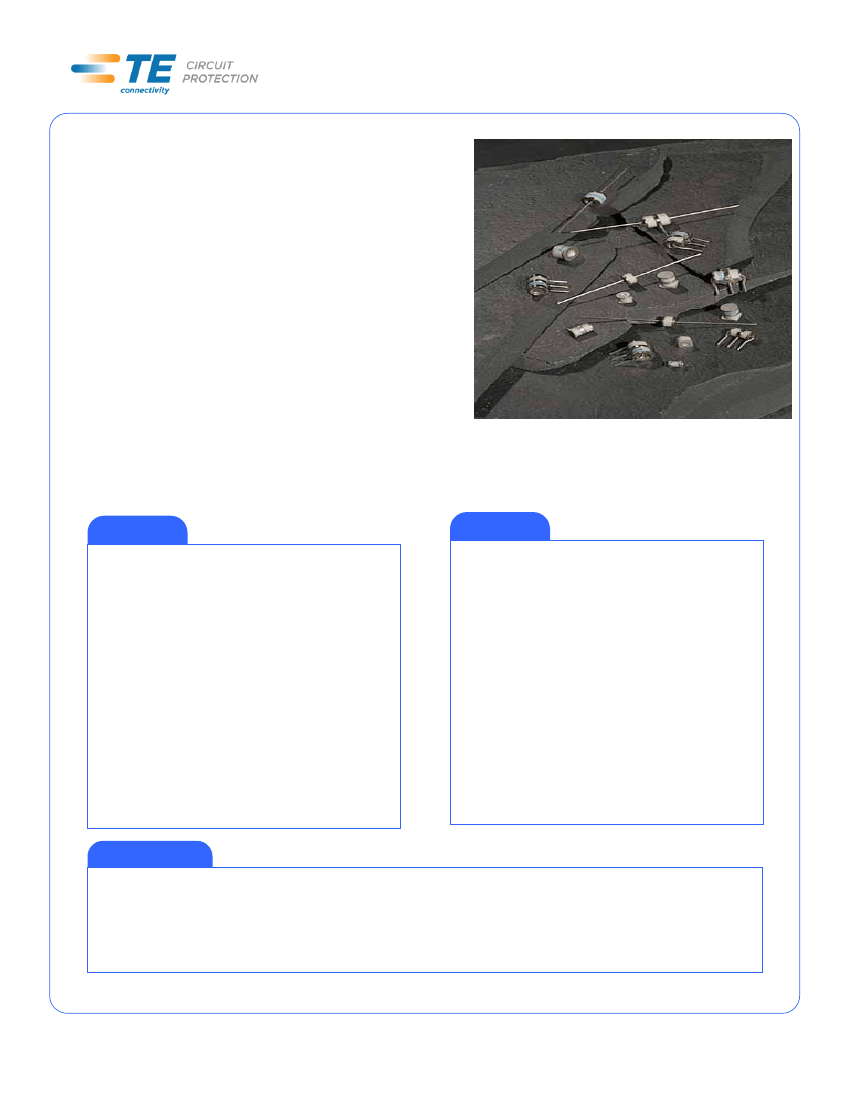

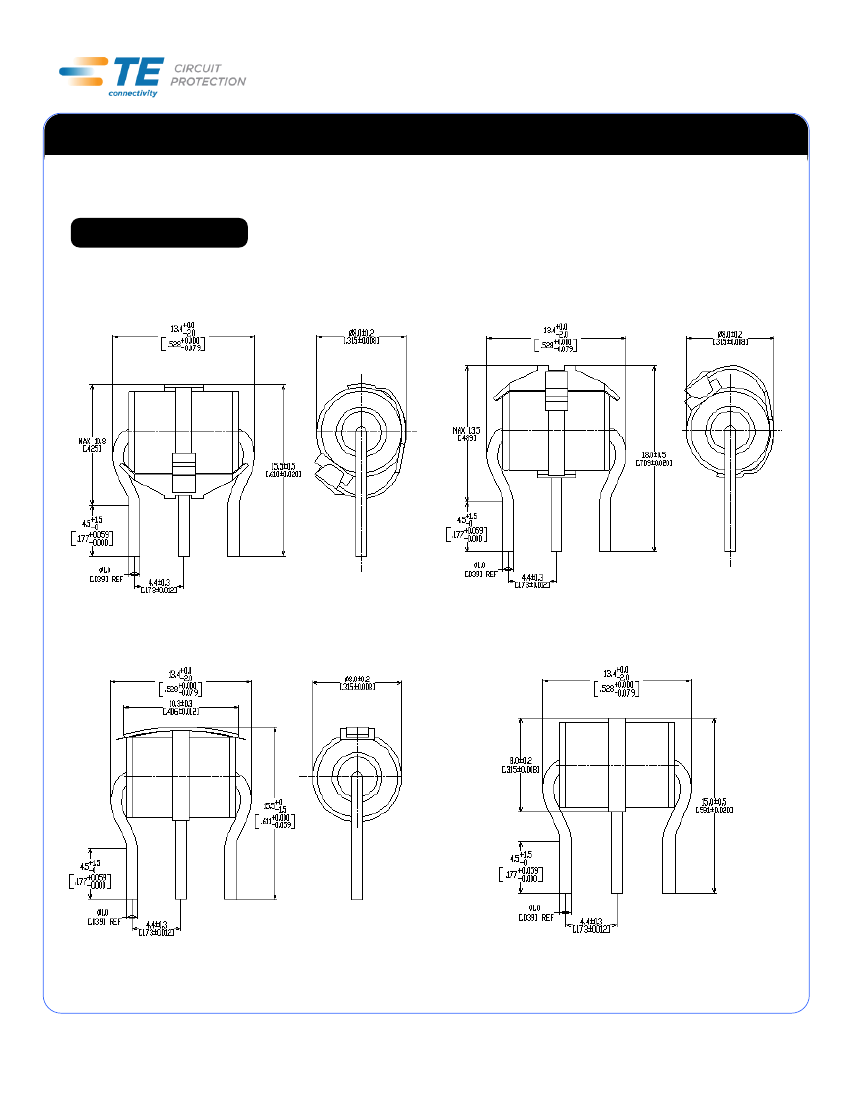

Gas Discharge Tubes

GTCX38-XXXM-R10 Series

TE Circuit Protection 8mm 3Pole GDTs (ceramic

gas discharge tubes), are commonly used to help

protect sensitive telecom equipment such as

communication lines, signal lines and data

transmission lines from damage caused by

transient surge voltages that typically result from

lightning strikes and equipment switching

operations.

TE Circuit Protection GDTs offer a high level of

surge protection, low capacitance and a broad

array of breakover voltage levels, making them

suitable for applications such as MDF (Main

Distribution Frame) modules, high data-rate

telecom applications (e.g. ADSL, VDSL), and

surge protection on power lines. Raychem Circuit

Protection GDTs can help equipment meet the

most stringent regulatory standards.

Benefits:



Helps provide overvoltage fault protection against

high energy surges



Suitable for high-frequency applications

Features:



3Pole, 8mm devices



Broad voltage range from 75V-600V



Various form factors: surface-mount, leaded, no

leads



Optional fail-short mechanism on some devices



Low capacitance and insertion loss



Crowbar overvoltage protection



UL 497B recognized



RoHS compliant



Devices tested per ITU K.12 recommendations



Non-radioactive materials



Applications:



Telecommunications

- MDF modules, xDSL equipment, RF system

protection, antenna, base station

•

Industrial and consumer electronics, such as

- Surge protectors

- Alarm system



Telecommunications



MDF modules, xDSL equipment, RF sytem

Gas Discharge Tubes



Protection, antenna, pase station



• Industrial and consumer electronics, such as

Document: SCD27381

Status: Released

Rev: D Date: SEPTEMBER 29, 2014
