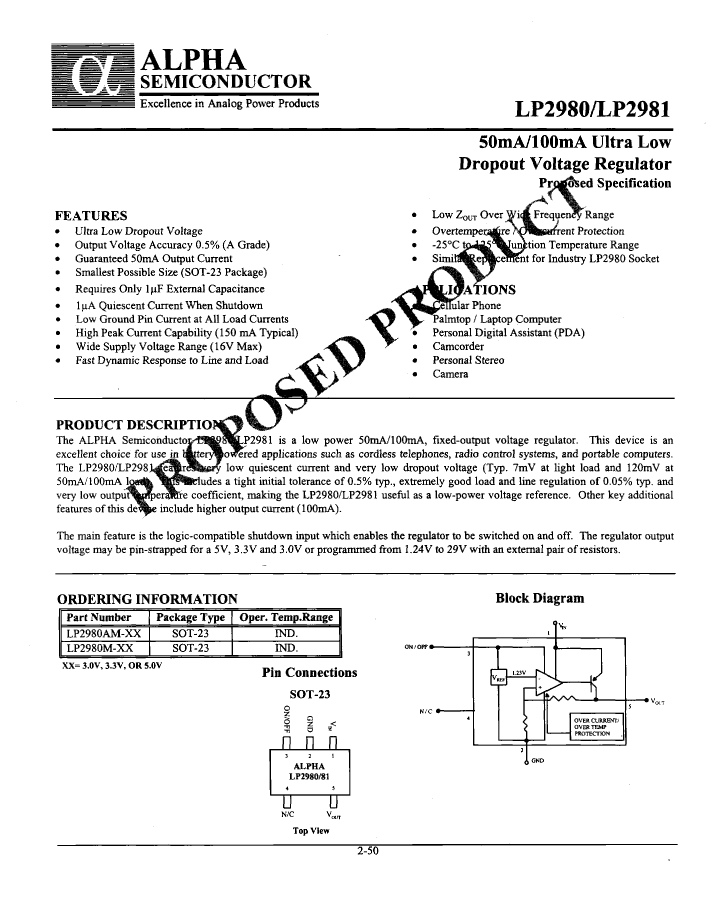

LP2981AM-3.3T2 datasheet, PDF - EEWORLD Datasheet

LP2981AM-3.3T2: DescriptionFixed Positive LDO Regulator, 3.3V, 0.3V Dropout, PDSO5, SOT-23, 5 PIN; CategoryPower/power management The power supply circuit; File Size101KB，3 Pages; ManufacturerCalogic; Websitehttp://www.calogic.net/

Download Datasheet Parametric View All

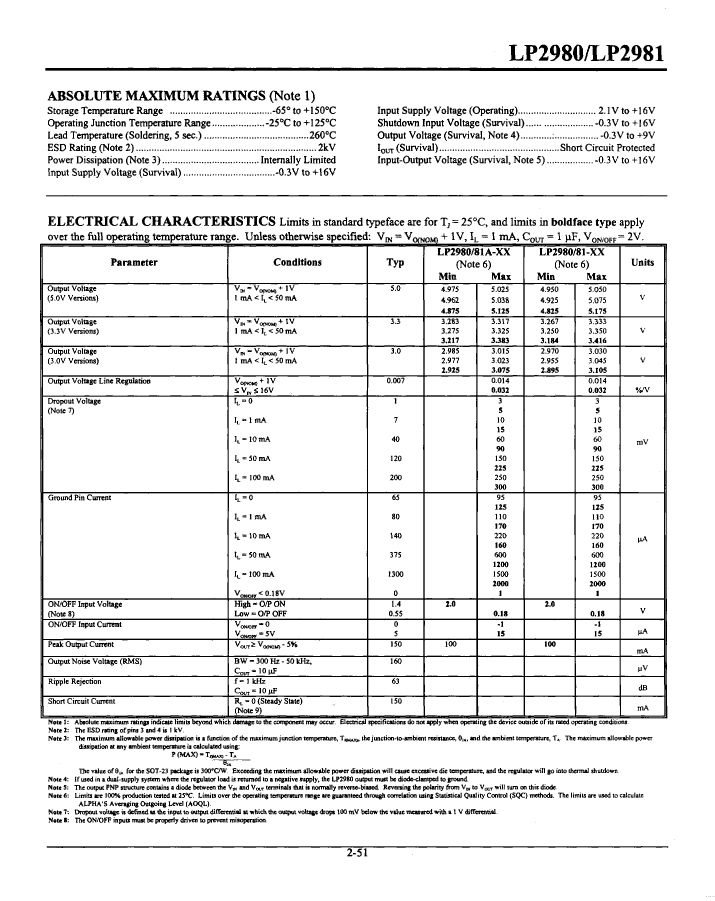

LP2981AM-3.3T2 Overview

Fixed Positive LDO Regulator, 3.3V, 0.3V Dropout, PDSO5, SOT-23, 5 PIN

Parameter Name	Attribute value
Maker	Calogic
Parts packaging code	SOT-23
package instruction	SOP,
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum drop-back voltage 1	0.3 V
Maximum input voltage	16 V
Minimum input voltage	4.3 V
JESD-30 code	R-PDSO-G5
Number of functions	1
Number of terminals	5
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-25 °C
Maximum output current 1	0.1 A
Maximum output voltage 1	3.383 V
Minimum output voltage 1	3.217 V
Nominal output voltage 1	3.3 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
