LJT07Y-17-35P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> LJT07Y-17-35P

Preview

LJT07Y-17-35P: DescriptionMIL Series Connector, 55 Contact(s), Carbon Steel, Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size425KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

LJT07Y-17-35P Overview

MIL Series Connector, 55 Contact(s), Carbon Steel, Male, Solder Terminal, Receptacle

LJT07Y-17-35P Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-26482
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	YES
Manufacturer's serial number	LJT
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	TIN PLATED
Shell material	CARBON STEEL
Housing size	17
Termination type	SOLDER
Total number of contacts	55

Preview

Download Datasheet

View All

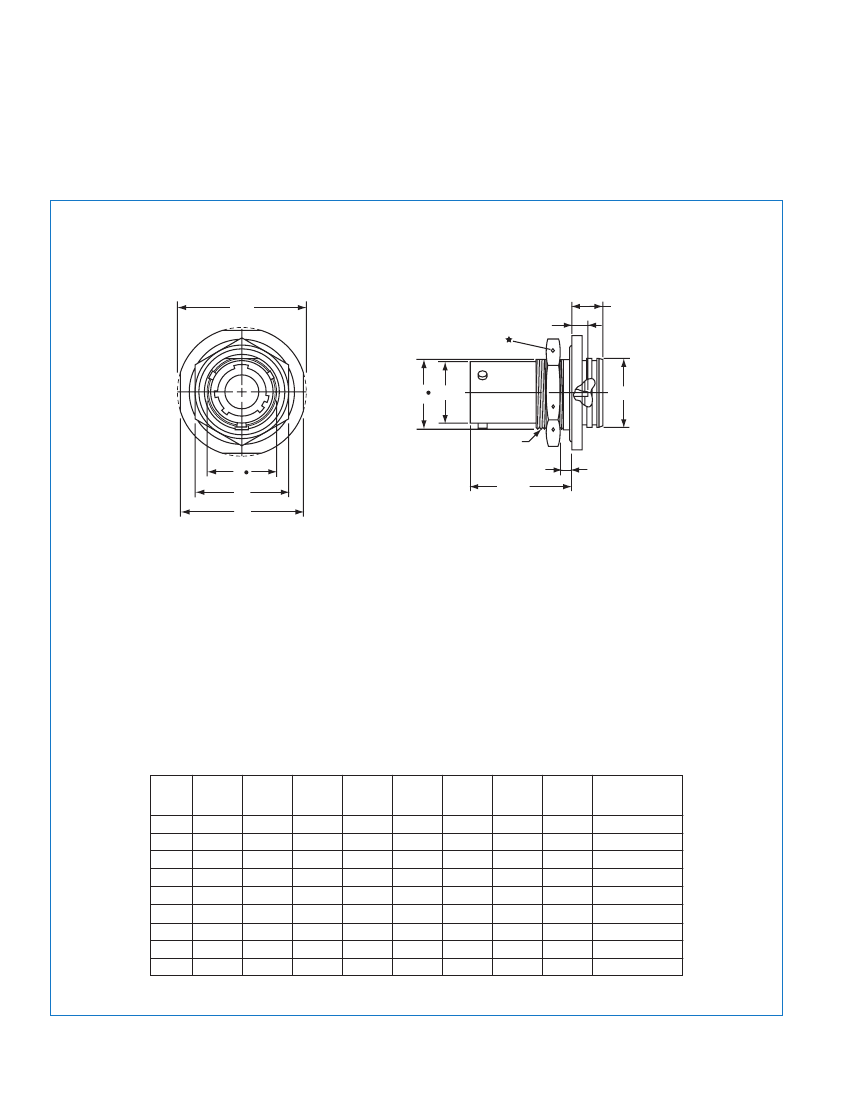

LJT07 (MS27470) — hermetic

jam nut receptacle

C

.084

±.025

L

A

N

KK

RR

T

H

S

.915

±.005

.062 MIN.

.125 MAX.

PANEL THICKNESS

* LJT07H-XX-XXX

** LJT07Y-XX-XXX (MS27470YXXD)

*** LJTS07Y-XX-XXX (MS27470YXXE)

★

.059 Dia. Min. 3 lockwire holes.

Formed lockwire hole design (6 holes) is optional.

• “D” shaped mounting hole dimensions.

* To complete order number see page 49.

** Interfacial seal wafer; to complete order number see page 49.

*** High temperature version, interfacial seal wafer with stainless steel shell, to complete order number see page 49.

Shell

Size

9

11

13

15

17

19

21

23

25

A•

+.000

–.010

.669

.769

.955

1.084

1.208

1.333

1.459

1.580

1.709

C

Max.

1.199

1.386

1.511

1.636

1.761

1.949

2.073

2.199

2.328

H Hex

+.017

–.016

.875

1.000

1.188

1.312

1.438

1.562

1.688

1.812

2.000

L

Max

.297

.328

N

+.000

–.005

.572

.700

.850

.975

1.100

1.207

1.332

1.457

1.582

S

±.016

1.062

1.250

1.375

1.500

1.625

1.812

1.938

2.062

2.188

T•

+.010

–.000

.697

.822

1.007

1.134

1.259

1.384

1.507

1.634

1.759

KK

+.011

–.000

.642

.766

.892

1.018

1.142

1.268

1.392

1.518

1.642

RR Thread

Class 2A

(Plated)

.6875-24 UNEF

.8125-20 UNEF

1.0000-20 UNEF

1.1250-18 UNEF

1.2500-18 UNEF

1.3750-18 UNEF

1.5000-18 UNEF

1.6250-18 UNEF

1.7500-18 UNS

All dimensions for reference only.
