8078-5150: DescriptionD Type Connector, 15 Contact(s), Female, 0.03 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size141KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8078-5150 Overview

D Type Connector, 15 Contact(s), Female, 0.03 inch Pitch, Solder Terminal, Locking, Receptacle

8078-5150 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.494 inch
subject depth	0.138 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	8078
Plug contact pitch	0.03 inch
Match contact row spacing	0.078 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	3
PCB contact pattern	STAGGERED
PCB contact row spacing	1.4986 mm
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.098 inch
Terminal pitch	1.524 mm
Termination type	SOLDER
Total number of contacts	15

8078-5150 Preview

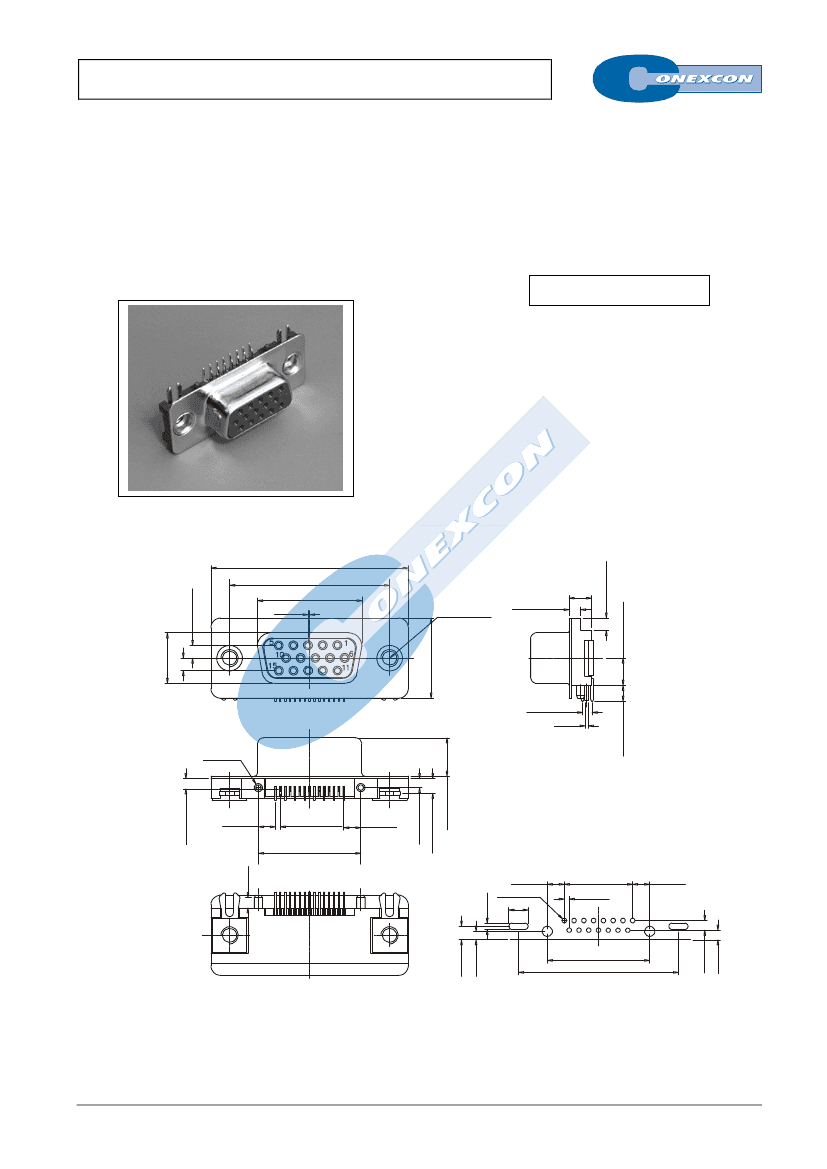

SLIM HIGH DENSITY D-SUB RECEPTACLE

8078 SERIES.

Features

For PCB Solder. Right Angle High Density D-Sub Receptacle





Shell Material: Steel, tin plated as standard

Optional: #4-40 UNC hexagonal standoff or clinch nuts

Other options: Hoods, mounting screw and accessories

For other options consult the Sales Office

Ordering and Dimensional Information



Available in 15 circuits

Insulator Material: Glass filled Nylon 6T UL 94V-0

Contact Material: Phosphor bronze

Different plating options are available

Dimensional Information

8078 -

T15C

T = Contact Plating







T =

Gold flash over 50µ” nickel.

T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

C = Hardware Options

C =

Riveted ground hooks pre-loaded #4.40 UNC

Hex screws (standard)

C =

Riveted ground hooks with #4.40 UNC open

1.98±0.15

2-#4.40 UNC

7.90±0.13

1.98±0.15

12.55±0.25

2-ø1.30

1.40±0.15

2.30±0.25

6.00±0.25

1.60±0.15

2.666

0.762

16.00

2.666

1.60

1.00

2.666

15-ø0.70

3.00

(10.668)

0.762

5 10 14 3 8 12 1

2.50±0.25

1.50±0.15

0.5

4.27±0.25

24.99±0.25

16.33±0.13

0.25

3.5

1.80±0.20

1.90±0.20

30.81±0.38

2.666

15 4 9 13 2 7 11

2.100

1.300

P.C.B.

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

1.50

16.00

24.99

K-XX

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
