M80-7891805 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> M80-7891805

Preview

M80-7891805: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size4MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M80-7891805 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

M80-7891805 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
Other features	LATCHED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M80
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

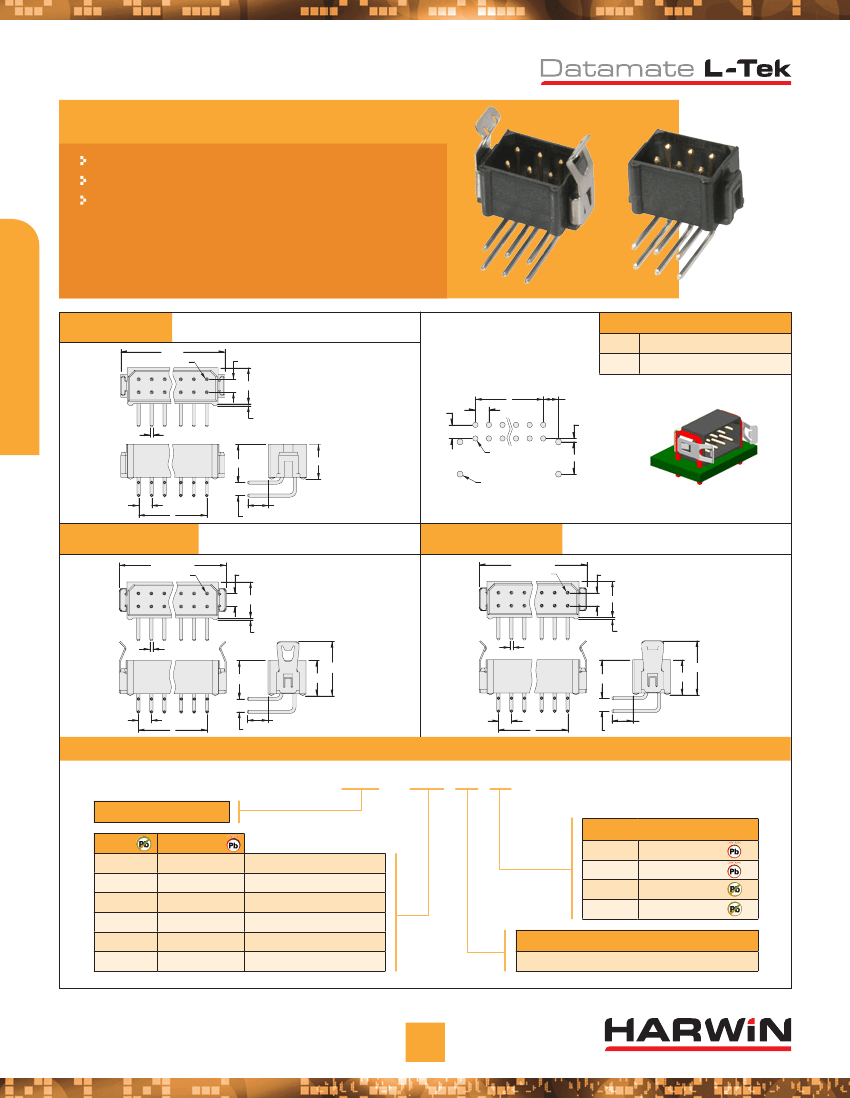

Datamate Connectors

Male Double row Horizontal PC Tail

Mates with female connectors on pages 21 to 24.

For British Standard versions see pages 18 to 19.

Supplied with Strain Relief straps:

order code M80-0030006.

DATAMATE L-TEK

uNLATCHED

A max

No. 1 contact

2.00

5.55

B

2.25

2.00

0.50

CALCULAtion

A

B

B + 5.60

Total no. of contacts - 2

0.30

Ø0.50

5.90

5.40

Ø0.80

max

4.75

4 x

Ø0.90

min

For Strain Relief straps

2.00

B

Tail

2.00

recommended PC Board Pattern

View of Strain relief

strap in place

LOCKINg LATCH

A + 0.50 max

No. 1 contact

2.00

5.55

FrICTION LATCH

A + 0.50 max

No. 1 contact

2.00

5.55

0.30

Ø0.50

8.35

5.90

5.40

5.90

Ø0.50

0.30

8.35

5.40

2.00

B

2.00

Tail

2.00

B

2.00

Tail

HOw TO OrDEr

M80 - XXX XX XX

seRies CoDe

Rohs

841

851

839

791

771

789

All dimensions in mm.

non-Rohs

868

866

814

791

771

789

Unlatched (3mm tail)

Locking Latch (3mm tail)

Friction Latch (3mm tail)

Unlatched (4.5mm tail)

Locking Latch (4.5mm tail)

Friction Latch (4.5mm tail)

Finish

05

22

42

45

Gold

Gold + Tin/Lead

Gold + Tin

Gold

totAL no. oF ContACts

04, 06, 08, 10, 12, 14, 16, 18, 20, 26, 34, 44

www.harwin.com
