BC817-16W Thru BC817-40W
Features
•
•
•
•
Halogen Free Available Upon Request By Adding Suffix "-HF"
Moisture Sensitivity Level 1
Epoxy Meets UL 94 V-0 Flammability Rating
Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS
Compliant. See Ordering Information)
Maximum Ratings @ 25° Unless Otherwise Specified
C
•
•
•
Operating Junction Temperature Range: -55℃ to +150℃
Storage Temperature Range: -55℃ to +150℃
Thermal Resistance: 625℃/W Junction to Ambient
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Power Dissipation
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
D
Rating
50
45
5
500
200
Unit
V
V
V
mA
mW
NPN Silicon
General Purpose
Transistors
SOT-323
A
D
3
1
2
B C
F
E
H
J
Internal Structure
3
G
K
DIM
1
2
1.BASE
2.EMITTER
3.COLLECTOR
A
B
C
D
E
F
G
H
J
K
DIMENSIONS
INCHES
MM
MIN MAX MIN MAX
0.071 0.087 1.80 2.20
0.045 0.053 1.15 1.35
0.083 0.096 2.10 2.45
0.026
0.65
0.047 0.055 1.20 1.40
0.012 0.016 0.30 0.40
0.000 0.004 0.00 0.10
0.035
0.044
0.90
1.10
0.002
0.010
0.05
0.25
0.006 0.016 0.15 0.40
Suggested Solder Pad Layout
0.70
NOTE
TYP.
(mm)
0.90
1.90
0.65
0.65
Rev.3-1-01012019
1/4
MCCSEMI.COM
BC817-16W Thru BC817-40W
Electrical Characteristics @ T
A
=25° Unless Otherwise Specified
C
Parameter
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Base-Emitter Voltage
Transition Frequency
Collector Capacitance
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE(1)
h
FE(2)
V
CE(sat)
V
BE(sat)
V
BE
f
T
C
C
100
5
100
40
0.7
1.2
1.2
V
V
V
MHz
pF
Min
50
45
5
0.1
0.1
600
Typ
Max
Units
V
V
V
µA
µA
I
C
=10µA, I
E
=0
I
C
=10mA, I
B
=0
I
E
=1µA, I
C
=0
V
CB
=20V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=1V, I
C
=100mA
V
CE
=1V, I
C
=500mA
I
C
=500mA, I
B
=50mA
I
C
=500mA, I
B
=50mA
V
CE
=1V, I
C
=500mA
V
CE
=5V, I
C
=10mA, f=100MHz
V
CB
=10V, I
E
=0, f=1MHz
Conditions
Classification of h
FE(1)
Rank
Range
Marking
BC817-16W
100-250
6A
BC817-25W
160-400
6B
BC817-40W
250-600
6C
Rev.3-1-01012019
2/4
MCCSEMI.COM
BC817-16W Thru BC817-40W

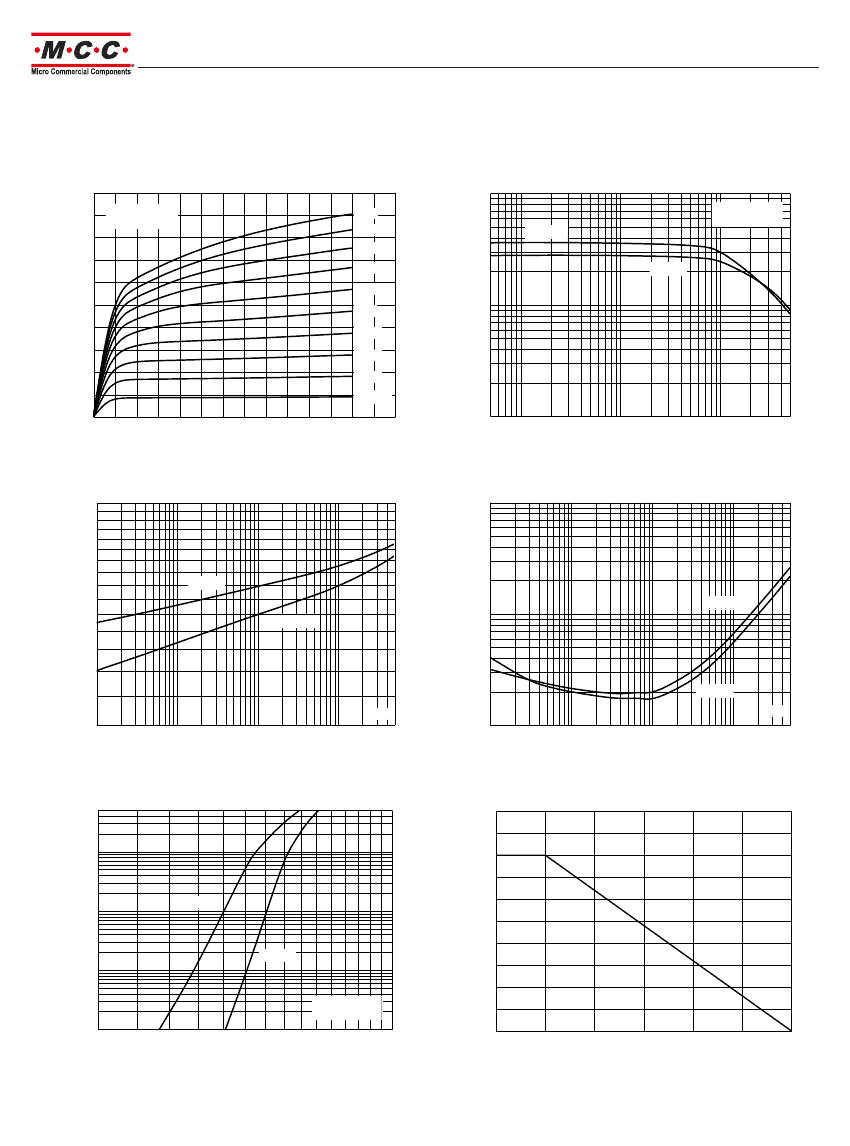

Curve Characteristics
Fig. 1 - Static Characteristics
250
Common Emitter
T
A
=25°C
200
0.8mA
0.72mA
0.64mA
Fig. 2 - DC Current Gain Characteristics
1000
Common Emitter
V
CE
= 1V
T
A
=100°C
Collector Current (mA)
150
0.48mA
0.4mA
DC Current Gain
0.56mA
T
A
=25°C
100
100
0.32mA
0.24mA
50
0.16mA
I
B
=0.08mA
0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
10
0.5
1
10
100
500
Collector-Emitter Voltage (V)
Collector Current (mA)
Fig.
3
- Base-Emitter Saturation Voltage Characteristics
1200
Fig. 4 - Collector-Emitter Saturation Voltage Characteristics
1000
900
T
A
=25°C
600
Collector-Emitter Saturation Voltage (mV)
Base-Emitter Saturation Voltage (mV)
T
A
=100°C
100
T
A
=100°C
T
A
=25°C
β=10
10
0.1
1
10
100
500
β=10
300
0.1
1
10
100
500
Collector Current (mA)
Collector Current (mA)
Fig. 5 - Base-Emitter Voltage Characteristics
500
Fig.
6
- Collector Power Derating Curve
250
100
Collector Power Dissipation (mW)
1.2
200
Collcetor Current (mA)
10
T
A
=100°C
150
100
T
A
=25°C
1
Common Emitter
V
CE
=1V
0.1
0.3
0.6
0.9
50
0
0
25
50
75
100
125
150
Base-Emitter Voltage (V)
Ambient Temperature (°C)
Rev.3-1-01012019
3/4
MCCSEMI.COM
BC817-16W Thru BC817-40W
Ordering Information
Device
Part Number-TP
Note : Adding "-HF"
Suffix
for
Halogen Free,
eg. Part Number-TP-HF
Packing
Tape&Reel:
3Kpcs/Reel
***IMPORTANT NOTICE***
Micro Commercial Components Corp.
reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components
Corp
. does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold
Micro Commercial Components Corp
. and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express
written approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage.
MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources.
MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
Rev.3-1-01012019
4/4
MCCSEMI.COM
