ZXMP2120G4TA Overview

200V P-CHANNEL ENHANCEMENT MODE MOSFET

Preview

Download Datasheet

View All

Green

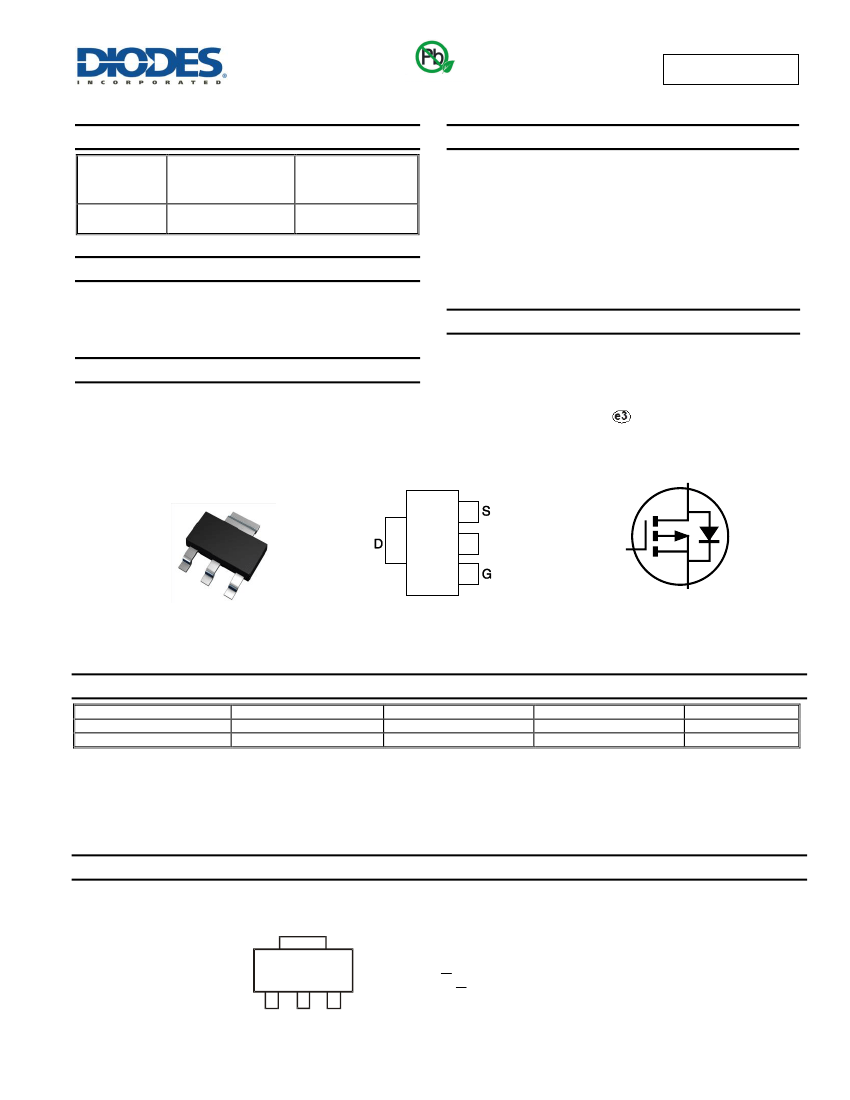

ZXMP2120G4

200V P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

(BR)DSS

DS(ON)

25Ω @ V

= 10V

= +25°C

200mA

Features and Benefits



High Voltage

Low On-resistance

Fast Switching Speed

Low Gate Drive

Low Threshold

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

-200V

Description

This new generation trench MOSFET features a unique structure

combining the benefits of low on-resistance and fast switching,

making it ideal for high efficiency power management applications.

Mechanical Data



Case: SOT223

Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish

Weight: 0.112 grams (Approximate)

Applications



Active clamping of primary aide MOSFETs in 48 Volt DC-DC

converters

SOT223

N/C

Top View

Pin Out - Top

View

Equivalent Circuit

Ordering Information

(Note 4)

Part Number

ZXMP2120G4TA

ZXMP2120G4TC

Notes:

Marking

ZXMP2120

Reel size (inches)

Tape width (mm)

Quantity per reel

1,000

4,000

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SOT223

ZVN

ZXMP

2120

4310

ZXMP2120 = Product Type Marking Code

YWW = Date Code Marking

Y or Y = Last Digit of Year (ex: 5 = 2015)

WW or WW = Week Code (01~53)

YWW

ZXMP2120G4

Document number: DS33602 Rev. 4 - 2

1 of 7

www.diodes.com

May 2015
