NOTES:
1. MATERIAL: .060 THICK C26000 BRASS; 1/2 HARD, ANNEALED TO TEMPER
PER ETCO METAL CODE 07035.
2. WIRE RANGE: #4-#6 AWG
3. PARTS MAY BE COATED WITH A LIGHT FILM OF LUBRICATION
USED IN THE MANUFACTURING PROCESS.
Rev.
Description of Change/ SCN#
Date
P/C
82340
82342
DESCRIPTION
FR555R-375-HB
FR555R-275-HB
DIM 'X'
.375
.275
1
TRANSFER FROM CP
SCJ
8-25-08
.70
DIM "X"
1.34
.75
A
A
.52
1.49
.53
.650
SECTION A-A
SCALE 2 : 1
UNCONTROLLED COPY
ETCO
THIRD ANGLE PROJECTION
TOLERANCES UNLESS
OTHERWISE SPECIFIED
TOOL NO.
Title:
0844

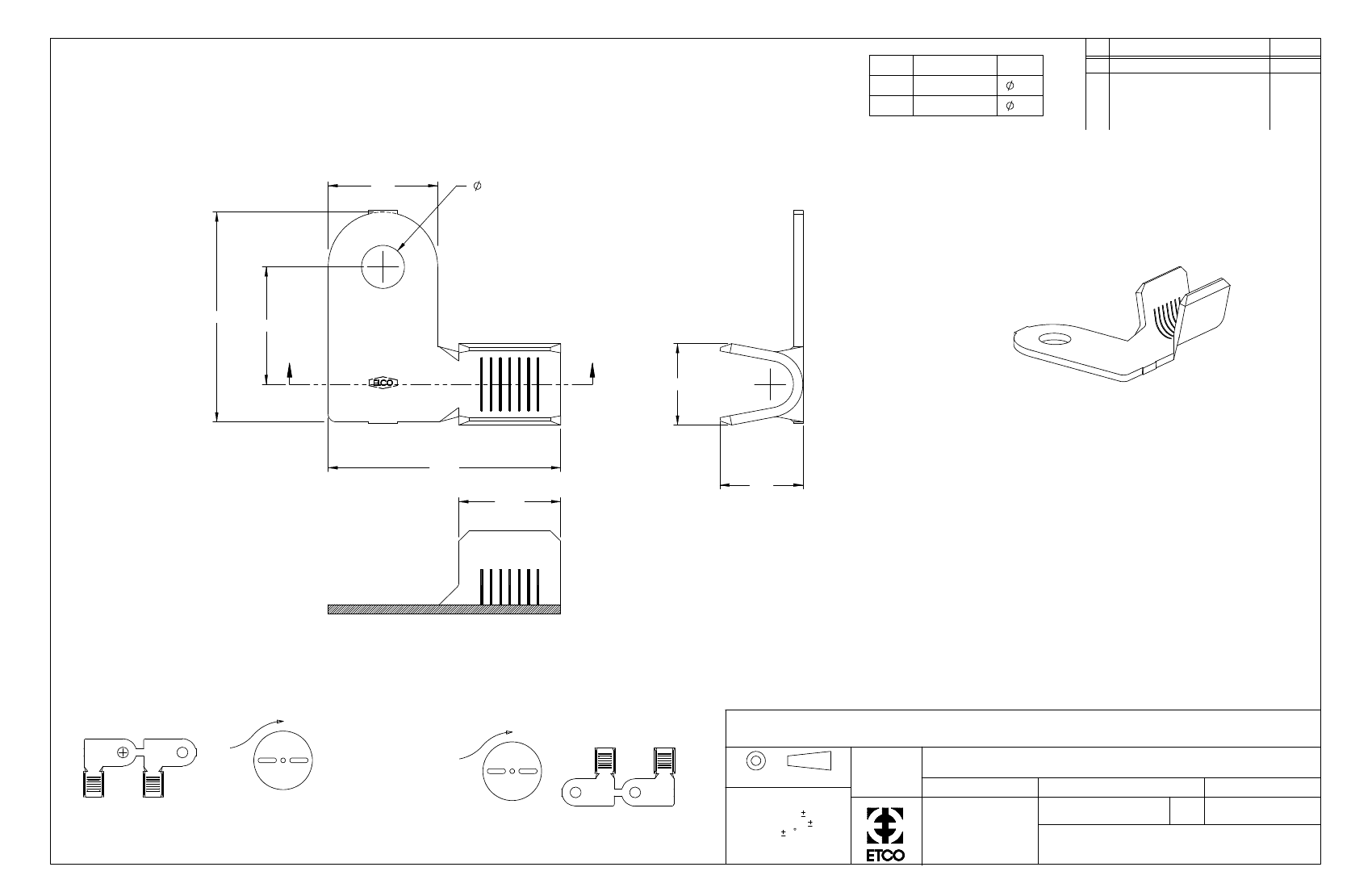

FLAG RING TERMINAL
Drawn By:
DO NOT SCALE DWG.
S.JOHNSON
Scale:
Date:
8-25-08
DIRECTION EXITING TOOL
EARS UP, TO THE FRONT
DIRECTION TOWARDS APPLICATOR
EARS UP, TO THE BACK
THIS PRINT IS THE PROPERTY OF ETCO INCORPORATED. NO PART OF THIS DESIGN MAY BE USED IN ANY WAY WITHOUT WRITTEN CONSENT FROM ETCO INCORPORATED.
INCHES: .XX - .030
.XXX - .015
ANGLES: 5
ETCO Incorporated
Engineered Products
25 Bellows Street
Warwick, RI 02888
Phone: (401) 467-2400
Fax: (401) 467-9230
www.ETCO.com
Chk'd/App'd By:
Dwg. No.:
2X
Size
B
FR555R cust
