MLO230-14IO7

Description
Silicon Controlled Rectifier, 180A I(T)RMS, 105000mA I(T), 1400V V(DRM), 1400V V(RRM), 1 Element, ECOPAC-8
CategoryAnalog mixed-signal IC    Trigger device
File Size110KB，2 Pages
ManufacturerIXYS
Environmental Compliance
Download Datasheet Parametric Compare View All

MLO230-14IO7 Online Shopping

Suppliers Part Number Price MOQ In stock
MLO230-14IO7 - - View Buy Now

MLO230-14IO7 Overview

Silicon Controlled Rectifier, 180A I(T)RMS, 105000mA I(T), 1400V V(DRM), 1400V V(RRM), 1 Element, ECOPAC-8

MLO230-14IO7 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerIXYS
package instructionECOPAC-8
Contacts8
Reach Compliance Codecompliant
Shell connectionISOLATED
ConfigurationSINGLE WITH BUILT-IN DIODE
Maximum DC gate trigger current150 mA
Maximum DC gate trigger voltage1.6 V
Quick connection description0
Description of screw terminals0
Maximum holding current200 mA
JESD-30 codeR-XUFM-X8
Maximum leakage current5 mA
On-state non-repetitive peak current2400 A
Number of components1
Number of terminals8
Maximum on-state current105000 A
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current180 A
Off-state repetitive peak voltage1400 V
Repeated peak reverse voltage1400 V
surface mountNO
Terminal formUNSPECIFIED
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR

Preview

Download Datasheet

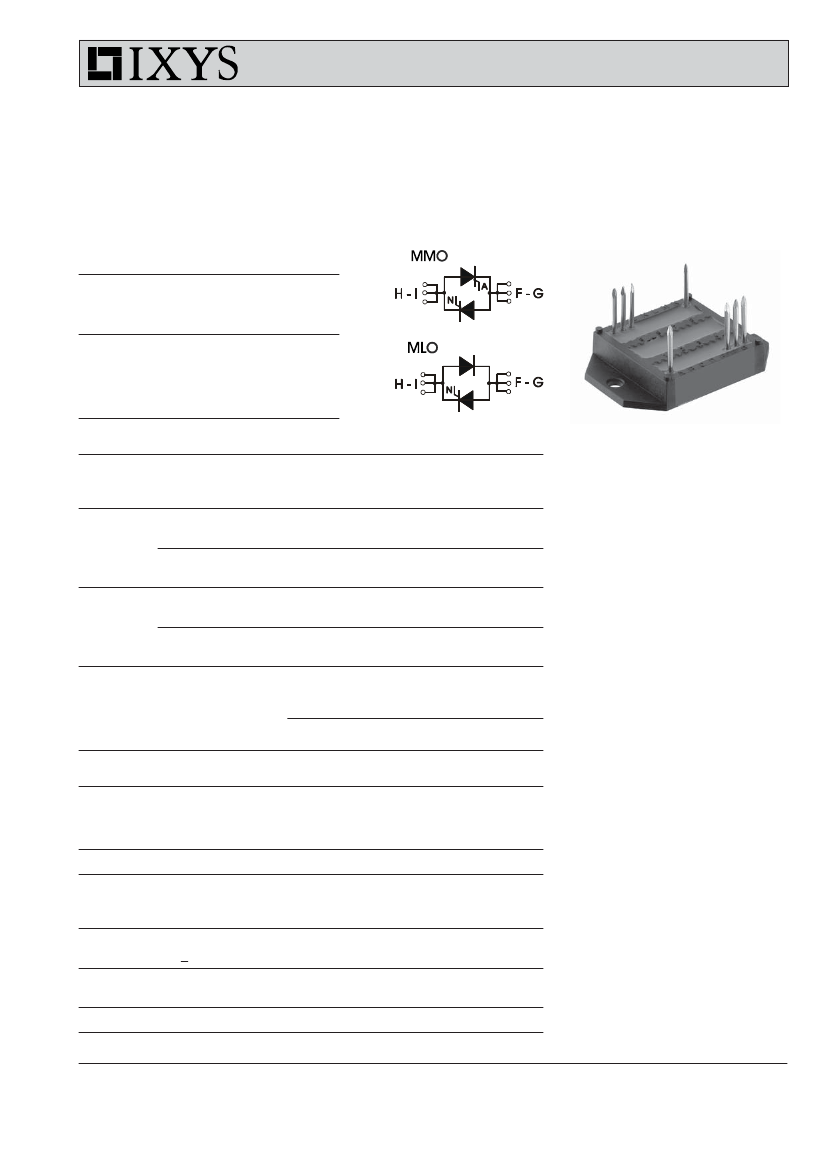

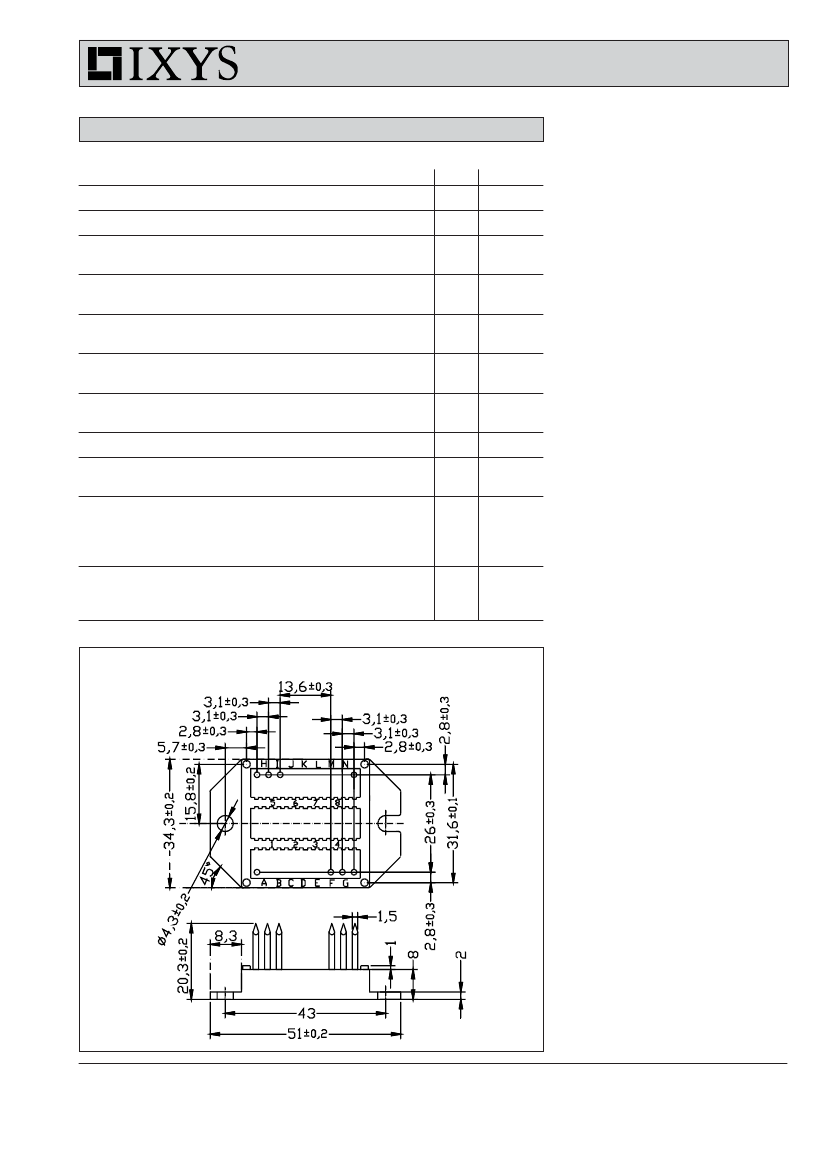

MMO 230
