B350 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B350

B350: Description3 A, 50 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size150KB，3 Pages; ManufacturerWeitron Technology; Websitehttp://weitron.com.tw/

Download Datasheet Parametric Compare View All

B350 Overview

3 A, 50 V, SILICON, RECTIFIER DIODE

B350 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Weitron Technology
Reach Compliance Code	unknow
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.7 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	100 A
Number of components	1
Maximum operating temperature	125 °C
Maximum output current	3 A
Maximum repetitive peak reverse voltage	50 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

B320 thru B3200

Surface Mount Schottky Barrier Rectifiers

P b

Lead(Pb)-Free

REVERSE VOLTAGE

20 TO 200 VOLTS

FORWARD CURRENT

3.0 AMPERE

Feature:

*For Surface Mount Application

*Metal-Semiconductor Junction With Guardring

*Epitaxial Construction

*Very Low Forward Voltage Drop

*High Current Capability

*Plastic Meterial Has UL Flammability Classification 94V-0

*For Use In Low , And Polarity Protection Applications

Mechanical Data

* Case : Molded Plastic

* Polarity : Indicated by cathode band

* Weight : 0.231 grams

SMC(DO-214AB)

SMC Outline Dimension

SMC

Dim

Min

Max

Unit:mm

5 .5 9

6 .6 0

2 .7 5

0 .1 5

7 .7 5

0 .1 0

0 .7 6

2 .0 0

6 .2 2

7 .1 1

3 .1 8

0 .3 1

8 .1 3

0 .2 0

1 .5 2

2 .6 2

WEITRON

http://www.weitron.com.tw

1/3

18-Aug-09

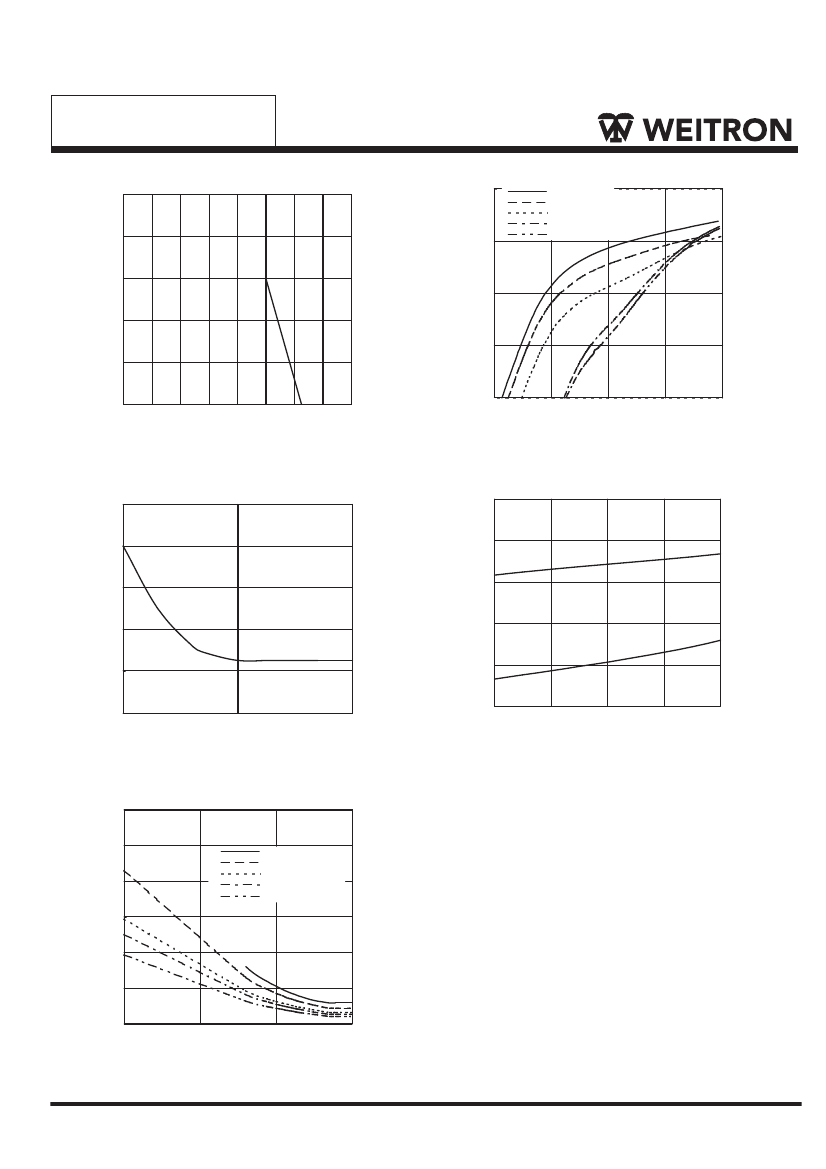

B350 Related Products

	B350	B3100	B3200	B320	B320_09	B330	B3150	B340	B360	B380
Description	3 A, 50 V, SILICON, RECTIFIER DIODE	3 A, 100 V, SILICON, RECTIFIER DIODE	3 A, 100 V, SILICON, RECTIFIER DIODE	3 A, 20 V, SILICON, RECTIFIER DIODE	3 A, 100 V, SILICON, RECTIFIER DIODE	3 A, 30 V, SILICON, RECTIFIER DIODE	3 A, 100 V, SILICON, RECTIFIER DIODE	3 A, 40 V, SILICON, RECTIFIER DIODE	3 A, 60 V, SILICON, RECTIFIER DIODE	3 A, 80 V, SILICON, RECTIFIER DIODE
Is it Rohs certified?	incompatible	incompatible	-	incompatible	-	incompatible	-	incompatible	incompatible	incompatible
Maker	Weitron Technology	-	-	Weitron Technology	-	Weitron Technology	-	Weitron Technology	Weitron Technology	Weitron Technology
Reach Compliance Code	unknow	unknow	-	unknow	-	unknow	-	unknow	unknow	unknow
Configuration	SINGLE	SINGLE	-	SINGLE	-	SINGLE	-	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	-	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.7 V	0.85 V	-	0.5 V	-	0.5 V	-	0.5 V	0.7 V	0.85 V
JESD-609 code	e0	e0	-	e0	-	e0	-	e0	e0	e0
Maximum non-repetitive peak forward current	100 A	100 A	-	100 A	-	100 A	-	100 A	100 A	100 A
Number of components	1	1	-	1	-	1	-	1	1	1
Maximum operating temperature	125 °C	125 °C	-	125 °C	-	125 °C	-	125 °C	125 °C	125 °C
Maximum output current	3 A	3 A	-	3 A	-	3 A	-	3 A	3 A	3 A
Maximum repetitive peak reverse voltage	50 V	100 V	-	20 V	-	30 V	-	40 V	60 V	80 V
surface mount	YES	YES	-	YES	-	YES	-	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	-	SCHOTTKY	-	SCHOTTKY	-	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
