REVISION Z
DO NOT
SCALE FROM
THIS PRINT
.1000 .010
(SEE NOTE 8)
C
(No OF POSITIONS x .200) .010
HPF-XX-XX-XX-S-XX-XX
C
No OF POSITIONS
-02 THRU -20
(PER ROW)
LEAD STYLE
-01: THROUGH HOLE (SEE FIG 4)
-02: SURFACE MOUNT
.1000 REF
(No OF POSITIONS -1) X .200
.003
POLARIZATION
# -02 THRU -06,-08, -10
(SEE TABLE 2 FOR AVAILABLE COMBINATIONS)
(SEE SHT 3, IN-PROCESS 1 POLARIZED FILL)
Y
01
.2000 REF
# = INTERNAL USE ONLY
NOT FOR SALE
OPTION (STYLE -02 ONLY)
* = NOT ENGINEERING
APPROVED
C-130-02-XX
.0450 REF
PLATING SPECIFICATION
-T: TIN (USE C-130-XX-T)
-H: HEAVY GOLD (USE C-130-XX-H)
-TM: MATTE TIN (USE C-130-XX-T)
ROW SPECIFICATION
-S: SINGLE (USE HPF-XX-S)
-LC: LOCKING CLIP (USE LC-05-TM) (SEE SHT 2, FIG 2)
(SEE NOTE 9)
* -A: ALIGNMENT PIN (SEE SHT 2, FIG 2)
(USE HPF-XX-S-A)
-K: POLYIMIDE FILM PAD
(SEE SHT 2, FIG 3)(USE K-DOT-.256-.375-.005)
-TR: TAPE & REEL (14 POS MAX. -02 LEAD STYLE ONLY)
HPF-XX-S
"A"
C
.3510 REF
+.004
.368
- .002
C-130-02-XX
C
SEE NOTE 2
C-130-01-XX
C
.102±.003
'C'
"A"
POSITION ONE FOR MANUFACTURING PROCESS
.0180 REF
.280
SECTION "A"-"A"
'B'
3 MAX SWAY
ALL LEADS TO BE IN THE
SAME DIRECTION
(EITHER DIRECTION)
.0970±.003
2 MAX TOE
FIG 4
HPF-XX-01-XX-S
(SAME AS FIG1 EXCEPT WHERE SHOWN)
3° MAX TWIST
DETAIL 'C'
SCALE 4 : 1
DETAIL 'B'
NOTES:
FIG 1
HPF-XX-02-XX-S-XX
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY TO BE WITHIN :
2-10 POS: .006
11-20 POS: .008
3. BURR ALLOWANCE: .0015 MAX.
4. MAXIMUM CUT FLASH: .020.
5. MINIMUM PUSHOUT FORCE: 1.0 LB.
6. ALL PARTS TO BE TUBE PACKAGED.
7. OPEN PART OF CONTACT FILLED TOWARDS #1 PIN INDICATOR.
8. MINIMUM WALL THICKNESS TO BE .010.
9. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE
-LC OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT, SAMTEC
RECOMMENDS MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH
THE -LC OPTION.
F:\DWG\MISC\MKTG\HPF-XX-XX-XX-S-XX-XX-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01
.XXX: .005
.XXXX: .0020
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
MATERIAL: VECTRA E130i
COLOR: BLACK
CONTACT: BeCu, 174HT

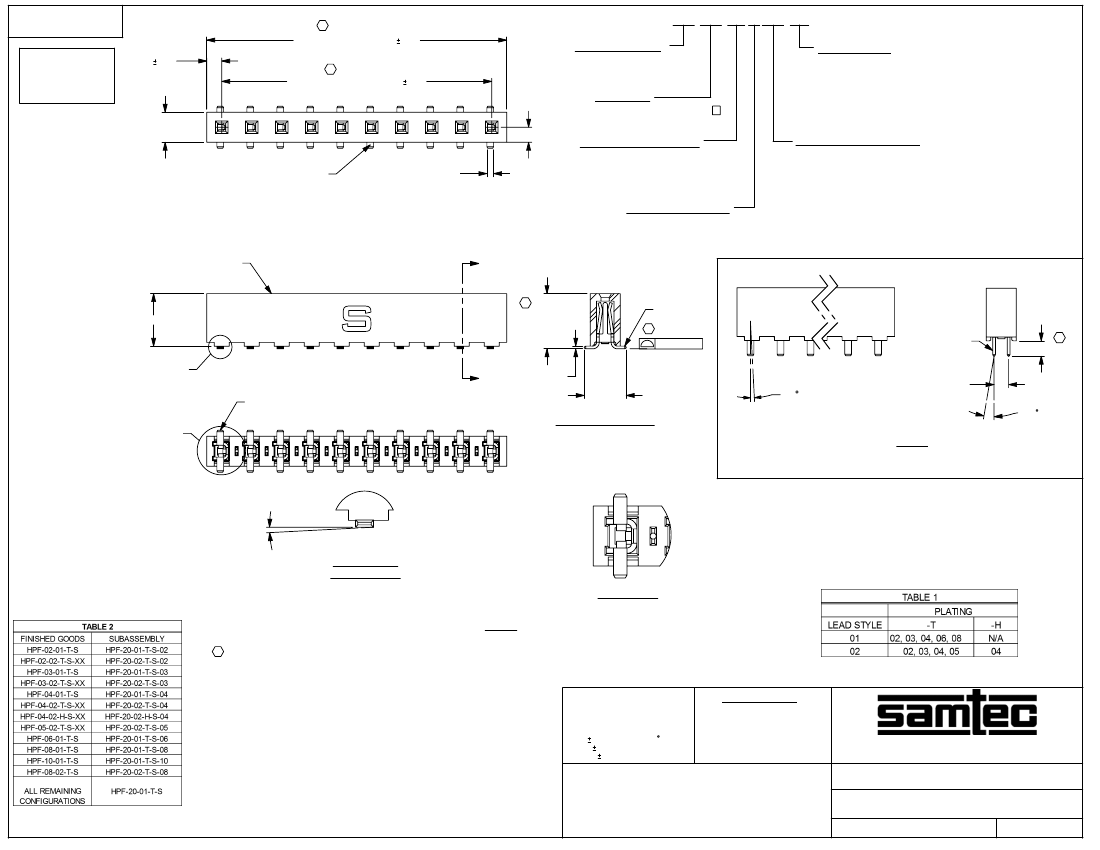

.200 HI POWER SOCKET ASSEMBLY
DWG. NO.
HPF-XX-XX-XX-S-XX-XX
01/04/1999
SHEET
1
OF
3
BY:
DEAN P
REVISION Z
"M"
.3740 9.500
.0280±.010 0.711±0.25
"P"
01
.256 6.500
NOTE: "M" = USED MEASURED DIMENSION (REF)
"P" = {("M" - .256 [6.50]) / 2} .020 [.51]
FIG 3
-K: POLYIMIDE FILM PAD OPTION
(SHOWN: HPF-10-02-X-S-K)
PACKAGING VIEW
HPF-XX-S-A
