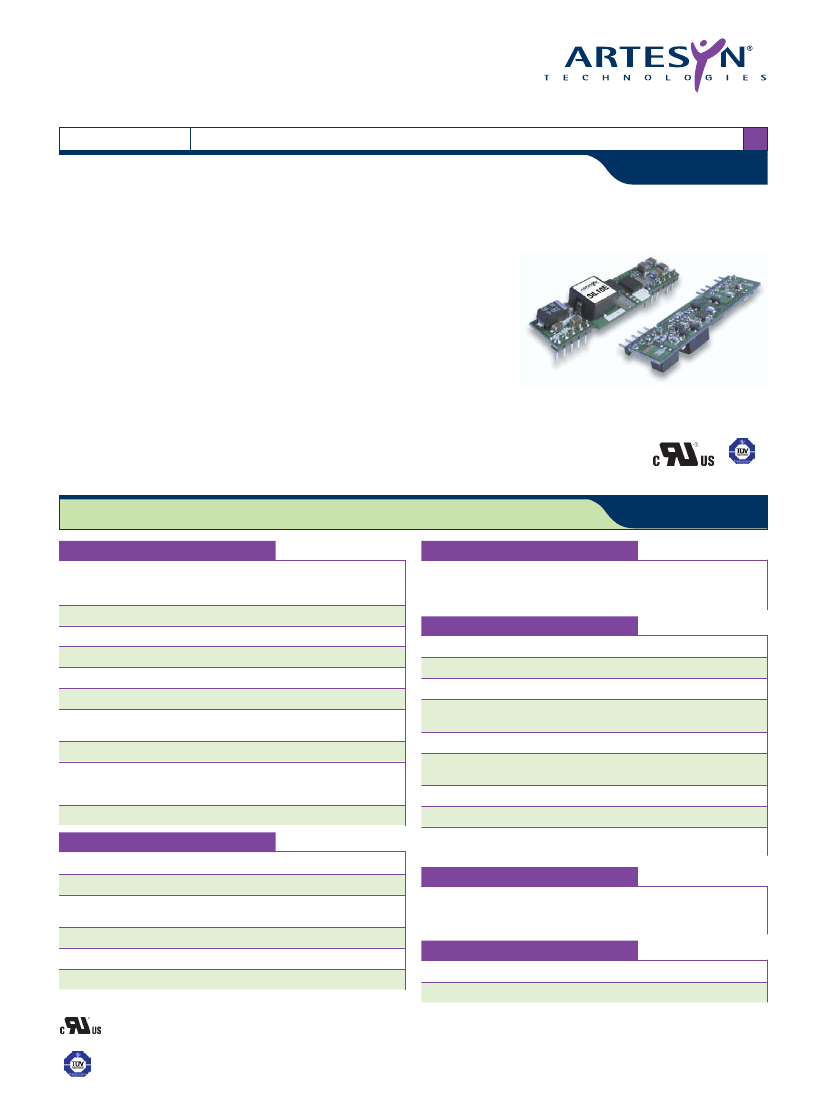

SIL10E Series
DC/DC CONVERTERS
•
•
•
•
•
•
•
E Class Non-isolated
3.0-5.5Vin single output
1
NEW Product
10A Current rating
Input voltage range: 3.0V - 5.5V
Output voltage range: 0.8V - 3.63V
Ultra high efficiency: 96% @ 5Vin and 3.3Vout
Extremely low internal power dissipation
Minimal thermal design concerns
Designed in reliability: MTBF of >7 million hours
per Telcordia SR-332
•
Ideal solution where board space is at a premium
or tighter card pitch is required
•
Industry standard footprint and pin out
The SIL10E series are non-isolated DC/DC converters packaged in a single-in-line footprint
giving designers a cost effective solution for conversion from either a 5V or a 3.3V source.
The SIL10E offers a range of fixed outputs and one wide trim output unit at an industry
leading 10A which allows maximum design flexibility and a pathway for future upgrades.
The SIL10E is designed for applications that include distributed power, workstations, optical
network and wireless applications. Implemented using state of the art surface mount
technology and automated manufacturing techniques, the SIL10E offers compact size and
efficiencies of up to 96%.
2 YEAR WARRANTY
All specifications are typical at nominal input, full load at 25°C unless otherwise stated
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Voltage adjustability
(See Note 1)
Setpoint accuracy
Line regulation
Load regulation
Minimum load
Overshoot/undershoot
Ripple and noise
0 to 20MHz BW
Temperature co-efficient
Transient response
Fixed output versions
5Vin with wide trim
3.3Vin with wide trim
±10%
0.8V to 3.63V
0.8V to 2.75V
±0.4%
±0.2%
±1.0%
0A
None
50mV pk-pk
25mV rms max.
±0.01%/ºC
50mV max. deviation
50µs recovery to
within ±1.0%
10% Vo compensation
EMC CHARACTERISTICS
Electrostatic discharge
Conducted immunity
Radiated immunity
EN61000-4-2, IEC801-2
EN61000-4-6
EN61000-4-3
GENERAL SPECIFICATIONS
Efficiency
Insulation voltage
Switching frequency
Approvals and
standards
Material flammability
Dimensions
(vertical version)
Pin length
Weight
MTBF
Telcordia SR-332
MIL-HDBK-217F
(LxWxH)
(Vertical)
Fixed
See table
Non-isolated
300kHz typ.
EN60950
UL/cUL60950
UL94V-0
50.8 x 7.8 x 12.7mm
2.0 x 0.31 x 0.5 inches
0.135 ±0.02 in (3.43 ±0.5mm)
5g (0.18oz)
7,042,000 hours
680,000 hours
Remote sense
INPUT SPECIFICATIONS
Input voltage range
Input current
Input current (max.)
Input current ripple
Remote ON/OFF
Start-up time
International Safety Standard Approvals
No load
3.0 to 5.5VDC
70mA
8A max. @ Io max.
and Vout = 3.3V
65mA rms
(See Note 2)
20ms
PROTECTION
Short-circuit
Thermal
Continuous
Automatic recovery
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
(See Note 3)
Operating ambient,
temperature
Non-operating
-40ºC to +100ºC
-40ºC to +125ºC
UL/cUL CAN/CSA-C22.2 No. 60950-1-03/UL 60950-1,
File No. E174104
TÜV Product Service (EN60950) Certificate No. B03 10 38572 037
CB Report and Certificate to IEC60950, Certificate No.
DE3-51686M1
File Name: sil10e_05.pdf Rev (02): 21 Jul 2004
SIL10E Series
DC/DC CONVERTERS
E Class Non-isolated2
OUTPUT
POWER
(MAX.)
8.8W
11W
13.2W
16.5W
19.8W
22W
27.5W
36.3W
36.3W
INPUT
VOLTAGE
3.0V - 5.5V
3.0V - 5.5V
3.0V - 5.5V
3.0V - 5.5V
3.0V - 5.5V
3.0V - 5.5V
3.0V - 5.5V
4.5V - 5.5V
4.5V - 5.5V
OUTPUT
VOLTAGE
0.8V
1.0V
1.2V
1.5V
1.8V
2.0V
2.5V
3.3V
0.8V - 3.63V
3.0-5.5Vin single output
NEW Product
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
OUTPUT
CURRENT
(MIN.)
0A
0A
0A
0A
0A
0A
0A
0A
0A
OUTPUT
CURRENT
(MAX.)
10A
10A
10A
10A
10A
10A
10A
10A
10A
EFFICIENCY
(TYP.)
83%
86%
88%
90%
92%
93%
94%
95%
95%
REGULATION
LINE
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
LOAD
±1.5%
±1.5%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
MODEL
NUMBER
SIL10E-05S0V8-V
SIL10E-05S1V0-V
SIL10E-05S1V2-V
(4)
SIL10E-05S1V5-V
SIL10E-05S1V8-V
SIL10E-05S2V0-V
SIL10E-05S2V5-V
(4)
SIL10E-05S3V3-V
SIL10E-05W3V3-V
Part Number System with Options
SIL10E-05S3V3-V
Mounting Option
V = Vertical Mount
H = Horizontal Mount
Output Voltage
2.5V, 3.3V etc
Number of Outputs
S = Single
W = Wide
Product Family
SIL = Single In Line
Rated Output Current
10 = 10Amps
Performance
E = Enhanced Performace
Input Voltage
05 = 3.0V - 5.5V
12 = 10V - 14V
Output Voltage Adjustment of the the SIL10E-05W3V3 Series
Output Voltage Adjustment of SIL10-05Wxxx Series
The ultra-wide output voltage trim range offers major advantages to users who
select the SIL10E-05W3V3. It is no longer necessary to purchase a variety of
modules in order to cover different output voltages. The output voltage can be
trimmed in a range of 0.8V to 3.63V. When the SIL10E-05W3V3 converter
leaves the factory the output has been adjusted to the default voltage of 3.3V
•
When Vin ≥ 4.5V, then Vout can be adjusted from 0.8V to 3.6V
•
When Vin < 4.5V, then Vout can be adjusted from 0.8V to 2.75V
Notes
1
2
When Vin ≥ 4.5V, then Vout can be adjusted from 0.8V to 3.6V. When Vin
< 4.5V, then Vout can be adjusted from 0.8V to 2.75V.
The SIL10E features a ‘Negative Logic’ Remote ON/OFF operation. If you
are not using the Remote ON/OFF pin, leave the pin open (the converter
will be on). The Remote ON/OFF pin is referenced to ground.
The following conditions apply for the SIL10E:
Configuration
Remote pin open circuit
Remote pin pulled low
Remote pin pulled high [Von/off >1.2V]
Converter Operation
Unit is ON
Unit is ON
Unit is OFF
Notes
3
4
Full de-rating curves available in both the Long Form Data Sheet and
Application Note 136.
For certain applications that use low ESR capacitors on the output of the
convertor and to insure maximum converter stability, please add the
suffix ‘02’ to the model, e.g. SIL10E-05S2V5-V02.
A ‘Positive Logic’ Remote ON/OFF version is also possible with this
converter. To order please place the suffix ‘-R’ at the end of the model
number e.g. SIL10E-05S3V3-VR
File Name: sil10e_05.pdf Rev (02): 21 Jul 2004
SIL10E Series
DC/DC CONVERTERS
E Class Non-isolated
3.0-5.5Vin single output
3
NEW Product
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
PIN VIEW
2.000
±0.020
(50.80
±0.50)
SIDE VIEW
PCB
0.500 (12.70)
0.025
±
0.001
(0.64
±0.02)
6
5
3
J2
2
1
5
4 3
J1
2
1
J1 PIN CONNECTIONS
PIN NUMBER
1
2
3
4
5
FUNCTION
+Vout
+Vout
Remote Sense (+)
+Vout
Ground
J2 PIN CONNECTIONS
PIN NUMBER
1
2
3
4
5
6
FUNCTION
Ground
+Vin
+Vin
No Pin
Trim
Remote ON/OFF
0.316
±0.008
(8.03
±0.20)
0.170 (4.32)
0.100 (2.54)
1.900 (48.26)
0.050 (1.27)
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Place
±0.15
3 Place
±0.006
Figure 1: Mechanical Drawing - Horizontal Mount Version
SIDE VIEW
0.307
±0.008
(7.80
±0.20)
PCB
FRONT VIEW
2.000
±0.020
(50.80
±0.50)
0.500 (12.70)
0.135 (3.43)
0.635 (16.13)
1
2
3
J1
4
5
1
0.025
±
0.001
(0.64
±0.02)
2
3
J2
5
6
0.168 (4.26)
0.100 (2.54)
0.050 (1.27)
1.900 (48.26)
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Place
±0.15
3 Place
±0.006
Figure 2: Mechanical Drawing - Vertical Mount Version
Data Sheet © Artesyn Technologies® 2004
The information and specifications contained in this data sheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising
from printing errors or inaccuracies. Specifications are subject to change without notice. No rights under any patent accompany the sale of any such product(s) or information contained herein.
