BRUS305W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BRUS305W

BRUS305W: DescriptionBridge Rectifier Diode, 1 Phase, 30A, 50V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size72KB，2 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric View All

BRUS305W Overview

Bridge Rectifier Diode, 1 Phase, 30A, 50V V(RRM), Silicon,

BRUS305W Parametric

Parameter Name	Attribute value
Maker	EDI [Electronic devices inc.]
package instruction	S-PUFM-W4
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.8 V
JESD-30 code	S-PUFM-W4
Maximum non-repetitive peak forward current	250 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	30 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	WIRE
Terminal location	UPPER

Preview

Download Datasheet

View All

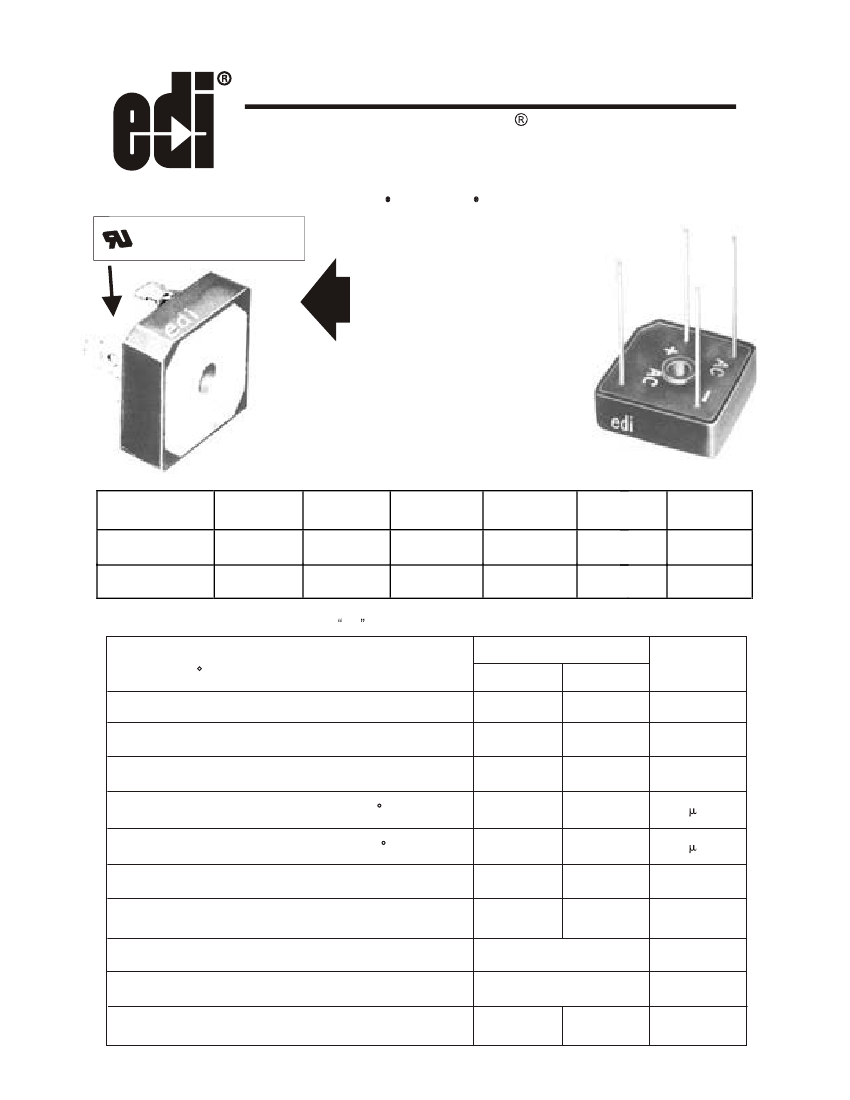

BRUS3 &4

MINIBRIDGE

50 ns. ULTRA-FAST RECOVERY

30 to35 AMPERES

SINGLE-PHASE, FULL-WAVE BRIDGES

HEAT SINK CHASSIS PC BOARD MOUNTING

This mark indicates recognition

under the component program of

Underwriters Laboratories, inc.

INTEGRALLY MOLDED

HEAT SINKS

PROVIDE VERY LOW

THERMAL RESISTANCE

WIRE LEADS

BRUS3W& 4W

BRUS3 &4

QUICK-CONNECT TERMINALS

PRV/LEG

BRUS3 SERIES

BRUS4 SERIES

50V

BRUS305

BRUS405

100V

BRUS310

BRUS410

200V

BRUS320

BRUS420

400V

BRUS340

BRUS440

500V

BRUS350

BRUS450

600V

BRUS360

BRUS460

FOR WIRE LEADS ADD SUFFIX W TO SERIES NUMBER, FOR EXAMPLE, BRUS305W

ELECTRICAL CHARACTERISTICS PER LEG

(at T

=25 C U nle ss O the rwis e Sp eci fie d)

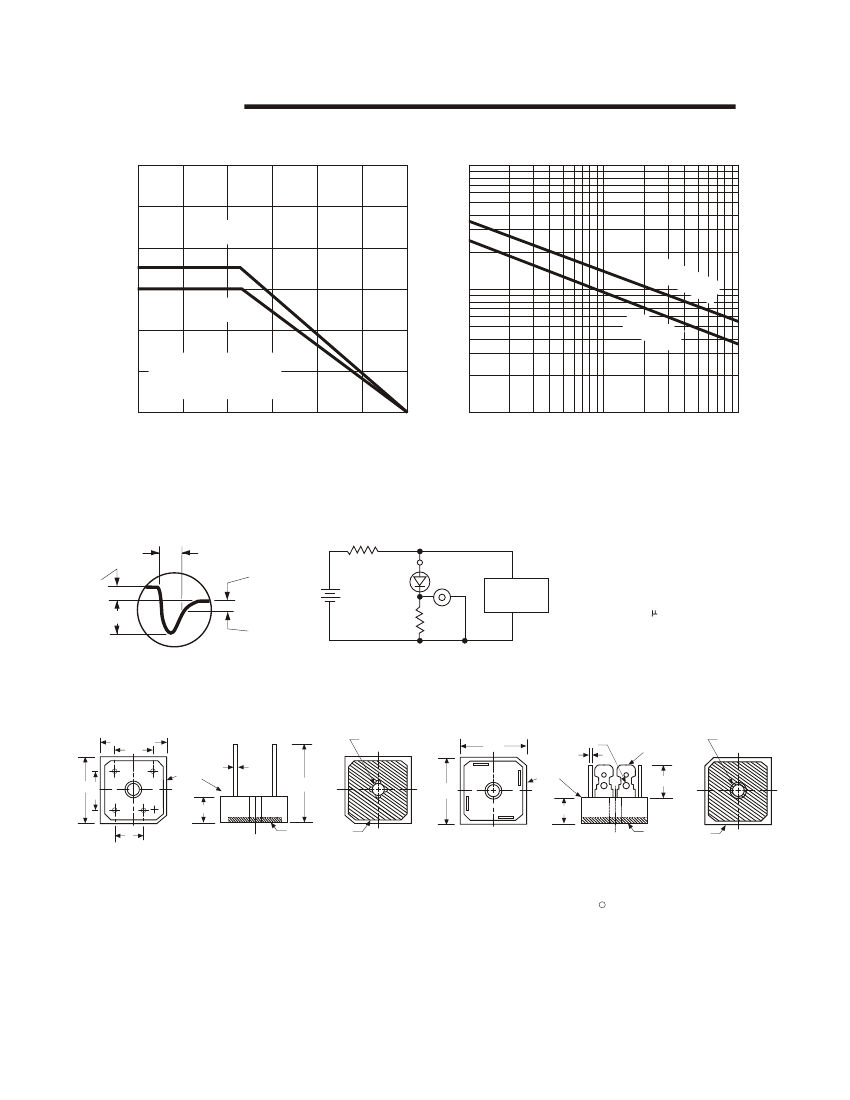

Average Output Current, lo @ 60 C (Fig.1)

Max.Forward Voltage Drop, V

=12A pk

Max.Forward Voltage Drop, V

=2ADC

Max.DC Reverse Current @ PRV and 25

, I

Max.DC Reverse Current @ PRV and 100

Max.Reverse Recovery Time,T

(Fig.3)

Max.Peak Surge Current, l

FSM

(8.3ms) (Fig.2)

Storage Temperature Range, T

STG

Ambient Operating Temperature Range,T

Thermal Resistance (Total Bridge), R0 j-c

SERIES DESIGNATION

BRUS3

1.75

1.2

200

250

BRUS4

1.5

1.2

200

320

UNITS

Amps

Volts

Nanosec.

Amps

-55 to+150

1.25 typ.

1.5 typ.

C/W
