STA-1095-08-NNN-05 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> STA-1095-08-NNN-05

STA-1095-08-NNN-05: DescriptionRF/Microwave Attenuator, 0 MHz - 8000 MHz RF/MICROWAVE VARIABLE ATTENUATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size366KB，8 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

STA-1095-08-NNN-05 Overview

RF/Microwave Attenuator, 0 MHz - 8000 MHz RF/MICROWAVE VARIABLE ATTENUATOR

STA-1095-08-NNN-05 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
Other features	N-F
Nominal attenuation	9 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	8000 MHz
Minimum operating frequency
Maximum operating temperature	55 °C
Minimum operating temperature
RF/Microwave Device Types	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.45

Preview

Download Datasheet

View All

Attenuators

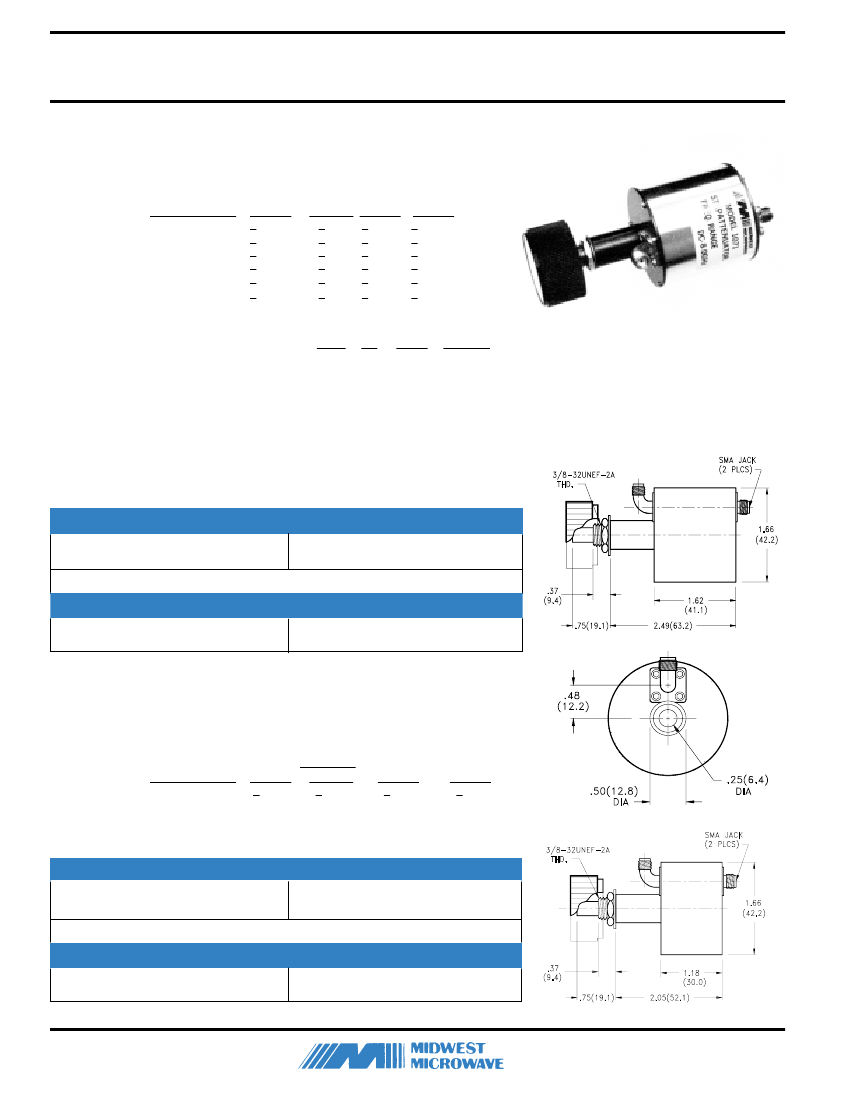

Panel Mount -

Specifications

Step Attenuators - Manual

0 to 60 dB in 10 dB Steps

Frequency:

DC-18.0 , DC - 12 .4, DC - 8.0, and DC - 4.0 GHz units available

Attenuation Values:

0 - 60 dB

Attenuation Accuracy:

Attenuation (dB) DC-18.0

DC-12..4 DC - 8.0 DC - 4.0

+ 0.5

+ 0.4

+ 0.3

+ 0.6

+ 0.5

+ 0.4

+ 0.3

+ 0.7

+ 0.6

+ 0.5

+ 0.4

+ 1.0

+ 0.8

+ 0.6

+ 0.5

+ 1.2

+ 1.0

+ 0.8

+ 0.7

+ 1.5

+ 1.2

+ 0.9

+ 0.8

Impedance:

50 Ohms

VSWR:

1.2 @ DC - 4 , 1.3 @ 4 - 8.0, 1.45 @ 8-12.4, 1.5 @ 12.4 - 18.0 GHz max

Zero Position Insertion Loss:

Freq (GHz) DC-4 4-8 8-12.4 12.4-18.0

dB max

0.3

0.4

0.5

0.7

Power:

2 Watts average

Operating Temperature Range:

0C to +55C

Switching Repeatability:

0.05 dB

Switching Life:

1,000,000 cycles

Mechanical Stops:

Maximum dB - clockwise, Minimum dB - counterclockwise

Connector Types:

SMA swept right angle female on shaft end and straight on rear

Finish of Connectors:

Passivated Stainless Steel

DC - 18.0 GHz

STA-1071-18-SMA-07

DC - 12.4

GHz

STA-1071-12-SMA-07

1071 Series

DC - 8.0 GHz

STA-1071-08-SMA-07

DC - 4.0 GHz

STA-1071-04-SMA-07

Panel Mount -

Specifications

0 to 9 dB in 1 dB Steps

Frequency:

DC-18.0 , DC - 12 .4, DC - 8.0, and DC - 4.0 GHz units available

Attenuation Values:

0 - 9 dB

Attenuation Accuracy:

Frequency

Attenuation (dB) DC-18.0

DC-12..4

DC - 8.0

DC - 4.0

1-9

+ 0.5

+ 0.3

Connector Types:

SMA swept right angle female on shaft end and straight on rear

Finish of Connectors:

Passivated Stainless Steel

Note: All other performance specifications are the same as the 1071 series shown above.

DC - 18.0 GHz

STA-1072-18-SMA-07

DC - 12.4 GHz

STA-1072-12-SMA-07

1072 Series

DC - 8.0 GHz

STA-1072-08-SMA-07

DC - 4.0 GHz

STA-1072-04-SMA-07
