AGQ260A4HX

Description
Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.022A (Coil), 4.5VDC (Coil), 100mW (Coil), 2A (Contact), 110VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size2MB，5 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric View All

AGQ260A4HX Online Shopping

Suppliers Part Number Price MOQ In stock
AGQ260A4HX - - View Buy Now

AGQ260A4HX Overview

Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.022A (Coil), 4.5VDC (Coil), 100mW (Coil), 2A (Contact), 110VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight, ROHS COMPLIANT

AGQ260A4HX Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerPanasonic
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
body width7.2 mm
body height5.4 mm
Body length or diameter10.6 mm
Maximum coil current (DC)0.022 A
Coil operating voltage (DC)3.6 V
Coil power100 mW
Coil release voltage (DC)0.45 V
Coil resistance202.5 Ω
Maximum coil voltage (DC)4.5 V
Nominal coil voltage4.5 V
Coil/Input Power TypeDC
Contact (AC) maximum rated power R load37.5VA@125VAC
Contact (AC) maximum rated R load2A@125VAC
Maximum contact current (AC)2 A
Maximum contact current (DC)2 A
Contact (DC) maximum rated power R load60W@110VDC
Contact (DC) maximum rated R load2A@110VDC
Contact resistance100 mΩ
Maximum contact voltage (AC)125 V
Maximum contact voltage (DC)110 V
Contact/Output Power TypeAC/DC
Dielectric strength between coil and contacts1500 Vrms
Dielectric strength between breaking contacts750 Vrms
Electrical life100000 Cycle(s)
End contact materialSilver Palladium
End contact platingGOLD
Input switching control typeRandom
Insulation resistance1000000000 Ω
Installation featuresSURFACE MOUNT-STRAIGHT
Number of terminals8
operating hours4 ms
Maximum operating temperature70 °C
Minimum operating temperature-40 °C
method of packingTAPE AND REEL
physical size10.6mm x 7.2mm x 5.4mm
GuidelineBSI; CSA; UL
Relay actionMOMENTARY
Relay style2 FORM C
Relay functionDPDT
Relay typePOWER/SIGNAL RELAY
release time4 ms
sealWATER PROOF
surface mountNO
Termination typeSOLDER
weight1 g

AGQ260A4HX Preview

GQ (AGQ)
High capacity 2 A
Flat and compact package
GQ RELAYS
7. Nominal operating power: 140 mW
8. Outstanding vibration and shock
resistance.
Functional shock resistance: 750 m/s
2
Destructive shock resistance:
1,000 m/s
2
Functional vibration resistance:
10 to 55 Hz (at double amplitude of
3.3 mm
.130 inch)
Destructive vibration resistance:
10 to 55 Hz (at double amplitude of
5 mm
.197 inch)
9. Sealed construction allows
automatic washing.
10.Sealed according to RTIII (IP67)
FEATURES
1. High capacity: 2 A
2. Compact flat body saves space
With a small footprint of 10.6 mm (L)
7.2 mm (W)
.417 inch (L)
.283 inch
(W)
for space savings, it also has a
very short height of 5.2 mm
.205 inch.
(Standard PC board type.)
3. High sensitivity single side stable
type (Nominal operating power:
100mW) is available
4. Outstanding surge resistance.
Surge breakdown voltage between
contacts and coil:
2,500 V 210
s
(Telcordia)
Surge breakdown voltage between
open contacts:
1,500 V 10160
s
(FCC part 68)
5. The use of twin crossbar contacts
ensures high contact reliability.
AgPd contact is used because of its
good sulfide resistance. Adopting low-
gas molding material. Coil assembly
molding technology which avoids
generating volatile gas from coil.
6. Increased packaging density
Due to highly efficient magnetic circuit
design, leakage flux is reduced and
changes in electrical characteristics
from components being mounted
close-together are minimized. This all
means a packaging density higher
than ever before.
TYPICAL APPLICATIONS
1. Telephone switchboard
2. Telecommunications equipment
3. Security
4. Measurement equipment
5. Consumer electronic and audio
visual equipment
ORDERING INFORMATION
AGQ 2
Contact arrangement
2: 2 Form C
Operating function
0: Single side stable
1: 1 coil latching
6: High sensitivity single side
stable type
Type of operation
0: Standard type (B.B.M.)
Terminal shape
Nil: Standard PC board terminal
A: Surface-mount terminal A type
S: Surface-mount terminal S type
Nominal coil voltage (DC)
1H: 1.5V 03: 3V 4H: 4.5V 06: 6V 09: 9V
12: 12V 24: 24V
Packing style
Nil: Tube packing
X: Tape and reel packing (picked from 1/2/3/4 pin side)
Z: Tape and reel packing (picked from 5/6/7/8 pin side)
0
ds_61008_en_gq: 280114D
1
GQ (AGQ)
TYPES
1. Standard PC board terminal
Nominal coil voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
Standard packing: Tube: 50 pcs.; Case: 1,000 pcs.
Single side stable
Part No.
AGQ2001H
AGQ20003
AGQ2004H
AGQ20006
AGQ20009
AGQ20012
AGQ20024
1 coil latching
Part No.
AGQ2101H
AGQ21003
AGQ2104H
AGQ21006
AGQ21009
AGQ21012
AGQ21024
High sensitivity single side stable
Part No.
AGQ2601H
AGQ26003
AGQ2604H
AGQ26006
AGQ26009
AGQ26012
AGQ26024
2. Surface-mount terminal
1) Tube packing
Nominal coil voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
Single side stable
Part No.
AGQ200
1H
AGQ200
03
AGQ200
4H
AGQ200
06
AGQ200
09
AGQ200
12
AGQ200
24
1 coil latching
Part No.
AGQ210
1H
AGQ210
03
AGQ210
4H
AGQ210
06
AGQ210
09
AGQ210
12
AGQ210
24
High sensitivity single side stable
Part No.
AGQ260
1H
AGQ260
03
AGQ260
4H
AGQ260
06
AGQ260
09
AGQ260
12
AGQ260
24
: For each surface-mounted terminal identification, input the following letter. A type: A, S type: S
Standard packing: Tube: 50 pcs.; Case: 1,000 pcs.
2) Tape and reel packing
Nominal coil voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
Single side stable
Part No.
AGQ200
1HZ
AGQ200
03Z
AGQ200
4HZ
AGQ200
06Z
AGQ200
09Z
AGQ200
12Z
AGQ200
24Z
1 coil latching
Part No.
AGQ210
1HZ
AGQ210
03Z
AGQ210
4HZ
AGQ210
06Z
AGQ210
09Z
AGQ210
12Z
AGQ210
24Z
High sensitivity single side stable
Part No.
AGQ260
1HZ
AGQ260
03Z
AGQ260
4HZ
AGQ260
06Z
AGQ260
09Z
AGQ260
12Z
AGQ260
24Z
: For each surface-mounted terminal identification, input the following letter. A type: A, S type: S
Standard packing: Tape and reel: 900 pcs.; Case: 1,800 pcs.
Notes: 1. Tape and reel packing symbol “-Z” is not marked on the relay. “X” type tape and reel packing (picked from 1/2/3/4-pin side) is also available.
2. Please inquire if you require a relay, between 1.5 and 24 V DC, with a voltage not listed.
RATING
1. Coil data
1) Single side stable type
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
Pick-up voltage
(at 20C
68F)
Drop-out voltage
(at 20C
68F)
Nominal operating
current
[10%] (at 20C
68F)
93.8mA
46.7mA
31mA
23.3mA
15.5mA
11.7mA
9.6mA
Coil resistance
[10%] (at 20C
68F)
16
64.2
145
257
579
1,028
2,504
150%V of
nominal voltage
Nominal operating
power
Max. applied voltage
(at 20C
68F)
75%V or less of
nominal voltage*
(Initial)
10%V or more of
nominal voltage*
(Initial)
140mW
230mW
120%V of
nominal voltage
2) 1 coil latching type
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
*Pulse drive (JIS C 5442-1996)
75%V or less of
nominal voltage*
(Initial)
75%V or less of
nominal voltage*
(Initial)
Set voltage
(at 20C
68F)
Reset voltage
(at 20C
68F)
Nominal operating
current
[10%] (at 20C
68F)
66.7mA
33.3mA
22.2mA
16.7mA
11.1mA
8.3mA
5.0mA
Coil resistance
[10%] (at 20C
68F)
22.5
90
202.5
360
810
1,440
4,800
Nominal operating
power
Max. applied voltage
(at 20C
68F)
100mW
150%V of
nominal voltage
120mW
2
ds_61008_en_gq: 280114D
GQ (AGQ)
3) High sensitivity single side stable type
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
*Pulse drive (JIS C 5442-1996)
Set voltage
(at 20C
68F)
Reset voltage
(at 20C
68F)
Nominal operating
current
[10%] (at 20C
68F)
66.7mA
33.3mA
22.2mA
16.7mA
11.1mA
8.3mA
5.0mA
Coil resistance
[10%] (at 20C
68F)
22.5
90
202.5
360
810
1,440
4,800
150%V of
nominal voltage
Nominal operating
power
Max. applied voltage
(at 20C
68F)
80%V or less of
nominal voltage*
(Initial)
10%V or more of
nominal voltage*
(Initial)
100mW
120mW
120%V of
nominal voltage
2. Specifications
Characteristics
Contact
Item
Arrangement
Initial contact resistance, max.
Contact material
Nominal switching capacity
Max. switching power
Max. switching voltage
Max. switching current
Min. switching capacity (Reference value)
*1
Single side stable
Nominal operating
High sensitivity single side
power
stable type
1 coil latching
Insulation resistance (Initial)
Between open contacts
Between contact and coil
Between contact sets
Between open contacts
Surge breakdown
voltage (Initial)
Between contacts and coil
Temperature rise (at 20C
68F)
Operate time [Set time] (at 20C
68F)
Breakdown voltage
(Initial)
Release time [Reset time] (at 20C
68F)
Functional
Destructive
Functional
Vibration resistance
Destructive
Mechanical
Shock resistance
Electrical
Specifications
2 Form C
Max. 100 m (By voltage drop 6 V DC 1A)
Stationary contact: AgPd+Au clad Movable contact: AgPd
2 A 30 V DC, 1 A 30 V DC, 0.3 A 125 V AC (resistive load)
60 W (DC), 30 W (DC), 37.5 V A (AC) (resistive load)
110 V DC, 125 V AC
2A
10A 10 mV DC
140mW (1.5 to 12 V DC), 230mW (24 V DC)
100mW (1.5 to 12 V DC), 120mW (24 V DC)
Min. 1,000M (at 500V DC)
Measurement at same location as “Initial breakdown voltage” section.
750 Vrms for 1min. (Detection current: 10mA)
1,500 Vrms for 1min. (Detection current: 10mA)
1,000 Vrms for 1min. (Detection current: 10mA)
1,500 V (10160s) (FCC Part 68)
2,500 V (210s) (Telcordia)
Max. 50C (By resistive method, nominal coil voltage applied to the coil; contact carrying current: 1A.)
Max. 4 ms [Max. 4 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.)
Max. 4 ms [Max. 4 ms] (Nominal coil voltage applied to the coil, excluding contact bounce
time.) (without diode)
Min. 750 m/s
2
(Half-wave pulse of sine wave: 6 ms; detection time: 10s.)
Min. 1,000 m/s
2
(Half-wave pulse of sine wave: 6 ms.)
10 to 55 Hz at double amplitude of 3.3 mm (Detection time: 10s.)
10 to 55 Hz at double amplitude of 5 mm
Min. 5
10
7
(at 180 times/min.)
Min. 5
10
4
(2 A 30 V DC resistive), Min. 10
5
(1 A 30 V DC resistive),
Min. 10
5
(0.3 A 125 V AC resistive) (at 20 times/min.)
Ambient temperature:
(Single side stable, 1 coil latching type) –40C to +85C
–40F to +185F
(High sensitivity single side stable type) –40C to +70C
–40F to +158F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
20 times/min.
Approx. 1 g
.035 oz
Rating
Electrical
characteristics
Mechanical
characteristics
Expected life
Conditions
Conditions for operation, transport and storage
*2
Max. operating speed (at rated load)
Unit weight
*1 This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the actual load.
*2 Refer to “6. Usage, Storage and Transport Conditions“ in
AMBIENT ENVIRONMENT section in Relay Technical Information.
REFERENCE DATA
1. Max. switching capacity
*Max. switching capacity is 2A 30V DC
100
No. of operations,
×
10
4
DC resistive load
AC resistive load
4
50
40
30
DC 30V resistive load
20
Pick-up voltage
3
Max.
Min.
2
AC 125V
resistive load
2. Life curve
3. Mechanical life
Tested sample: AGQ200A4H, 6 pcs.
Operating speed: 180 times/min.
Switching current, A
1.0
0.3
Voltage, V
10
1
Drop-out voltage
Max.
Min.
30
100
Contact voltage, V
0
0.2
0.4
0.6
0.8
1.0
1.2
0
0
10
30
4
50
Switching current, A
No. of operations,
×10
ds_61008_en_gq: 280114D
3
GQ (AGQ)

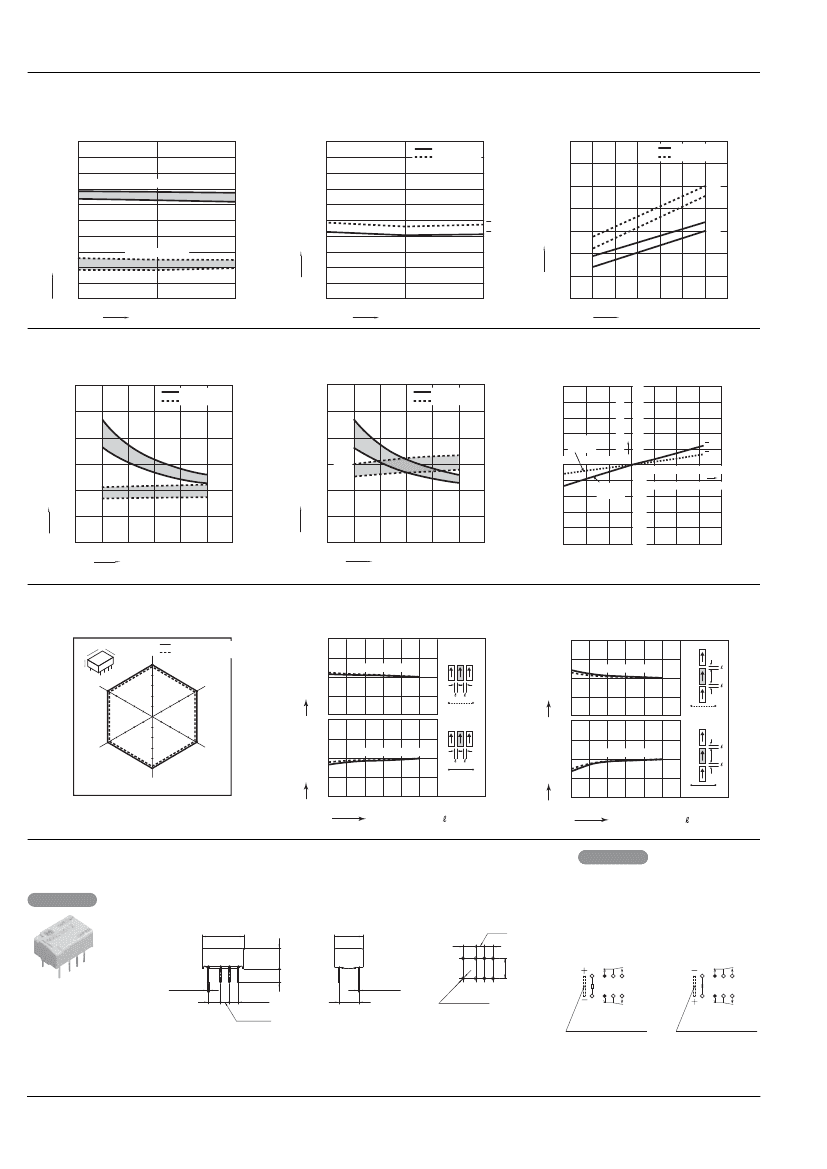

4. Electrical life (1A 30V DC resistive load)
Tested sample: AGQ200A4H, 6 pcs.
Operating speed: 20 times/min.
5. Coil temperature rise
Change of contact resistance
100
90
Contact resistance, mΩ
80
70
60
50
40
30
20
10
10
0
0
5
No. of operations,
×10
4
Change of pick-up and drop-out voltage
Ratio against the rated voltage, %V
Tested sample: AGQ200A4H, AGQ200A24, 6 pcs.
Point measured: Inside the coil
Ambient temperature: Room temperature
N.C. contact
N.O. contact
Temperature rise,
°C
70
60
50
40
30
20
1A
0A
4.5V DC type
24V DC type
100
90
80
70
60
50
40
30
20
10
0
0
5
No. of operations,
×10
4
Pick-up voltage
Max.
Min.
1A
0A
X
X
Drop-out voltage
Max.
Min.
10
10
0
100
110
120
130
140
150
Coil applied voltage, %
6-(1). Operate and release time (without diode)
Tested sample: AGQ2004H, 10 pcs.
3
Operate and release time, ms
6-(2). Operate and release time (with diode)
Tested sample: AGQ2004H, 10 pcs.
3
Operate and release time, ms
7. Ambient temperature characteristics
Tested sample: AGQ200A4H, 6 pcs.
50
40
30
20
10
x
x
Operate time
Release time
Max.
Operate time
Release time
Max.
2
Min.
2
Min.
Max.
Min.
Drop-out
voltage
-40 -20
0
Rate of change, %V
1
Max.
Min.
1
Pick-up
voltage
20 40
60
80 100
-10
Ambient temperature,
°C
-20
-30
-40
0
70
80
90
100
110
120
130
0
70
80
90
100
110
120
130
-50
Coil applied voltage, %V
Coil applied voltage, %V
8. Malfunctional shock
Tested sample: AGQ200A4H, 6 pcs.
9-(1). Influence of adjacent mounting
Tested sample: AGQ20012, 6 pcs.
Rate of change, %V
10
5
Pick-up voltage
0
-5
-10
10
5
0
-5
-10
0
Drop-out voltage
OFF
2
4
6
8 10 12
.079 .157 .236 .315 .394 .472
Inter-relay distance , mm
inch
ON
OFF
OFF
ON
ON
9-(2). Influence of adjacent mounting
Tested sample: AGQ20012, 6 pcs.
Rate of change, %V
10
5
Pick-up voltage
0
-5
-10
10
5
0
-5
-10
0
Drop-out voltage
OFF
ON
ON
Z X
Z'
Y
Y'
X'
Y
1,000m/s
2
Deenergized condition
Energized condition
X
1,000m/s
2
Z
1,000m/s
2
ON
OFF
Rate of change, %V
1,000m/s
2
Z'
1,000m/s
2
Y'
1,000m/s
2
X'
Rate of change, %V
OFF
2
4
6
8 10 12
.079 .157 .236 .315 .394 .472
Inter-relay distance , mm
inch
DIMENSIONS
(mm
inch)
1. PC board terminal
CAD Data
CAD
Data
Download
CAD
Data
from our Web site.
External dimensions
10.60±0.3
.417±.012
5.20±0.2
.205±.008
7.20±0.3
.283±.012
PC board pattern
2.20
.087
3.20
.126
2.20
.087
5.08
.200
0.85 dia.
.033 dia.
Schematic (Bottom view)
Single side stable
High sensitivity
single side stable
1
2 3 4
1 coil latching
1
2 3 4
0.40±0.1
.016±.004
3.20±0.15
.126±.006
2.20±0.15
.087±.006
3.50±0.3
2.20±0.15
.138±.012
.087±.006
0.20±0.1
.008±.004
5.08±0.15
.200±.006
Tolerance:
0.1
.004
8
7 6 5
8
7 6 5
Direction indication
Direction indication
(Deenergized condition)
(Reset condition)
4
ds_61008_en_gq: 280114D
GQ (AGQ)

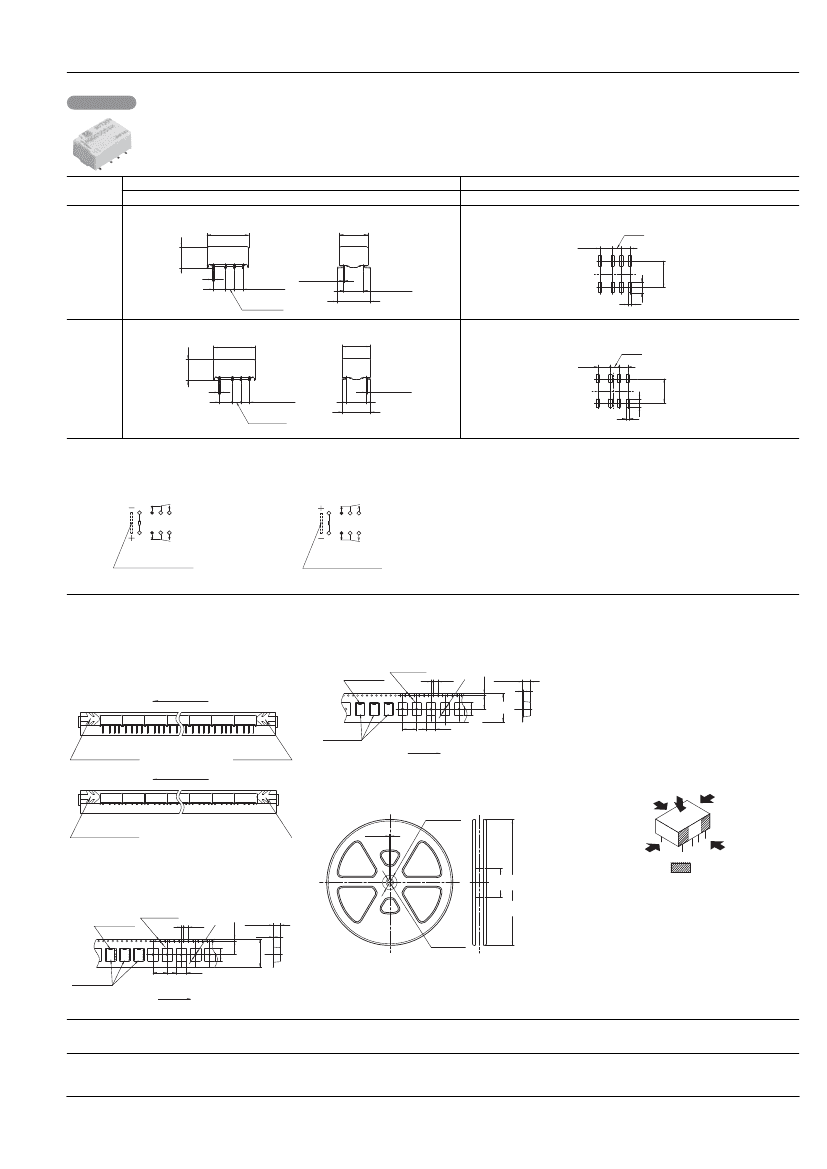

2. Surface-mount terminal
CAD Data
Type
External dimensions
Single side stable/1 coil latching/High sensitivity single side stable
Max. 5.40
.213
10.60±0.3
.417±.012
7.20±0.3
.283±.012
Suggested mounting pad (Tolerance:
0.1
.004)
Single side stable/1 coil latching/High sensitivity single side stable
2.20
.087
2.20
.087
2.66 6.74
.105 .265
0.80
.031
3.20
.126
A type
0.40±0.1
.016±.004
3.20±0.15
.126±.006
2.20±0.15
.087±.006
2.20±0.15
.087±.006
10.60±0.3
.417±.012
0.20±0.1
.008±.004
5.08±0.15
.200±.006
8.40±0.3
.331±.012
7.20±0.3
.283±.012
3.20
.126
Max. 5.40
.213
2.20
.087
2.20
.087
2.06
.081
0.80
.031
6.14
.242
S type
0.40±0.1
.016±.004
3.20±0.15
.126±.006
2.20±0.15
.087±.006
2.20±0.15
.087±.006
0.20±0.1
.008±.004
5.08±0.15
.200±.006
7.20±0.3
.283±.012
Schematic (Top view)
Single side stable
High sensitivity single side stable
8
7 6 5
1 coil latching
8
7 6 5
1
2 3 4
1
2 3 4
Direction indication
Direction indication
(Deenergized condition)
(Reset condition)
NOTES
1. Packing style
1) The relay is packed in a tube with the
relay orientation mark on the left side, as
shown in the figure below.
Orientation (indicates PIN No.1) stripe
(S type)
(1)-2 Tape dimensions
Relay polarity bar
(Z type)
1.50
+0.1
dia.
0
.059
+.003
dia.
.0
2.0
.079
4.0 2.00 dia.
.157 .079 dia.
1.75
.069
11.5
.453
11.1
.437
Max. 6.55
.256
0.40
.016
24.0±0.3
.945±.012
GQ relays
12.0
.472
7.8
.307
Tape coming out direction
Stopper (green)
Stopper (red)
General tolerance
±0.1
mm
.004 inch
Orientation (indicates PIN No.1) stripe
(2) Dimensions of plastic peel
mm
inch
21 dia.
.827 dia.
2. Automatic insertion
To maintain the internal function of the
relay, the chucking pressure should not
exceed the values below.
Chucking pressure in the direction A :
9.8 N {1 kgf} or less
Chucking pressure in the direction B :
9.8 N {1 kgf} or less
Chucking pressure in the direction C :
9.8 N {1 kgf} or less
A
C
B
Stopper (green)
Stopper (red)
2) Tape and reel packing
(A type)
(1)-1 Tape dimensions
mm
inch
Relay polarity bar
(Z type)
1.50
+0.1
dia.
0
.059
+.003
dia.
.0
2.0
.079
4.00 2.00 dia.
.157 .079 dia.
1.75
.069
Max. 6.55
.256
0.40
.016
2.0
.079
80±1 dia.
3.150±.039 dia.
330±2 dia.
12.992±.079 dia.
13 dia.
.512 dia.
Please chuck the
portion.
Avoid chucking the center of the relay.
In addition, excessive chucking pressure
to the pinpoint of the relay should be also
avoided.
11.5
.453
24.0±0.3
.945±.012
11.1
.437
GQ relays
12.0
.472
9.0
.354
Tape coming out direction
General tolerance
±0.1
mm
.004 inch
For Cautions for Use, see
Relay Technical Information.
ds_61008_en_gq: 280114D
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

One of the relay-controlled autotransformer AC stabilized power supply circuits

Gas alarm circuit (2)

JJW2 series AC purification stabilized power supply circuit

Infrared transmitter 1 circuit diagram

Zero crossing trigger temperature control circuit

Photoelectric control trigger circuit

Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. JQX-14FCCZ20AAC12NIL5
  2. HF140FF/060-2ZFXXX
  3. 65945-450
  4. 803-009-CA4ZNU12-37NZ-72
  5. M80-4T11401F2-00-321-08-321
  6. 54121-810-09-1400
  7. SFW-D2-4M-48-CAPM-UPC
  8. VJ1210A150GXXAJ5G
  9. AME8500CEFVCA44
  10. GDZ24A-34_AY_10001
  11. A3961PG-L1753
  12. TC211B475M025Y

Popular Articles

  1. lpc1778 commonly used io port setting functions
  2. UBS analyst warns: This chip company is overly dependent on Apple and is at risk
  3. Honor 50/Pro's new color scheme "Honor Code" officially announced, will be unveiled on Monday
  4. Longli Technology: The company's VR products use Mini-LED backlight technology
  5. B001-Atmega16-Interrupt (GCC-AVR)-(ques=3)
  6. High power density built-in power supply
  7. AI beats humans in the triple crown! Is Sony saving the country by reserving autonomous driving technology?
  8. Can an oscilloscope measure mains electricity?
  9. [Second Generation Oscilloscope Tutorial] Chapter 1 Oscilloscope Basics
  10. JIHI Launches APM32A Full Series of Automotive-Grade MCUs

Technical ResourceMore

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2513  2930  871  2172  948  51  59  18  44  20
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
