A3012-02S-N00-61B4-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> A3012-02S-N00-61B4-Z

A3012-02S-N00-61B4-Z: DescriptionTelecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size290KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

A3012-02S-N00-61B4-Z Overview

Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

A3012-02S-N00-61B4-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.524 inch
subject depth	0.62 inch
body length	1.27 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	A3012
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	2
Maximum operating temperature	90 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	16

A3012-02S-N00-61B4-Z Preview

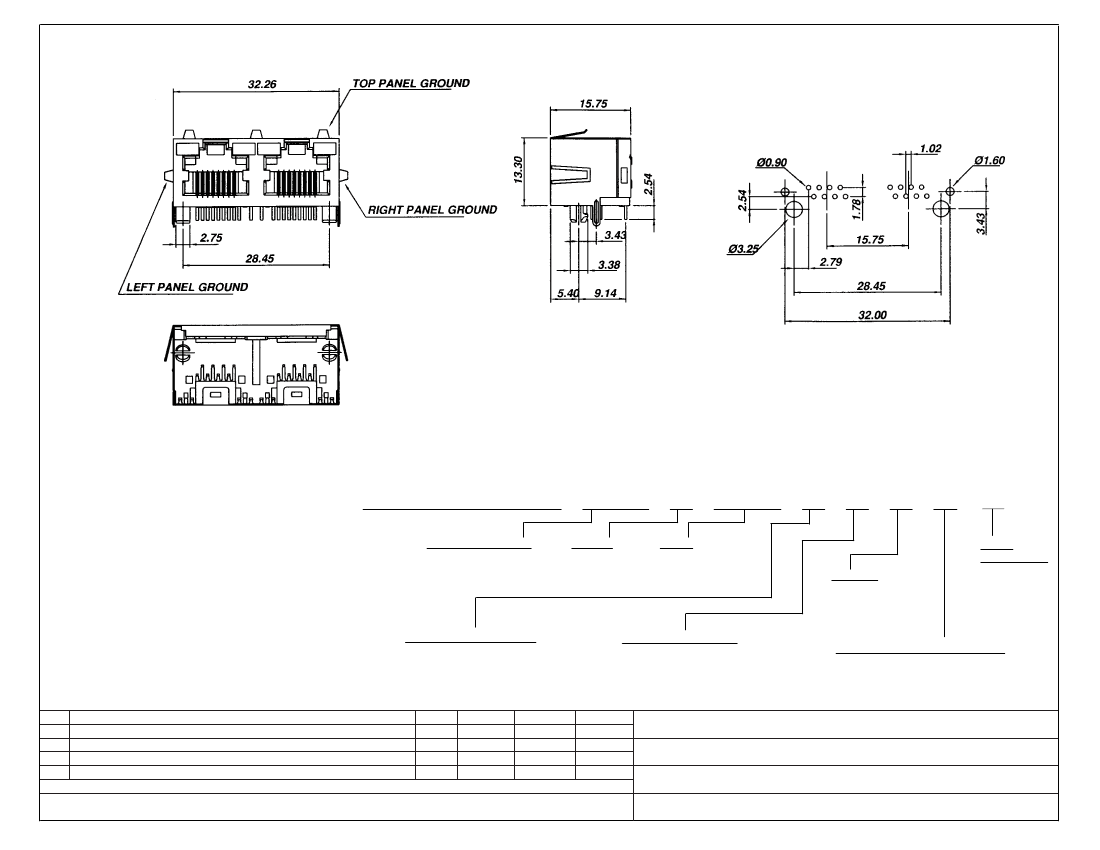

PCB LAYOUT

ELECTRICAL:

CURRENT RATING: 1.5A Max.

CONTACT RESISTANCE: < 20 mΩ Max.

INSULATION RESISTANCE: > 500 mΩ Min. at 500 VDC

DIELECTRIC WITHSTANDING VOLTAGE:

1000V (rms) AC 60Hz for 1 Minute

OPERATING TEMPERATURE: -25° C to +90° C

HOW TO ORDER:

RoHS

COMPLIANT

NUMBER OF PORTS

SHIELD:

S - SHIELDED

TABS:

NO - NO TABS

ST - SPRING TAB

MATERIAL:

HOUSING: NYLON 46 (UL 94V-0)

COLOR: BLACK COLOR

SPRING WIRE: 0.35mm THICKNESS PHOSPHOR BRONZE

GOLD PLATING OVER NICKEL

FLANGE:

0 - NO FLANGE

1 - FLANGE

DIMENSION "D"

PCB GROUND TAB LOCATION:

B4- BACK, 3.56mm w/ NO REAR TABS

MECHANICAL:

DURABILITY: 500 Mating Cycles Min.

Rev

0 Issued

A Revised for RoHS Compliance

SPRING TAB LOCATION:

0 - NO TAB LOCATION

1 - SPRING TABS ON TOP

2 - SPRING TABS ON TOP & SIDES

Drawn

A.M.

B.S.

Checked

S.M.

Approved

S.M.

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 15u" Au CONTACT AREA/TIN TAIL

8 - 30u" Au CONTACT AREA/TIN TAIL

9 - 50u" Au CONTACT AREA/TIN TAIL

Date

03/31/03

08/25/08

SMP TECHNOLOGY, INC.

PCB Gang Jack, 2-Port, Shielded, w/LED

TOL. DEC.

.XX +/- 0.25

.XXX +/- 0.13

.XXXX +/- 0.05

ANGLE +/- 0.30°

UNIT: mm

SERIES: A 3 0 1 2

Pg: 1

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

A3012-02S-N00-61B4-Z Related Products

	A3012-02S-N00-61B4-Z	A3012-02S-N00-71B4-Z	A3012-02S-N00-81B4-Z
Description	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.524 inch	0.524 inch	0.524 inch
subject depth	0.62 inch	0.62 inch	0.62 inch
body length	1.27 inch	1.27 inch	1.27 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU	AU	AU
Contact point gender	MALE	MALE	MALE
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V
Durability	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON
Manufacturer's serial number	A3012	A3012	A3012
Installation option 1	LOCKING	LOCKING	LOCKING
Installation option 2	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of ports	2	2	2
Maximum operating temperature	90 °C	90 °C	90 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
Rated current (signal)	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.1 inch	0.1 inch	0.1 inch
Terminal pitch	2.032 mm	2.032 mm	2.032 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	16	16	16
Maker	SMP Technology Inc.	SMP Technology Inc.	-
Plating thickness	-	15u inch	30u inch
