PLD20G10C-15LMB datasheet, PDF

PLD20G10C-15LMB: DescriptionOT PLD, 15ns, PAL-Type, BICMOS, CQCC28, CERAMIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size640KB，10 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

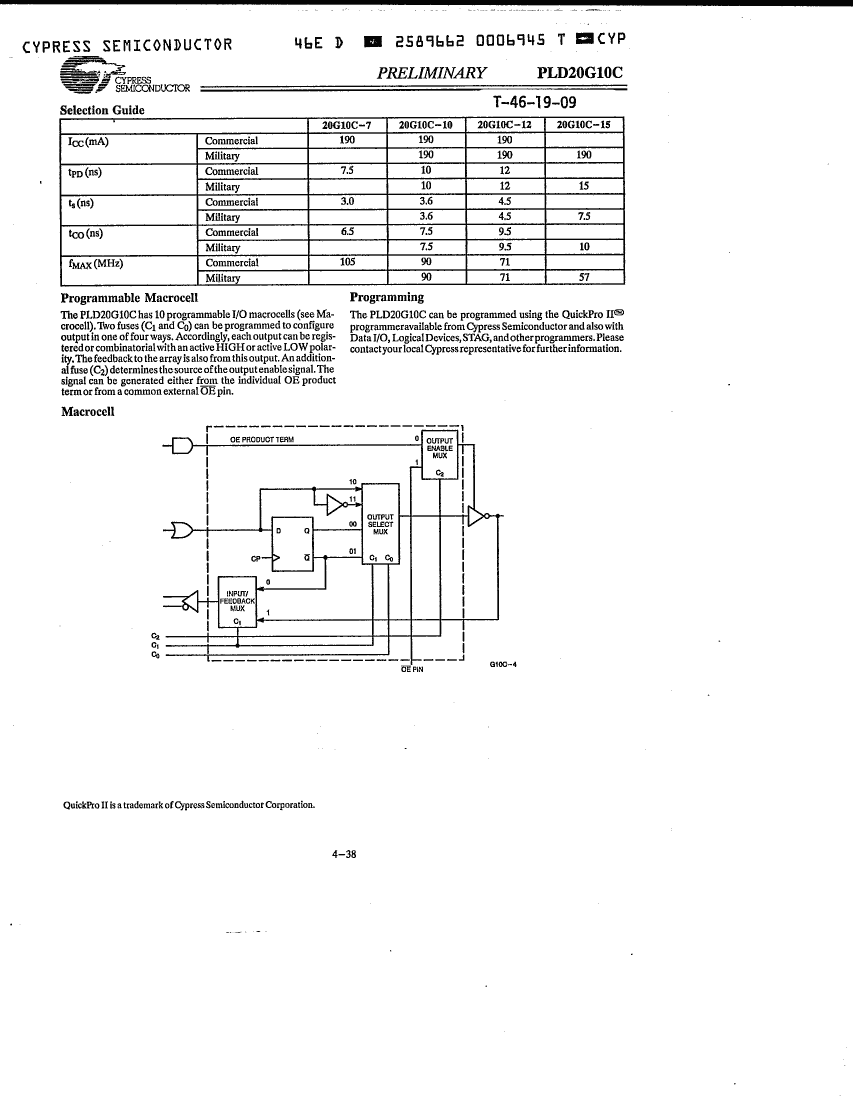

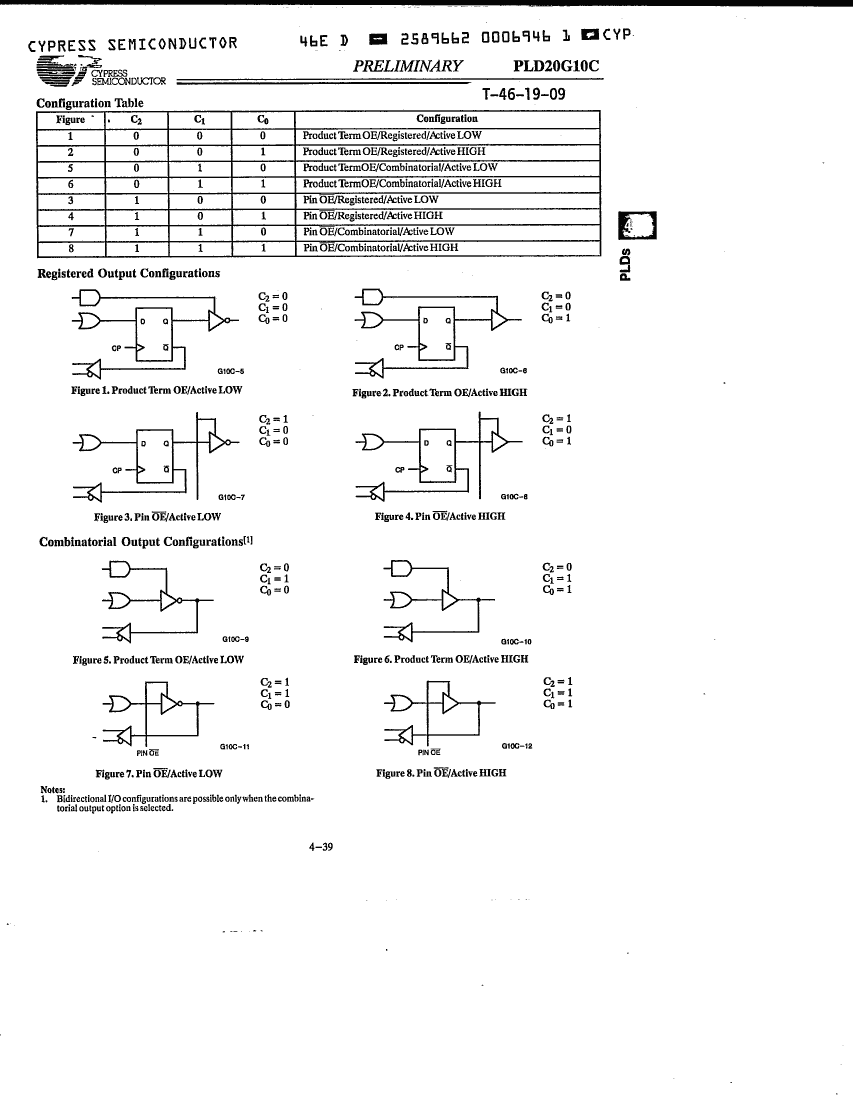

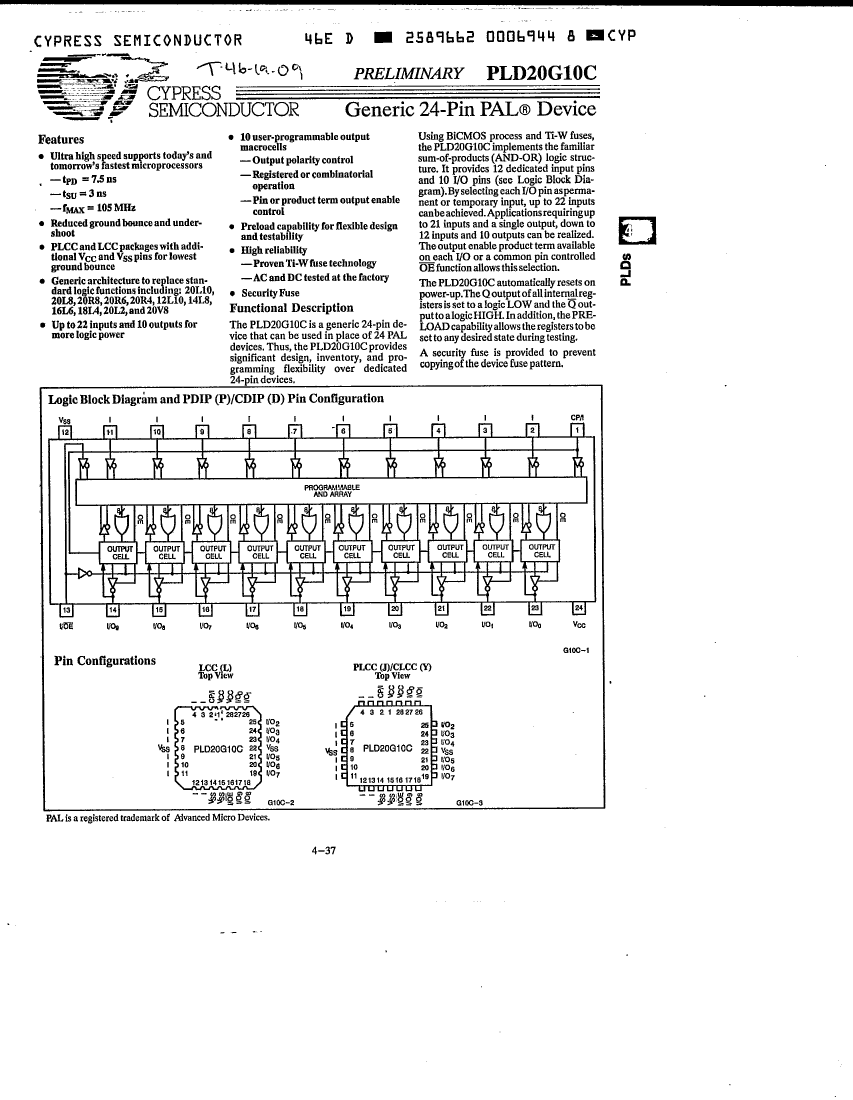

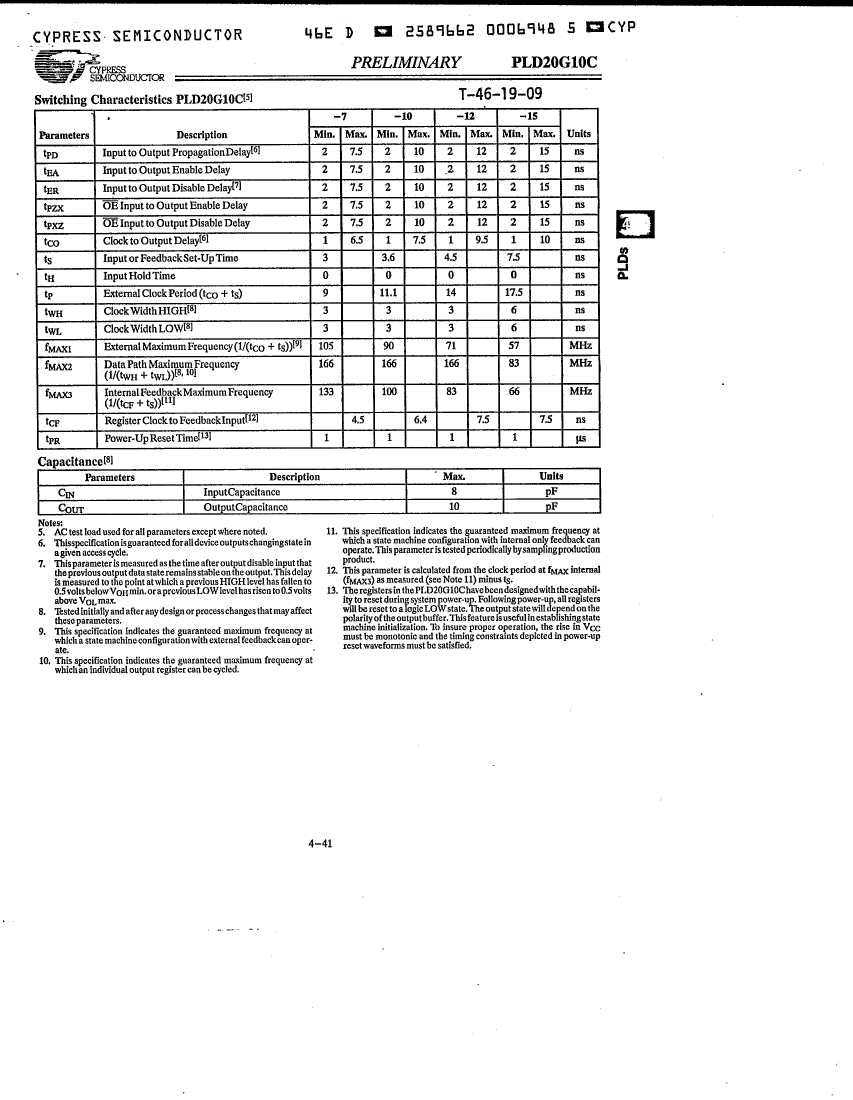

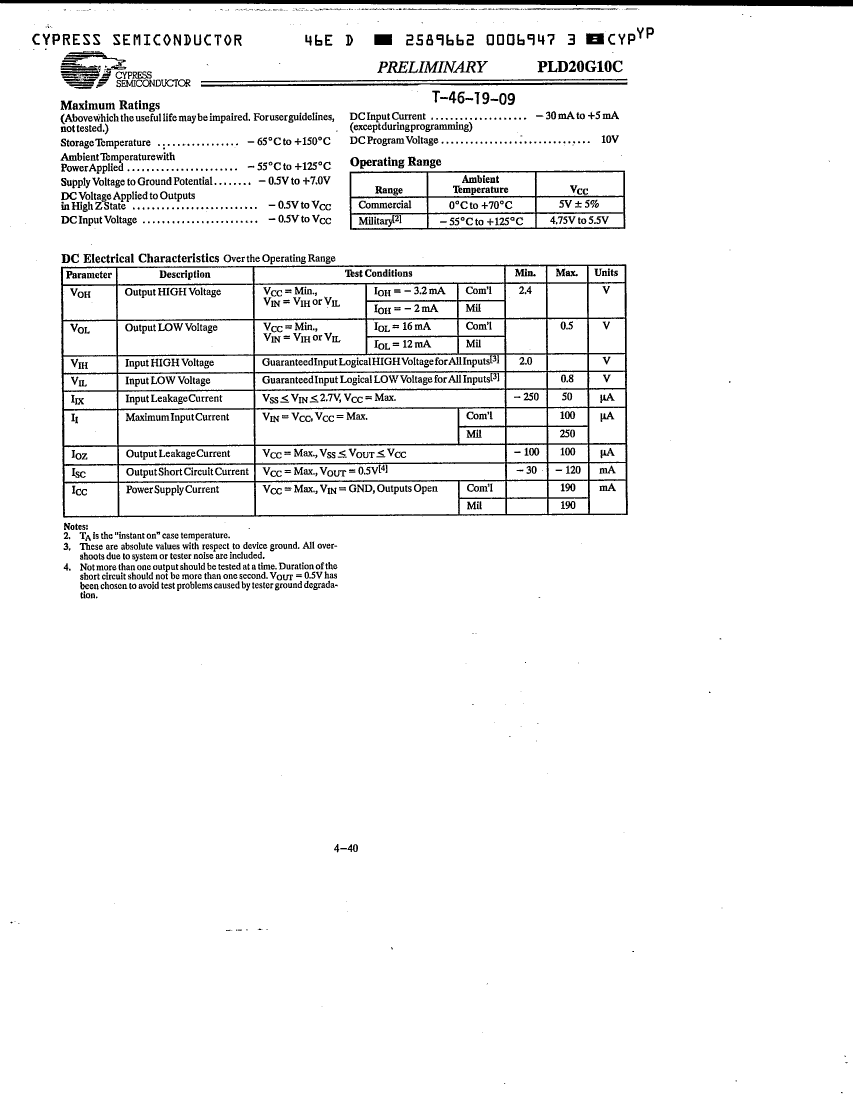

PLD20G10C-15LMB Overview

OT PLD, 15ns, PAL-Type, BICMOS, CQCC28, CERAMIC, LCC-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	QLCC
package instruction	CERAMIC, LCC-28
Contacts	28
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; REGISTER PRELOAD; POWER-UP RESET
Architecture	PAL-TYPE
maximum clock frequency	57 MHz
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Dedicated input times	10
Number of I/O lines	10
Number of entries	22
Output times	10
Number of product terms	90
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	10 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	OT PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum seat height	1.9812 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm
