DS15-MFC-M-01-GY datasheet, PDF

Datasheet> All Categories > The connector> The connector> DS15-MFC-M-01-GY

DS15-MFC-M-01-GY: DescriptionD Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Plug; CategoryThe connector The connector; File Size33KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

DS15-MFC-M-01-GY Overview

D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Plug

DS15-MFC-M-01-GY Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.496 inch
body length	1.541 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	GRAY
JESD-609 code	e4
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .125-.137
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	IDC
Total number of contacts	15

DS15-MFC-M-01-GY Preview

SPECIFICATIONS

Current rating:

Voltage rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator resistance:

Shell material:

Shell plating:

Withstanding:

Durability:

Temperature range:

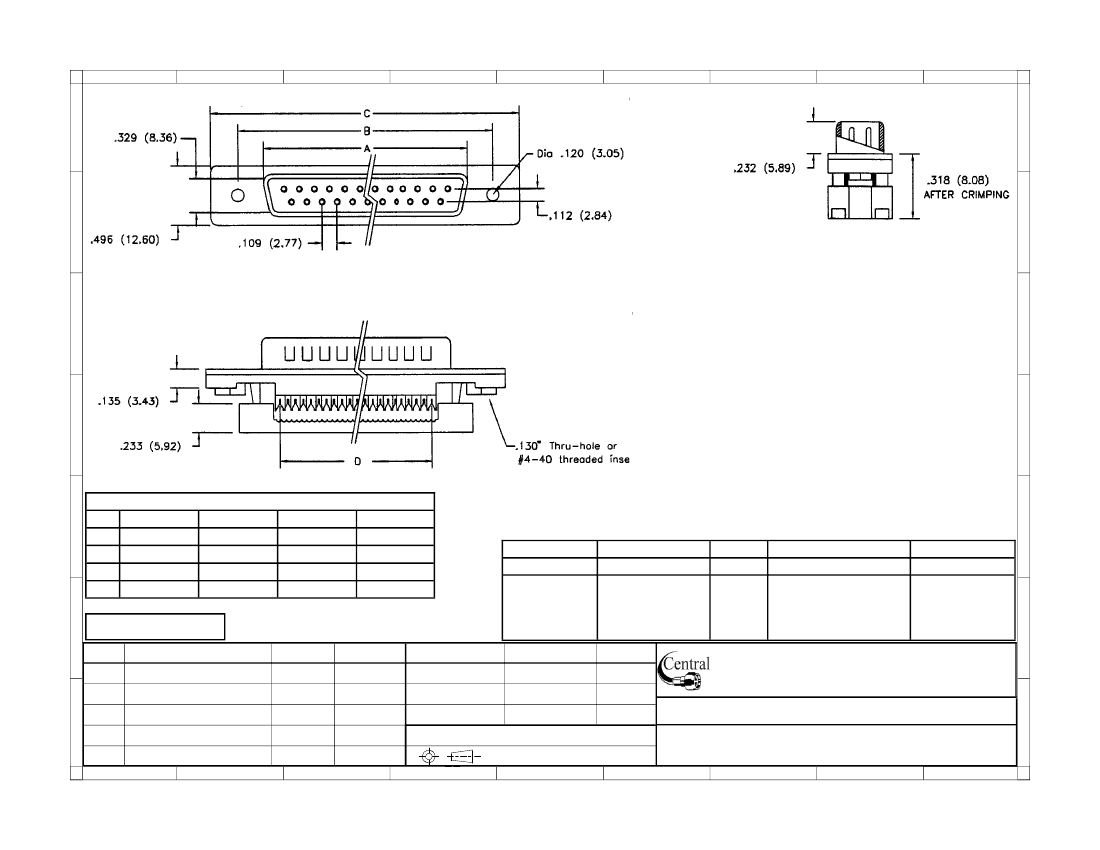

Dimensions in (mm)

0.984 (24.99) 1.213 (30.81)

1.312 (33.23) 1.541 (39.14)

1.852 (47.04) 2.088 (53.04)

2.500 (63.50) 2.729 (69.32)

5 amps

600VDC

Phosphor bronze, stamped pin

Gold or selective gold over nickel

8 milliohms max.

PBT and nylon, UL94V-0

5,000 megohms min.

Steel

Tin

1,000 VAC for 1 min.

500 cycles min.

-55°C to +125°C

Pos.

0.666 (16.92)

0.994 (25.25)

1.534 (38.96)

2.182 (55.42)

0.400 (10.16)

0.700 (17.78)

1.200 (30.48)

1.800 (45.72)

RoHS compliant

Rev.

Description

Date

Approved

Series

Type

Shell

Mounting face

Options

DSXX

XFC

D-Sub connector MFC=Male plug

M=Metal 01=.130” thru hole

[blank]=None

XX=Pins

FFC=Female socket P=Plastic 02=#4-40 threaded inserts 30GD=30µ” gold

09, 15, 25, 37

03=w/ Jack Screws

BL=Blue insulator

GY=Gray insulator

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

DSXX-MFC-X-XX-XX

0.0 ± 0.35

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: D-subminiature connector, IDC termination, male plug

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
