SG1524J#PBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> SG1524J#PBF

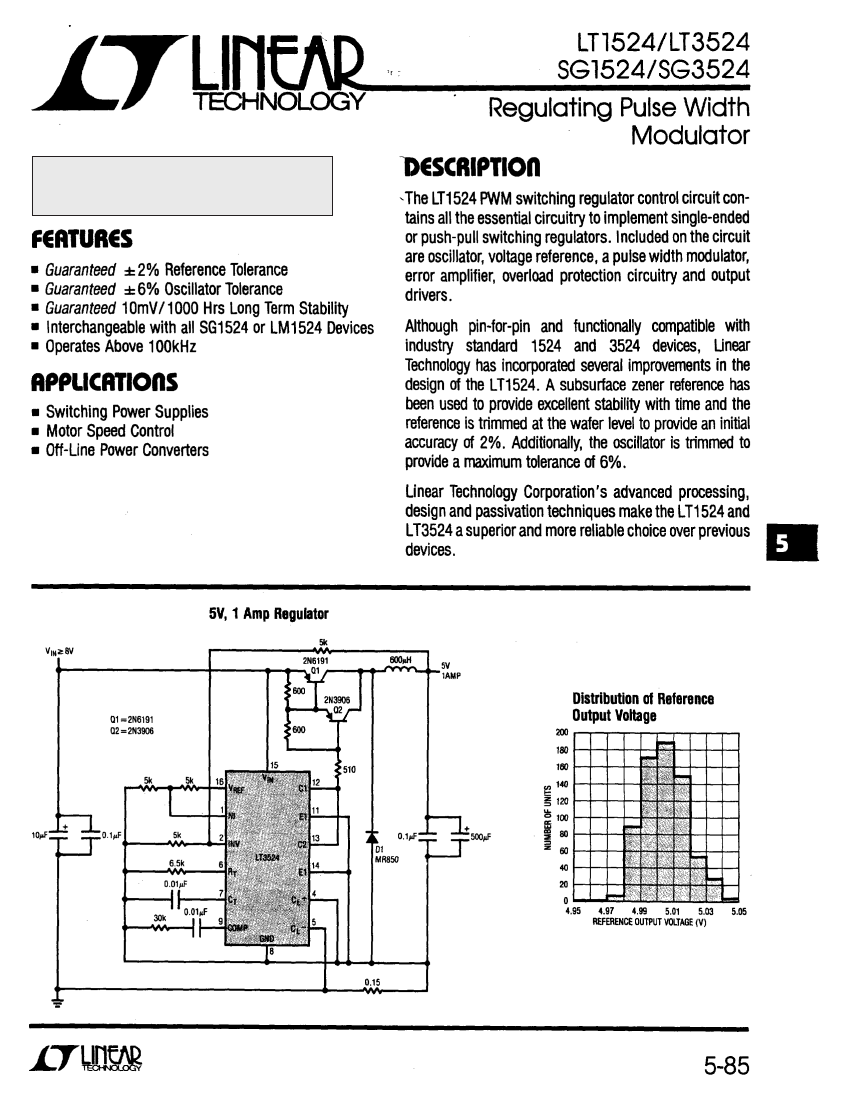

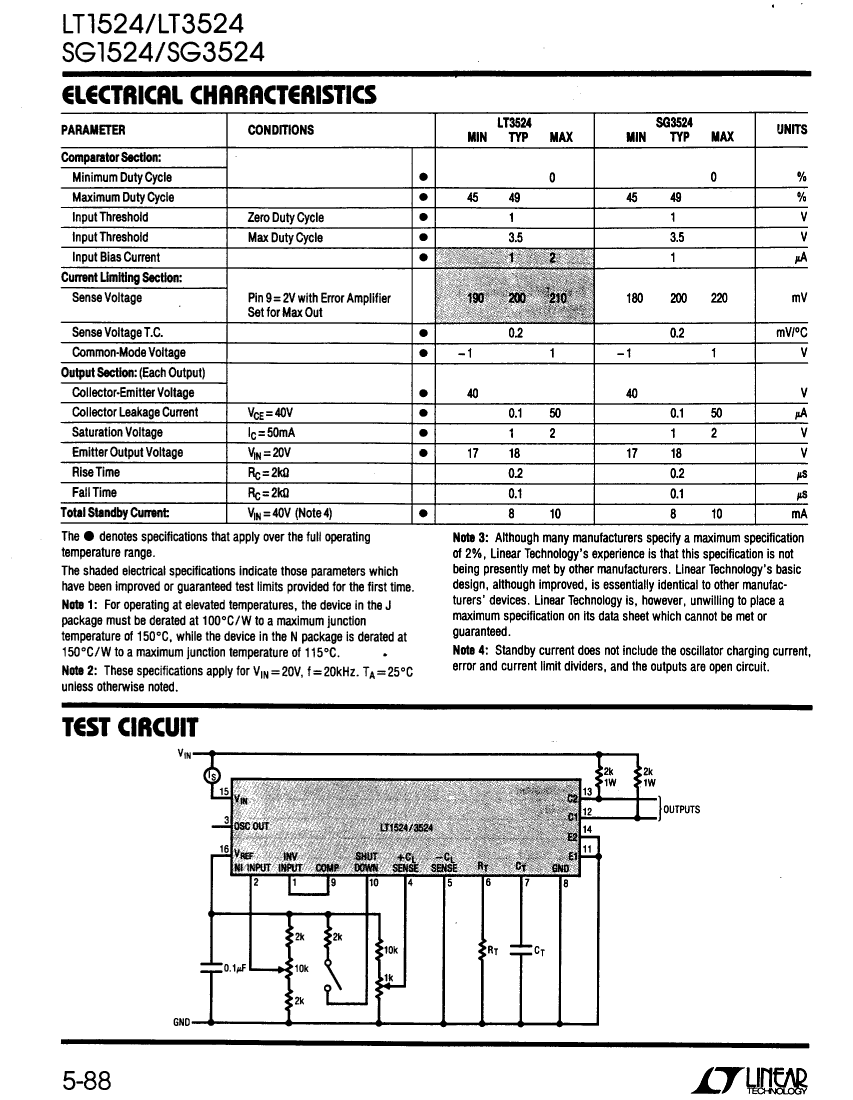

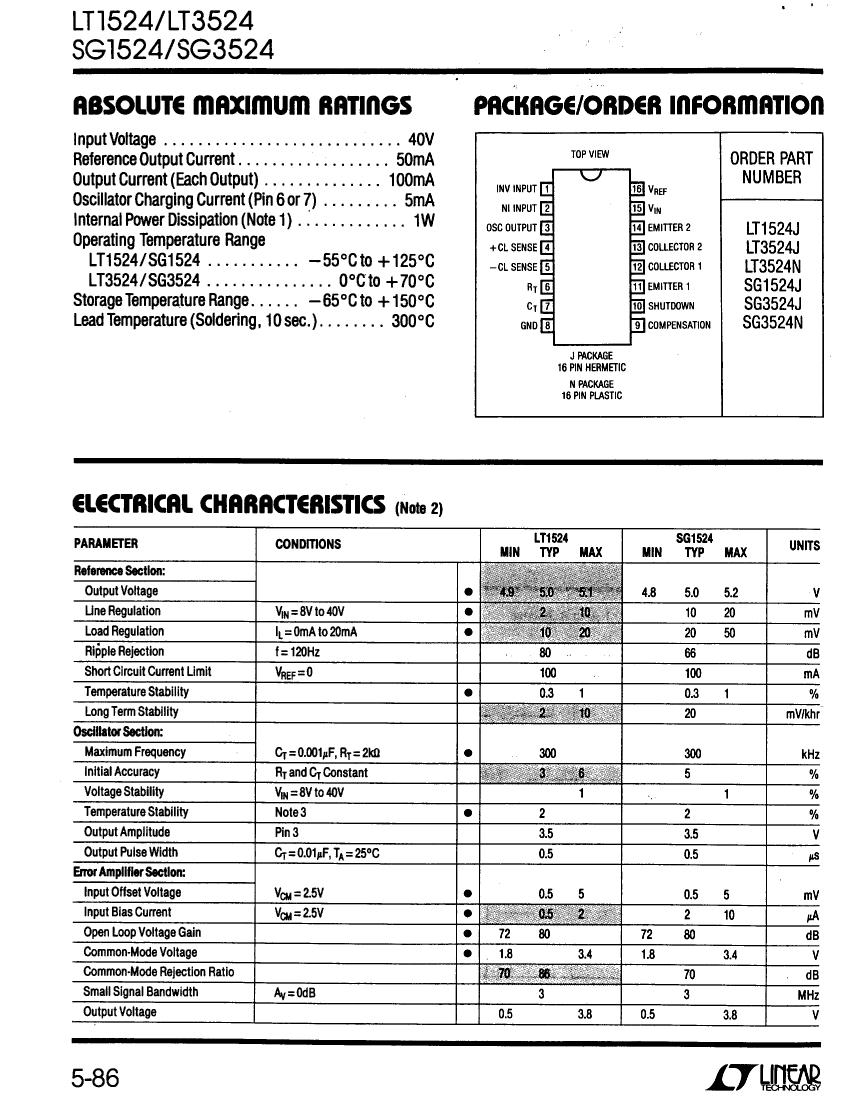

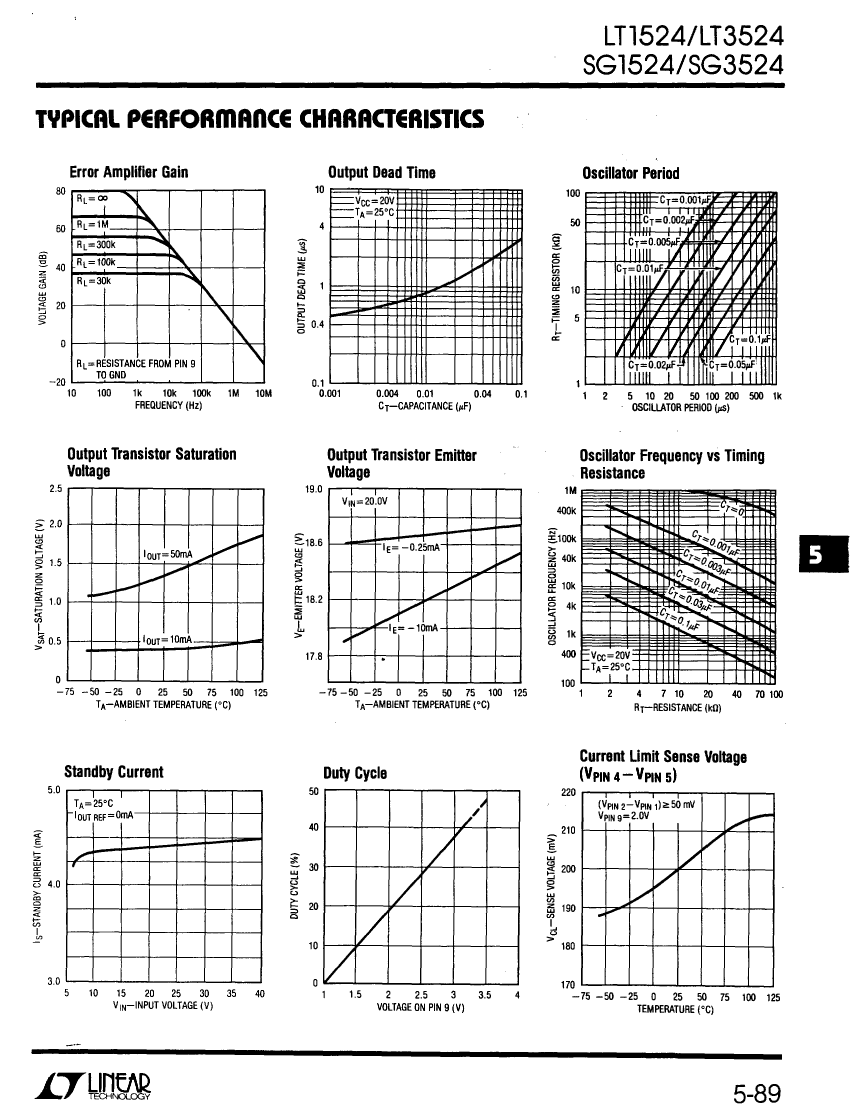

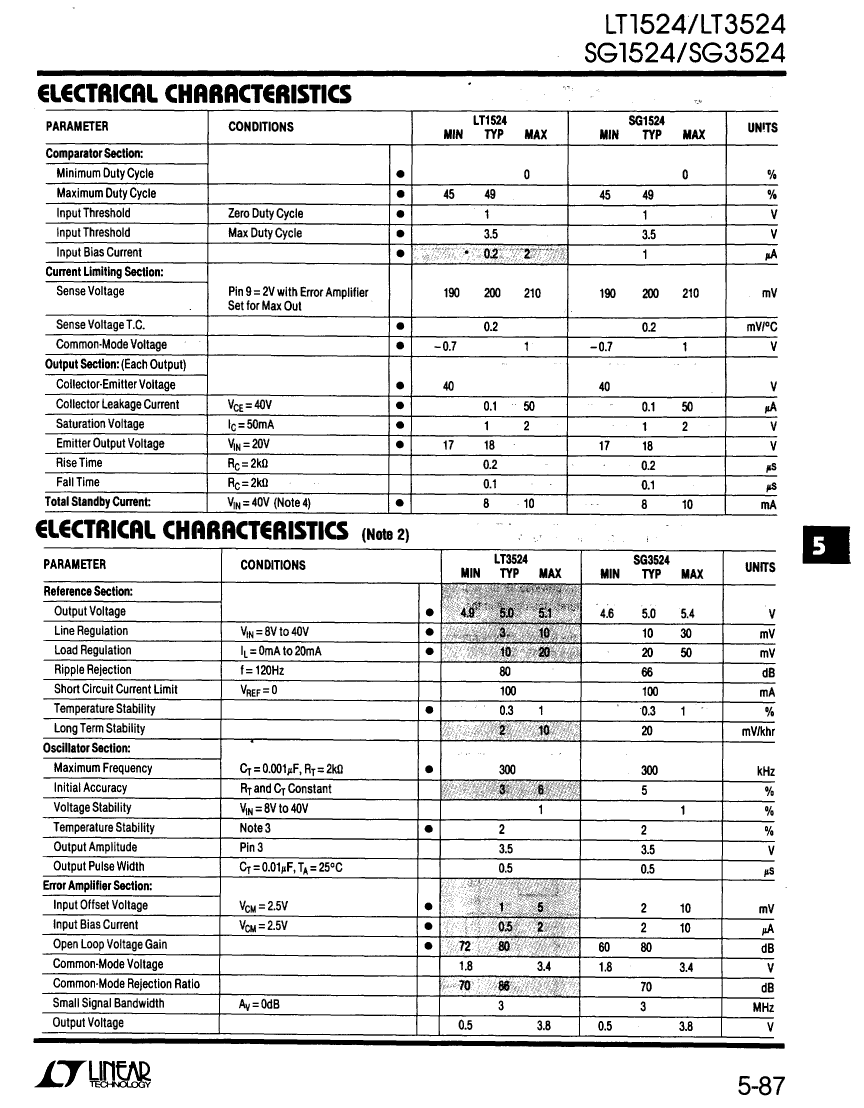

SG1524J#PBF: DescriptionIC 0.1 A SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, CDIP16, LEAD FREE, CERAMIC, DIP-16, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size1MB，8 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

SG1524J#PBF Overview

IC 0.1 A SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, CDIP16, LEAD FREE, CERAMIC, DIP-16, Switching Regulator or Controller

SG1524J#PBF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Linear ( ADI )
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO OPERATES IN ADJUSTABLE MODE FROM 0.5V TO 3.8V
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	40 V
Minimum input voltage	8 V
Nominal input voltage	20 V
JESD-30 code	R-GDIP-T16
JESD-609 code	e3
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.1 A
Nominal output voltage	5 V
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
surface mount	NO
Switch configuration	PHASE-SHIFT
Maximum switching frequency	300 kHz
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

Contact Linear Technology for Potential Replacement

FOR INFORMATION PURPOSES ONLY

OBSOLETE:

SG1524J#PBF Related Products

	SG1524J#PBF	SG3524J#PBF
Description	IC 0.1 A SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, CDIP16, LEAD FREE, CERAMIC, DIP-16, Switching Regulator or Controller	IC 0.1 A SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, CDIP16, LEAD FREE, CERAMIC, DIP-16, Switching Regulator or Controller
Is it Rohs certified?	conform to	conform to
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	16	16
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	ALSO OPERATES IN ADJUSTABLE MODE FROM 0.5V TO 3.8V	ALSO OPERATES IN ADJUSTABLE MODE FROM 0.5V TO 3.8V
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	40 V	40 V
Minimum input voltage	8 V	8 V
Nominal input voltage	20 V	20 V
JESD-30 code	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e3	e3
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	0.1 A	0.1 A
Nominal output voltage	5 V	5 V
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
surface mount	NO	NO
Switch configuration	PHASE-SHIFT	PHASE-SHIFT
Maximum switching frequency	300 kHz	300 kHz
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm
