SR5100: Description5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD; CategoryDiscrete semiconductor diode; File Size188KB，3 Pages; ManufacturerWeitron Technology; Websitehttp://weitron.com.tw/

Download Datasheet Parametric Compare View All

SR5100 Overview

5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD

SR5100 Parametric

Parameter Name	Attribute value
Maker	Weitron Technology
package instruction	O-PALF-W2
Reach Compliance Code	unknow
Other features	LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	200 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

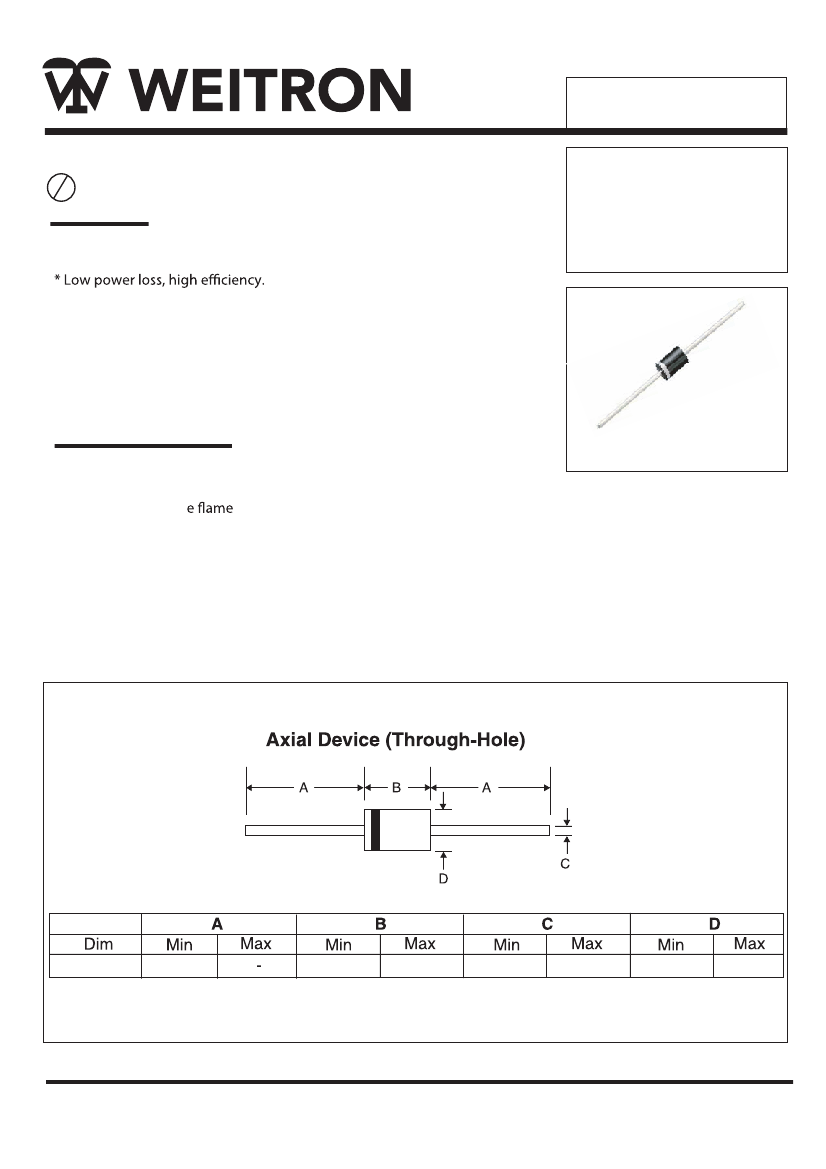

SR520 thru SR5100

Axial Lead Schottky Barrier Rectifiers

P b

Lead(Pb)-Free

FEATURES:

* Low forward voltage drop

* High current capability, low forward voltage drop.

* High surge capability.

* Ultra high-speed switching.

* Silicon epitaxial planar chip, metal silicon junction.

* Lead-free parts meet environmental standards of

MIL-STD-19500 /228

REVERSE VOLTAGE

20 TO 100 VOLTS

FORWARD CURRENT

5.0 AMPERE

MECHANICAL DATA:

* Case: Molded plastic

* Epoxy: UL 94V-0 rat

retardant

* Lead: Axial leads, solderable per MIL-STD-202,

method 208 guranteed

* Polarity: Color band denotes cathode end

* Mounting position: Any

* Weight: 1.10 grams

DO-201AD

DO-201AD Outline Dimensions

Unit:mm

DO-201AD

25.40

7.30

9.50

1.20

1.30

4.80

5.60

WEITRON

http://www.weitron.com.tw

1/3

05-Mar-09

SR5100 Related Products

	SR5100	SR530	SR520	SR550	SR540	SR560	SR580
Description	5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD	5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	RECTIFIER DIODE	RECTIFIER DIODE,SCHOTTKY,60V V(RRM),DO-27	5 A, 80 V, SILICON, RECTIFIER DIODE, DO-201AD
Maker	Weitron Technology	Weitron Technology	Weitron Technology	Weitron Technology	Weitron Technology	Weitron Technology	Weitron Technology
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.55 V	0.55 V	0.7 V	0.55 V	0.7 V	0.85 V
JEDEC-95 code	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	100 A	100 A	100 A	100 A	100 A	100 A	100 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	100 V	30 V	20 V	50 V	40 V	60 V	80 V
Maximum reverse current	200 µA	500 µA	500 µA	500 µA	500 µA	500 µA	200 µA
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
