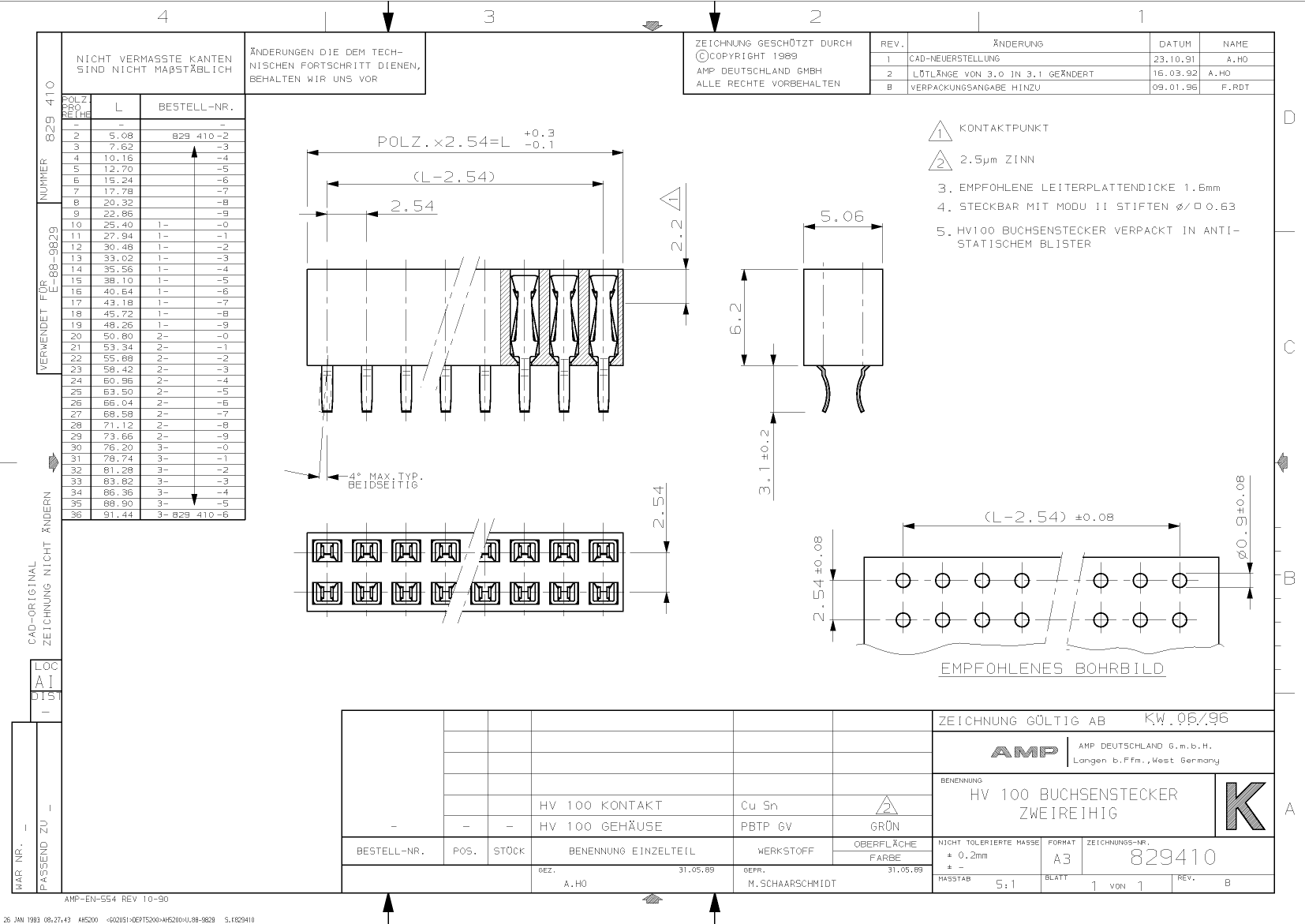

HEADER CONNECTOR,PCB MNT,PLUG,12 CONTACTS,SKT,0.1 PITCH,PC TAIL W/RETNN TERMINAL,GREEN
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| Other features | SIDE BY SIDE STACKABLE |
| body width | 0.199 inch |
| subject depth | 0.244 inch |
| body length | 0.6 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 750VAC V |
| Insulation resistance | 5000000000 Ω |
| Insulator color | GREEN |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | 829410 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Installation method | STRAIGHT TOP MOUNT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 98u inch |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.122 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER KINKED LEADS |
| Total number of contacts | 12 |
| 829410-6 | 2-829410-0 | 3-829410-2 | MJHS-03R1-32A-018-2N11 | 1-829410-4 | 829410-2 | |
|---|---|---|---|---|---|---|
| Description | HEADER CONNECTOR,PCB MNT,PLUG,12 CONTACTS,SKT,0.1 PITCH,PC TAIL W/RETNN TERMINAL,GREEN | 40 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE | 64 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE | Cable Assembly, | 14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, RECEPTACLE | HEADER CONNECTOR,PCB MNT,PLUG,4 CONTACTS,SKT,0.1 PITCH,PC TAIL W/RETNN TERMINAL,GREEN |
| Is it Rohs certified? | conform to | conform to | conform to | incompatible | conform to | conform to |
| Reach Compliance Code | compliant | unknow | unknown | compliant | unknown | compliant |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | FEP, PTFE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -55 °C | -65 °C | -65 °C |
| Maker | TE Connectivity | - | TE Connectivity | - | TE Connectivity | TE Connectivity |
| Other features | SIDE BY SIDE STACKABLE | AMPMODU, TOP ENTRY | AMPMODU, TOP ENTRY | - | AMPMODU, TOP ENTRY, STACKED | SIDE BY SIDE STACKABLE |
| body width | 0.199 inch | 0.199 inch | 0.199 inch | - | 0.199 inch | 0.199 inch |
| subject depth | 0.244 inch | 0.244 inch | 0.244 inch | - | 0.244 inch | 0.244 inch |
| Body/casing type | PLUG | RECEPTACLE | RECEPTACLE | - | RECEPTACLE | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | SN |
| Contact point gender | FEMALE | FEMALE | FEMALE | - | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | - | BELLOWED TYPE | BELLOWED TYPE |
| Dielectric withstand voltage | 750VAC V | 750VAC V | 750VAC V | - | 750VAC V | 750VAC V |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | - | 5000000000 Ω | 5000000000 Ω |
| Insulator color | GREEN | GREEN | GREEN | - | GREEN | GREEN |
| Manufacturer's serial number | 829410 | 829410 | 829410 | - | 829410 | 829410 |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | - | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | - | 0.1 inch | 0.1 inch |
| Installation method | STRAIGHT TOP MOUNT | STRAIGHT | STRAIGHT | - | STRAIGHT | STRAIGHT TOP MOUNT |
| Installation type | BOARD | BOARD | BOARD | - | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | - | ONE | ONE |
| PCB row number | 2 | 2 | 2 | - | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | - | 2 | 2 |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | - | 2.54 mm | 2.54 mm |
| Plating thickness | 98u inch | 98u inch | 98u inch | - | 98u inch | 98u inch |
| Guideline | UL | UL | UL | - | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.122 inch | 0.122 inch | 0.122 inch | - | 0.122 inch | 0.122 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | - | 2.54 mm | 2.54 mm |
| Termination type | SOLDER KINKED LEADS | SOLDER | SOLDER | - | SOLDER KINKED LEADS | SOLDER KINKED LEADS |
| Total number of contacts | 12 | 40 | 64 | - | 14 | 4 |
| DIN compliance | - | NO | NO | NO | NO | - |
| IEC compliance | - | NO | NO | NO | NO | - |
| MIL compliance | - | NO | NO | NO | NO | - |
