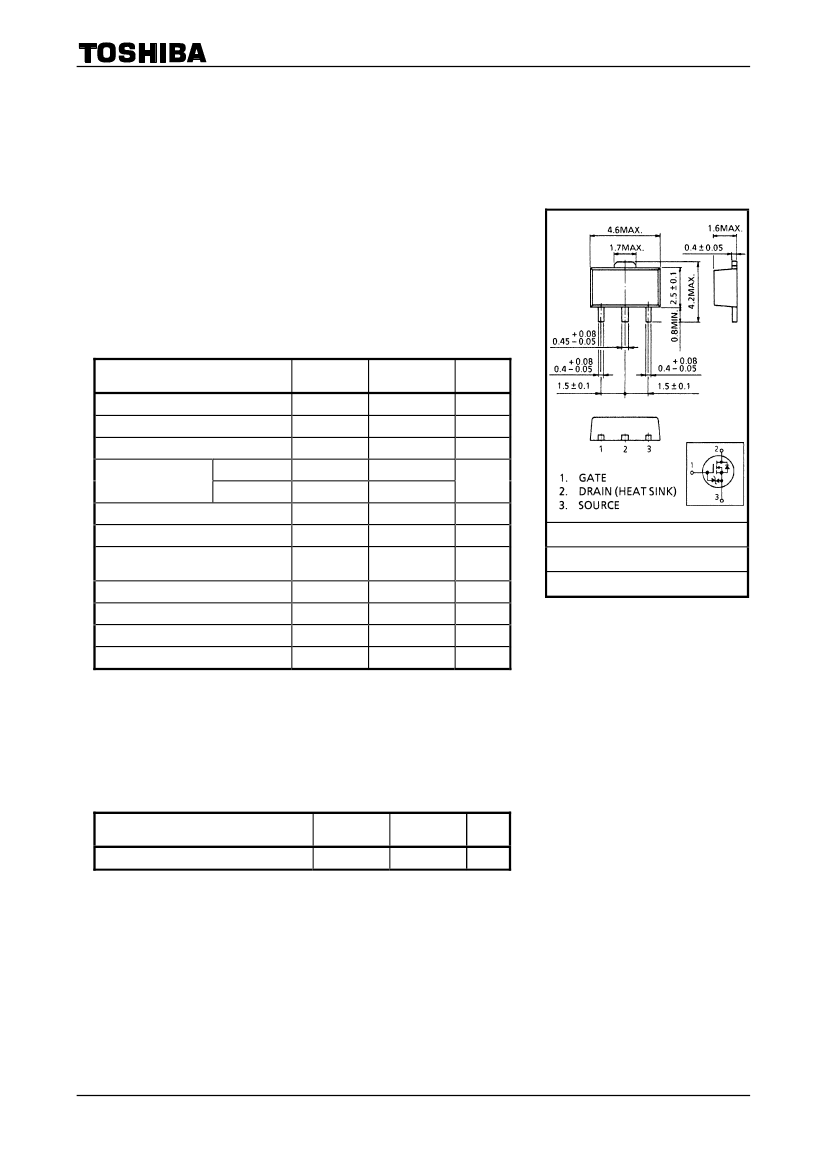

2SK3471
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSV)
2SK3471
Switching Regulator and DC-DC Converter Applications
•
•
•
•
Low drain-source ON-resistance: R
DS (ON)
= 10
Ω
(typ.)
High forward transfer admittance: |Y
fs
| = 0.4 S (typ.)
Low leakage current: I
DSS
= 100
μA
(max) (V
DS
= 500 V)
Enhancement model: V
th
= 2.0 to 4.0 V (V
DS
= 10 V, I
D
= 1 mA)
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Drain-source voltage
Drain-gate voltage (R
GS
=
20 kΩ)
Gate-source voltage
Drain current
Drain power dissipation
Drain power dissipation
(Note 2)
DC
(Note 1)
Symbol
V
DSS
V
DGR
V
GSS
I
D
I
DP
P
D
P
D
E
AS
I
AR
E
AR
T
ch
T
stg
Rating
500
500
±30
0.5
1.5
0.5
1.5
14.3
0.5
0.05
150
−55
to150
Unit
V
V
V
A
W
W
mJ
A
mJ
°C
°C
Pulse (Note 1)
JEDEC
JEITA
TOSHIBA
―
SC-62
2-5K1B
Single pulse avalanche energy
(Note 3)
Avalanche current
Repetitive avalanche energy (Note 4)
Channel temperature
Storage temperature range
Weight: 0.05 g (typ.)
Note:
Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate
reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and
Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
Thermal Characteristics
Characteristics
Thermal resistance, channel to ambient
Symbol
R
th (ch-a)
Max
250
Unit
°C/W
Note 1: Ensure that the channel temperature does not exceed 150°C
Note 2: Mounted on a ceramic substrate (25.4 mm
×
25.4 mm
×
0.8 mm)
Note 3: V
DD
=
90 V, T
ch
=
25°C (initial), L
=
100 mH, R
G
=
25
Ω,
I
AR
=
0.5 A
Note 4: Repetitive rating: pulse width limited by maximum channel temperature
This transistor is an electrostatic-sensitive device. Please handle with caution.
1
2010-04-13
2SK3471
Marking
Note 5: A line beside a Lot No. identifies the indication of product
Labels.
Part No.
(or abbreviation code)
Without a line: [[Pb]]/INCLUDES > MCV
With a line: [[G]]/RoHS COMPATIBLE or [[G]]/RoHS [[Pb]]
Please contact your TOSHIBA sales representative for details as to
environmental matters such as the RoHS compatibility of Product.
The RoHS is the Directive 2002/95/EC of the European Parliament
and of the Council of 27 January 2003 on the restriction of the use of
certain hazardous substances in electrical and electronic equipment.
Z
Lot No.
G
Note 5
Electrical Characteristics (Ta
=
25°C)
Characteristics
Gate leakage current
Gate-source breakdown voltage
Drain cut-OFF current
Drain-source breakdown voltage
Gate threshold voltage
Drain-source ON resistance
Forward transfer admittance
Input capacitance
Reverse transfer capacitance
Output capacitance
Rise time
Turn-ON time
Switching time
Fall time
Turn-OFF time
Total gate charge
(gate-source plus gate-drain)
Gate-source charge
Gate-drain (“miller”) charge
t
f
t
off
Q
g
Q
gs
Q
gd
V
DD
≈
400 V, V
GS
=
10 V, I
D
=
0.5 A
Symbol
I
GSS
V
(BR) GSS
I
DSS
V
(BR) DSS
V
th
R
DS (ON)
⎪Y
fs
⎪
C
iss
C
rss
C
oss
t
r
t
on
4.7
Ω
10 V
V
GS
0V
I
D
=
0.25 A
V
OUT
V
DS
=
10 V, V
GS
=
0 V, f
=
1 MHz
Test Condition
V
GS
= ±25
V, V
DS
=
0 V
I
G
= ±10 μA,
V
DS
=
0 V
V
DS
=
500 V, V
GS
=
0 V
I
D
=
10 mA, V
GS
=
0 V
V
DS
=
10 V, I
D
=
1 mA
V
GS
=
10 V, I
D
=
0.25 A
V
DS
=
10 V, I
D
=
0.25 A
Min
⎯
±30
⎯
500
2.0
⎯
0.2
⎯
⎯
⎯
⎯
⎯
⎯
V
DD
≈
250 V
⎯
⎯
⎯
⎯
Typ.
⎯
⎯
⎯
⎯
⎯
10
0.4
75
7
24
11
18
54
95
3.8
1.9
1.9
Max
±10
⎯
100
⎯
4.0
18
⎯
⎯
⎯
⎯
⎯
⎯
ns
⎯
⎯
⎯
⎯
⎯
nC
pF
Unit
μA
V
μA
V
V
Ω
S
R
L
=
1 kΩ
Duty
≤
1%, t
w
=
10
μs
Source-Drain Ratings and Characteristics
(Ta
=
25°C)
Characteristics
Continuous drain reverse current (Note 1)
Pulse drain reverse current
Forward voltage (diode)
Reverse recovery time
Reverse recovery charge
(Note 1)
Symbol
I
DR
I
DRP
V
DSF
t
rr
Q
rr
Test Condition
⎯
⎯
I
DR
=
0.5 A, V
GS
=
0 V
I
DR
=
0.5 A, V
GS
=
0 V,
dI
DR
/dt
=
100 A /
μs
Min
⎯
⎯
⎯
⎯
⎯
Typ.
⎯
⎯
⎯
190
380
Max
0.5
1.5
−1.5
⎯
⎯
Unit
A
A
V
ns
nC
2
2010-04-13
2SK3471
