829575-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 829575-8

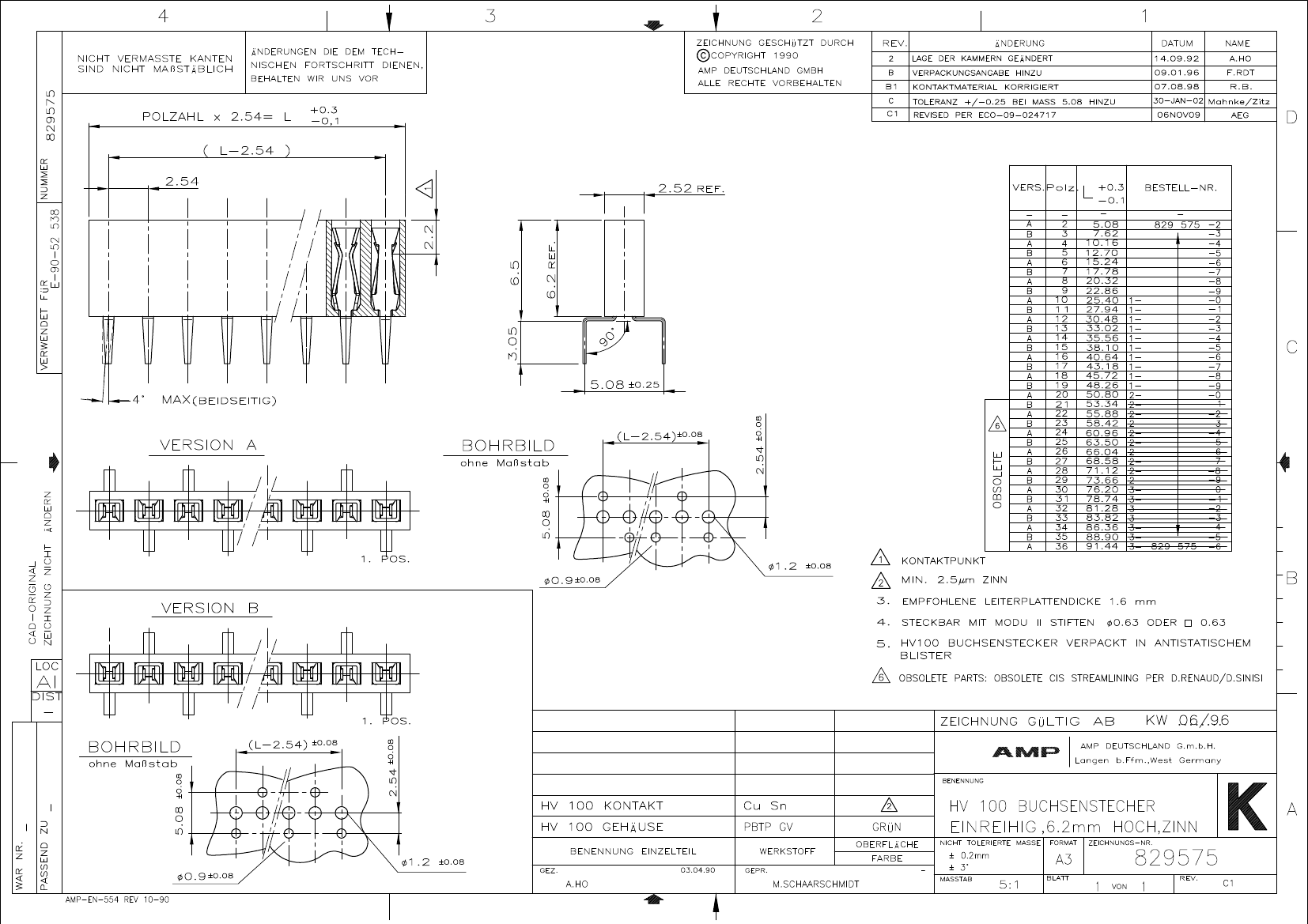

829575-8: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,8 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

829575-8 Overview

HEADER CONNECTOR,PCB MNT,PLUG,8 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN

829575-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	303080251
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
Other features	BOTTOM OR TOP ENTRY
body width	0.099 inch
subject depth	0.244 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	750VAC V
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	5.08 mm
Plating thickness	98u inch
Guideline	UL
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

829575-8 Related Products

	829575-8	1-829575-6	MN-2J2-015-PP1-45YP	829575-2	829575-4	829575-6	829575-7	2-829575-0
Description	HEADER CONNECTOR,PCB MNT,PLUG,8 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, RECEPTACLE	Cable Assembly	HEADER CONNECTOR,PCB MNT,PLUG,2 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,4 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,6 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,7 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant	compliant	unknown
Objectid	303080251	-	7128219039	303080245	303080247	303080249	303080250	-
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BOTTOM OR TOP ENTRY	AMPMODU, TOP OR BOTTOM ENTRY	-	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY
body width	0.099 inch	0.099 inch	-	0.099 inch	0.099 inch	0.099 inch	0.099 inch	0.099 inch
subject depth	0.244 inch	0.244 inch	-	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch
Body/casing type	PLUG	RECEPTACLE	-	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	NOT SPECIFIED	-	SN	SN	SN	SN	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	750VAC V	750VAC V	-	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN	-	GREEN	GREEN	GREEN	GREEN	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	-	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	-	2	2	2	2	2
Number of rows loaded	1	1	-	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	STAGGERED	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	5.08 mm	5.08 mm	-	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Plating thickness	98u inch	98u inch	-	98u inch	98u inch	98u inch	98u inch	98u inch
Guideline	UL	UL	-	UL	UL	UL	UL	UL
Terminal pitch	5.08 mm	2.54 mm	-	5.08 mm	5.08 mm	5.08 mm	5.08 mm	2.54 mm
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	16	-	2	4	6	7	20
