3-829576-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-829576-3

3-829576-3: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,66 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-829576-3 Overview

HEADER CONNECTOR,PCB MNT,PLUG,66 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN

3-829576-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	303021602
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
Other features	BOTTOM OR TOP ENTRY
body width	0.199 inch
subject depth	0.244 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	750VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.62 mm
Plating thickness	98u inch
Guideline	UL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	66

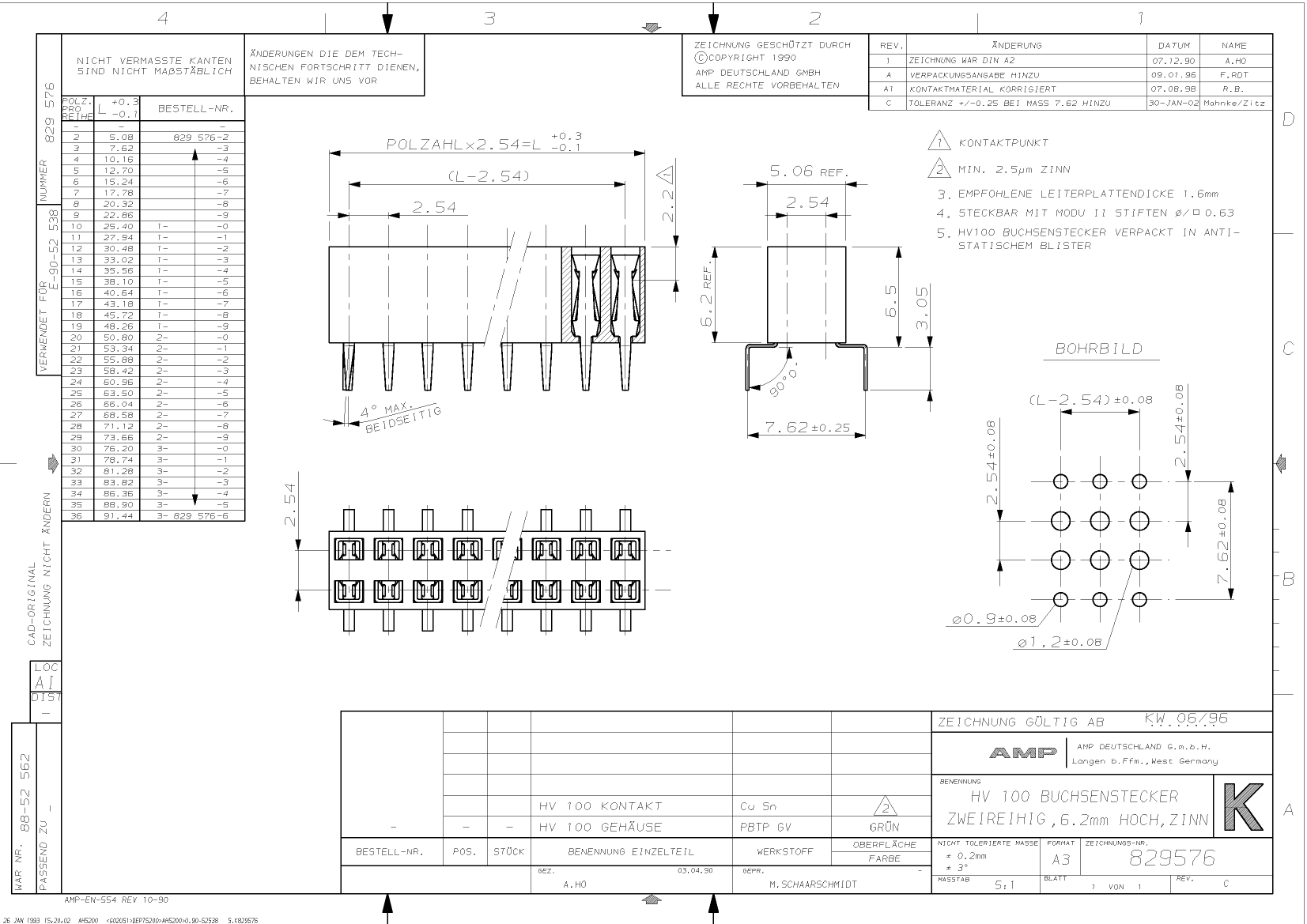

3-829576-3 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

3-829576-3 Related Products

	3-829576-3	2-829576-2	3-829576-2	3-829576-4	2-829576-4	3-829576-6	2-829576-7	2-829576-8	2-829576-9	3-829576-1
Description	HEADER CONNECTOR,PCB MNT,PLUG,66 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,44 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,64 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,68 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,48 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,72 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,54 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,56 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,58 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,62 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY
body width	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch
subject depth	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Plating thickness	98u inch	98u inch	98u inch	98u inch	98u inch	98u inch	98u inch	98u inch	98u inch	98u inch
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	66	44	64	68	48	72	54	56	58	62
Objectid	303021602	303019646	-	303021603	-	303021605	303019651	-	-	303021600
ECCN code	EAR99	EAR99	-	EAR99	-	EAR99	EAR99	-	-	EAR99
Manufacturer's serial number	-	-	829576	829576	829576	-	829576	829576	829576	829576
reliability	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
