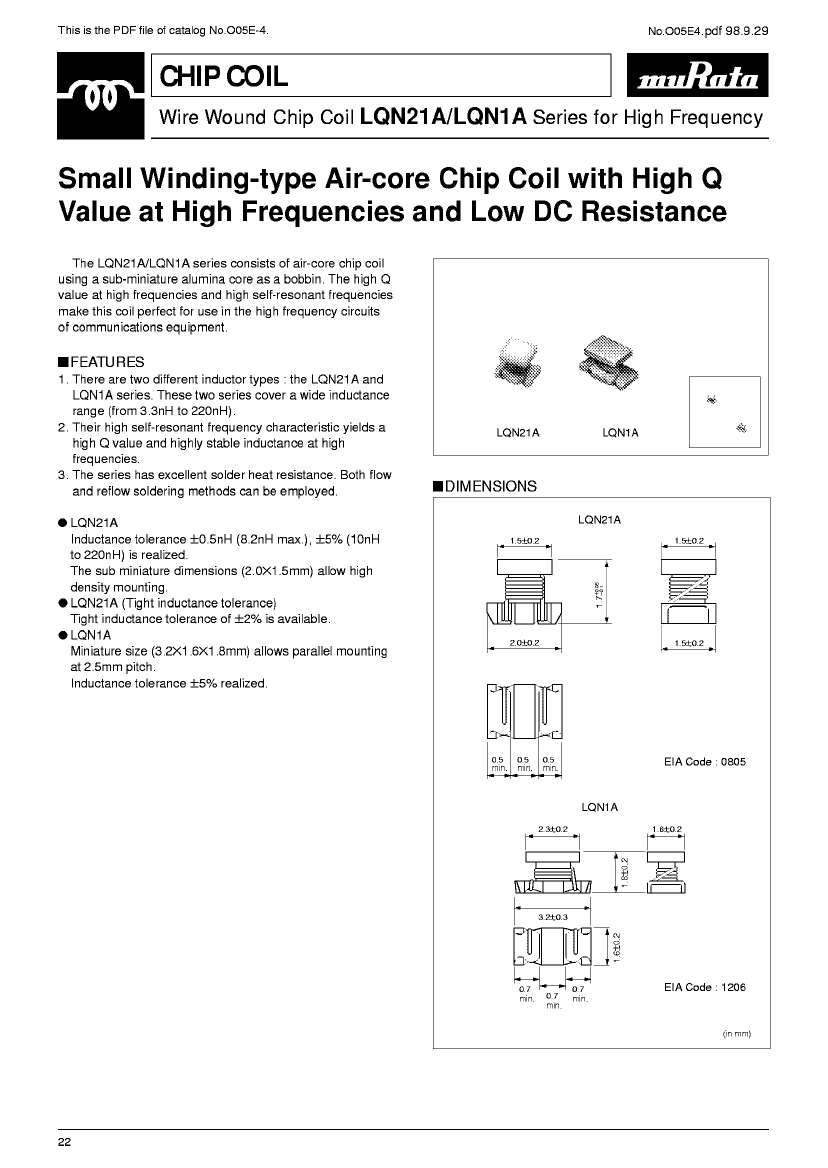

Preview

LQN21AAR15J04: DescriptionGeneral Purpose Inductor, 0.15uH, 5%, 1 Element, Alumina-Core, SMD, CHIP, 0805; CategoryPassive components inductor; File Size73KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

LQN21AAR15J04 Overview

General Purpose Inductor, 0.15uH, 5%, 1 Element, Alumina-Core, SMD, CHIP, 0805

LQN21AAR15J04 Parametric

Parameter Name	Attribute value
Maker	Murata
package instruction	CHIP, 0805
Reach Compliance Code	unknown
ECCN code	EAR99
core material	ALUMINA
DC Resistance	0.47 Ω
Nominal inductance(L)	0.15 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.39 A
self resonant frequency	350 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 150MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	100 MHz
Tolerance	5%

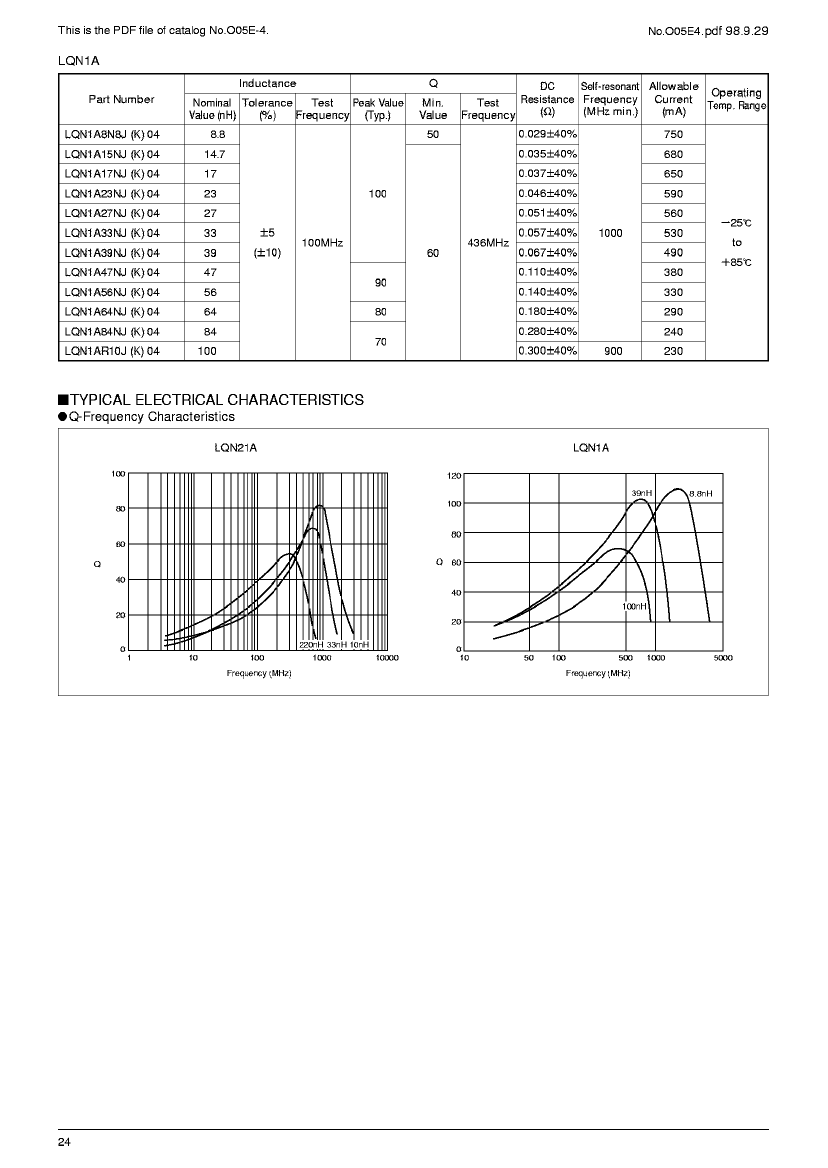

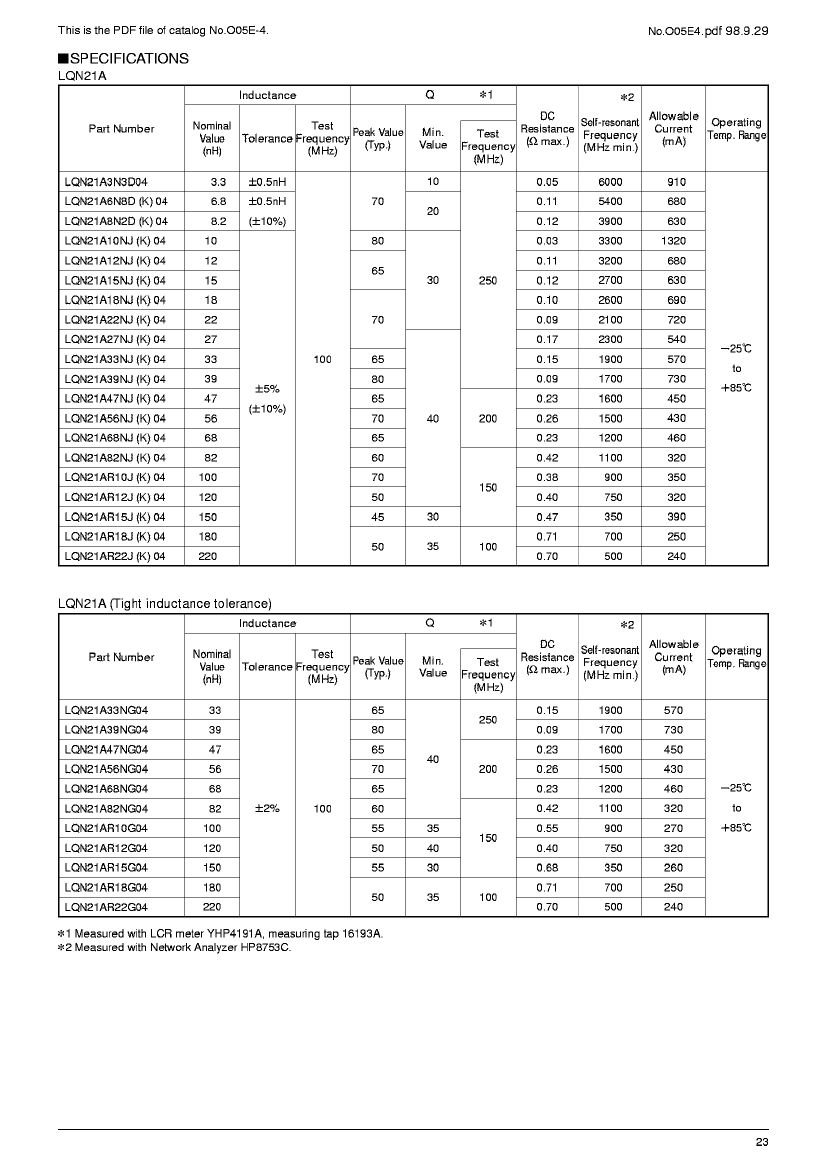

Preview

Download Datasheet

View All

LQN21AAR15J04 Related Products

	LQN21AAR15J04	LQN21AAR22K04	LQN21AAR15K04	LQN21AAR22J04	LQN21AAR18K04	LQN21AAR10K04	LQN21AAR10J04	LQN21AAR18J04
Description	General Purpose Inductor, 0.15uH, 5%, 1 Element, Alumina-Core, SMD, CHIP, 0805	General Purpose Inductor, 0.22uH, 10%, 1 Element, Alumina-Core, SMD, CHIP, 0805	General Purpose Inductor, 0.15uH, 10%, 1 Element, Alumina-Core, SMD, CHIP, 0805	General Purpose Inductor, 0.22uH, 5%, 1 Element, Alumina-Core, SMD, CHIP, 0805	General Purpose Inductor, 0.18uH, 10%, 1 Element, Alumina-Core, SMD, CHIP, 0805	General Purpose Inductor, 0.1uH, 10%, 1 Element, Alumina-Core, SMD, CHIP, 0805	General Purpose Inductor, 0.1uH, 5%, 1 Element, Alumina-Core, SMD, CHIP, 0805	General Purpose Inductor, 0.18uH, 5%, 1 Element, Alumina-Core, SMD, CHIP, 0805
package instruction	CHIP, 0805	CHIP, 0805	CHIP, 0805	CHIP, 0805	CHIP, 0805	CHIP, 0805	CHIP, 0805	CHIP, 0805
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	ALUMINA	ALUMINA	ALUMINA	ALUMINA	ALUMINA	ALUMINA	ALUMINA	ALUMINA
DC Resistance	0.47 Ω	0.7 Ω	0.47 Ω	0.7 Ω	0.71 Ω	0.38 Ω	0.38 Ω	0.71 Ω
Nominal inductance(L)	0.15 µH	0.22 µH	0.15 µH	0.22 µH	0.18 µH	0.1 µH	0.1 µH	0.18 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Minimum quality factor (at nominal inductance)	30	35	30	35	35	40	40	35
Maximum rated current	0.39 A	0.24 A	0.39 A	0.24 A	0.25 A	0.35 A	0.35 A	0.25 A
self resonant frequency	350 MHz	500 MHz	350 MHz	500 MHz	700 MHz	900 MHz	900 MHz	700 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO
special characteristics	Q MEASURED AT 150MHZ	Q MEASURED AT 100MHZ	Q MEASURED AT 150MHZ	Q MEASURED AT 100MHZ	Q MEASURED AT 100MHZ	Q MEASURED AT 150MHZ	Q MEASURED AT 150MHZ	Q MEASURED AT 100MHZ
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Test frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Tolerance	5%	10%	10%	5%	10%	10%	5%	5%
Maker	Murata	-	-	Murata	Murata	Murata	Murata	Murata
