B250C800DM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B250C800DM

B250C800DM: DescriptionBridge Rectifier Diode, 1 Phase, 0.9A, 400V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size76KB，2 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

B250C800DM Overview

Bridge Rectifier Diode, 1 Phase, 0.9A, 400V V(RRM), Silicon,

B250C800DM Parametric

Parameter Name	Attribute value
Maker	General Instrument Corp
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PDIP-T4
Maximum non-repetitive peak forward current	45 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	0.9 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	0.00001 µA
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	DUAL

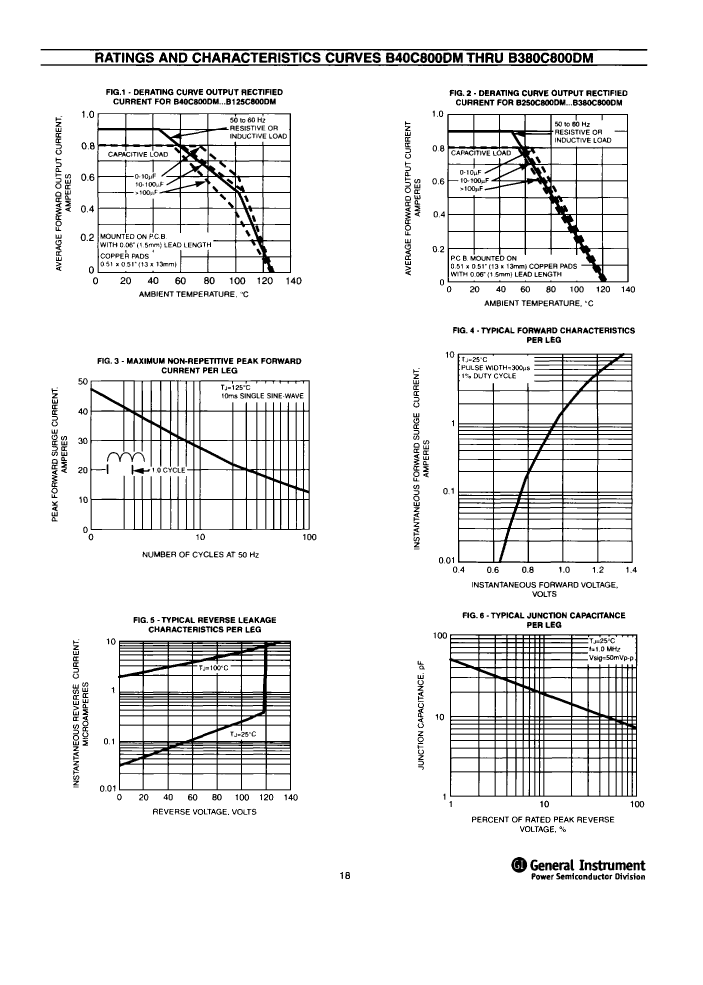

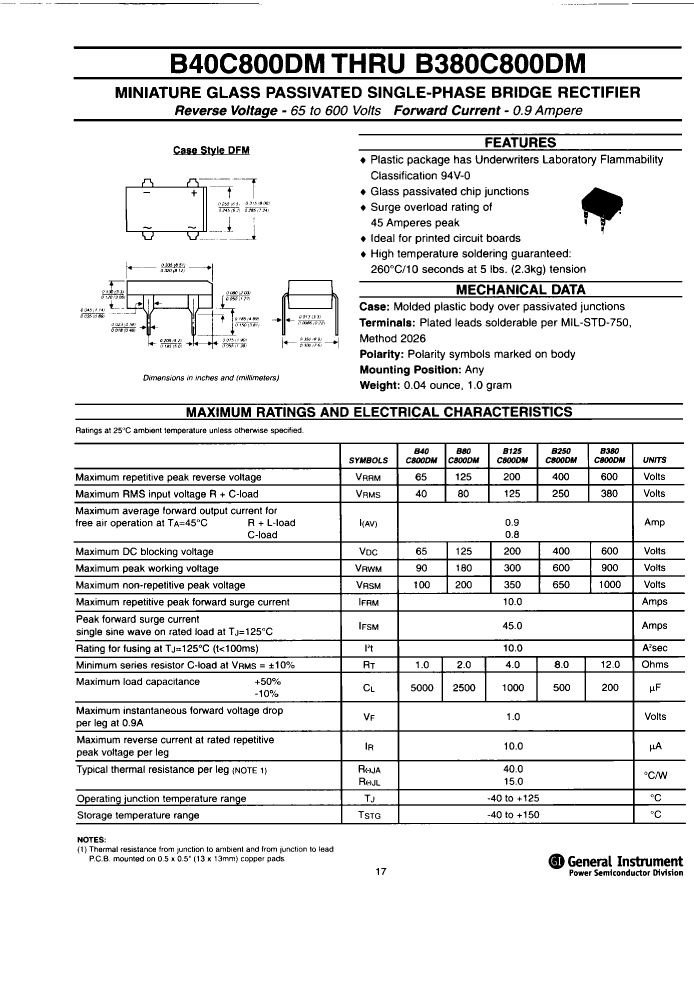

Preview

Download Datasheet

View All

B250C800DM Related Products

	B250C800DM	B40C800DM	B380C800DM	B80C800DM	B125C800DM
Description	Bridge Rectifier Diode, 1 Phase, 0.9A, 400V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 0.9A, 65V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 0.9A, 600V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 0.9A, 125V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 0.9A, 200V V(RRM), Silicon,
Maker	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V
JESD-30 code	R-PDIP-T4	R-PDIP-T4	R-PDIP-T4	R-PDIP-T4	R-PDIP-T4
Maximum non-repetitive peak forward current	45 A	45 A	45 A	45 A	45 A
Number of components	4	4	4	4	4
Phase	1	1	1	1	1
Number of terminals	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	0.9 A	0.9 A	0.9 A	0.9 A	0.9 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	65 V	600 V	125 V	200 V
Maximum reverse current	0.00001 µA	0.00001 µA	0.00001 µA	0.00001 µA	0.00001 µA
surface mount	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
